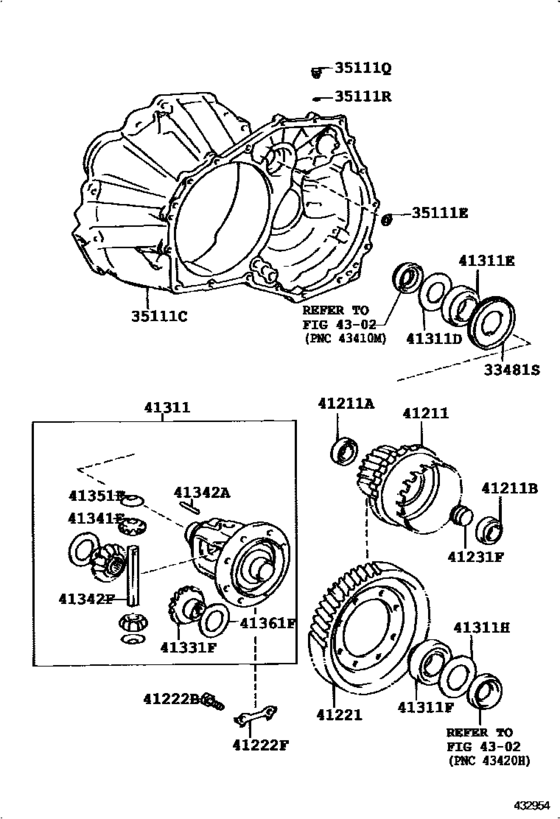

Front Axle Housing & Differential ([05.1995 - ] A241L (9505- )CE110,113..4FC) Diagram Toyota COROLLA
- Year
- 1998 - 2000
- Sales region
- Japan
- Frame
- CE113
- grade
- SESAL
- body
- SED
- ENGINE
- 3CE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 04.1998
- To
- 08.2000
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33481S
|
33481S
33481-32010 Gear, Speedometer Drive (Mtm)[04.1997 - 08.2000] CE110,113..4FC 歯数＝２５，マーク無し |
33481-32010 |
from US $24.98 |
||
|
35111C
|
35111C
35105-20014 Housing, Transaxle[04.1997 - 08.2000] CE110,113..4FC |
35105-20014 |
US $803.71 |
||
|
35111E
|
35111E
90210-13002 Washer, Seal (For Front Transaxle Housing)[04.1997 - 08.2000] AE11#,CE110,113..4FC |
90210-13002 |
US $4.08 |
||
|
41211
|
41211
41206-20060 Pinion, Differential Drive[04.1997 - 08.2000] CE110,113..4FC |
41206-20060 |
US $336.34 |
||
|
41211A
|
41211A
90366-30054 Bearing (For Rear Drive Pinion Rear)[04.1997 - 08.2000] AE114,CE110,113..4FC |
90366-30054 |
US $43.24 |
||
|
41211B
|
41211B
90366-30053 Bearing (For Rear Drive Pinion Front)[04.1997 - 08.2000] AE114,CE110,113..4FC |
90366-30053 |
US $43.24 |
||
| replacement | |||||
|
41211B
|
41211B
90366-30085 Bearing, Tapered Roller (For Front Drive Pinion Front)[04.1997 - 08.2000] AE114,CE110,113..4FC |
90366-30085 |
US $40.91 |
||
|
41221
|
41221
41221-20200 Gear, Front Differential Ring[04.1997 - 08.2000] CE110,113..4FC |
41221-20200 |
US $165.98 |
||
|
41222B
|
41222B
90101-11353 Bolt (For Rear Differential Ring Gear Set)[04.1997 - 08.2000] AE110,111,CE110,113,EE111..ATM |
90101-11353 |
from US $0.90 |
||
|
41222F
|
41222F
41222-20030 Plate, Rear Differential Ring Gear Set Bolt Lock[04.1997 - 08.2000] CE110,113..4FC |
41222-20030 |
US $3.06 |
||
|
41231F
|
41231F
41231-17010 Spacer, Rear Differential Drive Pinion Bearing[04.1997 - 08.2000] AE114,CE110,113..4FC |
41231-17010 |
US $10.05 |
||
|
41311
|
41311
41301-20112 Case Sub-Assy, Rear Differential[04.1997 - 08.2000] CE110,113..4FC |
41301-20112 |
US $573.66 |
||
|
41311D
|
41311D
90564-45015 Shim(For Rear Differential Case)[04.1997 - 08.2000] CE110,113..4FC 厚さ＝２．６０，マーク １５ |
90564-45015 |
US $4.80 |
||
|
41311E
|
41311E
90368-40002 Bearing(For Rear Differential Case)[04.1997 - 08.2000] CE110,113..4FC |
90368-40002 |
US $31.74 |
||
|
41311F
|
41311F
90366-44001 Bearing(For Rear Differential Case)[04.1997 - 08.2000] CE110,113..4FC |
90366-44001 |
from US $25.33 |
||
|
41311H
|
41311H
90201-45004 Washer, Plate (For Front Differential Case Rear)[04.1997 - 08.2000] CE110,113..4FC 厚さ＝２．００，マーク ０１ |
90201-45004 |
US $5.24 |
||
|
41311H
|
41311H
90201-45005 Washer, Plate (For Front Differential Case Rear)[04.1997 - 08.2000] CE110,113..4FC 厚さ＝２．０５，マーク ０２ |
90201-45005 |
US $5.24 |
||
|
41311H
|
41311H
90201-45006 Washer, Plate (For Front Differential Case Rear)[04.1997 - 08.2000] CE110,113..4FC 厚さ＝２．１０，マーク ０３ |
90201-45006 |
US $5.24 |
||
|
41311H
|
41311H
90201-45007 Washer, Plate (For Front Differential Case Rear)[04.1997 - 08.2000] CE110,113..4FC 厚さ＝２．１５，マーク ０４ |
90201-45007 |
US $5.24 |
||
|
41311H
|
41311H
90201-45008 Washer, Plate (For Front Differential Case Rear)[04.1997 - 08.2000] CE110,113..4FC 厚さ＝２．２０，マーク ０５ |
90201-45008 |
US $5.24 |
||
|
41311H
|
41311H
90201-45009 Washer, Plate (For Front Differential Case Rear)[04.1997 - 08.2000] CE110,113..4FC 厚さ＝２．２５，マーク ０６ |
90201-45009 |
US $5.24 |
||
|
41311H
|
41311H
90201-45010 Washer, Plate (For Front Differential Case Rear)[04.1997 - 08.2000] CE110,113..4FC 厚さ＝２．３０，マーク ０７ |
90201-45010 |
US $5.24 |
||
|
41311H
|
41311H
90201-45011 Washer, Plate (For Front Differential Case Rear)[04.1997 - 08.2000] CE110,113..4FC 厚さ＝２．３５，マーク ０８ |
90201-45011 |
US $5.24 |
||
|
41311H
|
41311H
90201-45012 Washer, Plate (For Front Differential Case Rear)[04.1997 - 08.2000] CE110,113..4FC 厚さ＝２．４０，マーク ０９ |
90201-45012 |
US $5.24 |
||
|
41311H
|
41311H
90201-45013 Washer, Plate (For Front Differential Case Rear)[04.1997 - 08.2000] CE110,113..4FC 厚さ＝２．４５，マーク １０ |
90201-45013 |
US $5.24 |
||
|
41311H
|
41311H
90201-45014 Washer, Plate (For Front Differential Case Rear)[04.1997 - 08.2000] CE110,113..4FC 厚さ＝２．５０，マーク １１ |
90201-45014 |
US $5.24 |
||
|
41311H
|
41311H
90201-45015 Washer, Plate (For Front Differential Case Rear)[04.1997 - 08.2000] CE110,113..4FC 厚さ＝２．５５，マーク １２ |
90201-45015 |
US $6.84 |
||
|
41311H
|
41311H
90201-45016 Washer, Plate (For Front Differential Case Rear)[04.1997 - 08.2000] CE110,113..4FC 厚さ＝２．６０，マーク １３ |
90201-45016 |
US $6.84 |
||
|
41311H
|
41311H
90201-45017 Washer, Plate (For Front Differential Case Rear)[04.1997 - 08.2000] CE110,113..4FC 厚さ＝２．６５，マーク １４ |
90201-45017 |
US $6.84 |
||
|
41311H
|
41311H
90201-45018 Washer, Plate (For Front Differential Case Rear)[04.1997 - 08.2000] CE110,113..4FC 厚さ＝２．７０，マーク １５ |
90201-45018 |
US $6.84 |
||
|
41311H
|
41311H
90201-45019 Washer, Plate (For Front Differential Case Rear)[04.1997 - 08.2000] CE110,113..4FC 厚さ＝２．７５，マーク １６ |
90201-45019 |
US $6.84 |
||
|
41311H
|
41311H
90201-45020 Washer, Plate (For Front Differential Case Rear)[04.1997 - 08.2000] CE110,113..4FC 厚さ＝２．８０，マーク １７ |
90201-45020 |
US $6.84 |
||
|
41311H
|
41311H
90201-45021 Washer, Plate (For Front Differential Case Rear)[04.1997 - 08.2000] CE110,113..4FC 厚さ＝２．８５，マーク １８ |
90201-45021 |
US $6.84 |
||
|
41311H
|
41311H
90201-45022 Washer, Plate (For Front Differential Case Rear)[04.1997 - 08.2000] CE110,113..4FC 厚さ＝２．９０，マーク １９ |
90201-45022 |
US $6.84 |
||
|
41331F
|
41331F
41331-32010 Gear, Rear Differential Side[04.1997 - 08.2000] CE110,113 |
41331-32010 |
US $55.74 |
||
|
41341F
|
41341F
41341-30011 Pinion, Rear Differential[04.1997 - 08.2000] CE110,113 |
41341-30011 |
from US $32.83 |
||
| replacement | |||||
|
41341F
|
41341F
41039-28010 Gear Kit, Differential, Rear[04.1997 - 08.2000] CE110,113 |
41039-28010 |
US $251.60 |
||
|
41342A
|
41342A
90250-06058 Pin, Straight(For Timing Gear Case)[04.1997 - 08.2000] AE110,111,CE110,113,EE111 |
90250-06058 |
US $2.56 |
||
|
41342F
|
41342F
41342-32020
Shaft, Rear Differential Pinion
[04.1997 - 08.2000] CE110,113 |
41342-32020 |
— | ||
| replacement | |||||
|
41342F
|
41342F
41342-52060 Shaft, Front Differential Pinion, No.1[04.1997 - 08.2000] CE110,113 |
41342-52060 |
US $17.82 |
||
|
41351F
|
41351F
41351-32010 Washer, Rear Differential Pinion Thrust[04.1997 - 08.2000] CE110,113 |
41351-32010 |
US $1.56 |
||
|
41361F
|
41361F
41361-17010 Washer, Rear Differential Side Gear Thrust, No.1[08.1997 - 08.2000] AE110,111,CE110,113,EE111..ATM 厚さ＝０．９５ |
41361-17010 |
US $3.14 |
||
|
41361F
|
41361F
41361-17020 Washer, Rear Differential Side Gear Thrust, No.1[08.1997 - 08.2000] AE110,111,CE110,113,EE111..ATM 厚さ＝１．００ |
41361-17020 |
US $2.62 |
||
|
41361F
|
41361F
41361-17030 Washer, Rear Differential Side Gear Thrust, No.1[08.1997 - 08.2000] AE110,111,CE110,113,EE111..ATM 厚さ＝１．０５ |
41361-17030 |
US $2.62 |
||
|
41361F
|
41361F
41361-17040 Washer, Rear Differential Side Gear Thrust, No.1[08.1997 - 08.2000] AE110,111,CE110,113,EE111..ATM 厚さ＝１．１０ |
41361-17040 |
US $2.62 |
||
|
41361F
|
41361F
41361-17050 Washer, Rear Differential Side Gear Thrust, No.1[08.1997 - 08.2000] AE110,111,CE110,113,EE111..ATM 厚さ＝１．１５ |
41361-17050 |
US $3.32 |
||
|
41361F
|
41361F
41361-17060 Washer, Rear Differential Side Gear Thrust, No.1[08.1997 - 08.2000] AE110,111,CE110,113,EE111..ATM 厚さ＝１．２０ |
41361-17060 |
US $2.62 |
||
