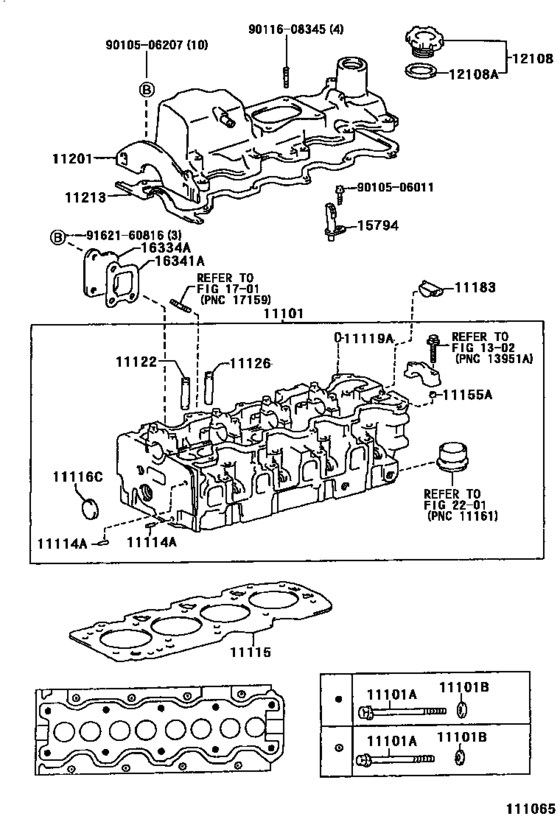

Cylinder Head ([04.1998 - ] (9804- )3CE) Diagram Toyota COROLLA
- Year
- 1998 - 2000
- Sales region
- Japan
- Frame
- CE116
- grade
- LX
- body
- SED
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 04.1998
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11101
|
11101
11101-64350 Head Sub-Assy, Cylinder[04.1998 - 03.1999] 3CE..CE11# |
11101-64350 |
US $1,732.64 |
||
| replacement | |||||
|
11101
|
11101
11101-64351 Head Sub-Assy, Cylinder[04.1998 - 03.1999] 3CE..CE11# |
11101-64351 |
US $1,732.64 |
||
|
11101
|
11101
11101-64351 Head Sub-Assy, Cylinder[03.1999 - 08.2000] 3CE..CE11# |
11101-64351 |
US $1,732.64 |
||
|
11101A
|
11101A
90910-02130 Bolt(For Cylinder Head Set)[04.1998 - 08.2000] 3CE..CE11# ＊１１−１．２５ＰＸ１４５−５３ |
90910-02130 |
US $8.16 |
||
|
11101A
|
11101A
90910-02131 Bolt(For Cylinder Head Set)[04.1998 - 08.2000] 3CE..CE11# ＊１１−１．２５ＰＸ１２３−５３ |
90910-02131 |
US $6.56 |
||
|
11101B
|
11101B
90201-12222 Washer, Plate(For Cylinder Head Set)[04.1997 - 08.2000] 2C,3CE..CE11# |
90201-12222 |
from US $1.07 |
||
|
11114A
|
11114A
90250-06068 Pin, Straight[04.1997 - 08.2000] 2C,3CE..CE11# 長さ＝１１，外径＝６ |
90250-06068 |
from US $1.93 |
||
|
11115
|
11115
11115-64180-A0
Gasket, Cylinder Head
[04.1998 - 08.1998] 3CE..CE11# MARK 1 |
11115-64180-A0 |
— | ||
| replacement | |||||
|
11115
|
11115
11115-64200-01 Gasket, Cylinder Head[04.1998 - 08.1998] 3CE..CE11# MARK 1 |
11115-64200-01 |
US $101.34 |
||
|
11115
|
11115
11115-64180-B0 Gasket, Cylinder Head[04.1998 - 08.1998] 3CE..CE11# MARK 2 |
11115-64180-B0 |
US $104.83 |
||
| replacement | |||||
|
11115
|
11115
11115-64200-02 Gasket, Cylinder Head[04.1998 - 08.1998] 3CE..CE11# MARK 2 |
11115-64200-02 |
from US $65.77 |
||
|
11115
|
11115
11115-64180-C0 Gasket, Cylinder Head[04.1998 - 08.1998] 3CE..CE11# MARK 3 |
11115-64180-C0 |
US $104.83 |
||
| replacement | |||||
|
11115
|
11115
11115-64200-03 Gasket, Cylinder Head[04.1998 - 08.1998] 3CE..CE11# MARK 3 |
11115-64200-03 |
from US $72.85 |
||
|
11115
|
11115
11115-64181-01 Gasket, Cylinder Head[08.1998 - 03.1999] 3CE..CE11# MARK 1 |
11115-64181-01 |
US $104.83 |
||
| replacement | |||||
|
11115
|
11115
11115-64200-01 Gasket, Cylinder Head[08.1998 - 03.1999] 3CE..CE11# MARK 1 |
11115-64200-01 |
US $101.34 |
||
|
11115
|
11115
11115-64181-02 Gasket, Cylinder Head[08.1998 - 03.1999] 3CE..CE11# MARK 2 |
11115-64181-02 |
US $104.83 |
||
| replacement | |||||
|
11115
|
11115
11115-64200-02 Gasket, Cylinder Head[08.1998 - 03.1999] 3CE..CE11# MARK 2 |
11115-64200-02 |
from US $65.77 |
||
|
11115
|
11115
11115-64181-03 Gasket, Cylinder Head[08.1998 - 03.1999] 3CE..CE11# MARK 3 |
11115-64181-03 |
US $104.83 |
||
| replacement | |||||
|
11115
|
11115
11115-64200-03 Gasket, Cylinder Head[08.1998 - 03.1999] 3CE..CE11# MARK 3 |
11115-64200-03 |
from US $72.85 |
||
|
11115
|
11115
11115-64200-01 Gasket, Cylinder Head[03.1999 - 08.2000] 3CE..CE11# MARK 1 |
11115-64200-01 |
US $101.34 |
||
|
11115
|
11115
11115-64200-02 Gasket, Cylinder Head[03.1999 - 08.2000] 3CE..CE11# MARK 2 |
11115-64200-02 |
from US $65.77 |
||
|
11115
|
11115
11115-64200-03 Gasket, Cylinder Head[03.1999 - 08.2000] 3CE..CE11# MARK 3 |
11115-64200-03 |
from US $72.85 |
||
|
11116C
|
11116C
96411-63000 Plug, Tight[05.1997 - 08.2000] 2C,3CE..CE11# |
96411-63000 |
from US $3.36 |
||
|
11119A
|
11119A
90250-06013 Pin, Straight, No.1[04.1997 - 08.2000] 2C,3CE..CE11# 長さ＝１６，外径＝６ |
90250-06013 |
US $0.61 |
||
|
11122
|
11122
11122-64010 Bush, Intake Valve Guide[04.1997 - 08.2000] 2C,3CE..CE11# ＳＴＤ |
11122-64010 |
from US $7.80 |
||
|
11122
|
11122
11123-64010 Bush, Intake Valve Guide[04.1997 - 08.2000] 2C,3CE..CE11# Ｏ／Ｓ ０．０５ |
11123-64010 |
US $8.30 |
||
|
11126
|
11126
11126-64030 Bush, Exhaust Valve Guide[08.1997 - 08.2000] 2C,3CE..CE11# ＳＴＤ |
11126-64030 |
from US $7.13 |
||
|
11126
|
11126
11127-64030 Bush, Exhaust Valve Guide[08.1997 - 08.2000] 2C,3CE..CE11# Ｏ／Ｓ ０．０５ |
11127-64030 |
US $7.13 |
||
|
11155A
|
11155A
90253-11021 Pin, Ring[04.1997 - 08.2000] 2C,3CE..CE11# |
90253-11021 |
from US $1.46 |
||
|
11183
|
11183
11183-64010 Plug, Semicircular[04.1997 - 08.2000] 2C,3CE..CE11# |
11183-64010 |
from US $7.10 |
||
|
11201
|
11201
11201-64160 Cover Sub-Assy, Cylinder Head[04.1998 - 08.2000] 3CE..CE11# |
11201-64160 |
US $291.20 |
||
|
11213
|
11213
11213-64061 Gasket, Cylinder Head Cover[04.1997 - 08.2000] 2C,3CE..CE11# |
11213-64061 |
from US $16.48 |
||
|
12108
|
12108
12180-55010 Cap Sub-Assy, Oil Filler[04.1997 - 08.2000] 2C,3CE..CE11#; 4EFE..EE111; 4AFE,5AFE..AE110,114 |
12180-55010 |
from US $10.08 |
||
|
12108A
|
12108A
90430-37140 Gasket(For Oil Filler Cap)[04.1997 - 08.2000] 2C,3CE..CE11#; 4EFE..EE111; 4AFE,5AFE..AE110,114 |
90430-37140 |
from US $1.21 |
||
|
15794
|
15794
15794-64011 Nozzle, Cylinder Head Oil[04.1997 - 08.2000] 2C,3CE..CE11# |
15794-64011 |
from US $4.88 |
||
|
16334A
|
16334A
16334-64010 Cover, Water Outlet Housing[04.1997 - 08.2000] 2C,3CE..CE11# |
16334-64010 |
US $13.25 |
||
|
16341A
|
16341A
16341-64021 Gasket, Water Outlet[09.1997 - 08.2000] 2C,3CE..CE11# |
16341-64021 |
US $5.07 |
||
|
9010506011
|
9010506011
90105-06011 BOLT |
90105-06011 |
from US $0.80 |
||
|
9010506207
|
9010506207
90105-06207 New Genuine Part |
90105-06207 |
US $1.75 |
||
|
9011608345
|
9011608345
90116-08345 New Genuine Part |
90116-08345 |
US $2.72 |
||
|
9162160816
|
9162160816
91621-60816
New Genuine Part
|
91621-60816 |
— | ||
| replacement | |||||
|
9162160816
|
9162160816
91621-B0816 BOLT WWASHER |
91621-B0816 |
from US $0.84 |
||
