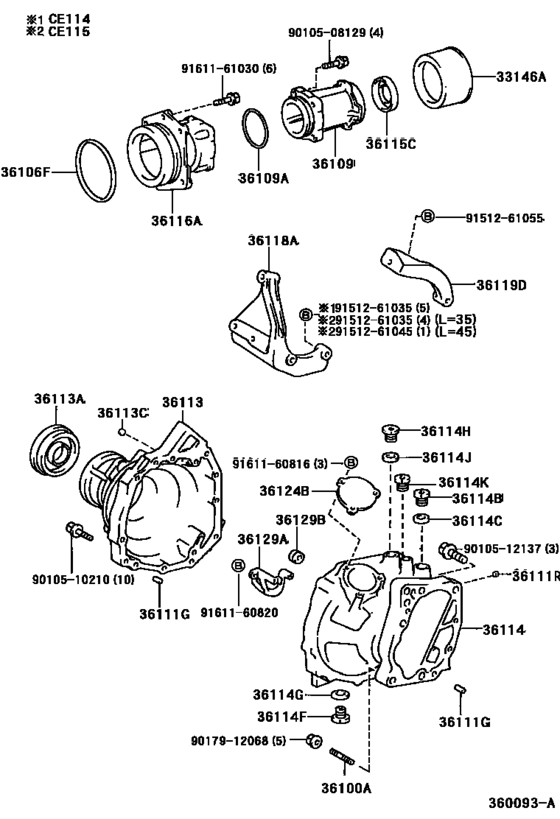

Transfer Case & Extension Housing ([05.1995 - ] E59F (9505- )CE114,116) Diagram Toyota COROLLA
- Year
- 1998 - 2000
- Sales region
- Japan
- Frame
- CE116
- grade
- LX
- body
- SED
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 04.1998
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33146A
|
33146A
33146-30020 Deflector, Extension Housing Dust(Mtm)[04.1997 - 08.2000] AE114,CE114,116 |
33146-30020 |
from US $15.84 |
||
|
36100A
|
36100A
90116-12018 Bolt, Stud (For Transfer & Transaxle Setting)[04.1997 - 08.2000] AE114,CE114,116..5F ネジ部長さ＝２７ ＆ ２７，長さ＝７５ |
90116-12018 |
US $5.53 |
||
|
36100A
|
36100A
90116-12028 Bolt, Stud (For Transfer & Transaxle Setting)[04.1997 - 08.2000] AE114,CE114,116..5F ネジ部長さ＝２２ ＆ ２２，長さ＝６９ |
90116-12028 |
from US $3.59 |
||
|
36106F
|
36106F
90301-99049 Ring, O (For Transfer Pinion Bearing Cage)[04.1997 - 08.2000] AE114,CE114,116..5F |
90301-99049 |
US $4.89 |
||
|
36109
|
36109
36109-12011 Housing Sub-Assy, Transfer Extension[04.1997 - 08.2000] AE114,CE114,116..5F |
36109-12011 |
US $142.69 |
||
|
36109A
|
36109A
90301-63005 Ring, O (For Transfer Extension Housing)[04.1997 - 08.2000] AE114,CE114,116 |
90301-63005 |
US $2.62 |
||
|
36111G
|
36111G
90250-10017 Pin, Straight(For Clutch Housing Set)[04.1997 - 08.2000] AE114,CE114,116..5F 長さ＝２０，外径＝１０ |
90250-10017 |
from US $2.08 |
||
|
36111G
|
36111G
90250-12005
Pin, Straight(For Manual Transmission Case)
[04.1997 - 08.2000] AE114,CE114,116..5F 長さ＝２４，外径＝１２ |
90250-12005 |
— | ||
|
36111R
|
36111R
90331-08002 Plug, Tight(For Front Transaxle Case)[04.1997 - 08.2000] AE114,CE114,116..5F |
90331-08002 |
US $1.46 |
||
|
36113
|
36113
36113-12050 Case, Transfer, Rh[04.1997 - 08.2000] CE114,116 |
36113-12050 |
US $311.58 |
||
|
36113A
|
36113A
90311-47003 Seal, Oil (For Transfer Case Rh)[04.1997 - 08.2000] AE114,CE114,116..5F |
90311-47003 |
from US $12.32 |
||
|
36113C
|
36113C
90331-14004 Plug, Manual Transmission Case[04.1997 - 08.2000] AE114,CE114,116..5F |
90331-14004 |
US $4.89 |
||
|
36114
|
36114
36114-12050 Case, Transfer, Lh[04.1997 - 08.2000] AE114,CE114,116..5F |
36114-12050 |
US $444.08 |
||
|
36114B
|
36114B
90341-22001
Plug, W/head Straight Screw, No.3(For Cylinder Block)
[04.1997 - 08.2000] AE114,CE114,116..5F |
90341-22001 |
— | ||
|
36114C
|
36114C
90430-22002 Gasket(For Manifold Plug)[04.1997 - 08.2000] AE114,CE114,116..5F |
90430-22002 |
US $4.48 |
||
|
36114F
|
36114F
90341-18006 Plug (No magnet)[04.1997 - 08.2000] AE114,CE114,116..5F |
90341-18006 |
from US $2.76 |
||
|
36114G
|
36114G
90430-18008 Gasket[04.1997 - 08.2000] AE114,CE114,116 |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
36114G
|
36114G
90430-T0021 Gasket(For Manual Transmission Filler Plug)[04.1997 - 08.2000] AE114,CE114,116 |
90430-T0021 |
US $0.99 |
||
|
36114H
|
36114H
90341-18023 Plug, W/head Straight Screw, No.1[04.1997 - 08.2000] AE114,CE114,116..5F |
90341-18023 |
from US $3.04 |
||
|
36114J
|
36114J
90430-18008 Gasket[04.1997 - 08.2000] AE114,CE114,116..5F |
90430-18008 |
from US $0.92 |
||
| replacement | |||||
|
36114J
|
36114J
90430-T0021 Gasket(For Manual Transmission Filler Plug)[04.1997 - 08.2000] AE114,CE114,116..5F |
90430-T0021 |
US $0.99 |
||
|
36115C
|
36115C
90311-38032 Seal, Oil(For Manual Transmission Extension Housing)[04.1997 - 08.2000] AE114,CE114,116 |
90311-38032 |
from US $6.40 |
||
|
36116A
|
36116A
36116-12010 Cage Sub-Assy, Transfer Pinion Bearing[04.1997 - 08.2000] AE114,CE114,116..5F |
36116-12010 |
US $126.67 |
||
|
36118A
|
36118A
36118-21040 Plate, Transfer Stiffener, Rh[04.1998 - 08.2000] CE116 |
36118-21040 |
US $144.14 |
||
|
36124B
|
36124B
36124-12010 Cover, Transfer Inspection Hole[04.1997 - 08.2000] AE114,CE114,116..5F |
36124-12010 |
US $6.84 |
||
|
36129A
|
36129A
36129-20010
Tube, Transfer Oil
[04.1997 - 08.2000] AE114,CE114,116..5F |
36129-20010 |
— | ||
|
36129B
|
36129B
90540-06027
Cushion (For Transfer Oil Tube)
[04.1997 - 08.2000] AE114,CE114,116..5F |
90540-06027 |
— | ||
|
9010508129
|
9010508129
90105-08129
Bolt(For Alternator)
|
90105-08129 |
— | ||
| replacement | |||||
|
9010508129
|
9010508129
91511-80830 Bolt(For Alternator) |
91511-80830 |
US $3.20 |
||
|
9010510210
|
9010510210
90105-10210 New Genuine Part |
90105-10210 |
US $3.20 |
||
|
9010512137
|
9010512137
90105-12137 Bolt (For Transfer & Transaxle Setting) |
90105-12137 |
US $4.08 |
||
|
9017912068
|
9017912068
90179-12068 Nut(For Transaxle Case Cover) |
90179-12068 |
US $1.76 |
||
|
9151261035
|
9151261035
91512-61035 Bolt(For Transaxle Case & Engine Setting) |
91512-61035 |
from US $1.01 |
||
| replacement | |||||
|
9151261035
|
9151261035
90080-10204 New Genuine Part |
90080-10204 |
US $2.97 |
||
|
9151261045
|
9151261045
91512-61045 Bolt |
91512-61045 |
US $2.24 |
||
|
9151261055
|
9151261055
91512-61055 BOLT, FLANGE |
91512-61055 |
from US $1.37 |
||
|
9161160816
|
9161160816
91611-60816
Screw Or Bolt(For Valve Rocker Shaft Lock)
|
91611-60816 |
— | ||
| replacement | |||||
|
9161160816
|
9161160816
91611-B0816 Bolt |
91611-B0816 |
from US $1.03 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
|
9161161030
|
9161161030
91611-61030
Bolt (For Transmission Control Cable Bracket)
|
91611-61030 |
— | ||
| replacement | |||||
|
9161161030
|
9161161030
91612-61030 Bolt (For Transmission Control Cable Bracket) |
91612-61030 |
from US $1.09 |
||
