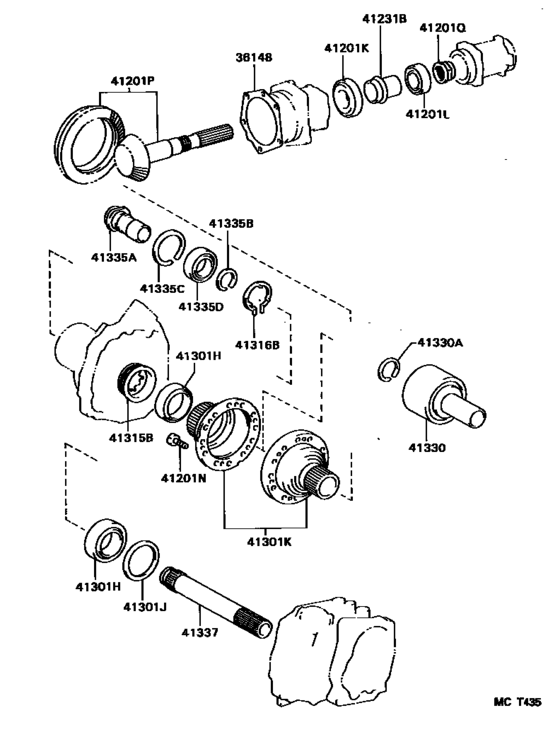

Transfer Gear ([05.1995 - ] E55F,59F,ｱﾘ(ABS) (9505- )AE114,CE114,116..5F) Diagram Toyota COROLLA
- Year
- 1998 - 2000
- Sales region
- Japan
- Frame
- CE116
- grade
- LX
- body
- SED
- ENGINE
- 3CE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 04.1998
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36148
|
36148
36148-32010 Shim, Pinion Bearing Cage[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝０．３０，マーク Ａ |
36148-32010 |
US $3.20 |
||
|
36148
|
36148
36148-32020 Shim, Pinion Bearing Cage[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝０．３３，マーク Ｂ |
36148-32020 |
US $3.86 |
||
|
36148
|
36148
36148-32030
Shim, Pinion Bearing Cage
[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝０．３６，マーク Ｃ |
36148-32030 |
— | ||
|
36148
|
36148
36148-32040 Shim, Pinion Bearing Cage[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝０．３９，マーク Ｄ |
36148-32040 |
US $4.08 |
||
|
36148
|
36148
36148-32050 Shim, Pinion Bearing Cage[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝０．４２，マーク Ｅ |
36148-32050 |
US $3.86 |
||
|
36148
|
36148
36148-32060
Shim, Pinion Bearing Cage
[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝０．４５，マーク Ｆ |
36148-32060 |
— | ||
|
36148
|
36148
36148-32070 Shim, Pinion Bearing Cage[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝０．４８，マーク Ｇ |
36148-32070 |
US $4.08 |
||
|
36148
|
36148
36148-32080 Shim, Pinion Bearing Cage[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝０．５１，マーク Ｈ |
36148-32080 |
US $3.86 |
||
|
36148
|
36148
36148-32090
Shim, Pinion Bearing Cage
[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝０．５４，マーク Ｊ |
36148-32090 |
— | ||
|
36148
|
36148
36148-32100 Shim, Pinion Bearing Cage[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝０．５７，マーク Ｋ |
36148-32100 |
US $3.86 |
||
|
41201K
|
41201K
90366-40055
Bearing (For Transfer Driven Pinion Front)
[04.1997 - 08.2000] AE114,CE114,116..5F |
90366-40055 |
— | ||
|
41201L
|
41201L
90366-32019
Bearing (For Transfer Driven Pinion Rear)
[04.1997 - 08.2000] AE114,CE114,116 |
90366-32019 |
— | ||
|
41201N
|
41201N
90105-11026
Bolt (For Transfer Gear )
[04.1997 - 08.2000] AE114,CE114,116..5F |
90105-11026 |
— | ||
|
41201P
|
41201P
41201-12170 Gear Kit, Transfer[04.1997 - 08.2000] CE114,116;AE114..5F..(SESAL,XESAL); AE114..LX ｱﾘ(*66) |
41201-12170 |
US $828.46 |
||
|
41201Q
|
41201Q
90179-30004 Nut (For Transfer Gear)[04.1997 - 08.2000] AE114,CE114,116 |
90179-30004 |
US $2.96 |
||
|
41231B
|
41231B
41231-12040
Spacer, Transfer Pinion Bearing
[04.1997 - 08.2000] AE114,CE114,116..5F |
41231-12040 |
— | ||
|
41301H
|
41301H
90366-55039 Bearing(For Ring Gear Mounting Case)[04.1997 - 08.2000] CE114,116;AE114..5F..(SESAL,XESAL) 右側; AE114..LX ｱﾘ(*66),右側 |
90366-55039 |
US $18.26 |
||
|
41301H
|
41301H
90366-58007
Bearing(For Ring Gear Mounting Case)
[04.1997 - 08.2000] CE114,116;AE114..5F..(SESAL,XESAL) 左側; AE114..LX ｱﾘ(*66),左側 |
90366-58007 |
— | ||
|
41301J
|
41301J
90201-68025
Washer, Plate(For Ring Gear Mounting Case)
[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝２．１３，マーク ０１ |
90201-68025 |
— | ||
|
41301J
|
41301J
90201-68026 Washer, Plate(For Ring Gear Mounting Case)[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝２．１６，マーク ０２ |
90201-68026 |
US $5.53 |
||
|
41301J
|
41301J
90201-68027 Washer, Plate(For Ring Gear Mounting Case)[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝２．１９，マーク ０３ |
90201-68027 |
US $5.53 |
||
|
41301J
|
41301J
90201-68028 Washer, Plate(For Ring Gear Mounting Case)[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝２．２２，マーク ０４ |
90201-68028 |
US $5.53 |
||
|
41301J
|
41301J
90201-68029 Washer, Plate(For Ring Gear Mounting Case)[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝２．２５，マーク ０５ |
90201-68029 |
US $5.53 |
||
|
41301J
|
41301J
90201-68030 Washer, Plate(For Ring Gear Mounting Case)[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝２．２８，マーク ０６ |
90201-68030 |
US $5.53 |
||
|
41301J
|
41301J
90201-68031 Washer, Plate(For Ring Gear Mounting Case)[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝２．３１，マーク ０７ |
90201-68031 |
US $5.53 |
||
|
41301J
|
41301J
90201-68032 Washer, Plate(For Ring Gear Mounting Case)[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝２．３４，マーク ０８ |
90201-68032 |
US $5.53 |
||
|
41301J
|
41301J
90201-68033 Washer, Plate(For Ring Gear Mounting Case)[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝２．３７，マーク ０９ |
90201-68033 |
US $5.53 |
||
|
41301J
|
41301J
90201-68034 Washer, Plate(For Ring Gear Mounting Case)[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝２．４０，マーク １０ |
90201-68034 |
US $5.53 |
||
|
41301J
|
41301J
90201-68035 Washer, Plate(For Ring Gear Mounting Case)[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝２．４３，マーク １１ |
90201-68035 |
US $5.53 |
||
|
41301J
|
41301J
90201-68036 Washer, Plate(For Ring Gear Mounting Case)[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝２．４６，マーク １２ |
90201-68036 |
US $3.20 |
||
|
41301J
|
41301J
90201-68037 Washer, Plate(For Ring Gear Mounting Case)[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝２．４９，マーク １３ |
90201-68037 |
US $5.53 |
||
|
41301J
|
41301J
90201-68038 Washer, Plate(For Ring Gear Mounting Case)[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝２．５２，マーク １４ |
90201-68038 |
US $6.99 |
||
|
41301J
|
41301J
90201-68039 Washer, Plate(For Ring Gear Mounting Case)[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝２．５５，マーク １５ |
90201-68039 |
US $6.99 |
||
|
41301J
|
41301J
90201-68040 Washer, Plate(For Ring Gear Mounting Case)[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝２．５８，マーク １６ |
90201-68040 |
US $6.99 |
||
|
41301J
|
41301J
90201-68041 Washer, Plate(For Ring Gear Mounting Case)[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝２．６１，マーク １７ |
90201-68041 |
US $6.99 |
||
|
41301J
|
41301J
90201-68042 Washer, Plate(For Ring Gear Mounting Case)[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝２．６４，マーク １８ |
90201-68042 |
US $6.99 |
||
|
41301J
|
41301J
90201-68043 Washer, Plate(For Ring Gear Mounting Case)[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝２．６７，マーク １９ |
90201-68043 |
US $6.99 |
||
|
41301J
|
41301J
90201-68044 Washer, Plate(For Ring Gear Mounting Case)[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝２．７０，マーク ２０ |
90201-68044 |
US $6.99 |
||
|
41301J
|
41301J
90201-68045 Washer, Plate(For Ring Gear Mounting Case)[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝２．７３，マーク ２１ |
90201-68045 |
US $6.99 |
||
|
41301J
|
41301J
90201-68046 Washer, Plate(For Ring Gear Mounting Case)[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝２．７６，マーク ２２ |
90201-68046 |
US $6.99 |
||
|
41301J
|
41301J
90201-68047 Washer, Plate(For Ring Gear Mounting Case)[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝２．７９，マーク ２３ |
90201-68047 |
US $6.99 |
||
|
41301J
|
41301J
90201-68048 Washer, Plate(For Ring Gear Mounting Case)[04.1997 - 08.2000] AE114,CE114,116..5F 厚さ＝２．８２，マーク ２４ |
90201-68048 |
US $6.99 |
||
|
41301K
|
41301K
41301-20170 Case Sub-Assy, Center Differential Ring Gear Mounting[04.1997 - 08.2000] AE114,CE114,116..5F |
41301-20170 |
US $301.39 |
||
|
41315B
|
41315B
41315-12050 Nut, Bearing Adjusting[04.1997 - 08.2000] CE114,116;AE114..5F..(SESAL,XESAL); AE114..LX ｱﾘ(*66) |
41315-12050 |
US $26.06 |
||
|
41316B
|
41316B
41316-20040 Plate, Adjusting Nut Lock[04.1997 - 08.2000] AE114,CE114,116..5F |
41316-20040 |
US $3.32 |
||
|
41330
|
41330
41330-20011 Coupling Assy, Center Differential Control[04.1997 - 08.2000] AE114,CE114,116..5F |
41330-20011 |
US $1,327.87 |
||
|
41330A
|
41330A
90521-41004 Ring, Hole Snap (For Differential Intermediate Shaft)[04.1997 - 08.2000] AE114,CE114,116..5F |
90521-41004 |
US $3.20 |
||
|
41335A
|
41335A
41335-12011 Holder, Differential Side Gear Shaft[04.1997 - 08.2000] AE114,CE114,116..5F |
41335-12011 |
US $125.22 |
||
|
41335B
|
41335B
90520-40001
Ring, Shaft Snap (For Side Gear Shaft Holder)
[04.1997 - 08.2000] AE114,CE114,116 |
90520-40001 |
— | ||
|
41335C
|
41335C
90521-75004
Ring, Hole Snap (For Side Gear Shaft Holder)
[04.1997 - 12.1998] AE114,CE114,116..5F |
90521-75004 |
— | ||
| replacement | |||||
|
41335C
|
41335C
90521-76005 Ring, Snap (For Transfer Fr Drive Gear Assy)[04.1997 - 12.1998] AE114,CE114,116..5F |
90521-76005 |
US $1.05 |
||
|
41335C
|
41335C
90521-76005 Ring, Snap (For Transfer Fr Drive Gear Assy)[12.1998 - 08.2000] AE114,CE116..5F |
90521-76005 |
US $1.05 |
||
|
41335D
|
41335D
90365-44006 Bearing (For Side Gear Shaft Holder)[04.1997 - 08.2000] AE114,CE114,116 |
90365-44006 |
US $18.17 |
||
|
41337
|
41337
41337-12010 Shaft, Differential Side Gear Intermediate, No.2[04.1997 - 08.2000] AE114,CE114,116..5F |
41337-12010 |
US $77.17 |
||
