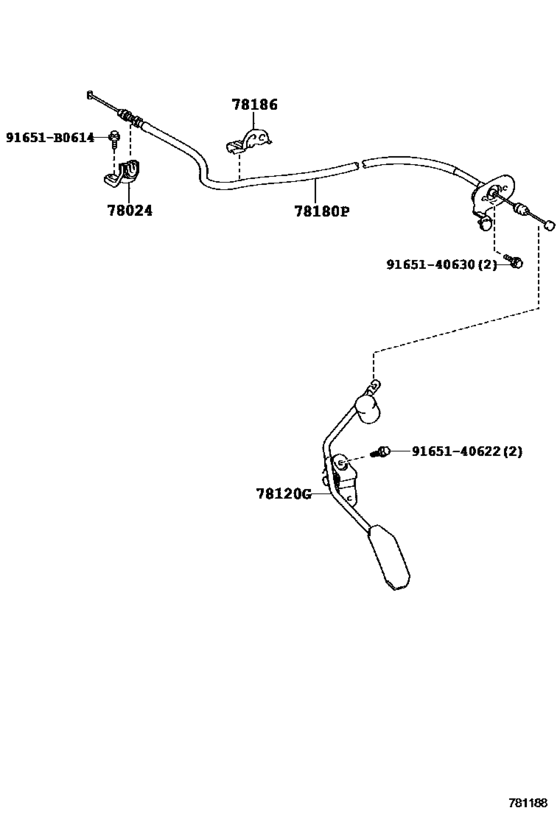

Accelerator Link ([08.2007 - ] (0708- )CE140..RHD) Diagram Toyota COROLLA
- Year
- 2007 - 2013
- Sales region
- General
- Frame
- CE140
- grade
- XLI
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2007
- To
- 11.2013
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
78024
|
78024
78024-32140 Bracket Sub-Assy, Accelerator Control Cable[08.2007 - 07.2010] CE140 |
78024-32140 |
US $20.24 |
||
|
78120G
|
78120G
78120-12390
Rod Assy, Accelerator Pedal
[08.2007 - 07.2010] CE140..RHD |
78120-12390 |
— | ||
|
78180P
|
78180P
78180-12A50
Cable Assy, Accelerator Control
[08.2007 - 07.2010] CE140..RHD |
78180-12A50 |
— | ||
| replacement | |||||
|
78180P
|
78180P
78180-12A51 Cable Assy, Accelerator Control[08.2007 - 07.2010] CE140..RHD |
78180-12A51 |
US $89.60 |
||
|
78180P
|
78180P
78180-12A51 Cable Assy, Accelerator Control[11.2011 - 11.2013] CE140..RHD |
78180-12A51 |
US $89.60 |
||
|
78186
|
78186
78186-12460
Support, Accelerator Control Cable, No.1
[08.2007 - 07.2010] CE140..RHD |
78186-12460 |
— | ||
|
91651B0614
|
91651B0614
91651-B0614 BOLT WWASHER |
91651-B0614 |
US $1.60 |
||
|
9165140622
|
9165140622
91651-40622 New Genuine Part |
91651-40622 |
US $0.67 |
||
|
9165140630
|
9165140630
91651-40630 BOLT |
91651-40630 |
US $1.28 |
||
