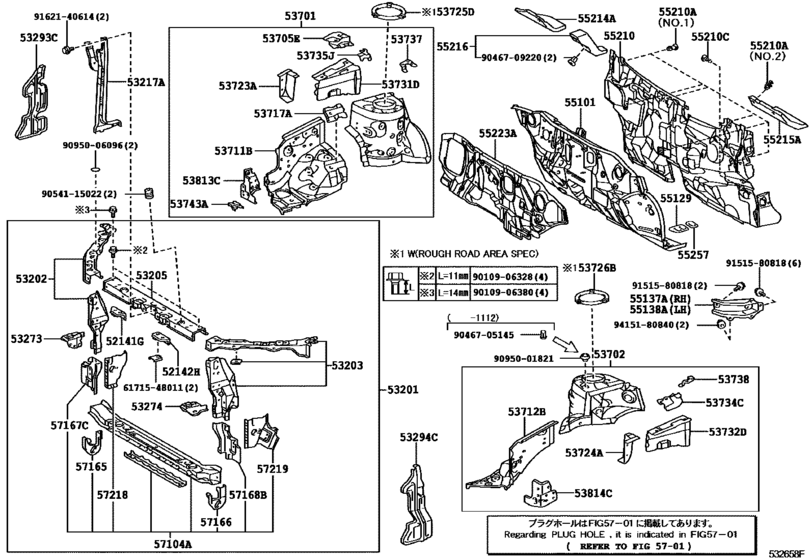

Front Fender Apron & Dash Panel ([08.2007 - ] (0708- )RHD..SED) Diagram Toyota COROLLA
- Year
- 2007 - 2013
- Sales region
- General
- Frame
- CE140
- grade
- XLI
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2007
- To
- 11.2013
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
52141G
|
52141G
52141-12550
Stay, Front Bumper, Rh
[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
52141-12550 |
— | ||
|
52142H
|
52142H
52142-12470
Stay, Front Bumper, Lh
[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
52142-12470 |
— | ||
|
53201
|
53201
53201-12B50 Support Sub-Assy, Radiator[08.2007 - 07.2010] CE140,NZE141,ZZE14#..SED |
53201-12B50 |
US $406.22 |
||
| replacement | |||||
|
53201
|
53201
53201-12B70 Support Sub-Assy, RadiatorRADIATOR [08.2007 - 07.2010] CE140,NZE141,ZZE14#..SED |
53201-12B70 |
US $442.46 |
||
|
53201
|
53201
53201-12B70 Support Sub-Assy, RadiatorRADIATOR [08.2007 - 07.2010] ZZE14#..GEN;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
53201-12B70 |
US $442.46 |
||
|
53202
|
53202
53202-12540
Support Sub-Assy, Radiator, Rh
[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
53202-12540 |
— | ||
|
53203
|
53203
53203-12470
Support Sub-Assy, Radiator, Lh
[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
53203-12470 |
— | ||
|
53205
|
53205
53205-12291 Support Sub-Assy, Radiator, Upper[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
53205-12291 |
from US $94.83 |
||
|
53217A
|
53217A
53208-12540
Brace, Hood Lock Support
[08.2007 - 07.2010] CE140,NZE141,ZZE14#..SED |
53208-12540 |
— | ||
|
53273
|
53273
53273-12120 Bracket, Front Bumper Arm Mounting, Rh[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
53273-12120 |
from US $8.74 |
||
|
53274
|
53274
53274-12120 Bracket, Front Bumper Arm Mounting, Lh[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
53274-12120 |
US $8.74 |
||
|
53293C
|
53293C
53293-12080 Deflector, Radiator Side, Rh[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
53293-12080 |
US $44.50 |
||
|
53293C
|
53293C
53293-12150 Deflector, Radiator Side, Rh[07.2010 -] CE140,NZE141,ZRE14#,ZZE142..SED |
53293-12150 |
US $38.36 |
||
|
53294C
|
53294C
53294-12110 Deflector, Radiator Side, Lh[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
53294-12110 |
US $47.15 |
||
|
53294C
|
53294C
53294-12170 Deflector, Radiator Side, Lh[07.2010 -] CE140,NZE141,ZRE14#,ZZE142..SED |
53294-12170 |
US $41.85 |
||
|
53701
|
53701
53701-12A20 Apron Sub-Assy, Front Fender, Rh[08.2007 - 07.2010] CE140,NZE141,ZZE14#..SED |
53701-12A20 |
US $262.16 |
||
|
53702
|
53702
53702-12A30
Apron Sub-Assy, Front Fender, Lh
[08.2007 - 07.2010] CE140,NZE141,ZZE14#..SED |
53702-12A30 |
— | ||
| replacements | |||||
|
53702
|
53702
53702-12A31
Apron Sub-Assy, Front Fender, Lh
[08.2007 - 07.2010] CE140,NZE141,ZZE14#..SED |
53702-12A31 |
— | ||
|
53702
|
53702
90950-01821 PLUG HOLE[08.2007 - 07.2010] CE140,NZE141,ZZE14#..SED |
90950-01821 |
from US $0.96 |
||
|
53702
|
53702
53702-12A31
Apron Sub-Assy, Front Fender, Lh
[12.2011 - 03.2014] CE140,NZE141,ZRE14#,ZZE142..SED |
53702-12A31 |
— | ||
|
53705E
|
53705E
53705-12020
Member Sub-Assy, Front Apron To Cowl Side, Rh
[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
53705-12020 |
— | ||
|
53711B
|
53711B
53711-12280 Apron, Front Fender, Front RhFRONT FENDER, FRONT RH [08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
53711-12280 |
US $60.13 |
||
|
53712B
|
53712B
53712-12230 Apron, Front Fender, Front Lh[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
53712-12230 |
from US $43.42 |
||
|
53717A
|
53717A
53717-12060 Plate, Fender Apron[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
53717-12060 |
US $8.88 |
||
|
53723A
|
53723A
53723-12080 Reinforcement, Front Spring Support, Rh[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
53723-12080 |
US $8.74 |
||
|
53724A
|
53724A
53724-12070 Reinforcement, Front Spring Support, Lh[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
53724-12070 |
US $8.74 |
||
|
53725D
|
53725D
53723-12091
Reinforcement, Front Spring Support, No.2 Rh
[08.2007 - 05.2010] ZZE14#;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP); ZZE14#..GEN;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
53723-12091 |
— | ||
| replacement | |||||
|
53725D
|
53725D
53723-12110 Reinforcement, Front Spring Support, No.2 Rh[08.2007 - 05.2010] ZZE14#;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP); ZZE14#..GEN;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
53723-12110 |
US $20.42 |
||
|
53725D
|
53725D
53723-12110 Reinforcement, Front Spring Support, No.2 Rh[06.2010 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP); ZZE142..LHD..GEN;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
53723-12110 |
US $20.42 |
||
|
53726B
|
53726B
53723-12091
Reinforcement, Front Spring Support, No.2 Rh
[08.2007 - 05.2010] ZZE14#;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP); ZZE14#..GEN;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
53723-12091 |
— | ||
| replacement | |||||
|
53726B
|
53726B
53723-12110 Reinforcement, Front Spring Support, No.2 Rh[08.2007 - 05.2010] ZZE14#;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP); ZZE14#..GEN;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
53723-12110 |
US $20.42 |
||
|
53726B
|
53726B
53723-12110 Reinforcement, Front Spring Support, No.2 Rh[06.2010 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=PLASTIC,W(HEIGHT UP); ZZE142..LHD..GEN;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
53723-12110 |
US $20.42 |
||
|
53731D
|
53731D
53731-12160 Member, Front Apron To Cowl Side, Upper Rh[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
53731-12160 |
from US $20.09 |
||
|
53732D
|
53732D
53732-12140 Member, Front Apron To Cowl Side, Upper Lh[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
53732-12140 |
US $20.09 |
||
|
53734C
|
53734C
53706-12040
Member, Front Apron To Cowl Side, Lower Front Lh
[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
53706-12040 |
— | ||
|
53735J
|
53735J
53735-12080 Patch, Front Fender Apron, No.5[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
53735-12080 |
US $5.24 |
||
|
53737
|
53737
53737-12110
Plate, Front Apron To Cowl Side Member, Rh
[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
53737-12110 |
— | ||
|
53738
|
53738
53738-12070
Plate, Front Apron To Cowl Side Member, Lh
[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
53738-12070 |
— | ||
|
53743A
|
53743A
53743-12050 Reinforcement, Front Fender Apron, Front Rh[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
53743-12050 |
from US $5.68 |
||
|
53813C
|
53813C
53803-12060
Extension, Front Fender, Rh
[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
53803-12060 |
— | ||
|
53814C
|
53814C
53814-12090
Extension, Front Fender, Lh
[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
53814-12090 |
— | ||
|
55101
|
55101
55101-12D30
Panel Sub-Assy, Dash
[08.2007 - 07.2010] CE140..RHD |
55101-12D30 |
— | ||
|
55129
|
55129
55129-32030 Cover, Dash Panel Hole[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED RH |
55129-32030 |
US $5.68 |
||
|
55129
|
55129
55139-32010 Cover, Dash Panel Hole[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED LH |
55139-32010 |
US $5.68 |
||
|
55137A
|
55137A
55137-12060 Brace, Dash To Frame, Rh[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
55137-12060 |
US $17.62 |
||
|
55138A
|
55138A
55138-12030 Brace, Dash To Frame, Lh[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
55138-12030 |
US $17.62 |
||
|
55210
|
55210
55210-12570 Insulator Assy, Dash Panel[08.2007 - 07.2008] CE140,NZE141,ZZE14#..RHD..SED |
55210-12570 |
US $179.09 |
||
| replacement | |||||
|
55210
|
55210
55210-12620 Insulator Assy, Dash Panel[08.2007 - 07.2008] CE140,NZE141,ZZE14#..RHD..SED |
55210-12620 |
US $123.76 |
||
|
55210
|
55210
55210-12620 Insulator Assy, Dash Panel[08.2008 - 07.2010] CE140,NZE141..RHD..SED |
55210-12620 |
US $123.76 |
||
|
55210A
|
55210A
90467-11122 Clip[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED NO.1 |
90467-11122 |
US $1.60 |
||
|
55210A
|
55210A
90467-11127 Clip[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED NO.2 |
90467-11127 |
US $1.51 |
||
|
55210C
|
55210C
90467-08186-C0 Clip(For Front Bumper), No.1[08.2007 - 07.2010] CE140,NZE141,ZZE14#..SED BLACK |
90467-08186-C0 |
from US $0.92 |
||
|
55214A
|
55214A
55214-12030 Pad, Dash Panel Insulator, No.2[08.2007 - 07.2010] CE140,NZE141..RHD..SED |
55214-12030 |
US $16.74 |
||
|
55215A
|
55215A
55215-12120 Pad, Dash Panel Insulator, No.3[08.2007 - 07.2010] CE140,NZE141..RHD..SED |
55215-12120 |
US $31.89 |
||
|
55216
|
55216
55216-12010 Pad, Dash Panel Insulator, No.4[08.2007 - 07.2010] CE140,NZE141..RHD..SED |
55216-12010 |
US $15.29 |
||
|
55223A
|
55223A
55223-12180 Insulator, Dash Panel, Outer[08.2007 - 07.2010] CE140,NZE141..RHD..SED |
55223-12180 |
US $69.45 |
||
|
55257
|
55257
55257-32010 Cover, Dash Panel Opening[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
55257-32010 |
US $2.91 |
||
|
57104A
|
57104A
57104-12290
Member Sub-Assy, Front Cross
[08.2007 - 10.2007] CE140,NZE141,ZZE14#..SED |
57104-12290 |
— | ||
| replacement | |||||
|
57104A
|
57104A
57104-12291 Member Sub-Assy, Front Cross[08.2007 - 10.2007] CE140,NZE141,ZZE14#..SED |
57104-12291 |
US $198.02 |
||
|
57104A
|
57104A
57104-12291 Member Sub-Assy, Front Cross[11.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
57104-12291 |
US $198.02 |
||
|
57104A
|
57104A
57104-12300
Member Sub-Assy, Front Cross
[08.2007 - 10.2007] ZZE14#..GEN;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
57104-12300 |
— | ||
| replacement | |||||
|
57104A
|
57104A
57104-12301
Member Sub-Assy, Front Cross
[08.2007 - 10.2007] ZZE14#..GEN;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
57104-12301 |
— | ||
|
57104A
|
57104A
57104-12301
Member Sub-Assy, Front Cross
[11.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..LX,XLI ROUGH ROAD AREA SPEC-ENGINE UNDER COVER=STEEL |
57104-12301 |
— | ||
|
57165
|
57165
57165-12070 Reinforcement, Front Crossmember, Lower Rh[08.2007 - 10.2007] CE140,NZE141,ZZE14#..SED |
57165-12070 |
US $12.08 |
||
|
57166
|
57166
57166-12020 Reinforcement, Front Crossmember, Lower Lh[08.2007 - 10.2007] CE140,NZE141,ZZE14#..SED |
57166-12020 |
US $12.08 |
||
|
57167C
|
57167C
57167-12130 Gusset, Front Crossmember Side, Rh[08.2007 - 10.2007] CE140,NZE141,ZZE14#..SED |
57167-12130 |
US $18.64 |
||
|
57168B
|
57168B
57168-12130 Gusset, Front Crossmember Side, Lh[08.2007 - 10.2007] CE140,NZE141,ZZE14#..SED |
57168-12130 |
US $16.74 |
||
|
57218
|
57218
57218-12030 Gusset, Front Side Member, No.1[08.2007 - 10.2007] CE140,NZE141,ZZE14#..SED |
57218-12030 |
US $12.38 |
||
|
57219
|
57219
57219-12030 Gusset, Front Side Member, No.2[08.2007 - 10.2007] CE140,NZE141,ZZE14#..SED |
57219-12030 |
US $12.38 |
||
|
6171548011
|
6171548011
61715-48011 Bracket, Roof Side, Rh |
61715-48011 |
US $3.06 |
||
|
9010906328
|
9010906328
90109-06328 BOLT |
90109-06328 |
from US $0.96 |
||
| replacement | |||||
|
9010906328
|
9010906328
90080-10342 New Genuine Part |
90080-10342 |
US $3.92 |
||
|
9010906380
|
9010906380
90109-06380 BOLT |
90109-06380 |
US $0.96 |
||
|
9046705145
|
9046705145
90467-05145 Retainer, Cowl Side Trim |
90467-05145 |
US $1.60 |
||
|
9046709220
|
9046709220
90467-09220 Clip, Footrest |
90467-09220 |
US $1.92 |
||
|
9054115022
|
9054115022
90541-15022 Cushion, Radiator Support |
90541-15022 |
from US $3.53 |
||
|
9095001821
|
9095001821
90950-01821 PLUG HOLE |
90950-01821 |
from US $0.96 |
||
|
9095006096
|
9095006096
90950-06096 Plug, Hole(For Hood) |
90950-06096 |
from US $1.48 |
||
|
9151580818
|
9151580818
91515-80818 New Genuine Part |
91515-80818 |
US $1.02 |
||
|
9162140614
|
9162140614
91621-40614 BOLT |
91621-40614 |
from US $0.80 |
||
|
9415180840
|
9415180840
94151-80840 NUT, FLANGE |
94151-80840 |
from US $1.28 |
||
