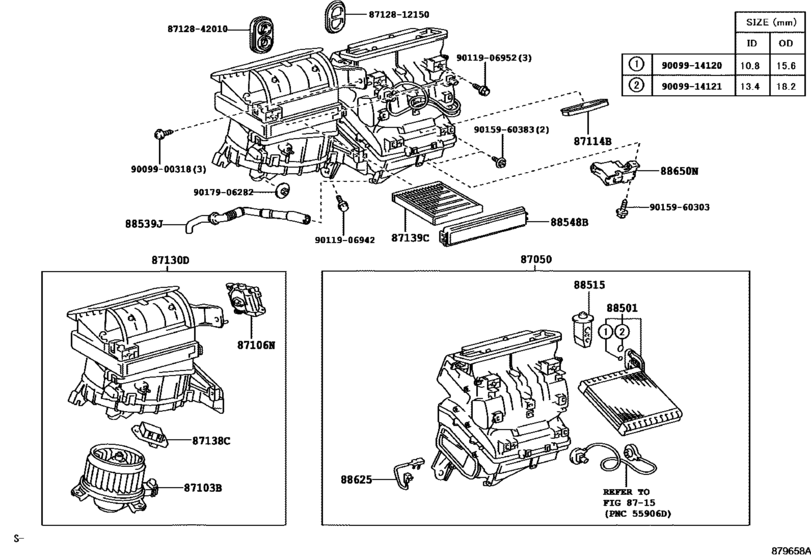

Heating & Air Conditioning - Cooler Unit ([08.2007 - 07.2010] MANUAL W/O(HEATER) (0708-1007)RHD) Diagram Toyota COROLLA
- Year
- 2007 - 2013
- Sales region
- General
- Frame
- CE140
- grade
- XLI
- body
- SED
- ENGINE
- 2C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.2007
- To
- 11.2013
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87050
|
87050
87050-12370
Radiator Assy, Air Conditioner
[08.2007 - 07.2010] CE140,NZE141,ZZE14#..RHD..SED AIR CONDITIONER-WITH OUT |
87050-12370 |
— | ||
|
87050
|
87050
87050-12470
Radiator Assy, Air Conditioner
[08.2007 - 07.2010] CE140..RHD |
87050-12470 |
— | ||
|
87103B
|
87103B
87103-42070 Motor Sub-Assy, Blower W/fan[08.2007 - 07.2010] CE140,NZE141..RHD..SED; NZE141..LX HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT; NZE141..4FC AIR CONDITIONER-COOLER(DEALER OPTION) |
87103-42070 |
US $223.64 |
||
|
87106N
|
87106N
87106-42110
Servo Sub-Assy, Damper, No.1
[08.2007 - 07.2010] CE140,NZE141..RHD..SED; NZE141..LX HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT; NZE141..4FC AIR CONDITIONER-COOLER(DEALER OPTION) |
87106-42110 |
— | ||
|
87114B
|
87114B
87114-12080
Cover, Heater
[08.2007 - 07.2010] ZZE142..LHD..GEN;CE140,NZE141..SED |
87114-12080 |
— | ||
|
87130D
|
87130D
87130-12430
Blower Assy
[08.2007 - 05.2008] CE140..RHD |
87130-12430 |
— | ||
| replacement | |||||
|
87130D
|
87130D
87130-12431 Blower Assy[08.2007 - 05.2008] CE140..RHD |
87130-12431 |
US $326.88 |
||
|
87130D
|
87130D
87130-12431 Blower Assy[06.2008 -] CE140,NZE141,ZZE14#..RHD..SED; ZZE142..RHD;NZE141,ZZE141..LX HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT; NZE141,ZZE14#..RHD..SED AIR CONDITIONER-COOLER(DEALER OPTION) |
87130-12431 |
US $326.88 |
||
|
87138C
|
87138C
87138-26150 Resistor, Blower[08.2007 - 07.2010] CE140,NZE141..RHD..SED; NZE141..LX HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT; NZE141..4FC AIR CONDITIONER-COOLER(DEALER OPTION) |
87138-26150 |
from US $15.72 |
||
|
87139C
|
87139C
87139-52020 Filter, Clean Air[08.2007 - 07.2010] CE140,NZE141,ZZE14#..SED |
87139-52020 |
from US $30.40 |
||
|
88501
|
88501
88501-26210
Evaporator Sub-Assy, Cooler, No.1
[08.2007 - 05.2008] CE140,NZE141,ZZE14#..SED; CE140..LHD;NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT; CE140..LHD;NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
88501-26210 |
— | ||
| replacement | |||||
|
88501
|
88501
88501-26211 Evaporator Sub-Assy, Cooler, No.1[08.2007 - 05.2008] CE140,NZE141,ZZE14#..SED; CE140..LHD;NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT; CE140..LHD;NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
88501-26211 |
from US $405.35 |
||
|
88501
|
88501
88501-26211 Evaporator Sub-Assy, Cooler, No.1[06.2008 - 07.2010] CE140,NZE141,ZZE14#..SED; CE140..LHD;NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT; CE140..LHD;NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
88501-26211 |
from US $405.35 |
||
|
88501
|
88501
88501-72020 Evaporator Sub-Assy, Cooler, No.1COOLER, NO.1 [10.2010 -] NZE141..N; CE140,NZE141,ZRE14#,ZZE142..SED |
88501-72020 |
US $461.55 |
||
|
88515
|
88515
88515-12090 Valve, Cooler ExpansionCOOLER EXPANSION [08.2007 - 01.2009] CE140; CE140..LHD HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT; CE140..LHD AIR CONDITIONER-COOLER(DEALER OPTION) |
88515-12090 |
from US $109.80 |
||
|
88515
|
88515
88515-60210
Valve, Cooler Expansion
[02.2009 - 07.2009] CE140; CE140..LHD HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT; CE140..LHD AIR CONDITIONER-COOLER(DEALER OPTION) |
88515-60210 |
— | ||
| replacement | |||||
|
88515
|
88515
88515-12090 Valve, Cooler ExpansionCOOLER EXPANSION [02.2009 - 07.2009] CE140; CE140..LHD HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT; CE140..LHD AIR CONDITIONER-COOLER(DEALER OPTION) |
88515-12090 |
from US $109.80 |
||
|
88539J
|
88539J
88539-12190
Hose, Cooler Unit Drain, No.1
[08.2007 - 07.2010] CE140,NZE141..RHD..SED |
88539-12190 |
— | ||
|
88548B
|
88548B
88548-42010
Case, Air Filter
[08.2007 - 07.2010] CE140,NZE141..RHD..SED |
88548-42010 |
— | ||
|
88625
|
88625
88625-26090 Thermistor, Cooler, No.1[08.2007 -] CE140,NZE141,ZZE14#..SED; CE140..LHD;NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT; CE140..LHD;NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
88625-26090 |
from US $8.04 |
||
| replacement | |||||
|
88625
|
88625
88620-02110 Thermistor, Cooler, No.1COOLER, NO.1 [08.2007 -] CE140,NZE141,ZZE14#..SED; CE140..LHD;NZE141..LX;ZZE14#..GEN HEATER-BOOST VENTILATOR(WITH OUT HEATER COER)&AIR CONDITIONER-WITH OUT; CE140..LHD;NZE141,ZZE14#..SED..GEN AIR CONDITIONER-COOLER(DEALER OPTION) |
88620-02110 |
US $10.20 |
||
|
88650N
|
88650N
88650-12C70
Amplifier Assy, Air Conditioner
[08.2007 - 07.2010] CE140; CE140 AIR CONDITIONER-WITH OUT |
88650-12C70 |
— | ||
|
8712812150
|
8712812150
87128-12150
Grommet, Heater
|
87128-12150 |
— | ||
|
8712842010
|
8712842010
87128-42010
Grommet (For Heater Pipe)
|
87128-42010 |
— | ||
|
9009900318
|
9009900318
90099-00318
New Genuine Part
|
90099-00318 |
— | ||
|
9009914120
|
9009914120
90099-14120 O-Ring, Cooler Evaporator No.1(Discharge) |
90099-14120 |
from US $2.11 |
||
|
9009914121
|
9009914121
90099-14121 O-Ring, Cooler Evaporator No.1(Suction) |
90099-14121 |
from US $1.62 |
||
|
9011906942
|
9011906942
90119-06942 BOLT WWASHER |
90119-06942 |
from US $0.96 |
||
|
9011906952
|
9011906952
90119-06952 New Genuine Part |
90119-06952 |
US $0.96 |
||
|
9015960303
|
9015960303
90159-60303 SCREW |
90159-60303 |
from US $1.12 |
||
|
9015960383
|
9015960383
90159-60383 SCREW WWASHER |
90159-60383 |
from US $0.78 |
||
| replacement | |||||
|
9015960383
|
9015960383
90159-A0010 SCREW WWASHER TAPP |
90159-A0010 |
from US $2.38 |
||
|
9017906282
|
9017906282
90179-06282 New Genuine Part |
90179-06282 |
US $0.67 |
||
