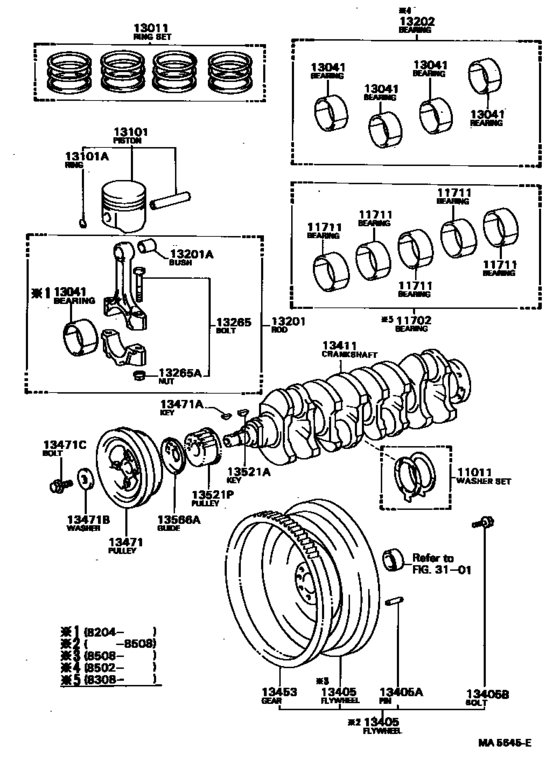

Crankshaft & Piston ([02.1982 - ] (8202- )1C) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- CE70
- grade
- SE
- body
- SED
- ENGINE
- 1C
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 02.1982
- To
- 04.1983
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-64010 Washer Set, Crankshaft Thrust[02.1982 - 07.1987] 1C..CE7# ＳＴＤ,STD |
11011-64010 |
US $32.15 |
||
|
11011
|
11011
11012-64010 Washer Set, Crankshaft Thrust[02.1982 - 07.1987] 1C..CE7# Ｏ／Ｓ ０．１２５,O/S 0.125 |
11012-64010 |
US $25.92 |
||
|
11011
|
11011
11013-64010 Washer Set, Crankshaft Thrust[02.1982 - 07.1987] 1C..CE7# Ｏ／Ｓ ０．２５０,O/S 0.250 |
11013-64010 |
US $25.92 |
||
|
11711
|
11711
11701-64010-01 Bearing, Crankshaft[02.1982 - 08.1983] 1C..CE7# MARK"1",MARK 1 |
11701-64010-01 |
US $40.77 |
||
| replacement | |||||
|
11711
|
11711
11701-27013-01
Bearing, Crankshaft
[02.1982 - 08.1983] 1C..CE7# MARK"1",MARK 1 |
11701-27013-01 |
— | ||
|
11711
|
11711
11701-64010-02 Bearing, Crankshaft[02.1982 - 08.1983] 1C..CE7# MARK"2",MARK 2 |
11701-64010-02 |
US $40.77 |
||
| replacement | |||||
|
11711
|
11711
11701-27013-02 Bearing, CrankshaftCRANKSHAFT [02.1982 - 08.1983] 1C..CE7# MARK"2",MARK 2 |
11701-27013-02 |
from US $10.92 |
||
|
11711
|
11711
11701-64010-03 Bearing, Crankshaft[02.1982 - 08.1983] 1C..CE7# MARK"3",MARK 3 |
11701-64010-03 |
US $40.77 |
||
| replacement | |||||
|
11711
|
11711
11701-27013-03 Bearing, CrankshaftCRANKSHAFT [02.1982 - 08.1983] 1C..CE7# MARK"3",MARK 3 |
11701-27013-03 |
US $31.45 |
||
|
13011
|
13011
13011-64020 Ring Set, Piston[02.1982 - 08.1985] 1C..CE7# STD |
13011-64020 |
US $448.45 |
||
|
13011
|
13011
13013-64020 Ring Set, Piston[02.1982 - 08.1985] 1C..CE7# O/S 0.50 |
13013-64020 |
US $407.68 |
||
|
13041
|
13041
13041-64010-01 Bearing, Connecting Rod[02.1982 - 08.1983] 1C..CE7# MARK"1",MARK 1 |
13041-64010-01 |
US $27.52 |
||
| replacement | |||||
|
13041
|
13041
13041-64071-01 Bearing, Connecting Rod[02.1982 - 08.1983] 1C..CE7# MARK"1",MARK 1 |
13041-64071-01 |
US $26.06 |
||
|
13041
|
13041
13041-64010-02 Bearing, Connecting Rod[02.1982 - 08.1983] 1C..CE7# MARK"2",MARK 2 |
13041-64010-02 |
US $27.52 |
||
| replacement | |||||
|
13041
|
13041
13041-64071-02 Bearing, Connecting Rod[02.1982 - 08.1983] 1C..CE7# MARK"2",MARK 2 |
13041-64071-02 |
US $25.33 |
||
|
13041
|
13041
13041-64010-03 Bearing, Connecting Rod[02.1982 - 08.1983] 1C..CE7# MARK"3",MARK 3 |
13041-64010-03 |
US $27.52 |
||
| replacement | |||||
|
13041
|
13041
13041-64071-03 Bearing, Connecting Rod[02.1982 - 08.1983] 1C..CE7# MARK"3",MARK 3 |
13041-64071-03 |
US $15.52 |
||
|
13101
|
13101
13101-64010 Piston Sub-Assy, W/pin[02.1982 - 08.1985] 1C..CE7# STD |
13101-64010 |
from US $45.77 |
||
|
13101
|
13101
13103-64010 Piston Sub-Assy, W/pin[02.1982 - 08.1985] 1C..CE7# O/S 0.50 |
13103-64010 |
US $177.63 |
||
|
13101A
|
13101A
90521-29003 Ring, Hole Snap(For Piston Pin)[02.1982 - 07.1987] 1C..CE7# |
90521-29003 |
US $2.04 |
||
|
13201
|
13201
13201-64010 Rod Sub-Assy, Connecting[02.1982 - 04.1982] 1C..CE7# |
13201-64010 |
US $199.47 |
||
| replacement | |||||
|
13201
|
13201
13201-69037 Rod Sub-Assy, Connecting[02.1982 - 04.1982] 1C..CE7# |
13201-69037 |
US $218.40 |
||
|
13201
|
13201
13201-69025 Rod Sub-Assy, Connecting[04.1982 - 08.1983] 1C..CE7# |
13201-69025 |
US $231.50 |
||
| replacement | |||||
|
13201
|
13201
13201-69037 Rod Sub-Assy, Connecting[04.1982 - 08.1983] 1C..CE7# |
13201-69037 |
US $218.40 |
||
|
13201A
|
13201A
90999-73091 Bush(For Connecting Rod Small End)[02.1982 - 02.1985] 1C..CE7# |
90999-73091 |
US $10.19 |
||
| replacement | |||||
|
13201A
|
13201A
90999-73101 Bush(For Connecting Rod Small End)[02.1982 - 02.1985] 1C..CE7# |
90999-73101 |
US $10.19 |
||
|
13265
|
13265
13265-49015 Bolt, Connecting Rod[02.1982 - 07.1987] 1C..CE7# |
13265-49015 |
from US $5.69 |
||
|
13265A
|
13265A
90179-10042 Nut, Hexagon(For Connecting Rod Bolt)[02.1982 - 07.1987] 1C..CE7# |
90179-10042 |
US $2.56 |
||
|
13411
|
13411
13411-64010 Crankshaft[02.1982 - 12.1984] 1C..CE7# |
13411-64010 |
US $1,703.52 |
||
| replacements | |||||
|
13411
|
13411
90105-16079 Bolt(For Crankshaft Pulley Set)[02.1982 - 12.1984] 1C..CE7# |
90105-16079 |
from US $3.61 |
||
|
13411
|
13411
13521-64011 Pulley, Crankshaft Timing[02.1982 - 12.1984] 1C..CE7# |
13521-64011 |
US $34.59 |
||
|
13411
|
13411
13411-64911 Crankshaft[02.1982 - 12.1984] 1C..CE7# |
13411-64911 |
US $1,601.60 |
||
|
13411
|
13411
90560-16025 Washer, Plate(For Crankshaft Pulley Set)[02.1982 - 12.1984] 1C..CE7# |
90560-16025 |
US $8.39 |
||
|
13471
|
13471
13408-64011 Pulley, Crankshaft[02.1982 - 11.1982] 1C..CE7# |
13408-64011 |
US $200.93 |
||
| replacement | |||||
|
13471
|
13471
13408-64040 Pulley, Crankshaft[02.1982 - 11.1982] 1C..CE7# |
13408-64040 |
US $200.93 |
||
|
13471
|
13471
13408-64012 Pulley, Crankshaft[11.1982 - 11.1984] 1C..CE7# |
13408-64012 |
US $195.10 |
||
| replacement | |||||
|
13471
|
13471
13408-64040 Pulley, Crankshaft[11.1982 - 11.1984] 1C..CE7# |
13408-64040 |
US $200.93 |
||
|
13471A
|
13471A
95161-20516 Key, Crankshaft(For Crankshaft Pulley Set)[02.1982 - 07.1987] 1C..CE7# |
95161-20516 |
from US $1.68 |
||
|
13471B
|
13471B
90201-14007
Washer, Plate(For Crankshaft Pulley Set)
[02.1982 - 05.1987] 1C..CE7# |
90201-14007 |
— | ||
| replacement | |||||
|
13471B
|
13471B
90201-14030 Washer, Plate(For Crankshaft Pulley Set)[02.1982 - 05.1987] 1C..CE7# |
90201-14030 |
US $9.76 |
||
|
13471C
|
13471C
91511-61435 Bolt(For Crankshaft Pulley Set)[02.1982 - 07.1987] 1C..CE7# |
91511-61435 |
US $4.51 |
||
| replacement | |||||
|
13471C
|
13471C
90105-14089 Bolt(For Crankshaft Pulley Set)[02.1982 - 07.1987] 1C..CE7# |
90105-14089 |
from US $3.26 |
||
|
13521A
|
13521A
95161-20622
Key, Crankshaft(For Crankshaft Pulley Set)
[02.1982 - 07.1987] 1C..CE7# |
95161-20622 |
— | ||
| replacement | |||||
|
13521A
|
13521A
95161-30622 Key, Crankshaft(For Crankshaft Pulley Set)[02.1982 - 07.1987] 1C..CE7# |
95161-30622 |
from US $3.84 |
||
|
13521P
|
13521P
13521-64010
Pulley, Crankshaft Timing
[02.1982 - 07.1987] 1C..CE7# |
13521-64010 |
— | ||
| replacement | |||||
|
13521P
|
13521P
13521-64011 Pulley, Crankshaft Timing[02.1982 - 07.1987] 1C..CE7# |
13521-64011 |
US $34.59 |
||
|
13566A
|
13566A
13566-64010
Guide, Timing Belt
[02.1982 - 07.1987] 1C..CE7# |
13566-64010 |
— | ||
| replacement | |||||
|
13566A
|
13566A
13566-64011 Guide, Timing Belt[02.1982 - 07.1987] 1C..CE7# |
13566-64011 |
from US $3.26 |
||
