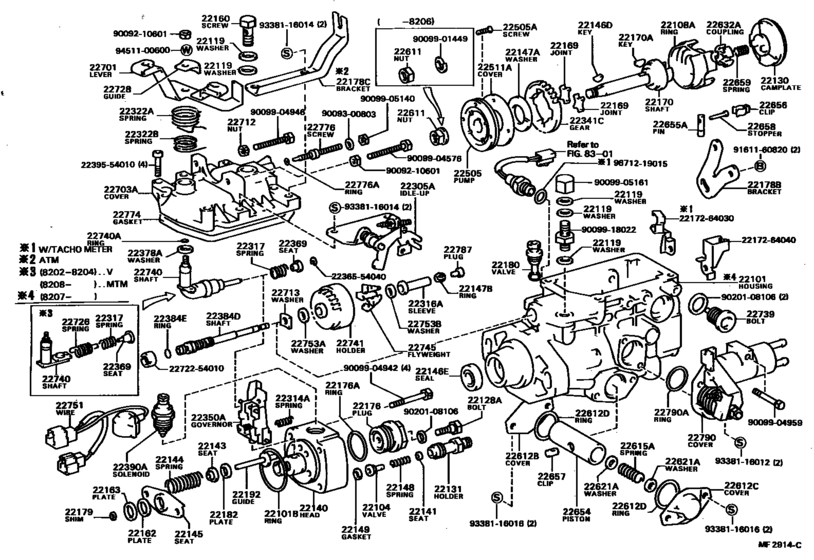

Injection Pump Body ([02.1982 - 08.1983] (8202-8308)1C) Diagram Toyota COROLLA
- Year
- 1982 - 1983
- Sales region
- Japan
- Frame
- CE70
- grade
- SE
- body
- SED
- ENGINE
- 1C
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 02.1982
- To
- 04.1983
- Gear Shift Type
- 4FC
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
22101
|
22101
22101-64020
Housing Sub-Assy, Injection Pump
[07.1982 - 08.1982] 1C..CE70..SE |
22101-64020 |
— | ||
|
22101B
|
22101B
90099-14053 Ring, O(For Injection Pump Housing)[02.1982 - 07.1987] 1C..CE7# |
90099-14053 |
from US $3.84 |
||
|
22104
|
22104
22104-64010 Valve Sub-Assy, Injection Pump Delivery[02.1982 - 07.1987] 1C..CE7# |
22104-64010 |
from US $27.96 |
||
|
22108A
|
22108A
22108-54180
Ring Sub-Assy, Roller
[02.1982 - 07.1987] 1C..CE7# |
22108-54180 |
— | ||
|
22119
|
22119
22119-77020
Washer, Air Bleeder Nipple
[02.1982 - 05.1987] 1C..CE7# |
22119-77020 |
— | ||
| replacement | |||||
|
22119
|
22119
90201-12109 Washer, Air Bleeder Nipple[02.1982 - 05.1987] 1C..CE7# |
90201-12109 |
from US $1.33 |
||
|
22128A
|
22128A
22128-54010 Bolt, Distributive Head[02.1982 - 07.1987] 1C..CE7# |
22128-54010 |
US $6.44 |
||
|
22130
|
22130
22130-64010
Camplate Sub-Assy, Face
[02.1982 - 07.1987] 1C..CE7# |
22130-64010 |
— | ||
|
22131
|
22131
22131-54110
Holder, Delivery Valve
[02.1982 - 08.1985] 1C..CE7# |
22131-54110 |
— | ||
|
22140
|
22140
22140-64010
Head Sub-Assy, Distributive Pump
[02.1982 - 08.1983] 1C..CE7# |
22140-64010 |
— | ||
| replacement | |||||
|
22140
|
22140
22140-64400
Head Sub-Assy, Distributive Pump
[02.1982 - 08.1983] 1C..CE7# |
22140-64400 |
— | ||
|
22141
|
22141
22141-54010
Seat, Delivery Valve Spring
[02.1982 - 08.1985] 1C..CE7# |
22141-54010 |
— | ||
|
22143
|
22143
22143-54010 Seat, Spring Upper[02.1982 - 07.1987] 1C..CE7# |
22143-54010 |
US $4.11 |
||
|
22144
|
22144
22144-54180 Spring, Pump Plunger[02.1982 - 07.1987] 1C..CE7# |
22144-54180 |
US $8.19 |
||
|
22145
|
22145
22145-54010 Seat, Spring, Lower[02.1982 - 07.1987] 1C..CE7# |
22145-54010 |
US $18.12 |
||
|
22146D
|
22146D
90099-13018 Key(For Drive Gear)[02.1982 - 07.1987] 1C..CE7# |
90099-13018 |
from US $6.36 |
||
|
22146E
|
22146E
90099-15028
Seal(For Drive Shaft)
[02.1982 - 08.1985] 1C..CE7# |
90099-15028 |
— | ||
| replacement | |||||
|
22146E
|
22146E
22544-64740 Seal, Oil, Injection Pump Camshaft[02.1982 - 08.1985] 1C..CE7# |
22544-64740 |
US $4.31 |
||
|
22147A
|
22147A
22161-54010 Washer, Drive Shaft[02.1982 - 07.1987] 1C..CE7# |
22161-54010 |
US $6.99 |
||
|
22147B
|
22147B
22147-54010
Ring, Governor Sleeve
[02.1982 - 06.1984] 1C..CE7# |
22147-54010 |
— | ||
|
22148
|
22148
22148-54010 Spring, Delivery Valve[02.1982 - 07.1987] 1C..CE7# |
22148-54010 |
from US $1.40 |
||
|
22149
|
22149
22149-54010 Gasket, Delivery Valve[02.1982 - 07.1987] 1C..CE7# |
22149-54010 |
US $1.25 |
||
|
22160
|
22160
22160-64010
Screw Sub-Assy, Overflow
[02.1982 - 07.1987] 1C..CE7# |
22160-64010 |
— | ||
|
22162
|
22162
22162-54010 Plate, Plunger Upper[02.1982 - 07.1987] 1C..CE7# |
22162-54010 |
from US $3.52 |
||
|
22163
|
22163
22163-54010 Plate, Plunger Lower[02.1982 - 07.1987] 1C..CE7# |
22163-54010 |
from US $3.84 |
||
|
22169
|
22169
22169-54180 Joint, Rubber[02.1982 - 07.1987] 1C..CE7# |
22169-54180 |
US $17.06 |
||
|
22170
|
22170
22170-54180 Shaft Sub-Assy, Drive[02.1982 - 07.1987] 1C..CE7# |
22170-54180 |
US $47.17 |
||
|
22170A
|
22170A
90099-13017
Key(For Drive Gear)
[02.1982 - 07.1987] 1C..CE7# |
90099-13017 |
— | ||
|
22176
|
22176
22176-54020 Plug, Distributive Head[02.1982 - 07.1987] 1C..CE7# |
22176-54020 |
from US $10.48 |
||
|
22176A
|
22176A
90099-14052
Ring, O(For Distributive Head Plug)
[02.1982 - 07.1987] 1C..CE7# |
90099-14052 |
— | ||
| replacement | |||||
|
22176A
|
22176A
22193-54772 Ring, O(For Distributive Head Plug)[02.1982 - 07.1987] 1C..CE7# |
22193-54772 |
from US $2.97 |
||
|
22178B
|
22178B
22178-64010
Bracket(For Injection Pump Assy)
[02.1982 - 07.1987] 1C..CE7# |
22178-64010 |
— | ||
|
22178C
|
22178C
22178-64050
Bracket(For Throttle Cable)
[02.1982 - 04.1983] 1C..CE70..4FC |
22178-64050 |
— | ||
| replacement | |||||
|
22178C
|
22178C
22178-64660
Bracket(For Throttle Cable)
[02.1982 - 04.1983] 1C..CE70..4FC |
22178-64660 |
— | ||
|
22179
|
22179
22179-54010
Shim, Plunger Adjusting
[02.1982 - 07.1987] 1C..CE7# 厚さ＝１．９,T=1.9 |
22179-54010 |
— | ||
|
22179
|
22179
22179-54011
Shim, Plunger Adjusting
[02.1982 - 07.1987] 1C..CE7# 厚さ＝２．０,T=2.0 |
22179-54011 |
— | ||
|
22179
|
22179
22179-54012
Shim, Plunger Adjusting
[02.1982 - 07.1987] 1C..CE7# 厚さ＝２．１,T=2.1 |
22179-54012 |
— | ||
|
22179
|
22179
22179-54013
Shim, Plunger Adjusting
[02.1982 - 07.1987] 1C..CE7# 厚さ＝２．２,T=2.2 |
22179-54013 |
— | ||
|
22179
|
22179
22179-54014
Shim, Plunger Adjusting
[02.1982 - 07.1987] 1C..CE7# 厚さ＝２．３,T=2.3 |
22179-54014 |
— | ||
|
22179
|
22179
22179-54015
Shim, Plunger Adjusting
[02.1982 - 07.1987] 1C..CE7# 厚さ＝２．４,T=2.4 |
22179-54015 |
— | ||
|
22179
|
22179
22179-54016
Shim, Plunger Adjusting
[02.1982 - 07.1987] 1C..CE7# 厚さ＝２．５,T=2.5 |
22179-54016 |
— | ||
|
22179
|
22179
22179-54017
Shim, Plunger Adjusting
[02.1982 - 07.1987] 1C..CE7# 厚さ＝２．６,T=2.6 |
22179-54017 |
— | ||
|
22179
|
22179
22179-54018
Shim, Plunger Adjusting
[02.1982 - 07.1987] 1C..CE7# 厚さ＝２．７,T=2.7 |
22179-54018 |
— | ||
|
22179
|
22179
22179-54019
Shim, Plunger Adjusting
[02.1982 - 07.1987] 1C..CE7# 厚さ＝２．８,T=2.8 |
22179-54019 |
— | ||
|
22179
|
22179
22179-54020
Shim, Plunger Adjusting
[02.1982 - 07.1987] 1C..CE7# 厚さ＝２．９,T=2.9 |
22179-54020 |
— | ||
|
22180
|
22180
22180-54010
Valve Sub-Assy, Regulator
[02.1982 - 07.1987] 1C..CE7# |
22180-54010 |
— | ||
|
22182
|
22182
22182-54010 Plate, Tappet Adjusting Shim[02.1982 - 07.1987] 1C..CE7# 厚さ＝０．５,T=0.5 |
22182-54010 |
US $4.60 |
||
|
22182
|
22182
22183-54010
Plate, Tappet Adjusting Shim
[02.1982 - 07.1987] 1C..CE7# 厚さ＝０．８,T=0.8 |
22183-54010 |
— | ||
|
22182
|
22182
22184-54010
Plate, Tappet Adjusting Shim
[02.1982 - 07.1987] 1C..CE7# 厚さ＝１．０,T=1.0 |
22184-54010 |
— | ||
|
22182
|
22182
22185-54010
Plate, Tappet Adjusting Shim
[02.1982 - 07.1987] 1C..CE7# 厚さ＝１．２,T=1.2 |
22185-54010 |
— | ||
|
22182
|
22182
22186-54010
Plate, Tappet Adjusting Shim
[02.1982 - 07.1987] 1C..CE7# 厚さ＝１．５,T=1.5 |
22186-54010 |
— | ||
|
22182
|
22182
22187-54010
Plate, Tappet Adjusting Shim
[02.1982 - 07.1987] 1C..CE7# 厚さ＝１．８,T=1.8 |
22187-54010 |
— | ||
|
22182
|
22182
22188-54010 Plate, Tappet Adjusting Shim[02.1982 - 07.1987] 1C..CE7# 厚さ＝２．０,T=2.0 |
22188-54010 |
US $4.31 |
||
|
22192
|
22192
22192-54010 Plate, Tappet Adjusting Shim[02.1982 - 07.1987] 1C..CE7# |
22192-54010 |
US $11.70 |
||
|
22305A
|
22305A
22305-64010
Idle-Up Sub-Assy
[02.1982 - 04.1982] 1C..CE70 |
22305-64010 |
— | ||
|
22314A
|
22314A
22314-54010 Spring, Lever Support[02.1982 - 07.1987] 1C..CE7# |
22314-54010 |
US $6.03 |
||
|
22316A
|
22316A
22316-64010
Sleeve, Governor
[02.1982 - 06.1984] 1C..CE7# |
22316-64010 |
— | ||
|
22317
|
22317
22317-64020
Spring, Governor Domper
[02.1982 - 04.1982] 1C..CE70 |
22317-64020 |
— | ||
| replacement | |||||
|
22317
|
22317
22317-64030
Spring, Governor Domper
[02.1982 - 04.1982] 1C..CE70 |
22317-64030 |
— | ||
|
22317
|
22317
22317-64030
Spring, Governor Domper
[07.1982 - 08.1982] 1C..CE7# |
22317-64030 |
— | ||
|
22322A
|
22322A
22322-64010
Spring, Return
[02.1982 - 07.1987] 1C..CE7# |
22322-64010 |
— | ||
|
22322B
|
22322B
22322-64011
Spring, Return(Inner)
[02.1982 - 08.1985] 1C..CE7# |
22322-64011 |
— | ||
|
22341C
|
22341C
22341-54010 Gear, Governor Drive[02.1982 - 07.1987] 1C..CE7# |
22341-54010 |
US $22.68 |
||
|
22350A
|
22350A
22350-64010
Governor Assy, Torque Control
[02.1982 - 04.1982] 1C..CE70 |
22350-64010 |
— | ||
|
22369
|
22369
22369-54080
Seat, Governor Spring
[02.1982 - 04.1982] 1C..CE70 |
22369-54080 |
— | ||
| replacement | |||||
|
22369
|
22369
22369-6A250
Seat, Governor Spring
[02.1982 - 04.1982] 1C..CE70 |
22369-6A250 |
— | ||
|
22378A
|
22378A
22378-64010 Washer, Governor Thrust[02.1982 - 07.1987] 1C..CE7# |
22378-64010 |
US $0.42 |
||
|
22384D
|
22384D
22380-54020 Shaft, Governor[02.1982 - 07.1987] 1C..CE7# |
22380-54020 |
from US $32.32 |
||
|
22384E
|
22384E
90099-14049 Ring, O(For Governor Main Shaft)[02.1982 - 07.1987] 1C..CE7# |
90099-14049 |
US $2.22 |
||
|
22390A
|
22390A
22390-54110
Solenoid Assy, Fuel Cut
[02.1982 - 07.1987] 1C..CE7# |
22390-54110 |
— | ||
| replacement | |||||
|
22390A
|
22390A
22019-6A511
Solenoid Assy, Fuel Cut
[02.1982 - 07.1987] 1C..CE7# |
22019-6A511 |
— | ||
|
22505
|
22505
22505-54010 Pump Sub-Assy, Fuel Feed[02.1982 - 07.1987] 1C..CE7# |
22505-54010 |
from US $104.83 |
||
|
22505A
|
22505A
90099-00723 Screw(For Fuel Feed Pump)[02.1982 - 07.1987] 1C..CE7# |
90099-00723 |
US $0.78 |
||
|
22511A
|
22511A
22511-54020
Cover, Feed Pump
[02.1982 - 07.1987] 1C..CE7# |
22511-54020 |
— | ||
|
22611
|
22611
90099-05166 Nut, Timer Round[06.1982 - 07.1987] 1C..CE7# |
90099-05166 |
US $2.10 |
||
|
22611
|
22611
94115-71400
Nut, Timer Round
[02.1982 - 06.1982] 1C..CE7# |
94115-71400 |
— | ||
| replacement | |||||
|
22611
|
22611
94130-01402 Nut, Timer Round[02.1982 - 06.1982] 1C..CE7# |
94130-01402 |
US $2.24 |
||
|
22612B
|
22612B
22612-54010
Cover, Timer
[02.1982 - 07.1987] 1C..CE7# |
22612-54010 |
— | ||
|
22612C
|
22612C
22612-54020
Cover, Timer
[02.1982 - 08.1985] 1C..CE7# |
22612-54020 |
— | ||
|
22612D
|
22612D
90099-14051
Ring, O, Distributor Housing
[02.1982 - 07.1987] 1C..CE7# |
90099-14051 |
— | ||
| replacement | |||||
|
22612D
|
22612D
22193-17840 Ring, O(For Timer Cover)[02.1982 - 07.1987] 1C..CE7# |
22193-17840 |
from US $2.73 |
||
|
22615A
|
22615A
22615-64010
Spring, Timer Outer
[02.1982 - 08.1983] 1C..CE7# バネ定数＝３．３０，長さ＝３７．１ |
22615-64010 |
— | ||
|
22621A
|
22621A
22621-54010
Washer, Timer Adjusting
[02.1982 - 10.1984] 1C..CE7# 厚さ＝０．５,T=0.5 |
22621-54010 |
— | ||
|
22621A
|
22621A
22622-54010
Washer, Timer Adjusting
[02.1982 - 10.1984] 1C..CE7# 厚さ＝１．０,T=1.0 |
22622-54010 |
— | ||
|
22621A
|
22621A
22624-54010
Washer, Timer Adjusting
[02.1982 - 10.1984] 1C..CE7# 厚さ＝０．２,T=0.2 |
22624-54010 |
— | ||
|
22632A
|
22632A
22632-54010 Coupling, Injection Pump[02.1982 - 07.1987] 1C..CE7# |
22632-54010 |
from US $49.10 |
||
|
22654
|
22654
22654-54010
Piston, Timer
[02.1982 - 08.1983] 1C..CE7# |
22654-54010 |
— | ||
|
22655A
|
22655A
22655-54010 Pin, Timer Slide[02.1982 - 07.1987] 1C..CE7# |
22655-54010 |
US $35.96 |
||
|
22656
|
22656
22656-54010
Clip, Timer
[02.1982 - 07.1987] 1C..CE7# |
22656-54010 |
— | ||
| replacement | |||||
|
22656
|
22656
22656-17840 Clip, Timer[02.1982 - 07.1987] 1C..CE7# |
22656-17840 |
US $0.92 |
||
|
22657
|
22657
22657-54010 Clip, Timer[02.1982 - 07.1987] 1C..CE7# |
22657-54010 |
US $28.86 |
||
|
22658
|
22658
22658-54010
Stopper, Timer
[02.1982 - 07.1987] 1C..CE7# |
22658-54010 |
— | ||
| replacement | |||||
|
22658
|
22658
22658-17840 Stopper, Timer[02.1982 - 07.1987] 1C..CE7# |
22658-17840 |
US $1.01 |
||
|
22659
|
22659
22659-54010
Spring, Coupling
[02.1982 - 08.1983] 1C..CE7# |
22659-54010 |
— | ||
| replacement | |||||
|
22659
|
22659
22659-64150
Spring, Coupling
[02.1982 - 08.1983] 1C..CE7# |
22659-64150 |
— | ||
|
22701
|
22701
22701-64010
Lever Sub-Assy, Adjusting
[02.1982 - 04.1983] 1C..CE70..4FC MARK"0" |
22701-64010 |
— | ||
| replacement | |||||
|
22701
|
22701
22701-64020
Lever Sub-Assy, Adjusting
[02.1982 - 04.1983] 1C..CE70..4FC MARK"0" |
22701-64020 |
— | ||
|
22701
|
22701
22701-64012
Lever Sub-Assy, Adjusting
[02.1982 - 04.1983] 1C..CE70..4FC MARK"1" |
22701-64012 |
— | ||
|
22701
|
22701
22701-64013
Lever Sub-Assy, Adjusting
[02.1982 - 04.1983] 1C..CE70..4FC MARK"2" |
22701-64013 |
— | ||
|
22703A
|
22703A
22703-54080
Cover Sub-Assy, Governor
[02.1982 - 04.1983] 1C..CE70..4FC |
22703-54080 |
— | ||
| replacement | |||||
|
22703A
|
22703A
22703-64150
Cover Sub-Assy, Governor
[02.1982 - 04.1983] 1C..CE70..4FC |
22703-64150 |
— | ||
|
22712
|
22712
22775-77121 Nut, Rock[02.1982 - 07.1987] 1C..CE7# |
22775-77121 |
US $3.26 |
||
|
22713
|
22713
22713-54010 Washer, Governor Gear Adjusting[02.1982 - 07.1987] 1C..CE7# 厚さ＝１．０５,T=1.05 |
22713-54010 |
US $6.84 |
||
|
22713
|
22713
22714-54010
Washer, Governor Gear Adjusting
[02.1982 - 07.1987] 1C..CE7# 厚さ＝１．２５,T=1.25 |
22714-54010 |
— | ||
|
22713
|
22713
22715-54010
Washer, Governor Gear Adjusting
[02.1982 - 07.1987] 1C..CE7# 厚さ＝１．４５,T=1.45 |
22715-54010 |
— | ||
|
22713
|
22713
22716-54010
Washer, Governor Gear Adjusting
[02.1982 - 07.1987] 1C..CE7# 厚さ＝１．６５,T=1.65 |
22716-54010 |
— | ||
|
22713
|
22713
22717-54010 Washer, Governor Gear Adjusting[02.1982 - 07.1987] 1C..CE7# 厚さ＝１．８５,T=1.85 |
22717-54010 |
US $6.84 |
||
|
22728
|
22728
22728-64010
Guide, Return Spring
[02.1982 - 08.1985] 1C..CE7# |
22728-64010 |
— | ||
|
22739
|
22739
22739-54020 Bolt, Governor Link Support[02.1982 - 07.1987] 1C..CE7# |
22739-54020 |
US $12.11 |
||
|
22740
|
22740
22302-64010 Shaft Sub-Assy, Governor Adjusting[02.1982 - 04.1982] 1C..CE70 |
22302-64010 |
US $103.38 |
||
|
22740
|
22740
22740-64010
Shaft Sub-Assy, Governor Adjusting
[02.1982 - 04.1982] 1C..CE7# |
22740-64010 |
— | ||
|
22740A
|
22740A
90099-14048
Bearing, Ball(For Governor Sleeve)
[02.1982 - 07.1987] 1C..CE7# |
90099-14048 |
— | ||
| replacement | |||||
|
22740A
|
22740A
22193-54770 Ring, O(For Governor Adjusting Shaft)[02.1982 - 07.1987] 1C..CE7# |
22193-54770 |
from US $2.16 |
||
|
22741
|
22741
22741-54020 Holder Sub-Assy, Flyweight[02.1982 - 07.1987] 1C..CE7# |
22741-54020 |
US $79.46 |
||
|
22745
|
22745
22745-54010 Flyweight, Distributive Pump[02.1982 - 07.1987] 1C..CE7# |
22745-54010 |
US $36.19 |
||
|
22751
|
22751
22751-64020
Wire Sub-Assy, Fuel Cut Solenoid
[02.1982 - 04.1983] 1C..CE70..SE W/TACHO METER |
22751-64020 |
— | ||
|
22753A
|
22753A
22753-54010 Washer, Flyweight, No.1[02.1982 - 07.1987] 1C..CE7# |
22753-54010 |
US $1.56 |
||
|
22753B
|
22753B
22753-54020 Washer, Flyweight, No.2[02.1982 - 06.1984] 1C..CE7# |
22753-54020 |
US $1.60 |
||
|
22774
|
22774
22774-54010
Gasket, Governor Cover
[02.1982 - 07.1987] 1C..CE7# |
22774-54010 |
— | ||
| replacement | |||||
|
22774
|
22774
22774-54270 Gasket, Governor Cover[02.1982 - 07.1987] 1C..CE7# |
22774-54270 |
from US $3.14 |
||
|
22776
|
22776
22776-54110 Screw, Smoke Set Adjusting[02.1982 - 07.1987] 1C..CE7# |
22776-54110 |
from US $4.72 |
||
|
22776A
|
22776A
90099-14047
Ring, O(For Smoke Set Screw)
[02.1982 - 07.1987] 1C..CE7# |
90099-14047 |
— | ||
| replacement | |||||
|
22776A
|
22776A
22193-54771 Ring, O(For Smoke Set Screw)[02.1982 - 07.1987] 1C..CE7# |
22193-54771 |
US $1.33 |
||
|
22787
|
22787
22787-54018
Plug, Governor Sleeve
[02.1982 - 06.1984] 1C..CE7# 長さ＝４．３,L=4.3 |
22787-54018 |
— | ||
|
22787
|
22787
22787-54019
Plug, Governor Sleeve
[02.1982 - 06.1984] 1C..CE7# 長さ＝４．５,L=4.5 |
22787-54019 |
— | ||
|
22787
|
22787
22787-54020
Plug, Governor Sleeve
[02.1982 - 06.1984] 1C..CE7# 長さ＝４．７,L=4.7 |
22787-54020 |
— | ||
|
22787
|
22787
22787-54021
Plug, Governor Sleeve
[02.1982 - 06.1984] 1C..CE7# 長さ＝４．９,L=4.9 |
22787-54021 |
— | ||
|
22787
|
22787
22787-54022
Plug, Governor Sleeve
[02.1982 - 06.1984] 1C..CE7# 長さ＝５．１,L=5.1 |
22787-54022 |
— | ||
|
22787
|
22787
22787-54023
Plug, Governor Sleeve
[02.1982 - 06.1984] 1C..CE7# 長さ＝５．３,L=5.3 |
22787-54023 |
— | ||
|
22787
|
22787
22787-54024
Plug, Governor Sleeve
[02.1982 - 06.1984] 1C..CE7# 長さ＝５．５,L=5.5 |
22787-54024 |
— | ||
|
22787
|
22787
22787-54025
Plug, Governor Sleeve
[02.1982 - 06.1984] 1C..CE7# 長さ＝５．７,L=5.7 |
22787-54025 |
— | ||
|
22790
|
22790
22790-64010 Cover Sub-Assy, Timer[02.1982 - 08.1983] 1C..CE7# |
22790-64010 |
US $634.82 |
||
| replacement | |||||
|
22790
|
22790
22790-6A020
Cover Sub-Assy, Timer
[02.1982 - 08.1983] 1C..CE7# |
22790-6A020 |
— | ||
|
22790A
|
22790A
90099-14051
Ring, O, Distributor Housing
[02.1982 - 08.1983] 1C..CE7# |
90099-14051 |
— | ||
| replacement | |||||
|
22790A
|
22790A
22193-17840 Ring, O(For Timer Cover)[02.1982 - 08.1983] 1C..CE7# |
22193-17840 |
from US $2.73 |
||
|
2217264030
|
2217264030
22172-64030
Clip, Connector Support, Solenoid
|
22172-64030 |
— | ||
|
2217264040
|
2217264040
22172-64040
Clip, Connector Support, Solenoid
|
22172-64040 |
— | ||
|
2236554040
|
2236554040
22365-54040
Ring, E(for Injection Pump Lever)
|
22365-54040 |
— | ||
|
2239554010
|
2239554010
22395-54010
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-54010 |
— | ||
|
2272254010
|
2272254010
22722-54010
Nut, Governor Shaft Rock
|
22722-54010 |
— | ||
| replacement | |||||
|
2272254010
|
2272254010
22722-54470 Nut, Governor Shaft Rock |
22722-54470 |
US $11.10 |
||
|
9009210601
|
9009210601
90092-10601
Nut, Rock
|
90092-10601 |
— | ||
| replacement | |||||
|
9009210601
|
9009210601
90092-10101
Nut (For Front Wiper Arm Setting)
|
90092-10101 |
— | ||
|
9009300803
|
9009300803
90093-00803
Washer, Plate(For Connecting Pin)
|
90093-00803 |
— | ||
| replacement | |||||
|
9009300803
|
9009300803
90093-00802
Washer, Plate(For Connecting Pin)
|
90093-00802 |
— | ||
|
9009901449
|
9009901449
90099-01449
Washer, Spring
|
90099-01449 |
— | ||
|
9009904576
|
9009904576
90099-04576 BOLT |
90099-04576 |
US $1.56 |
||
|
9009904942
|
9009904942
90099-04942
Bolt, Socket(For Injection Pump Governor Cover)
|
90099-04942 |
— | ||
| replacement | |||||
|
9009904942
|
9009904942
22395-58200
Bolt, Socket(For Injection Pump Governor Cover)
|
22395-58200 |
— | ||
|
9009904946
|
9009904946
90099-04946 Ring, O(For Bellows Cover) |
90099-04946 |
US $4.50 |
||
|
9009904959
|
9009904959
90099-04959
New Genuine Part
|
90099-04959 |
— | ||
|
9009905140
|
9009905140
90099-05140
New Genuine Part
|
90099-05140 |
— | ||
|
9009905161
|
9009905161
90099-05161 Nut, Timer Round |
90099-05161 |
from US $1.25 |
||
|
9009918022
|
9009918022
90099-18022
SCREW
|
90099-18022 |
— | ||
|
9020108106
|
9020108106
90201-08106 Washer(For Cap Nut) |
90201-08106 |
from US $2.73 |
||
|
9161160820
|
9161160820
91611-60820
Bolt(For Transaxle & Engine Setting)
|
91611-60820 |
— | ||
| replacement | |||||
|
9161160820
|
9161160820
91611-G0820 Bolt |
91611-G0820 |
from US $1.31 |
||
|
9338116012
|
9338116012
93381-16012 Screw |
93381-16012 |
US $2.24 |
||
|
9338116014
|
9338116014
93381-16014 New Genuine Part |
93381-16014 |
US $0.87 |
||
|
9338116016
|
9338116016
93381-16016 SCREWWWASHER |
93381-16016 |
US $2.72 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9671219015
|
9671219015
96712-19015
Ring, O(For Lever Connecting Pin)
|
96712-19015 |
— | ||
| replacement | |||||
|
9671219015
|
9671219015
22193-64750 Ring, O(For Lever Connecting Pin) |
22193-64750 |
from US $0.84 |
||
