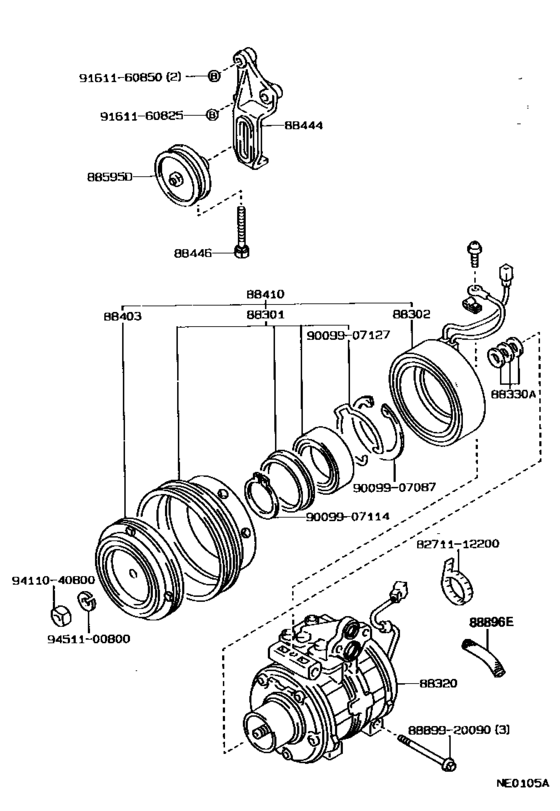

Heating & Air Conditioning - Compressor ([05.1987 - ] (8705- )CE90) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- CE90
- grade
- XL
- body
- SED
- ENGINE
- 1C
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88301
|
88301
88412-32011
Rotor Sub-Assy, Magnet Clutch
[08.1989 - 05.1992] CE90 |
88412-32011 |
— | ||
|
88302
|
88302
88411-14050
Stator Sub-Assy, Magnet Clutch
[05.1987 - 05.1992] CE90 |
88411-14050 |
— | ||
|
88320
|
88320
88320-12500
Compressor Assy, Cooler
[05.1987 - 12.1987] CE90 |
88320-12500 |
— | ||
| replacement | |||||
|
88320
|
88320
88320-12H90
Compressor Assy, Cooler
[05.1987 - 12.1987] CE90 |
88320-12H90 |
— | ||
|
88320
|
88320
88320-20560
Compressor Assy, Cooler
[05.1987 - 12.1987] CE90 W(POWER STEERING) |
88320-20560 |
— | ||
|
88330A
|
88330A
88335-12050 Washer (For Magnet Clutch)[05.1987 - 05.1992] CE90 |
88335-12050 |
from US $0.70 |
||
|
88403
|
88403
88403-12030
Hub Sub-Assy, Magnet Clutch
[05.1987 - 05.1992] CE90 |
88403-12030 |
— | ||
|
88410
|
88410
88410-12160 Clutch Assy, Magnet[05.1987 - 08.1989] CE90 |
88410-12160 |
US $554.74 |
||
|
88410
|
88410
88410-12340 Clutch Assy, Magnet[08.1989 - 05.1992] CE90 DEALER OPTION |
88410-12340 |
US $554.74 |
||
|
88444
|
88444
88444-12040
Bracket, Idle Pulley
[05.1987 - 08.1989] CE90 |
88444-12040 |
— | ||
|
88444
|
88444
88444-12050
Bracket, Idle Pulley
[08.1989 - 05.1992] CE90 |
88444-12050 |
— | ||
|
88446
|
88446
88446-12030
Bolt, Idle Pulley
[05.1987 - 10.1988] EE90..GCC,GEN;AE9#,CE90,EE97..GL,SE,SR5,STD,XL |
88446-12030 |
— | ||
|
88595D
|
88595D
88440-12170 Pulley Assy, Power Steering Idle[05.1987 - 08.1989] CE90,EE9#..GCC,GEN |
88440-12170 |
from US $85.90 |
||
|
88595D
|
88595D
88440-12190
Pulley Assy, Idle
[08.1989 - 05.1992] CE90 |
88440-12190 |
— | ||
|
88896E
|
88896E
88896-12150
Cover, Air Conditioner
[05.1987 - 05.1992] CE90 |
88896-12150 |
— | ||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.62 |
||
|
8889920090
|
8889920090
88899-20090
Cover, Evaporator
|
88899-20090 |
— | ||
|
9009907087
|
9009907087
90099-07087
Bearing, Magnet Clutch
|
90099-07087 |
— | ||
|
9009907114
|
9009907114
90099-07114 Ring, Snap (For Magnet Clutch) |
90099-07114 |
from US $1.07 |
||
|
9009907127
|
9009907127
90099-07127
Ring, Snap (For Magnet Clutch)
|
90099-07127 |
— | ||
|
9161160825
|
9161160825
91611-60825
Bolt(For Head To Camshaft Bearing Cap)
|
91611-60825 |
— | ||
| replacement | |||||
|
9161160825
|
9161160825
91611-B0825 Bolt(For Clutch Release Cylinder Setting) |
91611-B0825 |
from US $1.13 |
||
|
9161160850
|
9161160850
91611-60850 Bolt(For Rocker Support Set) |
91611-60850 |
from US $1.92 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.94 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
