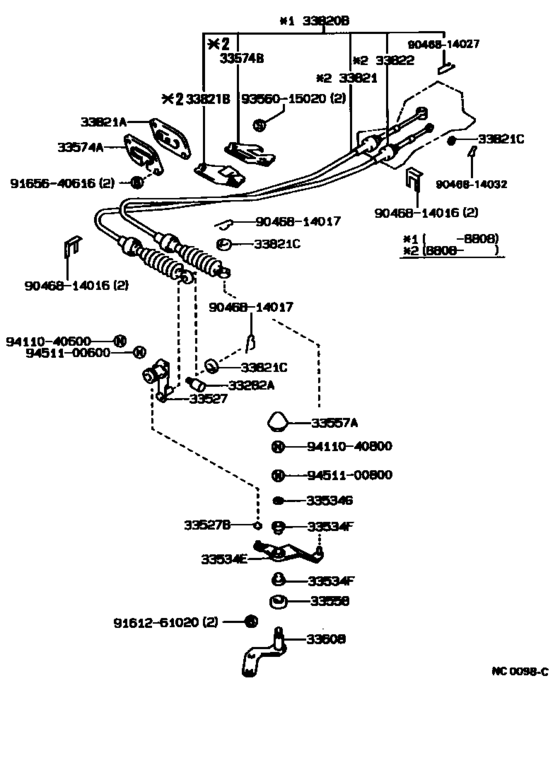

Shift Lever & Retainer ([05.1987 - 08.1989] S50 (8705-8908)CE90) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- Europe
- Frame
- CE90
- grade
- XL
- body
- SED
- ENGINE
- 1C
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- DSL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
33282A
|
33282A
33282-35010 Pin, Lever Lock (For Shift Outer Lever)[05.1987 - 05.1992] CE90 |
33282-35010 |
from US $2.56 |
||
|
33527
|
33527
33527-32010 Lever, Control Shift (For Floor Shift)[05.1987 - 05.1992] CE90 |
33527-32010 |
US $56.06 |
||
|
33527B
|
33527B
90389-10009 Bush (For Shift & Select Lever)[05.1987 - 08.1990] AE95,CE90 |
90389-10009 |
from US $9.92 |
||
|
33534E
|
33534E
33534-32030
Crank, Selecting Bell, No.2
[05.1987 - 05.1992] CE90 |
33534-32030 |
— | ||
|
33534F
|
33534F
90386-12022 Bush (For Selecting Bellcrank No.1)[05.1987 - 10.1989] AE9#,CE90..5F;EE90..4F..XLI;EE90..MTM..(GL,STD,XL) |
90386-12022 |
US $2.08 |
||
|
33534G
|
33534G
90201-08028 Washer, Plate (For Selecting Bellcrank No.2)[05.1987 - 10.1989] AE9#,CE90..5F;EE90..4F..XLI;EE90..MTM..(GL,STD,XL) |
90201-08028 |
US $0.96 |
||
|
33557A
|
33557A
33557-32010 Cover, Selecting Bellcrank Dust, No.1[05.1987 - 10.1989] AE9#,CE90..5F;EE90..4F..XLI;EE90..MTM..(GL,STD,XL) |
33557-32010 |
from US $4.48 |
||
|
33558
|
33558
33558-32010
Cover, Selecting Bellcrank Dust, No.2
[05.1987 - 05.1992] CE90 |
33558-32010 |
— | ||
|
33574A
|
33574A
33574-12080 Retainer, Dust Seal (For Column Shift Control Shaft)[05.1987 - 05.1992] AE9#,CE90..5F;EE90..WG..XLI;EE90..MTM..CBR;EE90..(LB,SED)..MTM..EFI |
33574-12080 |
US $7.16 |
||
|
33574B
|
33574B
33574-12060
Retainer, Shift Cable Grommet, No.2
[08.1988 - 05.1992] AE9#,CE90..5F;EE90..WG..XLI;EE90..MTM..CBR;EE90..(LB,SED)..MTM..EFI |
33574-12060 |
— | ||
|
33608
|
33608
33608-32020 Support Sub-Assy, Selecting Bellcrank[05.1987 - 08.1989] CE90 |
33608-32020 |
US $12.67 |
||
| replacement | |||||
|
33608
|
33608
33608-32021 Support Sub-Assy, Selecting Bellcrank[05.1987 - 08.1989] CE90 |
33608-32021 |
US $12.52 |
||
|
33608
|
33608
33608-32021 Support Sub-Assy, Selecting Bellcrank[11.1989 - 05.1992] CE90 |
33608-32021 |
US $12.52 |
||
|
33820B
|
33820B
33820-12220
Cable Assy, Transmission Control
[05.1987 - 08.1988] CE90 |
33820-12220 |
— | ||
|
33821
|
33821
33821-12220 Cable Transmission Control Shift (For Floor Shift)[08.1988 - 05.1989] CE90 |
33821-12220 |
US $177.63 |
||
| replacement | |||||
|
33821
|
33821
33821-12221 Cable Transmission Control Shift (For Floor Shift)[08.1988 - 05.1989] CE90 |
33821-12221 |
US $177.63 |
||
|
33821
|
33821
33821-12221 Cable Transmission Control Shift (For Floor Shift)[05.1989 - 05.1992] CE90 |
33821-12221 |
US $177.63 |
||
|
33821A
|
33821A
90480-01400 Grommet, No.1 (For Transmission Control Cable)[05.1987 - 05.1992] AE9#,CE90..5F;EE90..WG..XLI;EE90..MTM..CBR;EE90..(LB,SED)..MTM..EFI |
90480-01400 |
US $4.54 |
||
|
33821B
|
33821B
90480-01398
Grommet, No.2 (For Transmission Control Cable)
[08.1988 - 05.1992] AE9#,CE90..5F;EE90..WG..XLI;EE90..MTM..CBR;EE90..(LB,SED)..MTM..EFI |
90480-01398 |
— | ||
|
33821C
|
33821C
90201-08077 Washer, Plate (For Transmission Control Cable)[05.1991 - 05.1992] AE92,CE90..5F;EE90..WG..XLI;EE90..MTM..CBR;EE90..(LB,SED)..MTM..EFI OD=30,TRANSAXLE SIDE |
90201-08077 |
from US $1.56 |
||
|
33821C
|
33821C
90201-08267 Washer, Plate (For Transfer Control Cable)[05.1987 - 05.1991] AE9#,CE90..5F;EE90..WG..XLI;EE90..MTM..CBR;EE90..(LB,SED)..EFI OD=28,TRANSAXLE SIDE |
90201-08267 |
from US $0.92 |
||
|
33821C
|
33821C
90201-10042 Washer, Plate (For Transfer Control Cable)[05.1987 - 05.1992] AE9#,CE90..5F;EE90..WG..XLI;EE90..MTM..CBR;EE90..(LB,SED)..MTM..EFI SHIFT LEVER SIDE |
90201-10042 |
from US $1.44 |
||
|
33822
|
33822
33822-12070 Cable Transmission Control Select (For Floor Shift)[08.1988 - 05.1989] CE90 |
33822-12070 |
US $177.63 |
||
| replacement | |||||
|
33822
|
33822
33822-12071 Cable Transmission Control Select (For Floor Shift)[08.1988 - 05.1989] CE90 |
33822-12071 |
US $177.63 |
||
|
33822
|
33822
33822-12071 Cable Transmission Control Select (For Floor Shift)[05.1989 - 05.1992] CE90 |
33822-12071 |
US $177.63 |
||
|
9046814016
|
9046814016
90468-14016 CLIP |
90468-14016 |
from US $1.17 |
||
|
9046814017
|
9046814017
90468-14017 Clip, No.2(For Parking Brake) |
90468-14017 |
from US $0.86 |
||
|
9046814027
|
9046814027
90468-14027 CLIP |
90468-14027 |
US $1.49 |
||
|
9046814032
|
9046814032
90468-14032 CLIP |
90468-14032 |
US $1.44 |
||
|
9161261020
|
9161261020
91612-61020
Bolt (For Transfer Case)Cover No.2
|
91612-61020 |
— | ||
| replacement | |||||
|
9161261020
|
9161261020
91612-B1020 Bolt (For Transfer Case)Cover No.2 |
91612-B1020 |
US $2.08 |
||
|
9165640616
|
9165640616
91656-40616
Bolt
|
91656-40616 |
— | ||
| replacement | |||||
|
9165640616
|
9165640616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9356015020
|
9356015020
93560-15020 SCREW |
93560-15020 |
from US $0.52 |
||
|
9411040600
|
9411040600
94110-40600 Nut, Rock |
94110-40600 |
from US $0.66 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.94 |
||
|
9451100600
|
9451100600
94511-00600 Washer, Lock, No.2 |
94511-00600 |
US $1.92 |
||
|
9451100800
|
9451100800
94511-00800 WASHERSPRING |
94511-00800 |
from US $1.60 |
||
