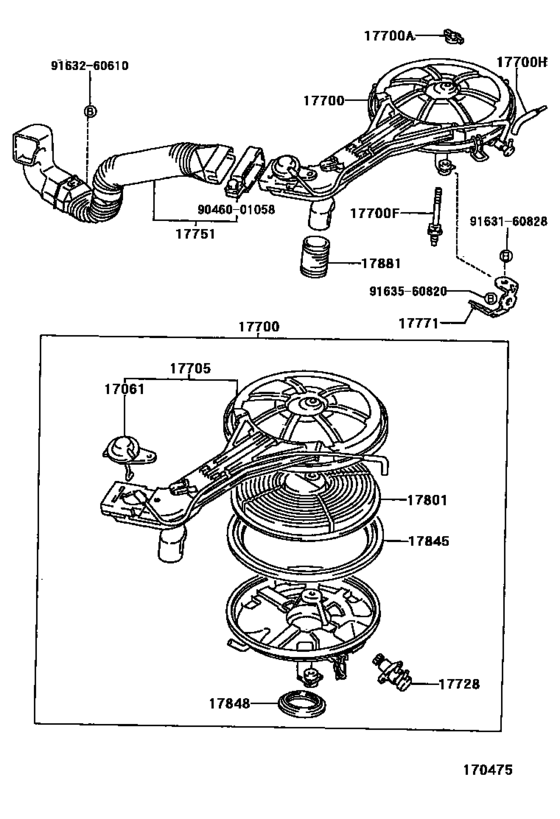

Air Cleaner ([05.1992 - ] (9205- )2E) Diagram Toyota COROLLA
- Year
- 1992 - 1997
- Sales region
- Europe
- Frame
- EE100
- grade
- XL
- body
- SED
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 04.1997
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17061
|
17061
17061-10010
Diaphragm Sub-Assy
[05.1992 -] 2E..EE100 |
17061-10010 |
— | ||
|
17700
|
17700
17700-11790 Cleaner Assy, AirAIR [05.1992 -] 2E..EE100 |
17700-11790 |
US $174.72 |
||
|
17700A
|
17700A
90175-06010
Nut, Wing(For Air Cleaner)
[05.1992 -] 2E..EE100 |
90175-06010 |
— | ||
|
17700F
|
17700F
90116-06142 Bolt, Stud(For Air Cleaner Setting)[05.1992 -] 2E..EE100 |
90116-06142 |
US $2.53 |
||
|
17700H
|
17700H
17341-10010 Hose, No.1(For Air Injection System)[05.1992 -] 2E..EE100 |
17341-10010 |
US $12.06 |
||
|
17705
|
17705
17705-11360
Cap Sub-Assy, Air Cleaner
[05.1992 -] 2E..EE100 |
17705-11360 |
— | ||
|
17728
|
17728
17728-11080
Valve, Thermostatic
[05.1992 -] 2E..EE100 |
17728-11080 |
— | ||
|
17751
|
17751
17750-11010 Inlet, Air Cleaner, No.1[05.1992 - 10.1994] 2E..EE100 |
17750-11010 |
US $54.16 |
||
| replacement | |||||
|
17751
|
17751
17750-11011 Inlet, Air Cleaner, No.1AIR CLEANER, NO.1 [05.1992 - 10.1994] 2E..EE100 |
17750-11011 |
US $54.31 |
||
|
17751
|
17751
17750-11011 Inlet, Air Cleaner, No.1AIR CLEANER, NO.1 [10.1994 -] 2E..EE100 |
17750-11011 |
US $54.31 |
||
|
17771
|
17771
17771-11020
Bracket, Air Cleaner Inlet Duct
[05.1992 -] 2E..EE100 |
17771-11020 |
— | ||
|
17801
|
17801
17801-11100 Element Sub-Assy, Air Cleaner Filter[05.1992 -] 2E..EE100 |
17801-11100 |
from US $17.30 |
||
|
17845
|
17845
17845-10020
Gasket, Filter Element
[05.1992 -] 2E..EE100 |
17845-10020 |
— | ||
|
17848
|
17848
17848-10021 Gasket, Air Cleaner To Carburetor[05.1992 -] 2E..EE100 |
17848-10021 |
US $5.24 |
||
|
17881
|
17881
17881-10033 Hose, Air Cleaner, No.1[05.1992 -] 2E..EE100 |
17881-10033 |
US $4.89 |
||
|
9046001058
|
9046001058
90460-01058 Clamp, Hose(For Precleaner Hose) |
90460-01058 |
US $3.20 |
||
|
9163160828
|
9163160828
91631-60828 BOLT WWASHER |
91631-60828 |
US $1.16 |
||
|
9163260610
|
9163260610
91632-60610 New Genuine Part |
91632-60610 |
US $1.46 |
||
| replacement | |||||
|
9163260610
|
9163260610
91631-B0610 BOLTWWASHER |
91631-B0610 |
from US $0.90 |
||
|
9163560820
|
9163560820
91635-60820 BOLTWWASHER |
91635-60820 |
US $1.75 |
||
| replacement | |||||
|
9163560820
|
9163560820
91631-B0818 BOLTWWASHER |
91631-B0818 |
US $2.08 |
||
