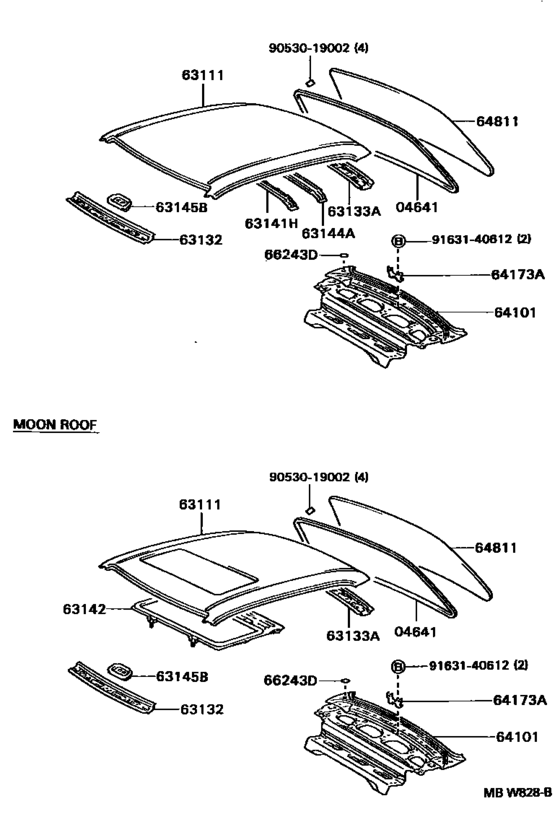

Roof Panel & Back Window Glass ([05.1992 - ] (9205- )SED) Diagram Toyota COROLLA
- Year
- 1992 - 1997
- Sales region
- Europe
- Frame
- EE100
- grade
- XL
- body
- SED
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 04.1997
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04641
|
04641
04562-12010 Dam Kit, Windshield Glass[05.1992 -] AE101,CE100,EE10#..SED |
04562-12010 |
from US $31.92 |
||
|
63111
|
63111
63111-12530 Panel, Roof[05.1992 - 04.1997] AE101,CE100,EE10#..SED |
63111-12530 |
US $473.20 |
||
|
63111
|
63111
63111-12540 Panel, Roof[05.1992 - 04.1997] AE101,CE100,EE10#..SED..(GLI,XL,XLI) W(*SNR) |
63111-12540 |
US $471.74 |
||
|
63132
|
63132
63132-12170 Panel, Windshield Header, Inner[05.1992 -] AE101,CE100,EE10#..SED |
63132-12170 |
US $57.08 |
||
|
63133A
|
63133A
63133-12190 Frame, Back Window, Upper[05.1992 -] AE101,CE100,EE10#..SED |
63133-12190 |
US $57.08 |
||
|
63141H
|
63141H
63141-12160 Reinforcement, Roof Panel, Center[05.1992 -] AE101,CE100,EE10#..SED |
63141-12160 |
US $48.34 |
||
|
63142
|
63142
63142-12060 Reinforcement, Roof Panel, No.2[05.1992 -] AE101,CE100,EE10#..SED..(GLI,XL,XLI) |
63142-12060 |
US $158.70 |
||
|
63144A
|
63144A
63144-12020 Reinforcement, Roof Panel, No.4[05.1992 -] AE101,CE100,EE10#..SED |
63144-12020 |
US $39.60 |
||
|
63145B
|
63145B
63145-12100 Reinforcement, Windshield Header Panel[05.1992 -] AE101,CE100,EE10#..SED |
63145-12100 |
US $12.38 |
||
|
64101
|
64101
64101-12410 Panel Sub-Assy, Upper Back[05.1992 -] AE101,CE100,EE10#..SED..(STD,XL,XLI) |
64101-12410 |
US $320.32 |
||
|
64101
|
64101
64101-12430 Panel Sub-Assy, Upper Back[05.1992 -] AE101,EE101..SED..GLI; AE101,CE100,EE10#..SED..(XL,XLI) W(4-WAY SPLIT FOLD DOWN REAR SEAT) |
64101-12430 |
US $320.32 |
||
|
64173A
|
64173A
64173-12050 Bracket, High Mounting Stop Lamp[05.1995 -] AE101,CE100,EE10#..SED |
64173-12050 |
US $12.38 |
||
|
64811
|
64811
64811-02080
Glass, Back Window
[06.1993 -] AE101,CE100,EE10#..SED..(GLI,XL,XLI) *EHT,T=3.5 |
64811-02080 |
— | ||
|
64811
|
64811
64811-1A370 Glass, Back WindowBACK WINDOW [05.1992 -] AE101,CE100,EE10#..SED..(STD,XL,XLI) *EHT,T=3.5,CLEAR |
64811-1A370 |
US $800.80 |
||
|
64811
|
64811
64811-1A380
Glass, Back Window
[05.1992 -] AE101,CE100,EE10#..LHD..SED..(STD,XL,XLI) *EHT,T=3.5,CLEAR,COLD AREA SPEC |
64811-1A380 |
— | ||
| replacement | |||||
|
64811
|
64811
64811-1A430
Glass, Back Window
[05.1992 -] AE101,CE100,EE10#..LHD..SED..(STD,XL,XLI) *EHT,T=3.5,CLEAR,COLD AREA SPEC |
64811-1A430 |
— | ||
|
64811
|
64811
64811-1A400 Glass, Back Window[05.1992 -] AE101,CE100,EE10#..SED..(GLI,XL,XLI) *EHTT,T=3.5,BLUE |
64811-1A400 |
US $844.48 |
||
|
64811
|
64811
64811-1A430
Glass, Back Window
[05.1992 -] AE101,CE100,EE10#..LHD..SED..(GLI,XL,XLI) *EHTT,T=3.5,BLUE,COLD AREA SPEC |
64811-1A430 |
— | ||
|
66243D
|
66243D
66243-20010 Protector, Rear Body, No.1[05.1992 -] AE101,CE100,EE10#..SED |
66243-20010 |
US $2.20 |
||
|
9053019002
|
9053019002
90530-19002 New Genuine Part |
90530-19002 |
US $0.96 |
||
|
9163140612
|
9163140612
91631-40612 New Genuine Part |
91631-40612 |
US $1.75 |
||
