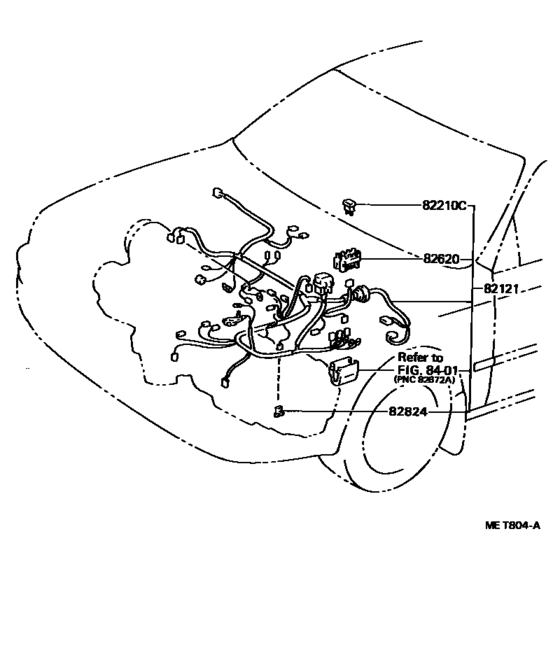

Wiring & Clamp ([05.1992 - ] ENGINE (9205- )EE100) Diagram Toyota COROLLA
- Year
- 1992 - 1997
- Sales region
- Europe
- Frame
- EE100
- grade
- XL
- body
- SED
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 04.1997
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82121
|
82121
82121-1K090 Wire, EngineENGINE [05.1992 - 11.1994] EE100 |
82121-1K090 |
US $396.03 |
||
| replacement | |||||
|
82121
|
82121
82121-1K091 Wire, EngineENGINE [05.1992 - 11.1994] EE100 |
82121-1K091 |
US $375.65 |
||
|
82121
|
82121
82121-1K091 Wire, EngineENGINE [11.1994 - 05.1995] EE100 |
82121-1K091 |
US $375.65 |
||
|
82121
|
82121
82121-1L680 Wire, EngineENGINE [05.1995 -] EE100 |
82121-1L680 |
US $377.10 |
||
|
82210C
|
82210C
90982-08188 Fusible Link[05.1992 -] AE10#,CE100,EE10# 30A,TERMINAL:FEMALE |
90982-08188 |
from US $5.13 |
||
|
82210C
|
82210C
90982-08246 Fusible Link[05.1992 -] AE10#,EE10# 100A,TERMINAL:MALE |
90982-08246 |
from US $7.04 |
||
|
82210C
|
82210C
90982-08257 Fusible Link[05.1992 -] AE10#,EE10# 40A,TERMINAL:MALE |
90982-08257 |
US $11.20 |
||
|
82620
|
82620
82620-12150 Block Assy, Fusible Link[05.1992 -] EE100; AE101,EE101..LHD W/O(ABS) |
82620-12150 |
US $29.41 |
||
|
82824
|
82824
82824-20050 Connector, Wiring Harness[05.1992 - 11.1994] EE100; AE101,CE100,EE101..LHD |
82824-20050 |
US $12.67 |
||
