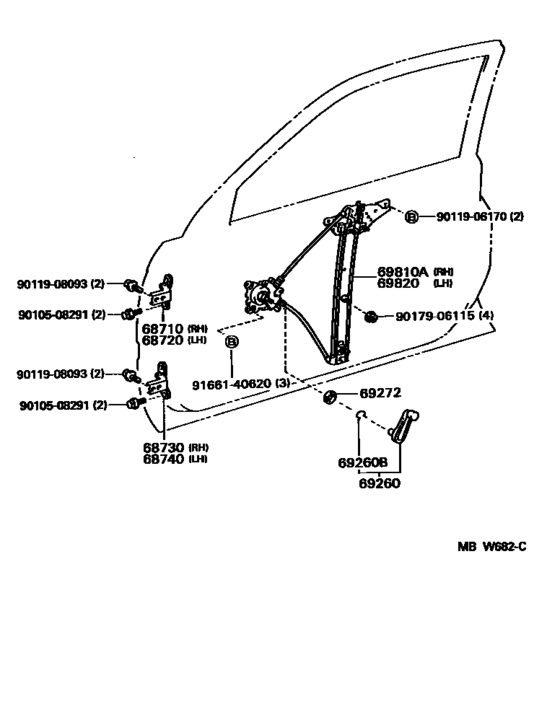

Front Door Window Regulator & Hinge ([05.1992 - 05.1995] (9205-9505)STD) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- General
- Frame
- EE100
- grade
- STD
- body
- HB
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 05.1995
- Gear Shift Type
- 4F
- No.of Doors
- 3D
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-12130
Hinge Assy, Front Door, Upper Rh
[05.1992 - 10.1995] AE10#,EE100 |
68710-12130 |
— | ||
| replacement | |||||
|
68710
|
68710
68710-12151 Hinge Assy, Front Door, Upper Rh[05.1992 - 10.1995] AE10#,EE100 |
68710-12151 |
from US $31.16 |
||
|
68720
|
68720
68720-12130
Hinge Assy, Front Door, Upper Lh
[05.1992 - 10.1995] AE10#,EE100 |
68720-12130 |
— | ||
| replacement | |||||
|
68720
|
68720
68720-12151 Hinge Assy, Front Door, Upper Lh[05.1992 - 10.1995] AE10#,EE100 |
68720-12151 |
from US $31.16 |
||
|
68730
|
68730
68730-12090
Hinge Assy, Front Door, Lower Rh
[05.1992 - 10.1995] AE10#,EE100 |
68730-12090 |
— | ||
| replacement | |||||
|
68730
|
68730
68730-12110 Hinge Assy, Front Door[05.1992 - 10.1995] AE10#,EE100 |
68730-12110 |
from US $46.14 |
||
|
68740
|
68740
68740-12090
Hinge Assy, Front Door, Lower Lh
[05.1992 - 10.1995] AE10#,EE100 |
68740-12090 |
— | ||
| replacement | |||||
|
68740
|
68740
68740-12110 Hinge Assy, Front Door[05.1992 - 10.1995] AE10#,EE100 |
68740-12110 |
from US $45.28 |
||
|
69260
|
69260
69260-10040-07 Handle Assy, Front Door Window Regulator[05.1992 - 06.1992] EE100 DARK BLUE,TRIM8# |
69260-10040-07 |
US $21.69 |
||
| replacement | |||||
|
69260
|
69260
69260-10040-54
Handle Assy, Front Door Window Regulator
[05.1992 - 06.1992] EE100 DARK BLUE,TRIM8# |
69260-10040-54 |
— | ||
|
69260
|
69260
69260-10040-43
Handle Assy, Front Door Window Regulator
[05.1992 - 06.1992] EE100 GRAY,TRIM1# |
69260-10040-43 |
— | ||
| replacement | |||||
|
69260
|
69260
69260-10040-P0 Handle Assy, Front Door Window Regulator[05.1992 - 06.1992] EE100 GRAY,TRIM1# |
69260-10040-P0 |
US $22.71 |
||
|
69260B
|
69260B
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)[05.1992 - 05.1995] EE100..STD |
90520-01274 |
from US $1.11 |
||
|
69272
|
69272
69268-20020
Plate, Window Regulator Handle
[05.1992 -] AE101,EE100..SI,STD,XL,XLI |
69268-20020 |
— | ||
| replacement | |||||
|
69272
|
69272
69285-22010-08 Escutcheon, Window Regulator Handle[05.1992 -] AE101,EE100..SI,STD,XL,XLI |
69285-22010-08 |
from US $3.20 |
||
|
69810A
|
69810A
69810-12430 Regulator Assy, Front Door Window, RhFRONT DOOR WINDOW, RH [05.1992 - 05.1995] EE100..STD |
69810-12430 |
US $67.56 |
||
|
69820
|
69820
69820-12430 Regulator Assy, Front Door Window, LhFRONT DOOR WINDOW, LH [05.1992 - 05.1995] EE100..STD |
69820-12430 |
US $67.56 |
||
|
9010508291
|
9010508291
90105-08291 BOLT |
90105-08291 |
US $1.44 |
||
|
9011906170
|
9011906170
90119-06170 New Genuine Part |
90119-06170 |
US $0.87 |
||
|
9011908093
|
9011908093
90119-08093 BOLT |
90119-08093 |
from US $1.44 |
||
|
9017906115
|
9017906115
90179-06115 Nut (For Rear Wiper Arm Setting) |
90179-06115 |
from US $1.92 |
||
|
9166140620
|
9166140620
91661-40620 New Genuine Part |
91661-40620 |
US $1.28 |
||
