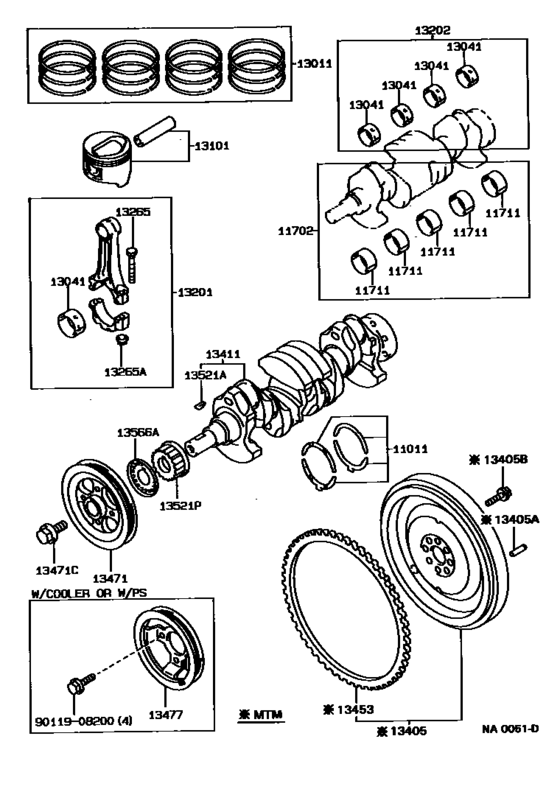

Crankshaft & Piston ([05.1992 - ] (9205- )2E) Diagram Toyota COROLLA
- Year
- 1992 - 1997
- Sales region
- General
- Frame
- EE100
- grade
- XL
- body
- HB
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 06.1992
- To
- 04.1997
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-10010 Washer Set, Crankshaft Thrust[05.1992 - 10.1997] 2E..EE100 STD |
11011-10010 |
from US $26.73 |
||
|
11011
|
11011
11012-10020 Washer Set, Crankshaft Thrust[05.1992 - 10.1997] 2E..EE100 O/S 0.125 |
11012-10020 |
US $33.63 |
||
|
11702
|
11702
11704-10011
Bearing Set, Crankshaft (0.25)
[05.1992 - 01.1996] 2E..EE100 U/S 0.25 |
11704-10011 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-10012 Bearing Set, Crankshaft (0.25)[05.1992 - 01.1996] 2E..EE100 U/S 0.25 |
11704-10012 |
from US $67.08 |
||
|
11702
|
11702
11704-10012 Bearing Set, Crankshaft (0.25)[01.1996 - 10.1997] 2E..EE100 U/S 0.25 |
11704-10012 |
from US $67.08 |
||
|
11711
|
11711
11701-10011-01
Bearing, Crankshaft
[05.1992 - 01.1996] 2E..EE100 MARK 1 |
11701-10011-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-10012-01 Bearing, Crankshaft[05.1992 - 01.1996] 2E..EE100 MARK 1 |
11701-10012-01 |
from US $19.70 |
||
|
11711
|
11711
11701-10011-02
Bearing, Crankshaft
[05.1992 - 01.1996] 2E..EE100 MARK 2 |
11701-10011-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-10012-02 Bearing, Crankshaft[05.1992 - 01.1996] 2E..EE100 MARK 2 |
11701-10012-02 |
from US $19.46 |
||
|
11711
|
11711
11701-10011-03
Bearing, Crankshaft
[05.1992 - 01.1996] 2E..EE100 MARK 3 |
11701-10011-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-10012-03 Bearing, Crankshaft[05.1992 - 01.1996] 2E..EE100 MARK 3 |
11701-10012-03 |
US $47.27 |
||
|
11711
|
11711
11701-10012-01 Bearing, Crankshaft[01.1996 - 10.1997] 2E..EE100 MARK 1 |
11701-10012-01 |
from US $19.70 |
||
|
11711
|
11711
11701-10012-02 Bearing, Crankshaft[01.1996 - 10.1997] 2E..EE100 MARK 2 |
11701-10012-02 |
from US $19.46 |
||
|
11711
|
11711
11701-10012-03 Bearing, Crankshaft[01.1996 - 10.1997] 2E..EE100 MARK 3 |
11701-10012-03 |
US $47.27 |
||
|
11711
|
11711
11701-10012-04 Bearing, Crankshaft[01.1996 - 10.1997] 2E..EE100 MARK 4 |
11701-10012-04 |
US $47.27 |
||
|
11711
|
11711
11701-10012-05 Bearing, Crankshaft[01.1996 - 10.1997] 2E..EE100 MARK 5 |
11701-10012-05 |
US $47.27 |
||
|
13011
|
13011
13011-11063
Ring Set, Piston
[05.1992 - 09.1994] 2E..EE100 STD |
13011-11063 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-11064 Piston Ring Set (STD)[05.1992 - 09.1994] 2E..EE100 STD |
13011-11064 |
from US $107.33 |
||
|
13011
|
13011
13011-11064 Piston Ring Set (STD)[10.1995 - 10.1997] 2E..EE100 STD |
13011-11064 |
from US $107.33 |
||
|
13011
|
13011
13011-11072
Ring Set, Piston (STD)
[09.1994 - 10.1995] 2E..EE100 STD |
13011-11072 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-11064 Piston Ring Set (STD)[09.1994 - 10.1995] 2E..EE100 STD |
13011-11064 |
from US $107.33 |
||
|
13011
|
13011
13013-11063
Ring Set, Piston (0.50)
[05.1992 - 10.1994] 2E..EE100 O/S 0.50 |
13013-11063 |
— | ||
| replacement | |||||
|
13011
|
13011
13013-11064 Ring Set, Piston (0.50)[05.1992 - 10.1994] 2E..EE100 O/S 0.50 |
13013-11064 |
from US $97.75 |
||
|
13011
|
13011
13013-11064 Ring Set, Piston (0.50)[10.1995 - 10.1997] 2E..EE100 O/S 0.50 |
13013-11064 |
from US $97.75 |
||
|
13011
|
13011
13013-11072
Ring Set, Piston (0.50)
[10.1994 - 10.1995] 2E..EE100 O/S 0.50 |
13013-11072 |
— | ||
| replacement | |||||
|
13011
|
13011
13013-11064 Ring Set, Piston (0.50)[10.1994 - 10.1995] 2E..EE100 O/S 0.50 |
13013-11064 |
from US $97.75 |
||
|
13041
|
13041
13041-10020-01 Bearing, Connecting Rod[05.1992 - 10.1997] 2E..EE100 MARK 1 |
13041-10020-01 |
from US $15.76 |
||
|
13041
|
13041
13041-10020-02 Bearing, Connecting Rod[05.1992 - 10.1997] 2E..EE100 MARK 2 |
13041-10020-02 |
from US $16.32 |
||
|
13041
|
13041
13041-10020-03 Bearing, Connecting Rod[05.1992 - 10.1997] 2E..EE100 MARK 3 |
13041-10020-03 |
US $38 |
||
|
13101
|
13101
13101-11051-01
Piston Sub-Assy, W/pin
[05.1992 - 01.1996] 2E..EE100 STD,MARK 1 |
13101-11051-01 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-11052-01 Piston Sub-Assy, W/pin[05.1992 - 01.1996] 2E..EE100 STD,MARK 1 |
13101-11052-01 |
US $84.45 |
||
|
13101
|
13101
13101-11051-02
Piston Sub-Assy, W/pin
[05.1992 - 01.1996] 2E..EE100 STD,MARK 2 |
13101-11051-02 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-11052-02 Piston Sub-Assy, W/pin[05.1992 - 01.1996] 2E..EE100 STD,MARK 2 |
13101-11052-02 |
US $84.45 |
||
|
13101
|
13101
13101-11051-03
Piston Sub-Assy, W/pin
[05.1992 - 01.1996] 2E..EE100 STD,MARK 3 |
13101-11051-03 |
— | ||
| replacement | |||||
|
13101
|
13101
13101-11052-03 Piston Sub-Assy, W/pin[05.1992 - 01.1996] 2E..EE100 STD,MARK 3 |
13101-11052-03 |
from US $55.52 |
||
|
13101
|
13101
13101-11052-01 Piston Sub-Assy, W/pin[01.1996 - 10.1997] 2E..EE100 STD,MARK 1 |
13101-11052-01 |
US $84.45 |
||
|
13101
|
13101
13101-11052-02 Piston Sub-Assy, W/pin[01.1996 - 10.1997] 2E..EE100 STD,MARK 2 |
13101-11052-02 |
US $84.45 |
||
|
13101
|
13101
13101-11052-03 Piston Sub-Assy, W/pin[01.1996 - 10.1997] 2E..EE100 STD,MARK 3 |
13101-11052-03 |
from US $55.52 |
||
|
13101
|
13101
13103-11051
Piston Sub-Assy, W/pin (0.50)
[05.1992 - 01.1996] 2E..EE100 O/S 0.50 |
13103-11051 |
— | ||
| replacement | |||||
|
13101
|
13101
13103-11052 Piston Sub-Assy, W/pin (0.50)[05.1992 - 01.1996] 2E..EE100 O/S 0.50 |
13103-11052 |
US $55.71 |
||
|
13101
|
13101
13103-11052 Piston Sub-Assy, W/pin (0.50)[01.1996 - 10.1997] 2E..EE100 O/S 0.50 |
13103-11052 |
US $55.71 |
||
|
13201
|
13201
13201-19075
Rod Sub-Assy, Connecting
[05.1992 - 12.1995] 2E..EE100 |
13201-19075 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-19076 Rod Sub-Assy, Connecting[05.1992 - 12.1995] 2E..EE100 |
13201-19076 |
US $131.04 |
||
|
13201
|
13201
13201-19076 Rod Sub-Assy, Connecting[12.1995 - 10.1997] 2E..EE100 |
13201-19076 |
US $131.04 |
||
|
13202
|
13202
13204-10020 Bearing Set, Connecting Rod[05.1992 - 10.1997] 2E..EE100 U/S 0.25 |
13204-10020 |
from US $73.55 |
||
|
13265
|
13265
13265-10020
Bolt, Connecting Rod
[05.1992 - 12.1995] 2E..EE100 |
13265-10020 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-10022 Bolt, Connecting Rod[05.1992 - 12.1995] 2E..EE100 |
13265-10022 |
from US $2.93 |
||
|
13265
|
13265
13265-10022 Bolt, Connecting Rod[12.1995 - 10.1997] 2E..EE100 |
13265-10022 |
from US $2.93 |
||
|
13265A
|
13265A
90179-08014 Nut, Hexagon(For Connecting Rod Bolt)[05.1992 - 10.1997] 2E..EE100 |
90179-08014 |
US $2.62 |
||
|
13405
|
13405
13405-11031 Flywheel Sub-Assy[05.1992 - 10.1997] 2E..EE100..MTM |
13405-11031 |
US $269.36 |
||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[05.1992 - 10.1997] 2E..EE100..MTM L=18,OD=8 |
90250-08120 |
from US $1.03 |
||
|
13405B
|
13405B
90105-10138 Bolt, Flywheel Setting[05.1992 - 10.1997] 2E..EE100..MTM |
90105-10138 |
from US $1.48 |
||
|
13411
|
13411
13401-11050
Crankshaft
[05.1992 - 01.1996] 2E..EE100 |
13401-11050 |
— | ||
| replacement | |||||
|
13411
|
13411
13401-11051
Crankshaft
[05.1992 - 01.1996] 2E..EE100 |
13401-11051 |
— | ||
|
13411
|
13411
13401-11051
Crankshaft
[01.1996 - 10.1997] 2E..EE100 |
13401-11051 |
— | ||
|
13453
|
13453
13453-10030 Gear, Flywheel Ring[05.1992 - 10.1997] 2E..EE100..MTM |
13453-10030 |
US $90.27 |
||
|
13471
|
13471
13408-11012
Pulley, Crankshaft
[05.1992 - 10.1997] 2E..EE100 |
13408-11012 |
— | ||
| replacement | |||||
|
13471
|
13471
13470-11030 Pulley, Crankshaft[05.1992 - 10.1997] 2E..EE100 |
13470-11030 |
US $172.80 |
||
|
13471C
|
13471C
90105-12051 Bolt(For Crankshaft Pulley Set)[05.1992 - 10.1997] 2E..EE100 |
90105-12051 |
from US $2.65 |
||
|
13477
|
13477
88451-12040
Pulley, Crankshaft, No.2
[05.1992 - 05.1993] 2E..EE100..GEN W(AIR CONDITIONER OR POWER STEERING) |
88451-12040 |
— | ||
|
13477
|
13477
88451-12050
Pulley, Crankshaft, No.2
[06.1992 - 05.1993] 2E..EE100..LHD..GEN W(AIR CONDITIONER) |
88451-12050 |
— | ||
|
13521A
|
13521A
90280-05005 Key(For Oil Pump Drive Spline)[05.1992 - 10.1997] 2E..EE100 |
90280-05005 |
from US $0.98 |
||
|
13521P
|
13521P
13521-11010 Pulley, Crankshaft Timing[05.1992 - 10.1997] 2E..EE100 |
13521-11010 |
US $36.69 |
||
|
13566A
|
13566A
13566-10011 Guide, Timing Belt[05.1992 - 10.1997] 2E..EE100 |
13566-10011 |
US $4.37 |
||
|
9011908200
|
9011908200
90119-08200 BOLT |
90119-08200 |
from US $2.24 |
||
| replacement | |||||
|
9011908200
|
9011908200
90105-08112 New Genuine Part |
90105-08112 |
from US $2.04 |
||
