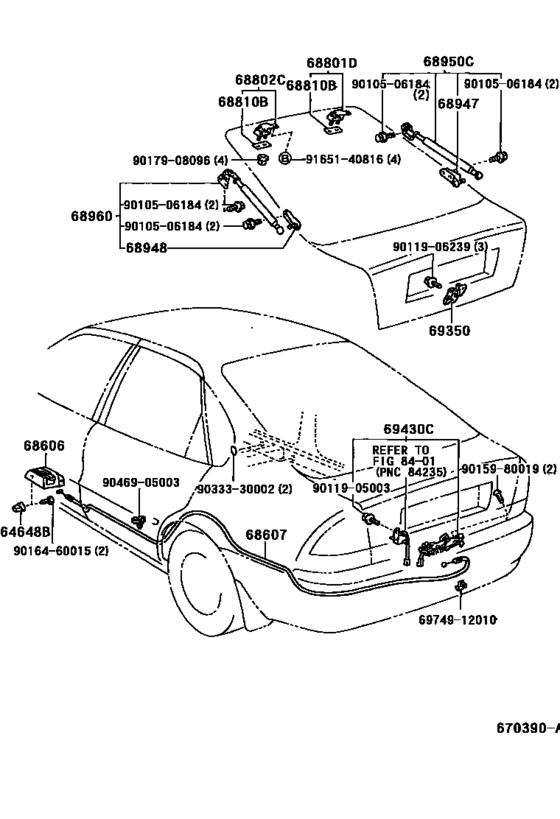

Back Door Lock & Handle ([05.1992 - 05.1995] (9205-9505)LB) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- Europe
- Frame
- EE100
- grade
- XL
- body
- LB
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 05.1995
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64648B
|
64648B
64648-12010 Grommet, Luggage Door Lock Opener[05.1992 - 05.1995] AE10#,CE100,EE10#..GLI,GTI,SI,XL,XLI |
64648-12010 |
US $3.93 |
||
|
68606
|
68606
64640-12100-B0 Opener Assy, Luggage Door LockLUGGAGE DOOR LOCK [05.1992 - 01.1994] AE10#,CE100,EE10#..LHD..(GLI,GTI,SI,XL,XLI) SHADOW GRAY,TRIM1# |
64640-12100-B0 |
US $72.07 |
||
| replacement | |||||
|
68606
|
68606
64640-12101-B0 Opener Assy, Luggage Door LockLUGGAGE DOOR LOCK [05.1992 - 01.1994] AE10#,CE100,EE10#..LHD..(GLI,GTI,SI,XL,XLI) SHADOW GRAY,TRIM1# |
64640-12101-B0 |
US $72.07 |
||
|
68606
|
68606
64640-12100-J0 Opener Assy, Luggage Door LockLUGGAGE DOOR LOCK [05.1992 - 04.1995] AE101,CE100,EE10#..LHD..(GLI,XL,XLI) DARK BLUE,TRIM8# |
64640-12100-J0 |
US $72.07 |
||
| replacement | |||||
|
68606
|
68606
64640-12101-J0 Opener Assy, Luggage Door LockLUGGAGE DOOR LOCK [05.1992 - 04.1995] AE101,CE100,EE10#..LHD..(GLI,XL,XLI) DARK BLUE,TRIM8# |
64640-12101-J0 |
US $72.07 |
||
|
68606
|
68606
64640-12101-J0 Opener Assy, Luggage Door LockLUGGAGE DOOR LOCK [04.1995 - 05.1995] AE101,CE100,EE10#..LHD..(GLI,XL,XLI) DARK BLUE,TRIM8# |
64640-12101-J0 |
US $72.07 |
||
|
68607
|
68607
64607-12710
Cable Sub-Assy, Back Door Lock Control
[05.1992 - 05.1995] AE10#,CE100,EE10#..LB..LHD |
64607-12710 |
— | ||
|
68801D
|
68801D
68801-12080 Hinge Sub-Assy, Back Door, RhBACK DOOR, RH [05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
68801-12080 |
US $27.23 |
||
|
68802C
|
68802C
68801-12080 Hinge Sub-Assy, Back Door, RhBACK DOOR, RH [05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
68801-12080 |
US $27.23 |
||
|
68810B
|
68810B
68838-12020 Pad, Back Door HingeBACK DOOR HINGE [05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
68838-12020 |
US $3.49 |
||
|
68947
|
68947
68947-12040 Bracket, Back Door Damper Stay, Lower RhBACK DOOR DAMPER STAY, LOWER RH [12.1994 - 05.1995] AE10#,CE100,EE10#..LB |
68947-12040 |
US $7.13 |
||
|
68948
|
68948
68948-12040 Bracket, Back Door Damper Stay, Lower LhBACK DOOR DAMPER STAY, LOWER LH [12.1994 - 05.1995] AE10#,CE100,EE10#..LB |
68948-12040 |
US $7.13 |
||
|
68950C
|
68950C
68950-80045 Stay Assy, Back Door, RhBACK DOOR, RH [05.1992 - 03.1995] AE10#,CE100,EE10#..LB |
68950-80045 |
US $158.70 |
||
| replacement | |||||
|
68950C
|
68950C
68950-80047 Stay Assy, Back Door, RhBACK DOOR, RH [05.1992 - 03.1995] AE10#,CE100,EE10#..LB |
68950-80047 |
US $158.70 |
||
|
68950C
|
68950C
68950-80046 Stay Assy, Back Door, RhBACK DOOR, RH [05.1992 - 03.1995] AE10#,CE100,EE10#..LB W(*RS) |
68950-80046 |
US $158.70 |
||
| replacement | |||||
|
68950C
|
68950C
68950-80048 Stay Assy, Back Door, RhBACK DOOR, RH [05.1992 - 03.1995] AE10#,CE100,EE10#..LB W(*RS) |
68950-80048 |
US $158.70 |
||
|
68950C
|
68950C
68950-80047 Stay Assy, Back Door, RhBACK DOOR, RH [03.1995 - 05.1995] AE10#,CE100,EE10#..LB |
68950-80047 |
US $158.70 |
||
|
68950C
|
68950C
68950-80048 Stay Assy, Back Door, RhBACK DOOR, RH [03.1995 - 05.1995] AE10#,CE100,EE10#..LB W(*RS) |
68950-80048 |
US $158.70 |
||
|
68960
|
68960
68960-19615 Stay Assy, Back Door, LhBACK DOOR, LH [05.1992 - 03.1995] AE10#,CE100,EE10#..LB |
68960-19615 |
US $158.70 |
||
| replacement | |||||
|
68960
|
68960
68960-19616 Stay Assy, Back Door, LhBACK DOOR, LH [05.1992 - 03.1995] AE10#,CE100,EE10#..LB |
68960-19616 |
US $158.70 |
||
|
68960
|
68960
68960-19616 Stay Assy, Back Door, LhBACK DOOR, LH [03.1995 - 05.1995] AE10#,CE100,EE10#..LB |
68960-19616 |
US $158.70 |
||
|
68960
|
68960
68960-19625 Stay Assy, Back Door, LhBACK DOOR, LH [05.1992 - 03.1995] AE10#,CE100,EE10#..LB W(*RS) |
68960-19625 |
US $158.70 |
||
| replacement | |||||
|
68960
|
68960
68960-19626 Stay Assy, Back Door, LhBACK DOOR, LH [05.1992 - 03.1995] AE10#,CE100,EE10#..LB W(*RS) |
68960-19626 |
US $158.70 |
||
|
68960
|
68960
68960-19626 Stay Assy, Back Door, LhBACK DOOR, LH [03.1995 - 05.1995] AE10#,CE100,EE10#..LB W(*RS) |
68960-19626 |
US $158.70 |
||
|
69350
|
69350
69350-12190 Lock Assy, Back DoorBACK DOOR [05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
69350-12190 |
US $78.62 |
||
|
69430C
|
69430C
69430-12300 Striker Assy, Back Door LockBACK DOOR LOCK [05.1992 - 11.1993] AE10#,CE100,EE10#..LB |
69430-12300 |
US $62.90 |
||
| replacement | |||||
|
69430C
|
69430C
69430-12311 Striker Assy, Back Door Lock[05.1992 - 11.1993] AE10#,CE100,EE10#..LB |
69430-12311 |
US $63.48 |
||
|
69430C
|
69430C
69430-12301 Striker Assy, Back Door LockBACK DOOR LOCK [11.1993 - 05.1995] AE10#,CE100,EE10#..LB |
69430-12301 |
US $63.34 |
||
| replacement | |||||
|
69430C
|
69430C
69430-12311 Striker Assy, Back Door Lock[11.1993 - 05.1995] AE10#,CE100,EE10#..LB |
69430-12311 |
US $63.48 |
||
|
6974912010
|
6974912010
69749-12010 Clamp(For Hood Lock Control Cable) |
69749-12010 |
from US $1.11 |
||
|
9010506184
|
9010506184
90105-06184 BOLT WASHER BASED |
90105-06184 |
US $1.12 |
||
|
9011905003
|
9011905003
90119-05003 New Genuine Part |
90119-05003 |
US $1.60 |
||
|
9011906239
|
9011906239
90119-06239 New Genuine Part |
90119-06239 |
US $1.60 |
||
| replacement | |||||
|
9011906239
|
9011906239
90119-06236 New Genuine Part |
90119-06236 |
US $0.96 |
||
|
9015980019
|
9015980019
90159-80019 New Genuine Part |
90159-80019 |
US $1.60 |
||
|
9016460015
|
9016460015
90164-60015 SCREW |
90164-60015 |
US $1.89 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.42 |
||
| replacement | |||||
|
9017908096
|
9017908096
90080-18061 New Genuine Part |
90080-18061 |
US $4.47 |
||
|
9033330002
|
9033330002
90333-30002 Cover, Front Floor Hole |
90333-30002 |
from US $1.05 |
||
|
9046905003
|
9046905003
90469-05003 New Genuine Part |
90469-05003 |
US $3.06 |
||
|
9165140816
|
9165140816
91651-40816 BOLT |
91651-40816 |
from US $0.99 |
||
