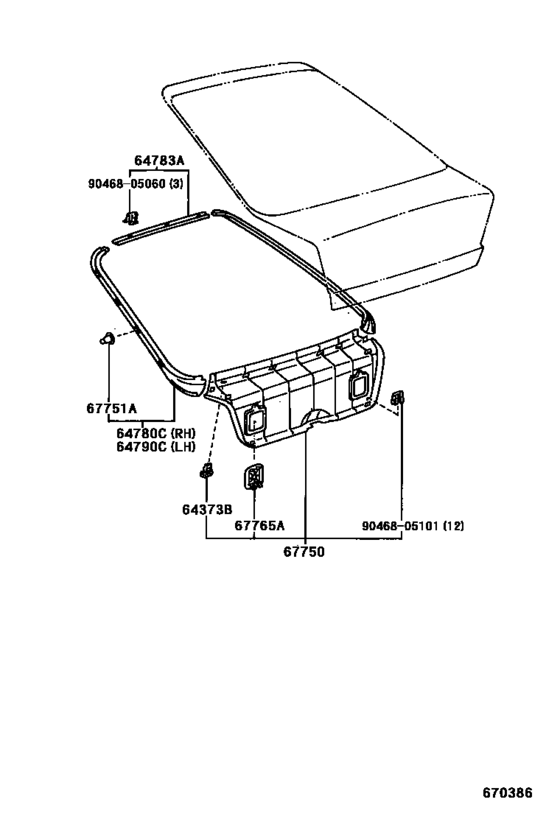

Back Door Panel & Glass ([05.1992 - 05.1995] (9205-9505)LB) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- Europe
- Frame
- EE100
- grade
- XL
- body
- LB
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 05.1995
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
64373B
|
64373B
64373-12070 Stopper, Package Tray Trim[05.1992 -] AE10#,CE100,EE10# |
64373-12070 |
US $4.37 |
||
|
64780C
|
64780C
64780-12040-B0 Panel Assy, Back Door Trim, RhBACK DOOR TRIM, RH [05.1992 - 05.1995] AE10#,CE100,EE10#..LB SHADOW GRAY,TRIM1# |
64780-12040-B0 |
US $46.01 |
||
|
64780C
|
64780C
64780-12040-J0 Panel Assy, Back Door Trim, RhBACK DOOR TRIM, RH [05.1992 - 05.1995] AE101,CE100,EE10#..LB DARK BLUE,TRIM8# |
64780-12040-J0 |
US $46.01 |
||
|
64783A
|
64783A
64783-12020-B0 Trim, Back Window Panel, UpperBACK WINDOW PANEL, UPPER [05.1992 - 05.1995] AE10#,CE100,EE10#..LB SHADOW GRAY,TRIM1# |
64783-12020-B0 |
US $41.06 |
||
|
64783A
|
64783A
64783-12020-J0 Trim, Back Window Panel, UpperBACK WINDOW PANEL, UPPER [05.1992 - 05.1995] AE101,CE100,EE10#..LB DARK BLUE,TRIM8# |
64783-12020-J0 |
US $41.06 |
||
| replacement | |||||
|
64783A
|
64783A
64783-12020-B0 Trim, Back Window Panel, UpperBACK WINDOW PANEL, UPPER [05.1992 - 05.1995] AE101,CE100,EE10#..LB DARK BLUE,TRIM8# |
64783-12020-B0 |
US $41.06 |
||
|
64790C
|
64790C
64790-12020-B0 Panel Assy, Back Door Trim, LhBACK DOOR TRIM, LH [05.1992 - 05.1995] AE10#,CE100,EE10#..LB SHADOW GRAY,TRIM1# |
64790-12020-B0 |
US $46.01 |
||
|
64790C
|
64790C
64790-12020-J0 Panel Assy, Back Door Trim, LhBACK DOOR TRIM, LH [05.1992 - 05.1995] AE101,CE100,EE10#..LB DARK BLUE,TRIM8# |
64790-12020-J0 |
US $46.01 |
||
|
67750
|
67750
67750-12040-B0 Board Assy, Back Door TrimBACK DOOR TRIM [05.1992 - 05.1995] AE10#,CE100,EE10#..LB SHADOW GRAY,TRIM1# |
67750-12040-B0 |
US $123.76 |
||
|
67750
|
67750
67750-12040-J0 Board Assy, Back Door TrimBACK DOOR TRIM [05.1992 - 05.1995] AE101,CE100,EE10#..LB DARK BLUE,TRIM8# |
67750-12040-J0 |
US $123.76 |
||
|
67751A
|
67751A
90467-10084
Clip(For Back Door Trim Panel)
[05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
90467-10084 |
— | ||
|
67765A
|
67765A
67765-12090-B0 Cover, Back Door Service Hole, No.1BACK DOOR SERVICE HOLE, NO.1 [05.1992 - 05.1995] AE10#,CE100,EE10#..LB SHADOW GRAY,TRIM1# |
67765-12090-B0 |
US $23.30 |
||
|
67765A
|
67765A
67765-12090-J0 Cover, Back Door Service Hole, No.1BACK DOOR SERVICE HOLE, NO.1 [05.1992 - 05.1995] AE101,CE100,EE10#..LB DARK BLUE,TRIM8# |
67765-12090-J0 |
US $23.30 |
||
|
9046805060
|
9046805060
90468-05060 Clip |
90468-05060 |
from US $0.92 |
||
|
9046805101
|
9046805101
90468-05101
New Genuine Part
|
90468-05101 |
— | ||
