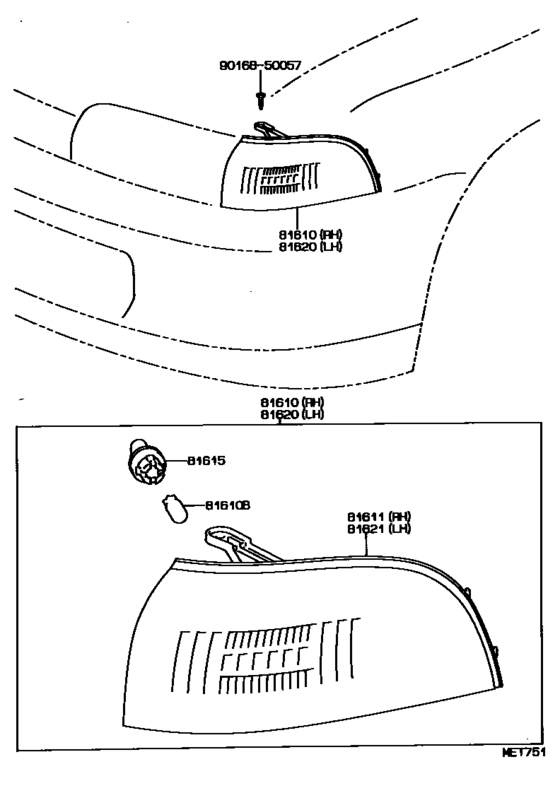

Front Clearance Lamp ([05.1992 - ] (9205- )LB) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- Europe
- Frame
- EE100
- grade
- XL
- body
- LB
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 05.1995
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81610
|
81610
81610-12570
Lamp Assy, Parking & Clearance, Rh
[05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
81610-12570 |
— | ||
|
81610B
|
81610B
99132-12050 Bulb (12V 5W)[05.1992 -] AE10#,CE100,EE10# 12V 5W |
99132-12050 |
from US $1.76 |
||
| replacement | |||||
|
81610B
|
81610B
90080-81053 Bulb(For Clearance Lamp)[05.1992 -] AE10#,CE100,EE10# 12V 5W |
90080-81053 |
US $1.05 |
||
|
81611
|
81611
81611-12570
Lens, Parking & Clearance Lamp, Rh
[05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
81611-12570 |
— | ||
|
81615
|
81615
90075-99079
Plug Assy, Front Turn Signal Lamp
[05.1992 -] EE100;AE10#,CE100,EE101..LB;AE10#,CE100,EE101..HB..LHD; AE10#,CE100,EE101..HB..RHD RH AIMING |
90075-99079 |
— | ||
|
81620
|
81620
81620-12560
Lamp Assy, Parking & Clearance, Lh
[05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
81620-12560 |
— | ||
|
81621
|
81621
81621-12560
Lens, Parking & Clearance Lamp, Lh
[05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
81621-12560 |
— | ||
|
9016850057
|
9016850057
90168-50057 SCREW RADIATOR GRIL |
90168-50057 |
US $1.92 |
||
