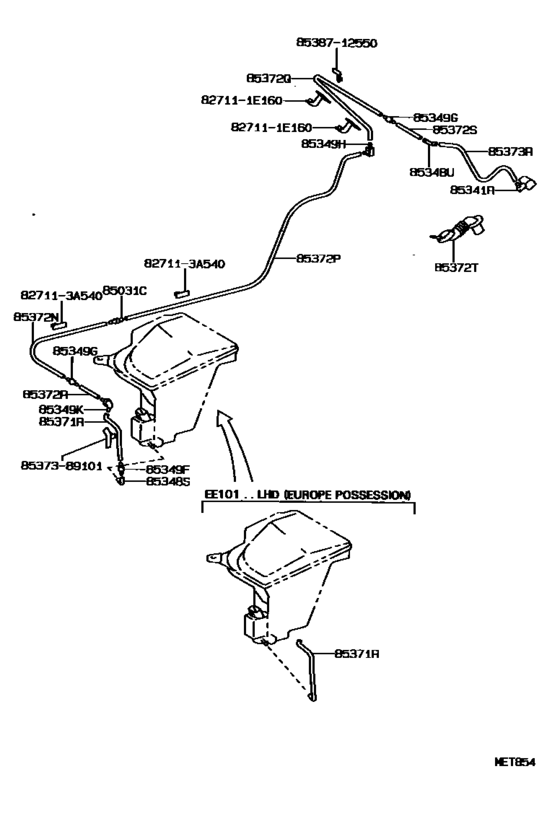

Rear Washer ([05.1992 - ] (9205- )LB) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- Europe
- Frame
- EE100
- grade
- XL
- body
- LB
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 05.1995
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85031C
|
85031C
85031-30010 Valve Sub-Assy, Washer[05.1992 - 12.1995] AE10#,CE100,EE10# |
85031-30010 |
from US $1.54 |
||
|
85341R
|
85341R
85395-12010
Nozzle Assy, Washer
[05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
85395-12010 |
— | ||
| replacement | |||||
|
85341R
|
85341R
85395-12020
Nozzle Assy, Washer
[05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
85395-12020 |
— | ||
|
85348U
|
85348U
85355-20080
Joint, Rear Washer Hose, No.1
[05.1992 - 12.1993] AE10#,CE100,EE10# |
85355-20080 |
— | ||
|
85349G
|
85349G
85349-89122 Valve Sub-Assy, Washer[05.1992 -] AE10#,CE100,EE10# |
85349-89122 |
from US $1.25 |
||
|
85349H
|
85349H
85376-10250 Joint, Windshield Washer Hose, No.1[05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
85376-10250 |
from US $3.84 |
||
|
85349K
|
85349K
85317-12230
Joint, Windshield Washer Elbow, No.2
[05.1992 -] AE10#,CE100,EE10# |
85317-12230 |
— | ||
|
85371R
|
85371R
90446-07001 Hose, Windshield Washer (From Motor To Joint)[05.1992 -] EE10#..LHD *H,L=150 |
90446-07001 |
from US $2.10 |
||
|
85372N
|
85372N
90099-33299 Joint, Windshield Washer Elbow, No.2[05.1992 - 07.1993] AE10#,CE100,EE10#..LB *H,L=50 |
90099-33299 |
US $4.37 |
||
|
85372N
|
85372N
90446-07001 Hose, Windshield Washer (From Motor To Joint)[05.1992 - 05.1995] AE10#,CE100,EE10#..HB *H,L=1440; AE10#,CE100,EE10#..LB..LHD *H,L=1540 |
90446-07001 |
from US $2.10 |
||
|
85372P
|
85372P
90099-33592 Hose, Rear Washer (From Joint To Joint Or Nozzle)[05.1992 - 05.1995] AE10#,CE100,EE10#..LB..LHD *H,L=2100 |
90099-33592 |
US $8.15 |
||
| replacement | |||||
|
85372P
|
85372P
90099-33589 Hose, Rear Washer (From Motor To Joint)[05.1992 - 05.1995] AE10#,CE100,EE10#..LB..LHD *H,L=2100 |
90099-33589 |
from US $3.84 |
||
|
85372P
|
85372P
90099-59045
Hose, Rear Washer (From Joint To Joint), No.2
[05.1992 - 05.1995] AE10#,CE100,EE10#..LB *H,L=2200 |
90099-59045 |
— | ||
| replacement | |||||
|
85372P
|
85372P
90099-33589 Hose, Rear Washer (From Motor To Joint)[05.1992 - 05.1995] AE10#,CE100,EE10#..LB *H,L=2200 |
90099-33589 |
from US $3.84 |
||
|
85372Q
|
85372Q
90446-07012
Hose, Windshield Washer (From Joint To Joint), No.1
[05.1992 - 05.1995] AE10#,CE100,EE10#..LB *H,L=900 |
90446-07012 |
— | ||
| replacement | |||||
|
85372Q
|
85372Q
90446-07001 Hose, Windshield Washer (From Motor To Joint)[05.1992 - 05.1995] AE10#,CE100,EE10#..LB *H,L=900 |
90446-07001 |
from US $2.10 |
||
|
85372R
|
85372R
90099-33080 Hose, Windshield Washer (From Motor To Joint)[05.1992 -] AE10#,CE100,EE10# *H,L=70 |
90099-33080 |
from US $5.99 |
||
|
85372S
|
85372S
90099-33299 Joint, Windshield Washer Elbow, No.2[05.1992 - 05.1995] AE10#,CE100,EE10#..LB *H,L=55 |
90099-33299 |
US $4.37 |
||
|
85372T
|
85372T
85307-12010
Grommet, Washer
[05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
85307-12010 |
— | ||
|
85373R
|
85373R
90099-33299 Joint, Windshield Washer Elbow, No.2[05.1992 - 05.1995] AE10#,CE100,EE10#..LB *H,L=240 |
90099-33299 |
US $4.37 |
||
|
827111E160
|
827111E160
82711-1E160 Wire, Fuse To Fuse(for Combustion Heater) |
82711-1E160 |
US $3.64 |
||
|
827113A540
|
827113A540
82711-3A540 Clamp, Sliding Roof Drain Hose |
82711-3A540 |
US $1.44 |
||
|
8537389101
|
8537389101
85373-89101
Hose, Windshield Washer (from Joint To Nozzle)
|
85373-89101 |
— | ||
|
8538712550
|
8538712550
85387-12550
Clamp No.1 (for Windseield Washer)
|
85387-12550 |
— | ||
