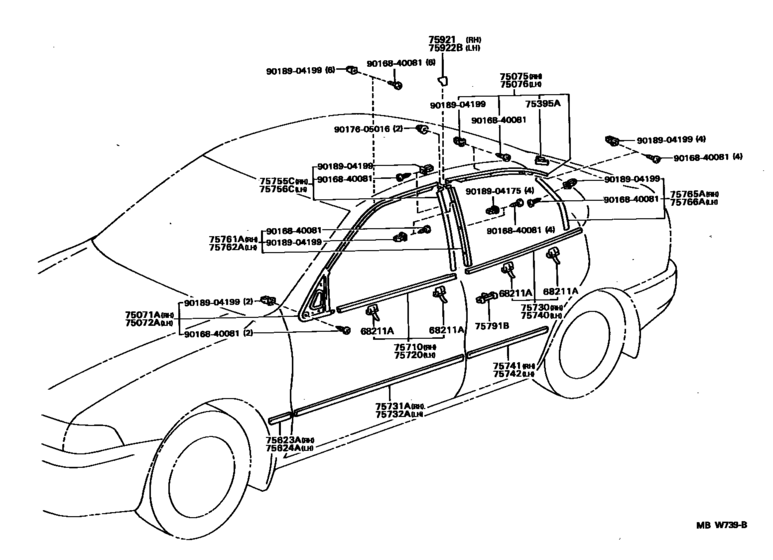

Side Moulding ([05.1992 - 05.1995] (9205-9505)LB) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- Europe
- Frame
- EE100
- grade
- XL
- body
- LB
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 05.1995
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68211A
|
68211A
68211-12180 Clip, Door Belt Moulding[05.1992 - 05.1995] AE10#,CE100,EE10#..LB RED |
68211-12180 |
US $3.64 |
||
|
68211A
|
68211A
68212-12020 Clip, Door Belt Moulding[05.1992 - 11.1992] CE100..LB..RHD;AE101,EE10#..LB BLUE |
68212-12020 |
US $3.64 |
||
|
75071A
|
75071A
75071-12070 Moulding Sub-Assy, Front Door, Outside RhFRONT DOOR, OUTSIDE RH [05.1992 - 11.1992] CE100..LB..RHD;AE101,EE10#..LB |
75071-12070 |
US $62.46 |
||
|
75072A
|
75072A
75072-12070 Moulding Sub-Assy, Front Door, Outside LhFRONT DOOR, OUTSIDE LH [05.1992 - 11.1992] CE100..LB..RHD;AE101,EE10#..LB |
75072-12070 |
US $62.46 |
||
|
75075
|
75075
75075-12040 Moulding Sub-Assy, Rear Door, Outside RhREAR DOOR, OUTSIDE RH [05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
75075-12040 |
US $38.29 |
||
|
75076
|
75076
75076-12070 Moulding Sub-Assy, Rear Door, Outside LhREAR DOOR, OUTSIDE LH [05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
75076-12070 |
US $38.29 |
||
|
75395A
|
75395A
75395-12120 Clip, Outside Moulding, No.1OUTSIDE MOULDING, NO.1 [05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
75395-12120 |
US $1.75 |
||
|
75623A
|
75623A
75623-12660 Moulding, Front Fender, Outside Rear Rh[05.1992 - 05.1995] AE101,CE100,EE10#..LB |
75623-12660 |
US $10.92 |
||
|
75624A
|
75624A
75624-12660 Moulding, Front Fender, Outside Rear Lh[05.1992 - 05.1995] AE101,CE100,EE10#..LB |
75624-12660 |
US $10.92 |
||
|
75710
|
75710
75710-12520
Moulding Assy, Front Door Belt, Rh
[05.1992 - 11.1992] CE100..LB..RHD;AE101,EE10#..LB |
75710-12520 |
— | ||
|
75720
|
75720
75720-12520
Moulding Assy, Front Door Belt, Lh
[05.1992 - 11.1992] CE100..LB..RHD;AE101,EE10#..LB |
75720-12520 |
— | ||
|
75730
|
75730
75730-12240
Moulding Assy, Rear Door Belt, Rh
[05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
75730-12240 |
— | ||
|
75731A
|
75731A
75731-1A350 Moulding, Front Door, Outside Rh[05.1992 - 05.1995] AE101,CE100,EE10#..LB |
75731-1A350 |
US $47.90 |
||
|
75732A
|
75732A
75732-1A190 Moulding, Front Door, Outside Lh[05.1992 - 05.1995] AE101,CE100,EE10#..LB |
75732-1A190 |
US $47.90 |
||
|
75740
|
75740
75740-12330
Moulding Assy, Rear Door Belt, Lh
[05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
75740-12330 |
— | ||
|
75741
|
75741
75741-12860 Moulding, Rear Door, Outside Rh[05.1992 - 05.1995] AE101,CE100,EE10#..LB |
75741-12860 |
US $39.60 |
||
|
75742
|
75742
75742-12850 Moulding, Rear Door, Outside Lh[05.1992 - 05.1995] AE101,CE100,EE10#..LB |
75742-12850 |
US $39.60 |
||
|
75755C
|
75755C
75755-12090 Moulding, Front Door Window Frame, Rear Rh[05.1992 - 11.1992] CE100..LB..RHD;AE101,EE10#..LB |
75755-12090 |
US $40.48 |
||
|
75756C
|
75756C
75756-12110 Moulding, Front Door Window Frame, Rear Lh[05.1992 - 11.1992] CE100..LB..RHD;AE101,EE10#..LB |
75756-12110 |
US $40.48 |
||
|
75761A
|
75761A
75761-12040 Moulding, Rear Door Window Frame, Front Rh[05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
75761-12040 |
US $40.48 |
||
|
75762A
|
75762A
75762-12040 Moulding, Rear Door Window Frame, Front Lh[05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
75762-12040 |
US $40.48 |
||
|
75765A
|
75765A
75077-12040 Moulding, Rear Door Window Frame, Rear RhREAR DOOR WINDOW FRAME, REAR RH [05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
75077-12040 |
US $30.87 |
||
|
75766A
|
75766A
75078-12020 Moulding, Rear Door Window Frame, Rear LhREAR DOOR WINDOW FRAME, REAR LH [05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
75078-12020 |
US $30.87 |
||
|
75791B
|
75791B
75791-12060
Clip, Belt Moulding Side
[05.1992 - 05.1995] AE10#,CE100,EE10#..LB |
75791-12060 |
— | ||
|
75921
|
75921
75921-12020 Tape, Black Out, No.1 Rh[02.1994 - 05.1995] AE10#,CE100,EE10#..LB |
75921-12020 |
US $4.95 |
||
|
75922B
|
75922B
75922-12020 Tape, Black Out, No.1 Lh[02.1994 - 05.1995] AE10#,CE100,EE10#..LB |
75922-12020 |
US $4.95 |
||
|
9016840081
|
9016840081
90168-40081
SCREWTAPPING
|
90168-40081 |
— | ||
| replacements | |||||
|
9016840081
|
9016840081
90168-40116 SCREW,TAPPING |
90168-40116 |
from US $0.72 |
||
|
9016840081
|
9016840081
90080-16112 New Genuine Part |
90080-16112 |
US $2.97 |
||
|
9017605016
|
9017605016
90176-05016 New Genuine Part |
90176-05016 |
US $1.60 |
||
|
9018904175
|
9018904175
90189-04175 New Genuine Part |
90189-04175 |
US $2.08 |
||
|
9018904199
|
9018904199
90189-04199
New Genuine Part
|
90189-04199 |
— | ||
