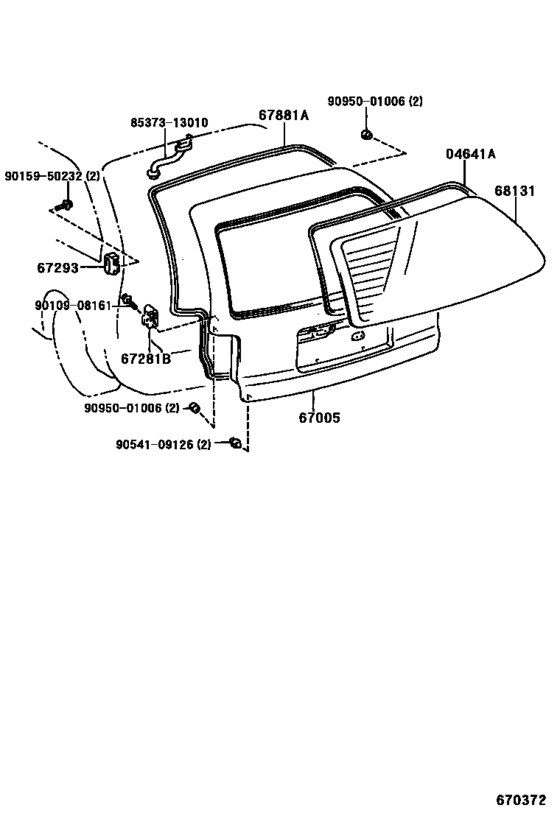

Back Door Panel & Glass ([05.1992 - ] (9205- )WG) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- Europe
- Frame
- EE100
- grade
- XL
- body
- WG
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 05.1995
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla SED/WG
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04641A
|
04641A
68294-13010
Dam Kit, Back Window Glass Adhesive
[05.1992 - 07.1992] AE101,CE100,EE10#..LHD..WG |
68294-13010 |
— | ||
| replacement | |||||
|
04641A
|
04641A
68294-13031 Dam Kit, Back Window Glass Adhesive[05.1992 - 07.1992] AE101,CE100,EE10#..LHD..WG |
68294-13031 |
US $21.10 |
||
|
04641A
|
04641A
68294-13031 Dam Kit, Back Window Glass Adhesive[01.1994 -] AE10#,CE100,EE10#..WG |
68294-13031 |
US $21.10 |
||
|
67005
|
67005
67005-1F180 Panel Sub-Assy, Back DoorBACK DOOR [05.1992 - 11.1993] EE100..WG;CE100,EE101..WG..STD |
67005-1F180 |
US $745.47 |
||
| replacements | |||||
|
67005
|
67005
67005-1F181 Panel Sub-Assy, Back DoorBACK DOOR [05.1992 - 11.1993] EE100..WG;CE100,EE101..WG..STD |
67005-1F181 |
US $745.47 |
||
|
67005
|
67005
75471-13041 Plate, Rear Body Name, No.1[05.1992 - 11.1993] EE100..WG;CE100,EE101..WG..STD |
75471-13041 |
US $30.07 |
||
|
67005
|
67005
67005-1F181 Panel Sub-Assy, Back DoorBACK DOOR [11.1993 - 05.1995] EE100..WG;CE100,EE101..WG..STD |
67005-1F181 |
US $745.47 |
||
|
67005
|
67005
67005-1F280 Panel Sub-Assy, Back DoorBACK DOOR [05.1992 - 11.1993] AE101,CE100,EE101..LHD..WG..(XL,XLI); EE100..WG;CE100,EE101..WG..STD W(*RW) |
67005-1F280 |
US $745.47 |
||
| replacements | |||||
|
67005
|
67005
67005-1F420 Panel Sub-Assy, Back DoorBACK DOOR [05.1992 - 11.1993] AE101,CE100,EE101..LHD..WG..(XL,XLI); EE100..WG;CE100,EE101..WG..STD W(*RW) |
67005-1F420 |
US $749.84 |
||
|
67005
|
67005
75471-13041 Plate, Rear Body Name, No.1[05.1992 - 11.1993] AE101,CE100,EE101..LHD..WG..(XL,XLI); EE100..WG;CE100,EE101..WG..STD W(*RW) |
75471-13041 |
US $30.07 |
||
|
67005
|
67005
67005-1F281 Panel Sub-Assy, Back DoorBACK DOOR [11.1993 - 05.1995] AE101,CE100,EE101..LHD..WG..(XL,XLI); EE100..WG;CE100,EE101..WG..STD W(*RW) |
67005-1F281 |
US $745.47 |
||
| replacement | |||||
|
67005
|
67005
67005-1F420 Panel Sub-Assy, Back DoorBACK DOOR [11.1993 - 05.1995] AE101,CE100,EE101..LHD..WG..(XL,XLI); EE100..WG;CE100,EE101..WG..STD W(*RW) |
67005-1F420 |
US $749.84 |
||
|
67281B
|
67281B
67281-13060 Stopper, Back Door, Lower[05.1992 -] AE10#,CE100,EE10#..WG |
67281-13060 |
US $13.40 |
||
|
67293
|
67293
67293-13020 Cushion, Back Door Lower Stopper[05.1992 -] AE10#,CE100,EE10#..WG |
67293-13020 |
US $8.59 |
||
|
67881A
|
67881A
67881-13190
Weatherstrip, Back Door
[05.1992 -] AE10#,CE100,EE10#..WG |
67881-13190 |
— | ||
|
68131
|
68131
68131-13250
Glass, Back Door
[05.1992 -] AE10#,CE100,EE10#..LHD..WG *EHT,T=3.5,CLEAR,COLD AREA SPEC |
68131-13250 |
— | ||
|
68131
|
68131
68131-13270
Glass, Back Door
[05.1992 -] AE10#,CE100,EE10#..WG *EHT,T=3.5,CLEAR |
68131-13270 |
— | ||
| replacement | |||||
|
68131
|
68131
68131-13400
Glass, Back Door
[05.1992 -] AE10#,CE100,EE10#..WG *EHT,T=3.5,CLEAR |
68131-13400 |
— | ||
|
8537313010
|
8537313010
85373-13010
Grommet, Washer
|
85373-13010 |
— | ||
| replacement | |||||
|
8537313010
|
8537313010
82819-13080
Grommet, Washer
|
82819-13080 |
— | ||
|
9010908161
|
9010908161
90109-08161 New Genuine Part |
90109-08161 |
US $1.46 |
||
|
9015950232
|
9015950232
90159-50232 SCREW WWASHER |
90159-50232 |
US $1.92 |
||
|
9054109126
|
9054109126
90541-09126 Cushion, No.1 |
90541-09126 |
US $2.08 |
||
|
9095001006
|
9095001006
90950-01006 Plug, Hole(For Front Fender) |
90950-01006 |
from US $2.16 |
||
