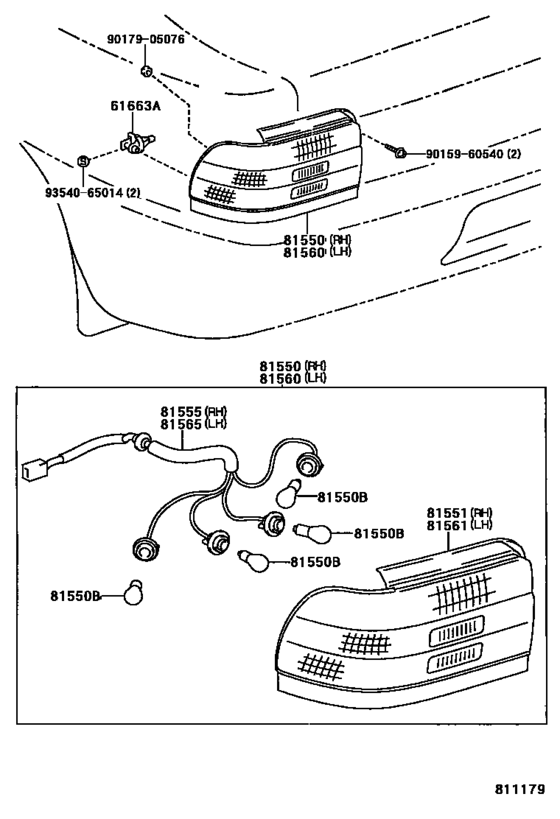

Rear Combination Lamp ([09.1999 - ] (9909- )AE101,CE100,EE100) Diagram Toyota COROLLA
- Year
- 1991 - 2001
- Sales region
- General
- Frame
- EE100
- grade
- GL
- body
- SED
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1991
- To
- 11.2001
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
61663A
|
61663A
61663-12010 Bracket, Rear Combination Lamp Mounting[08.1991 - 09.1994] AE10#,CE100,EE100,101..SED |
61663-12010 |
US $5.42 |
||
|
81550
|
81550
81550-02060 Lamp Assy, Rear Combination, RhREAR COMBINATION, RH [07.1999 - 09.1999] AE101,EE100 |
81550-02060 |
US $256.26 |
||
|
81550
|
81550
81550-1A720 Lamp Assy, Rear Combination, Rh[08.1991 - 05.1993] AE10#,CE100,EE100,101..SED |
81550-1A720 |
US $289.74 |
||
|
81550
|
81550
81550-1A870 Lamp Assy, Rear Combination, Rh[05.1993 - 12.1993] EE100,101..RHD;AE101..RHD..(GLI,SEG) HONG KONG,THAILAND,INDONESIA,BRUNEI,MALAYSIA OR SINGAPORE SPEC |
81550-1A870 |
US $337.79 |
||
|
81550B
|
81550B
90080-81057
Bulb(For Rear Combination Lamp)
[07.1999 - 09.1999] AE101,EE100 12V 27W,TURN SIGNAL |
90080-81057 |
— | ||
|
81550B
|
81550B
90081-81003
Bulb(For Rear Combination Lamp)
[07.1999 - 09.1999] AE101,EE100 12V 27/8W,TAIL & STOP |
90081-81003 |
— | ||
|
81550B
|
81550B
90081-81004
Bulb (For License Plate Lamp)
[07.1999 - 09.1999] AE101,EE100 12V 27W,BACK |
90081-81004 |
— | ||
|
81550B
|
81550B
99132-11210 Bulb (12V 21W)[08.1991 - 05.1993] AE10#,CE100,EE10# 12V 21W,TURN OR BACK |
99132-11210 |
from US $2.72 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[05.1993 - 12.1993] EE100,101..RHD;AE101..RHD..(GLI,SEG) 12V 21/5W,HONG KONG,THAILAND,INDONESIA,BRUNEI,MALAYSIA OR SINGAPORE SPEC,TAIL & ST OP |
99132-21210 |
from US $3.04 |
||
|
81551
|
81551
81551-02060 Lens, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [07.1999 - 09.1999] AE101,EE100 |
81551-02060 |
US $227.14 |
||
|
81551
|
81551
81551-1A720
Lens, Rear Combination Lamp, Rh
[08.1991 - 05.1993] AE10#,CE100,EE100,101..SED |
81551-1A720 |
— | ||
|
81551
|
81551
81551-1A870 Lens, Rear Combination Lamp, Rh[05.1993 - 12.1993] EE100,101..RHD;AE101..RHD..(GLI,SEG) HONG KONG,THAILAND,INDONESIA,BRUNEI,MALAYSIA OR SINGAPORE SPEC |
81551-1A870 |
US $288.81 |
||
|
81555
|
81555
81555-02060
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[07.1999 - 09.1999] AE101,EE100 |
81555-02060 |
— | ||
|
81555
|
81555
81555-1A720
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1991 - 05.1993] AE10#,CE100,EE100,101..SED |
81555-1A720 |
— | ||
|
81555
|
81555
81555-1A870
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[05.1993 - 12.1993] EE100,101..RHD;AE101..RHD..(GLI,SEG) HONG KONG,THAILAND,INDONESIA,BRUNEI,MALAYSIA OR SINGAPORE SPEC |
81555-1A870 |
— | ||
|
81560
|
81560
81560-02060 Lamp Assy, Rear Combination, LhREAR COMBINATION, LH [07.1999 - 09.1999] AE101,EE100 |
81560-02060 |
US $256.26 |
||
|
81560
|
81560
81560-1A630
Lamp Assy, Rear Combination, Lh
[08.1991 - 05.1993] AE10#,CE100,EE100,101..SED |
81560-1A630 |
— | ||
|
81560
|
81560
81560-1A830 Lamp Assy, Rear Combination, Lh[05.1993 - 12.1993] EE100,101..RHD;AE101..RHD..(GLI,SEG) HONG KONG,THAILAND,INDONESIA,BRUNEI,MALAYSIA OR SINGAPORE SPEC |
81560-1A830 |
US $337.79 |
||
|
81561
|
81561
81561-02060 Lens, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [07.1999 - 09.1999] AE101,EE100 |
81561-02060 |
US $227.14 |
||
|
81561
|
81561
81561-1A630 Lens, Rear Combination Lamp, Lh[08.1991 - 05.1993] AE10#,CE100,EE100,101..SED |
81561-1A630 |
US $238.78 |
||
|
81561
|
81561
81561-1A830 Lens, Rear Combination Lamp, Lh[05.1993 - 12.1993] EE100,101..RHD;AE101..RHD..(GLI,SEG) HONG KONG,THAILAND,INDONESIA,BRUNEI,MALAYSIA OR SINGAPORE SPEC |
81561-1A830 |
US $288.81 |
||
|
81565
|
81565
81555-02060
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[07.1999 - 09.1999] AE101,EE100 |
81555-02060 |
— | ||
|
81565
|
81565
81555-1A720
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[08.1991 - 05.1993] AE10#,CE100,EE100,101..SED |
81555-1A720 |
— | ||
|
81565
|
81565
81555-1A870
Socket & Wire Sub-Assy, Rear Combination Lamp, Rh
[05.1993 - 12.1993] EE100,101..RHD;AE101..RHD..(GLI,SEG) HONG KONG,THAILAND,INDONESIA,BRUNEI,MALAYSIA OR SINGAPORE SPEC |
81555-1A870 |
— | ||
|
9015960540
|
9015960540
90159-60540 SCREW W/WASHER |
90159-60540 |
US $1.12 |
||
|
9017905076
|
9017905076
90179-05076
NUT
|
90179-05076 |
— | ||
| replacement | |||||
|
9017905076
|
9017905076
90179-05030 NUT |
90179-05030 |
US $1.92 |
||
|
9354065014
|
9354065014
93540-65014 New Genuine Part |
93540-65014 |
US $0.92 |
||
