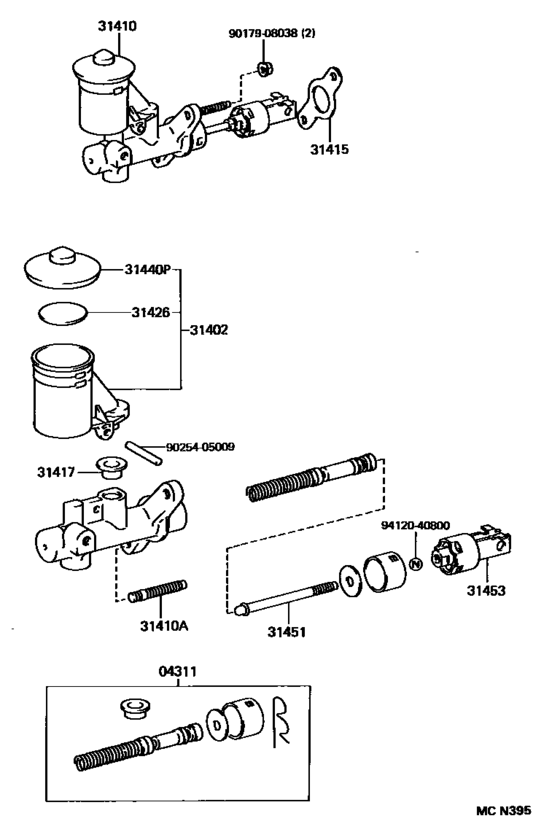

Clutch Master Cylinder ([05.1992 - 03.1994] (9205-9403)RHD..5F) Diagram Toyota COROLLA
- Year
- 1992 - 1997
- Sales region
- General
- Frame
- EE100
- grade
- XL
- body
- HB
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 06.1992
- To
- 10.1997
- Gear Shift Type
- 5F
- No.of Doors
- 5D
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04311
|
04311
04311-12100 Cylinder Kit, Clutch Master[06.1992 - 11.1993] AE101,EE100..RHD..5F |
04311-12100 |
US $20.44 |
||
|
04311
|
04311
04311-12110 Cylinder Kit, Clutch Master[11.1993 - 10.1997] AE10#,EE100..MTM |
04311-12110 |
from US $28.12 |
||
|
31402
|
31402
31402-12030 Reservoir Sub-Assy, Clutch Master Cylinder[05.1992 -] AE101,EE100..RHD..5F |
31402-12030 |
US $26.21 |
||
|
31410
|
31410
31410-12301 Cylinder Assy, Clutch Master[05.1992 - 11.1993] AE101,EE100..RHD..5F |
31410-12301 |
US $168.90 |
||
| replacement | |||||
|
31410
|
31410
31410-12312 Cylinder Assy, Clutch Master[05.1992 - 11.1993] AE101,EE100..RHD..5F |
31410-12312 |
US $178.56 |
||
|
31410
|
31410
31410-12302 Cylinder Assy, Clutch Master[11.1993 -] AE101,EE100..RHD..5F |
31410-12302 |
US $190.44 |
||
| replacement | |||||
|
31410
|
31410
31410-12312 Cylinder Assy, Clutch Master[11.1993 -] AE101,EE100..RHD..5F |
31410-12312 |
US $178.56 |
||
|
31410A
|
31410A
90116-08146 Bolt(For Clutch Master Cylinder Setting)[05.1992 -] AE10#,EE100..MTM |
90116-08146 |
US $1.40 |
||
|
31415
|
31415
31415-10010 Gasket, Clutch Master Cylinder[05.1992 -] AE10#,EE100..MTM |
31415-10010 |
from US $1.62 |
||
|
31417
|
31417
31417-35010 Grommet[05.1992 -] AE10#,EE100..MTM |
31417-35010 |
from US $2.08 |
||
|
31426
|
31426
31426-30011
Float, Clutch Master Cylinder Reservoir
[05.1992 -] AE10#,EE100..RHD..5F |
31426-30011 |
— | ||
|
31440P
|
31440P
47230-20040 Cap, Clutch Master Cylinder Reservoir Filler[05.1992 -] AE10#,EE100..MTM |
47230-20040 |
from US $9.36 |
||
|
31451
|
31451
31451-20090 Rod, Clutch Master Cylinder Push[10.1993 -] AE101,EE100..MTM |
31451-20090 |
US $6.12 |
||
|
31451
|
31451
31451-35070 Rod, Clutch Master Cylinder Push[05.1992 - 10.1993] AE101,EE100..MTM |
31451-35070 |
US $7.28 |
||
|
31453
|
31453
31453-10020 Clevis, Clutch Master Cylinder Push Rod[05.1992 - 10.1993] AE101,EE100..MTM |
31453-10020 |
US $6.12 |
||
|
31453
|
31453
31453-10040 Clevis, Clutch Master Cylinder Push Rod[10.1993 -] AE101,EE100..MTM |
31453-10040 |
US $8.64 |
||
|
9017908038
|
9017908038
90179-08038 Nut |
90179-08038 |
from US $0.80 |
||
|
9025405009
|
9025405009
90254-05009 New Genuine Part |
90254-05009 |
US $1.28 |
||
|
9412040800
|
9412040800
94120-40800 Nut(For Clutch Pedal Stopper) |
94120-40800 |
US $1.44 |
||
