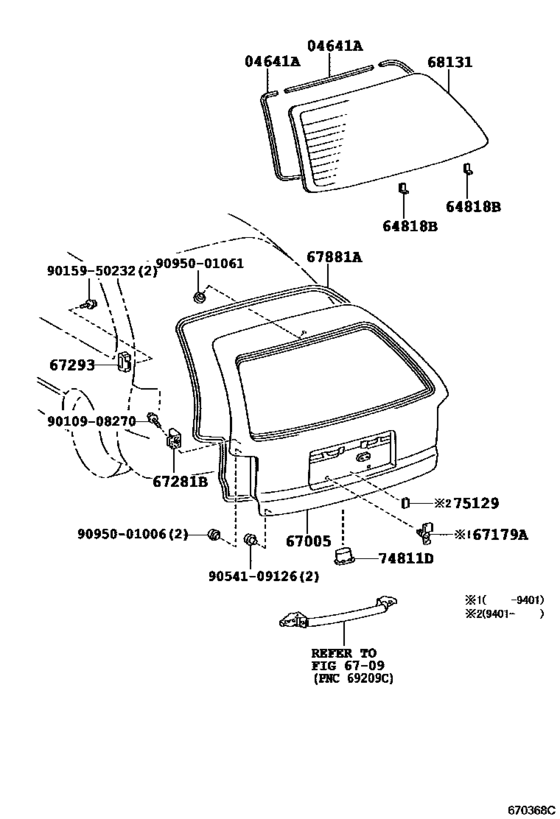

Back Door Panel & Glass ([09.1991 - ] ﾄﾞｱﾊﾟﾈﾙ (9109- )V,WG) Diagram Toyota COROLLA
- Year
- 1994 - 2002
- Sales region
- Japan
- Frame
- EE102
- grade
- DXJ
- body
- V
- ENGINE
- 4EFE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 01.1994
- To
- 06.2002
- Gear Shift Type
- 3FC
- Seating Capacity
- 05S
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04641A
|
04641A
68294-13031 Dam Kit, Back Window Glass Adhesive[01.1994 - 05.1997] AE10#,CE100,106,108,109,EE102,103,104..V,WG |
68294-13031 |
US $21.10 |
||
|
64818B
|
64818B
64818-13020 Spacer, Back Door Glass, No.1[01.1994 -] AE109,CE102,105,106,107,108,109,EE102,103,104 |
64818-13020 |
US $0.69 |
||
|
67005
|
67005
67005-1F202 Panel Sub-Assy, Back Door[01.1994 - 08.1997] EE102..3FC..DXJ;CE106,EE102..MTM..(CTD,DX,DXJ) |
67005-1F202 |
US $748.38 |
||
|
67005
|
67005
67005-1F242 Panel Sub-Assy, Back Door[01.1994 -] AE109,CE102,105,106,107,108,109,EE102,103,104..CTD,DX,DXJ,L ｱﾘ(ﾘﾔｳｲﾝﾄﾞｳ ﾃﾞﾌｵﾂｶﾞ) |
67005-1F242 |
US $748.38 |
||
|
67005
|
67005
67005-1F252 Panel Sub-Assy, Back Door[01.1994 -] CE106..CTD;EE102..4F..DXJ;EE102..3FC..DXJ..05S ｱﾘ(ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ) |
67005-1F252 |
US $748.38 |
||
|
67005
|
67005
67005-1F302 Panel Sub-Assy, Back Door[01.1994 -] CE106..CTD;EE102..4F..DXJ;EE102..3FC..DXJ..05S ｱﾘ(*RW) |
67005-1F302 |
US $748.38 |
||
|
67005
|
67005
67005-1F322 Panel Sub-Assy, Back Door[01.1994 -] EE102..4F..02S;EE102,103..(3FC,4F)..(DX,DXJ)..05S;AE109,CE102,105,106,107,108,109, EE104..CTD,DX,DXJ,L ｱﾘ(*RWD & ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ ﾊﾞﾙﾌﾞｼｷ) |
67005-1F322 |
US $748.38 |
||
|
67005
|
67005
67005-1F332 Panel Sub-Assy, Back Door[01.1994 -] EE103..GL;EE102..4F..02S;EE102,103..(3FC,4F)..(DX,DXJ)..05S;AE109,CE102,105,106,10 7,108,109,EE104 ｱﾘ(*RW & *RWD) |
67005-1F332 |
US $748.38 |
||
|
67005
|
67005
67005-1F342 Panel Sub-Assy, Back Door[01.1994 -] CE106..CTD;EE102..4F..DXJ;EE102..3FC..DXJ..05S ｱﾘ(*RS & *RW) |
67005-1F342 |
US $748.38 |
||
|
67005
|
67005
67005-1F362 Panel Sub-Assy, Back Door[01.1994 -] EE103..GL;EE102..4F..02S;EE102,103..(3FC,4F)..(DX,DXJ)..05S;AE109,CE102,105,106,10 7,108,109,EE104 ｱﾘ(*RWD & *RW & ﾊｲﾏｳﾝﾄｽﾄﾂﾌﾟﾗﾝﾌﾟ ﾊﾞﾙﾌﾞｼｷ) |
67005-1F362 |
US $748.38 |
||
|
67281B
|
67281B
67281-13060 Stopper, Back Door, Lower[09.1991 -] AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG |
67281-13060 |
US $13.40 |
||
|
67293
|
67293
67293-13020 Cushion, Back Door Lower Stopper[09.1991 -] AE10#,CE100,101,102,105,106,107,108,109,EE102,103,104,106,107,108..V,WG |
67293-13020 |
US $8.59 |
||
|
67881A
|
67881A
67881-13180
Weatherstrip, Back Door
[09.1991 -] AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108 |
67881-13180 |
— | ||
|
68131
|
68131
68131-13261
Glass, Back Door
[01.1994 - 05.1997] CE106,EE102..CTD,DXJ ＊ＴＥＭ，厚さ＝３．５，クリア; CE106,EE102..MTM..DX ＊ＴＥＭ，厚さ＝３．５，クリア,ﾎﾚｲ ｼﾔ OR ｸ-ﾘﾝｸﾞ ﾊﾞﾝ |
68131-13261 |
— | ||
| replacement | |||||
|
68131
|
68131
68131-13410 Glass, Back Door[01.1994 - 05.1997] CE106,EE102..CTD,DXJ ＊ＴＥＭ，厚さ＝３．５，クリア; CE106,EE102..MTM..DX ＊ＴＥＭ，厚さ＝３．５，クリア,ﾎﾚｲ ｼﾔ OR ｸ-ﾘﾝｸﾞ ﾊﾞﾝ |
68131-13410 |
US $547.46 |
||
|
68131
|
68131
68131-13271 Glass, Back Door[01.1994 - 05.1997] AE109,CE106,108,109,EE102,103,104 ＊ＥＨＴ，厚さ＝３．５，クリア |
68131-13271 |
US $701.79 |
||
| replacement | |||||
|
68131
|
68131
68131-13420 Glass, Back Door[01.1994 - 05.1997] AE109,CE106,108,109,EE102,103,104 ＊ＥＨＴ，厚さ＝３．５，クリア |
68131-13420 |
US $815.36 |
||
|
68131
|
68131
68131-13410 Glass, Back Door[04.1997 - 08.1997] EE102..3FC..DXJ;CE106,EE102..MTM..(CTD,DX,DXJ) ＊ＴＥＭ，厚さ＝３．５，グリーン |
68131-13410 |
US $547.46 |
||
|
68131
|
68131
68131-13420 Glass, Back Door[04.1997 -] AE109,CE102,105,106,107,108,109,EE10# ＊ＥＨＴ，厚さ＝３．５，グリーン |
68131-13420 |
US $815.36 |
||
|
75129
|
75129
75129-13010 Cushion, Rear License Plate[11.1994 - 05.1996] AE100,104,CE100,106,108,109,EE102,103,104..V,WG |
75129-13010 |
US $3.16 |
||
|
75129
|
75129
75129-13020 Cushion, Rr Licence Plate[01.1994 - 11.1994] AE100,CE106,108,109,EE102,103,104..V,WG |
75129-13020 |
US $1.28 |
||
|
9010908270
|
9010908270
90109-08270 New Genuine Part |
90109-08270 |
US $1.60 |
||
|
9015950232
|
9015950232
90159-50232 SCREW WWASHER |
90159-50232 |
US $1.92 |
||
|
9054109126
|
9054109126
90541-09126 Cushion, No.1 |
90541-09126 |
US $2.08 |
||
|
9095001006
|
9095001006
90950-01006 Plug, Hole(For Front Fender) |
90950-01006 |
from US $2.16 |
||
|
9095001061
|
9095001061
90950-01061
Plug, Hole, No.3(For Dash Panel)
|
90950-01061 |
— | ||
| replacement | |||||
|
9095001061
|
9095001061
90950-01872 Plug, Hole, No.3(For Dash Panel) |
90950-01872 |
from US $2.29 |
||
