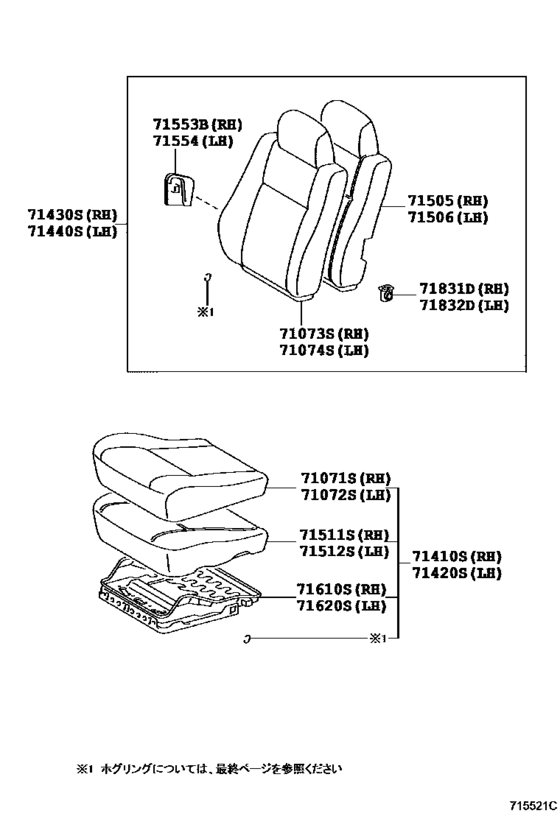

Front Seat & Seat Track ([01.1994 - ] (9109-9401)CE106,108,109,EE106,107,108..CTD,DX,L ; (9401- )AE109,CE105,106,107,1 08,109,EE102,103, 104..CTD,DX,DXJ,L) Diagram Toyota COROLLA
- Year
- 1994 - 2002
- Sales region
- Japan
- Frame
- EE102
- grade
- DXJ
- body
- V
- ENGINE
- 4EFE
- TRANSMISSION
- ATM
- Model
- COROLLA
- From
- 01.1994
- To
- 06.2002
- Gear Shift Type
- 3FC
- Seating Capacity
- 05S
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
71071S
|
71071S
71071-13241-B0 Cover, Front Seat Cushion, Rh(For Separate Type)[01.1994 - 04.1997] CE106,EE102..CTD,DXJ SHADOW GRAY,TRIM1# |
71071-13241-B0 |
US $189.28 |
||
| replacement | |||||
|
71071S
|
71071S
71071-13241-B1 Cover, Front Seat Cushion, Rh(For Separate Type)[01.1994 - 04.1997] CE106,EE102..CTD,DXJ SHADOW GRAY,TRIM1# |
71071-13241-B1 |
US $189.28 |
||
|
71071S
|
71071S
71071-13241-B1 Cover, Front Seat Cushion, Rh(For Separate Type)[04.1997 - 06.2002] CE106,107,EE102..CTD,DXJ ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),SHADOW GRAY,TRIM1# |
71071-13241-B1 |
US $189.28 |
||
|
71071S
|
71071S
71071-13360-B1 Cover, Front Seat Cushion, Rh(For Separate Type)[08.2000 - 06.2002] EE103,104..GL,L;CE107..DXJ..05S;EE102..3FC..05S SHADOW GRAY,TRIM1#; EE102..5F;CE107..02S;EE102..3FC..02S;AE109,CE107,EE103..DX ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
71071-13360-B1 |
US $270.82 |
||
|
71072S
|
71072S
71071-13241-B0 Cover, Front Seat Cushion, Rh(For Separate Type)[08.1994 - 04.1997] CE106,EE102..CTD,DXJ SHADOW GRAY,TRIM1# |
71071-13241-B0 |
US $189.28 |
||
| replacement | |||||
|
71072S
|
71072S
71071-13241-B1 Cover, Front Seat Cushion, Rh(For Separate Type)[08.1994 - 04.1997] CE106,EE102..CTD,DXJ SHADOW GRAY,TRIM1# |
71071-13241-B1 |
US $189.28 |
||
|
71072S
|
71072S
71071-13241-B1 Cover, Front Seat Cushion, Rh(For Separate Type)[04.1997 - 06.2002] CE106,107,EE102..CTD,DXJ ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),SHADOW GRAY,TRIM1# |
71071-13241-B1 |
US $189.28 |
||
|
71072S
|
71072S
71072-13191-B0 Cover, Front Seat Cushion, Lh(For Separate Type)[01.1994 - 08.1994] CE106,EE102..CTD,DXJ SHADOW GRAY,TRIM1# |
71072-13191-B0 |
US $189.28 |
||
| replacement | |||||
|
71072S
|
71072S
71071-13241-B1 Cover, Front Seat Cushion, Rh(For Separate Type)[01.1994 - 08.1994] CE106,EE102..CTD,DXJ SHADOW GRAY,TRIM1# |
71071-13241-B1 |
US $189.28 |
||
|
71072S
|
71072S
71072-13310-B1 Cover, Front Seat Cushion, Lh(For Separate Type)[08.2000 - 06.2002] EE103,104..GL,L;CE107..DXJ..05S;EE102..3FC..05S SHADOW GRAY,TRIM1#; EE102..5F;CE107..02S;EE102..3FC..02S;AE109,CE107,EE103..DX ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
71072-13310-B1 |
US $270.82 |
||
|
71073S
|
71073S
71073-13201-B0 Cover, Front Seat Back, Rh(For Separate Type)[01.1994 - 04.1997] CE106,EE102..CTD,DXJ SHADOW GRAY,TRIM1# |
71073-13201-B0 |
US $253.34 |
||
| replacement | |||||
|
71073S
|
71073S
71073-13201-B1 Cover, Front Seat Back, Rh(For Separate Type)[01.1994 - 04.1997] CE106,EE102..CTD,DXJ SHADOW GRAY,TRIM1# |
71073-13201-B1 |
US $253.34 |
||
|
71073S
|
71073S
71073-13201-B1 Cover, Front Seat Back, Rh(For Separate Type)[04.1997 - 06.2002] CE106,107,EE102..CTD,DXJ ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),SHADOW GRAY,TRIM1# |
71073-13201-B1 |
US $253.34 |
||
|
71073S
|
71073S
71073-13310-B1 Cover, Front Seat Back, Rh(For Separate Type)[08.2000 - 06.2002] EE103,104..GL,L;CE107..DXJ..05S;EE102..3FC..05S SHADOW GRAY,TRIM1#; EE102..5F;CE107..02S;EE102..3FC..02S;AE109,CE107,EE103..DX ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
71073-13310-B1 |
US $336.34 |
||
|
71074S
|
71074S
71074-13171-B0 Cover, Front Seat Back, Lh(For Separate Type)[01.1994 - 04.1997] CE106,EE102..CTD,DXJ SHADOW GRAY,TRIM1# |
71074-13171-B0 |
US $253.34 |
||
| replacement | |||||
|
71074S
|
71074S
71074-13171-B1 Cover, Front Seat Back, Lh(For Separate Type)[01.1994 - 04.1997] CE106,EE102..CTD,DXJ SHADOW GRAY,TRIM1# |
71074-13171-B1 |
US $253.34 |
||
|
71074S
|
71074S
71074-13171-B1 Cover, Front Seat Back, Lh(For Separate Type)[04.1997 - 06.2002] CE106,107,EE102..CTD,DXJ ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),SHADOW GRAY,TRIM1# |
71074-13171-B1 |
US $253.34 |
||
|
71074S
|
71074S
71074-13280-B1 Cover, Front Seat Back, Lh(For Separate Type)[08.2000 - 06.2002] EE103,104..GL,L;CE107..DXJ..05S;EE102..3FC..05S SHADOW GRAY,TRIM1#; EE102..5F;CE107..02S;EE102..3FC..02S;AE109,CE107,EE103..DX ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
71074-13280-B1 |
US $336.34 |
||
|
71410S
|
71410S
71410-13251-B0 Cushion Assy, Front Seat, Rh(For Separate Type)[01.1994 - 04.1997] CE106,EE102..CTD,DXJ ***,SHADOW GRAY,TRIM1# |
71410-13251-B0 |
US $618.80 |
||
|
71410S
|
71410S
71410-13251-B1 Cushion Assy, Front Seat, Rh(For Separate Type)[04.1997 - 06.2002] CE106,107,EE102..CTD,DXJ ***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),SHADOW GRAY,TRIM1# |
71410-13251-B1 |
US $618.80 |
||
|
71410S
|
71410S
71410-13450-B0 Cushion Assy, Front Seat, Rh(For Separate Type)[08.2000 - 06.2002] EE103,104..GL,L;CE107..DXJ..05S;EE102..3FC..05S ***,SHADOW GRAY,TRIM1#; EE102..5F;CE107..02S;EE102..3FC..02S;AE109,CE107,EE103..DX ***,ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
71410-13450-B0 |
US $716.35 |
||
|
71420S
|
71420S
71420-13201-B0 Cushion Assy, Front Seat, Lh (For Separate Type)[01.1994 - 04.1997] CE106,EE102..CTD,DXJ ***,SHADOW GRAY,TRIM1# |
71420-13201-B0 |
US $618.80 |
||
|
71420S
|
71420S
71420-13201-B1 Cushion Assy, Front Seat, Lh (For Separate Type)[04.1997 - 06.2002] CE106,107,EE102..CTD,DXJ ***,ｱﾘ(ﾚｻﾞ-ｼ-ﾄ),SHADOW GRAY,TRIM1# |
71420-13201-B1 |
US $618.80 |
||
|
71420S
|
71420S
71420-13430-B0 Cushion Assy, Front Seat, Lh (For Separate Type)[08.2000 - 06.2002] EE102..3FC..05S;CE105,107..(DXJ,GL)..05S ***,SHADOW GRAY,TRIM1#; CE107..DX;EE102..5F;CE107..02S;AE109,EE103;EE102..3FC..02S ***,ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),SHADOW GRAY,TRIM1# |
71420-13430-B0 |
US $716.35 |
||
|
71430S
|
71430S
71430-13221-B0 Back Assy, Front Seat, Rh(For Separate Type)[01.1994 - 04.1997] CE106,EE102..CTD,DXJ ***,SHADOW GRAY,TRIM1# |
71430-13221-B0 |
US $678.50 |
||
| replacement | |||||
|
71430S
|
71430S
71430-13221-B1 Back Assy, Front Seat, Rh(For Separate Type)[01.1994 - 04.1997] CE106,EE102..CTD,DXJ ***,SHADOW GRAY,TRIM1# |
71430-13221-B1 |
US $678.50 |
||
|
71430S
|
71430S
71430-13221-B1 Back Assy, Front Seat, Rh(For Separate Type)[04.1997 - 08.2000] CE107..DXJ..05S;CE106,EE102..CTD,DXJ ***,SHADOW GRAY,TRIM1# |
71430-13221-B1 |
US $678.50 |
||
|
71430S
|
71430S
71430-13451-B1 Back Assy, Front Seat, Rh(For Separate Type)[08.2000 - 06.2002] EE102..3FC..DX;CE105,EE102..DXJ,GL;AE109,CE102,107,EE103 ***,ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),SHADOW GRAY,TRIM1#; EE102..5F..DX ***,ﾎﾚｲ ﾊﾞﾝ OR ｸ-ﾘﾝｸﾞ ﾊﾞﾝ,SHADOW GRAY,TRIM1# |
71430-13451-B1 |
US $937.66 |
||
|
71440S
|
71440S
71440-13211-B0 Back Assy, Front Seat, Lh(For Separate Type)[01.1994 - 04.1997] CE106,EE102..CTD,DXJ ***,SHADOW GRAY,TRIM1# |
71440-13211-B0 |
US $678.50 |
||
| replacement | |||||
|
71440S
|
71440S
71440-13211-B1 Back Assy, Front Seat, Rh(For Separate Type)[01.1994 - 04.1997] CE106,EE102..CTD,DXJ ***,SHADOW GRAY,TRIM1# |
71440-13211-B1 |
US $678.50 |
||
|
71440S
|
71440S
71440-13211-B1 Back Assy, Front Seat, Rh(For Separate Type)[04.1997 - 08.2000] CE107..DXJ..05S;CE106,EE102..CTD,DXJ ***,SHADOW GRAY,TRIM1# |
71440-13211-B1 |
US $678.50 |
||
|
71440S
|
71440S
71440-13461-B1 Back Assy, Front Seat, Lh(For Separate Type)[08.2000 - 06.2002] EE102..3FC..DX;CE105,EE102..DXJ,GL;AE109,CE102,107,EE103 ***,ｱﾘ(ﾌｱﾌﾞﾘﾂｸ ｼ-ﾄ),SHADOW GRAY,TRIM1#; EE102..5F..DX ***,ﾎﾚｲ ﾊﾞﾝ OR ｸ-ﾘﾝｸﾞ ﾊﾞﾝ,SHADOW GRAY,TRIM1# |
71440-13461-B1 |
US $937.66 |
||
|
71505
|
71505
71505-12150 Pad Sub-Assy, Front Seat Back W/frame, Rh[08.2000 - 06.2002] EE103..5F..DX;EE102..3FC..DX;CE102,105..GL,L;CE107,EE102..DXJ..05S L ｴｸｽﾄﾗ-*104 |
71505-12150 |
US $393.12 |
||
|
71505
|
71505
71505-13030 Pad Sub-Assy, Front Seat Back W/frame, Rh[09.1991 - 08.2000] AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L |
71505-13030 |
US $409.14 |
||
|
71505
|
71505
71505-13031 Pad Sub-Assy, Front Seat Back W/frame, Rh[08.2000 - 06.2002] AE109,CE10#,EE10#..DX,DXJ,L |
71505-13031 |
US $416.42 |
||
|
71505
|
71505
71505-13040 Pad Sub-Assy, Front Seat Back W/frame, Rh[08.2000 - 06.2002] CE105..GL;AE109,CE102,107,EE10# ｱﾘ(ﾍﾂﾄﾞﾚｽﾄ) |
71505-13040 |
US $398.94 |
||
|
71506
|
71506
71506-12110 Pad Sub-Assy, Front Seat Back W/frame, Lh[08.2000 - 06.2002] EE102..3FC..DX;CE107,EE102..(DXJ,GL)..05S;CE102,EE103..(4FC,5F)..(DX,L) L ｴｸｽﾄﾗ-*104 |
71506-12110 |
US $393.12 |
||
|
71506
|
71506
71506-13030 Pad Sub-Assy, Front Seat Back W/frame, Lh[09.1991 - 08.2000] AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L |
71506-13030 |
US $409.14 |
||
|
71506
|
71506
71506-13031 Pad Sub-Assy, Front Seat Back W/frame, Lh[08.2000 - 06.2002] AE109,CE10#,EE10#..DX,DXJ,L |
71506-13031 |
US $409.14 |
||
|
71506
|
71506
71506-13040 Pad Sub-Assy, Front Seat Back W/frame, Lh[08.2000 - 06.2002] CE105..GL;AE109,CE102,107,EE10# ｱﾘ(ﾍﾂﾄﾞﾚｽﾄ) |
71506-13040 |
US $398.94 |
||
|
71511S
|
71511S
71511-12760 Pad, Front Seat Cushion, Rh(For Separate Type)[06.1991 - 05.1997] AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SJ |
71511-12760 |
US $164.53 |
||
|
71512S
|
71512S
71511-12760 Pad, Front Seat Cushion, Rh(For Separate Type)[06.1991 - 05.1997] AE10#,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX,SJ |
71511-12760 |
US $164.53 |
||
|
71553B
|
71553B
71553-12290 Pad, Front Seat Back, B[08.2000 - 06.2002] AE109,CE107,EE102,103 ｱﾘ(ﾍﾂﾄﾞﾚｽﾄ) |
71553-12290 |
US $12.67 |
||
|
71553B
|
71553B
71553-13030 Pad, Front Seat Back, B[09.1991 - 06.2002] AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L |
71553-13030 |
US $12.67 |
||
|
71554
|
71554
71554-12130 Pad, Front Seat Back, C[08.2000 - 06.2002] AE109,CE107,EE102,103 ｱﾘ(ﾍﾂﾄﾞﾚｽﾄ) |
71554-12130 |
US $12.67 |
||
|
71554
|
71554
71554-13020 Pad, Front Seat Back, C[09.1991 - 08.2000] AE109,CE102,105,106,107,108,109,EE102,103,104,106,107,108..CTD,DX,DXJ,L |
71554-13020 |
US $12.67 |
||
|
71610S
|
71610S
71610-12420 Spring Assy, Front Seat Cushion, Rh(For Separate Type)[11.1991 - 05.1997] AE100,104,109,CE10#,EE10#..CTD,DX,DXJ,GL,L,LT,LX |
71610-12420 |
US $273.73 |
||
|
71620S
|
71620S
71620-12280 Spring Assy, Front Seat Cushion, Lh(For Separate Type)[11.1991 - 05.1997] AE101..4DS..GT;AE10#,CE10#,EE10#..BZT,CTD,DX,DXJ,G,GL,L,LT,LX,SEG,SEL,SJ,XE |
71620-12280 |
US $273.73 |
||
|
71831D
|
71831D
71831-16010 Cover, Front Seat Hinge, Rh[06.1991 - 05.1997] AE10#,CE10#,EE10# |
71831-16010 |
US $2.77 |
||
|
71832D
|
71832D
71831-16010 Cover, Front Seat Hinge, Rh[06.1991 - 05.1997] AE10#,CE10#,EE10# |
71831-16010 |
US $2.77 |
||
