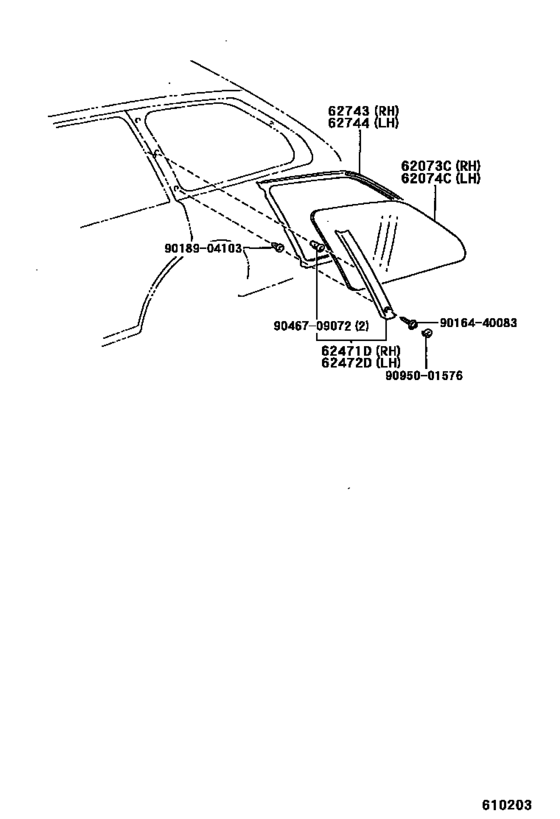

Quarter Window ([09.1991 - 01.1994] (9109-9401)EE100,105,108..WG ; (9401- )EE104, 105) Diagram Toyota COROLLA
- Year
- 1992 - 1997
- Sales region
- General
- Frame
- EE105
- grade
- STD
- body
- WG
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 04.1997
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
62073C
|
62073C
68133-13020 Glass Sub-Assy, Quarter, Rear Rh[09.1991 - 05.1997] EE104,105,108 *TEM,T=3.5 |
68133-13020 |
US $202.38 |
||
| replacement | |||||
|
62073C
|
62073C
68133-13130 Glass Sub-Assy, Quarter, Rear Rh[09.1991 - 05.1997] EE104,105,108 *TEM,T=3.5 |
68133-13130 |
US $216.94 |
||
|
62073C
|
62073C
68133-13070 Glass Sub-Assy, Quarter, Rear Rh[09.1991 - 05.1997] EE104,105,108 *TT,T=3.5 |
68133-13070 |
US $206.75 |
||
| replacement | |||||
|
62073C
|
62073C
68133-13130 Glass Sub-Assy, Quarter, Rear Rh[09.1991 - 05.1997] EE104,105,108 *TT,T=3.5 |
68133-13130 |
US $216.94 |
||
|
62074C
|
62074C
68134-13020 Glass Sub-Assy, Quarter, Rear Lh[09.1991 - 05.1997] EE104,105,108 *TEM,T=3.5 |
68134-13020 |
US $202.38 |
||
| replacement | |||||
|
62074C
|
62074C
68134-13130 Glass Sub-Assy, Quarter, Rear Lh[09.1991 - 05.1997] EE104,105,108 *TEM,T=3.5 |
68134-13130 |
US $216.94 |
||
|
62074C
|
62074C
68134-13070 Glass Sub-Assy, Quarter, Rear Lh[09.1991 - 05.1997] EE104,105,108 *TT,T=3.5 |
68134-13070 |
US $206.75 |
||
| replacement | |||||
|
62074C
|
62074C
68134-13130 Glass Sub-Assy, Quarter, Rear Lh[09.1991 - 05.1997] EE104,105,108 *TT,T=3.5 |
68134-13130 |
US $216.94 |
||
|
62471D
|
62471D
62471-13030 Garnish, Rear Pillar, Upper Rh[09.1991 - 10.1999] EE104,105,108 |
62471-13030 |
US $26.50 |
||
|
62472D
|
62472D
62472-13030 Garnish, Rear Pillar, Upper Lh[09.1991 - 10.1999] EE104,105,108 |
62472-13030 |
US $26.50 |
||
|
62743
|
62743
62743-13070
Weatherstrip, Quarter Window, Rear Rh
[09.1991 - 10.1999] EE104,105,108 |
62743-13070 |
— | ||
|
62744
|
62744
62744-13070
Weatherstrip, Quarter Window, Rear Lh
[09.1991 - 10.1999] EE104,105,108 |
62744-13070 |
— | ||
|
9016440083
|
9016440083
90164-40083 SCREW BINDING TAPP |
90164-40083 |
US $0.79 |
||
|
9018904103
|
9018904103
90189-04103 New Genuine Part |
90189-04103 |
US $1.75 |
||
|
9046709072
|
9046709072
90467-09072 New Genuine Part |
90467-09072 |
US $2.62 |
||
|
9095001576
|
9095001576
90950-01576
New Genuine Part
|
90950-01576 |
— | ||
