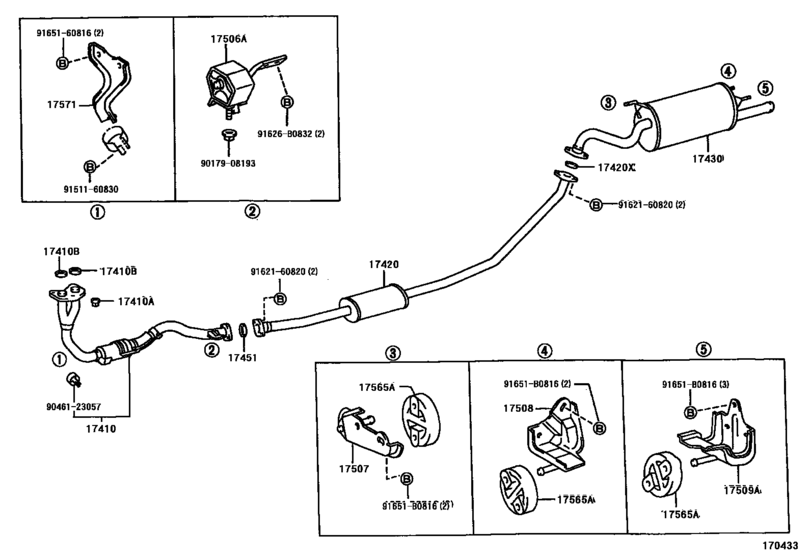

Exhaust Pipe ([05.1992 - ] (9205- )2E..EE105) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- General
- Frame
- EE105
- grade
- STD
- body
- WG
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 05.1995
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
17410
|
17410
17410-11580 Pipe Assy, Exhaust, FrontEXHAUST, FRONT [08.1991 - 03.1995] 2E..EE100,105 |
17410-11580 |
US $292.66 |
||
|
17410A
|
17410A
90179-10070 Nut, Exhaust Pipe Set Stud Bolt[08.1991 - 09.1994] 4AF#,4AGE,7AFE,2E,4EFE..AE101,102,EE100,101,105 |
90179-10070 |
from US $1.46 |
||
| replacement | |||||
|
17410A
|
17410A
90080-17187 Nut, Exhaust Pipe Set Stud Bolt[08.1991 - 09.1994] 4AF#,4AGE,7AFE,2E,4EFE..AE101,102,EE100,101,105 |
90080-17187 |
US $33.80 |
||
|
17410B
|
17410B
90917-06069 Gasket, Exhaust Pipe[08.1991 - 04.1997] 2E,4EFE..EE100,101,105 |
90917-06069 |
from US $5.76 |
||
|
17420
|
17420
17420-11260 Pipe Assy, Exhaust, CenterEXHAUST, CENTER [05.1992 - 10.1999] 2E..EE105 |
17420-11260 |
US $476.11 |
||
|
17420X
|
17420X
90917-06039 Gasket, Exhaust Pipe[08.1991 - 10.1999] 4AFE,2E..AE101,EE105..SJ,STD,XL |
90917-06039 |
from US $2.36 |
||
|
17430
|
17430
17430-64690 Pipe Assy, Exhaust, Tail[05.1992 - 01.1994] 2E..EE105 |
17430-64690 |
US $364 |
||
| replacement | |||||
|
17430
|
17430
17430-64691 Pipe Assy, Exhaust, Tail[05.1992 - 01.1994] 2E..EE105 |
17430-64691 |
US $362.54 |
||
|
17430
|
17430
17430-64691 Pipe Assy, Exhaust, Tail[01.1994 - 10.1999] 2E..EE105 |
17430-64691 |
US $362.54 |
||
|
17451
|
17451
90917-06074 Gasket, Exhaust Pipe, Center[08.1991 - 05.1993] 4AF#,2C,2E..AE101,CE100,EE100,105..SED,WG |
90917-06074 |
from US $6.94 |
||
|
17506A
|
17506A
17506-15070 Bracket Sub-Assy, Exhaust Pipe No.1 Support[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE,2C,2E,3E,4EFE,5EFE..AE10#,CE100,EE10# |
17506-15070 |
US $84.50 |
||
| replacement | |||||
|
17506A
|
17506A
17506-16120 Bracket Sub-Assy, Exhaust Pipe No.1 Support[08.1991 - 09.1994] 4AF#,4AGE,5AFE,7AFE,2C,2E,3E,4EFE,5EFE..AE10#,CE100,EE10# |
17506-16120 |
from US $23.65 |
||
|
17506A
|
17506A
17506-16120 Bracket Sub-Assy, Exhaust Pipe No.1 Support[02.1995 - 09.1995] 4AF#,4AGE,5AFE,7AFE,2C,2E,4EFE,5EFE..AE10#,CE100,EE10# |
17506-16120 |
from US $23.65 |
||
|
17507
|
17507
17507-11050 Bracket Sub-Assy, Exhaust Pipe No.2 Support[09.1991 - 10.1999] 2E,3E,5EFE..EE104,105,108 |
17507-11050 |
US $14.71 |
||
|
17508
|
17508
17508-11060 Support Sub-Assy, Exhaust Pipe, No.3[09.1991 - 10.1993] 2E,3E..EE105,108 |
17508-11060 |
US $17.76 |
||
|
17508
|
17508
17508-11080 Support Sub-Assy, Exhaust Pipe, No.3[10.1993 - 10.1999] 2E,3E,5EFE..EE104,105,108 |
17508-11080 |
US $17.76 |
||
|
17509A
|
17509A
17509-11070 Bracket Sub-Assy, Exhaust Pipe No.4 Support[09.1991 - 10.1993] 2E,3E..EE105,108 |
17509-11070 |
US $20.68 |
||
|
17509A
|
17509A
17509-11080 Bracket Sub-Assy, Exhaust Pipe No.4 Support[10.1993 - 10.1999] 2E,3E,5EFE..EE104,105,108 |
17509-11080 |
US $20.53 |
||
|
17565A
|
17565A
17565-15140 Bolt Or Ring, Exhaust Tail Pipe (For Front)[09.1991 - 10.1999] 2E,3E,5EFE..EE104,105,108 |
17565-15140 |
from US $8.42 |
||
|
17571
|
17571
17571-11110 Bracket, Exhaust Pipe Support, No.1[08.1991 - 04.1997] 2E,3E..EE100,105,108 |
17571-11110 |
US $13.10 |
||
|
91626B0832
|
91626B0832
91626-B0832
New Genuine Part
|
91626-B0832 |
— | ||
| replacement | |||||
|
91626B0832
|
91626B0832
91651-B0830 New Genuine Part |
91651-B0830 |
US $1.44 |
||
|
91651B0816
|
91651B0816
91651-B0816 New Genuine Part |
91651-B0816 |
US $2.56 |
||
|
9017908193
|
9017908193
90179-08193 NUT |
90179-08193 |
US $2.72 |
||
|
9046123057
|
9046123057
90461-23057 New Genuine Part |
90461-23057 |
US $10.34 |
||
|
9151160830
|
9151160830
91511-60830
Bolt Or Ring, Exhaust Pipe Front (For Front)
|
91511-60830 |
— | ||
| replacement | |||||
|
9151160830
|
9151160830
91511-B0830 Bolt Or Ring, Exhaust Pipe Front (For Front) |
91511-B0830 |
from US $0.98 |
||
|
9162160820
|
9162160820
91621-60820 New Genuine Part |
91621-60820 |
US $1.75 |
||
| replacement | |||||
|
9162160820
|
9162160820
91651-B0822 BOLT WWASHER |
91651-B0822 |
from US $0.94 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
