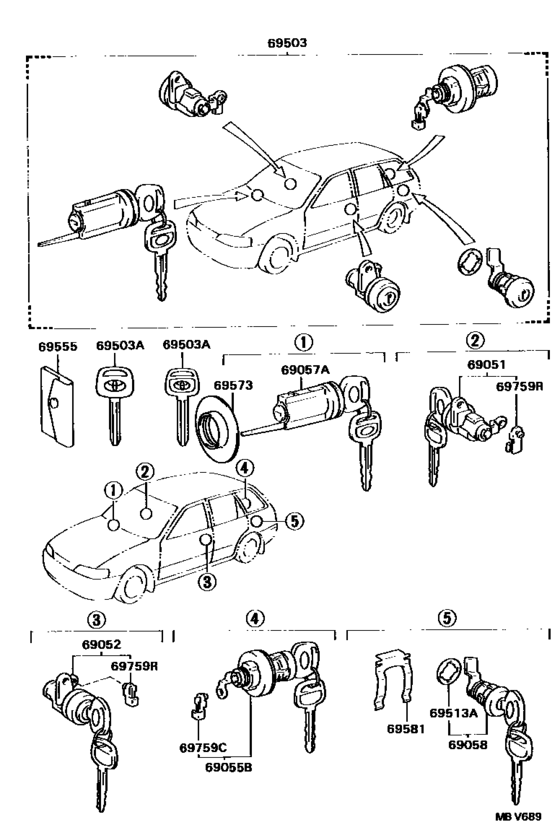

Lock Cylinder Set ([09.1991 - ] (9109- )WG) Diagram Toyota COROLLA
- Year
- 1992 - 1995
- Sales region
- General
- Frame
- EE105
- grade
- STD
- body
- WG
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1992
- To
- 05.1995
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
69051
|
69051
69051-13130
Cylinder & Key Set, Door Lock, Rh
[09.1991 - 09.1995] AE101,EE100,104,105,108..WG |
69051-13130 |
— | ||
| replacement | |||||
|
69051
|
69051
69051-12360 Cylinder & Key Set, Door Lock, RhDOOR LOCK, RH [09.1991 - 09.1995] AE101,EE100,104,105,108..WG |
69051-12360 |
US $56.22 |
||
|
69052
|
69052
69052-13130
Cylinder & Key Set, Door Lock, Lh
[09.1991 - 09.1995] AE101,EE100,104,105,108..WG |
69052-13130 |
— | ||
| replacement | |||||
|
69052
|
69052
69052-12360 Cylinder & Key Set, Door Lock, LhDOOR LOCK, LH [09.1991 - 09.1995] AE101,EE100,104,105,108..WG |
69052-12360 |
US $52.42 |
||
|
69055B
|
69055B
69055-13140
Cylinder & Key Set, Back Door Lock
[09.1991 - 09.1995] AE101,EE100,104,105,108..WG |
69055-13140 |
— | ||
| replacement | |||||
|
69055B
|
69055B
69055-13250
Cylinder & Key Set, Back Door Lock
[09.1991 - 09.1995] AE101,EE100,104,105,108..WG |
69055-13250 |
— | ||
|
69057A
|
69057A
69057-13150 Cylinder & Key Set, Ignition Switch Lock[05.1992 - 09.1995] AE101,EE100,105..WG |
69057-13150 |
US $96.10 |
||
| replacement | |||||
|
69057A
|
69057A
69057-13140 Cylinder & Key Set, Ignition Switch LockIGNITION SWITCH LOCK [05.1992 - 09.1995] AE101,EE100,105..WG |
69057-13140 |
US $279.53 |
||
|
69058
|
69058
69058-13100 Cylinder & Key Set, Fuel Filler Lid[05.1992 - 05.1997] EE105..STD |
69058-13100 |
US $54.02 |
||
| replacement | |||||
|
69058
|
69058
69058-13130 Cylinder & Key Set, Fuel Filler Lid[05.1992 - 05.1997] EE105..STD |
69058-13130 |
US $54.02 |
||
|
69503
|
69503
69005-13250 Cylinder Set, Lock[05.1992 - 04.1997] EE105..STD |
69005-13250 |
US $251.89 |
||
| replacement | |||||
|
69503
|
69503
69005-13290 Cylinder Set, LockLOCK [05.1992 - 04.1997] EE105..STD |
69005-13290 |
US $251.89 |
||
|
69503A
|
69503A
90999-00192 Key, Blank[05.1992 - 04.1997] EE105..STD MASTER KEY |
90999-00192 |
US $27.66 |
||
|
69503A
|
69503A
90999-00193 Key, Blank[09.1991 - 09.1995] AE101,EE100,104,105,108..WG MASTER KEY,W(*68) |
90999-00193 |
US $34.65 |
||
|
69513A
|
69513A
69513-13010 Pad, Door Cylinder[05.1992 - 05.1997] EE105..STD |
69513-13010 |
US $1.89 |
||
|
69573
|
69573
69573-12010 Pad, Ignition Switch Lock Cylinder[08.1991 - 09.1994] AE10#,CE100,EE10# |
69573-12010 |
US $5.59 |
||
|
69581
|
69581
69581-13010 Retainer, Fuel Filler Lid Cylinder[05.1992 - 05.1997] EE105..STD |
69581-13010 |
US $1.92 |
||
|
69759C
|
69759C
69759-24080 Snap, Front Door Lock Control Rod[09.1991 - 09.1995] AE101,EE100,104,105,108..WG |
69759-24080 |
from US $2.22 |
||
|
69759R
|
69759R
69759-12080 Snap, Front Door Lock Cylinder[08.1991 - 09.1994] AE10#,CE100,EE10#..SED,WG RH |
69759-12080 |
US $3.14 |
||
|
69759R
|
69759R
69759-12090 Snap, Front Door Lock Cylinder[08.1991 - 09.1994] AE10#,CE100,EE10#..SED,WG LH |
69759-12090 |
US $2.33 |
||
