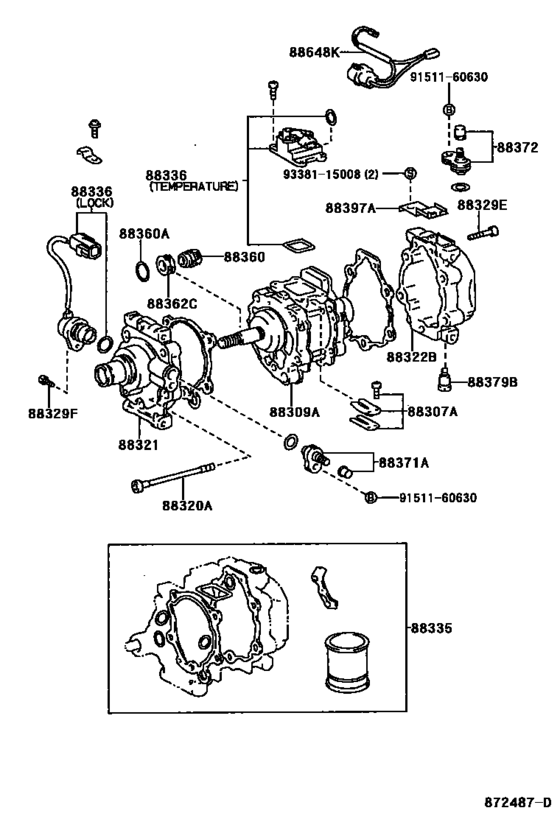

Heating & Air Conditioning - Compressor ([04.1997 - ] (9704- )EE110) Diagram Toyota COROLLA
- Year
- 1997 - 1999
- Sales region
- General
- Frame
- EE110
- grade
- XL
- body
- LB
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA LB
- From
- 04.1997
- To
- 10.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla LB
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88307A
|
88307A
88307-12050
Reed Sub-Assy, Valve
[04.1997 - 08.1998] AE111..GLI..GEN;AE112,EE110..GCC; AE11#,EE110 |
88307-12050 |
— | ||
|
88309A
|
88309A
88309-12130
Pump Sub-Assy, Compressor
[04.1997 - 05.1998] EE110..GCC; EE110 |
88309-12130 |
— | ||
|
88309A
|
88309A
88309-12140
Pump Sub-Assy, Compressor
[04.1997 - 05.1998] EE110..GCC W(POWER STEERING); EE110 W(POWER STEERING) |
88309-12140 |
— | ||
|
88309A
|
88309A
88309-12200
Pump Sub-Assy, Compressor
[05.1998 - 08.1998] AE111..GLI..GEN;AE112,EE110..GCC; AE11#,EE110 |
88309-12200 |
— | ||
|
88320A
|
88320A
88329-16010
Bolt, Through
[04.1997 - 08.1998] AE111..GLI..GEN;AE112,EE110..GCC; AE11#,EE110 |
88329-16010 |
— | ||
|
88321
|
88321
88321-12130
Head, Cooler Compressor Cylinder
[04.1997 - 10.1999] EE110 W(POWER STEERING) |
88321-12130 |
— | ||
|
88321
|
88321
88321-12140 Head, Cooler Compressor CylinderCOOLER COMPRESSOR CYLINDER [04.1997 - 08.1998] AE111..GLI..GEN;AE112,EE110..GCC; AE11#,EE110 |
88321-12140 |
US $86.46 |
||
|
88322B
|
88322B
88322-12100
Head, Cooler Compressor Cylinder
[04.1997 - 08.1998] AE111..GLI..GEN;AE112,EE110..GCC; AE11#,EE110 |
88322-12100 |
— | ||
|
88329E
|
88329E
88329-16020
Bolt, Through
[04.1997 - 10.1999] AE11#,EE110 |
88329-16020 |
— | ||
|
88329F
|
88329F
88329-16030
Bolt, Through
[04.1997 - 10.1999] EE110 |
88329-16030 |
— | ||
|
88335
|
88335
88335-12110
Gasket Kit, Overhaul
[04.1997 - 08.1998] AE111..GLI..GEN;AE112,EE110..GCC; AE11#,EE110 |
88335-12110 |
— | ||
|
88336
|
88336
88336-12090
Sensor, Compressor
[04.1997 - 05.1998] EE110..GCC W(POWER STEERING),LOCK SENSOR; EE110 W(POWER STEERING),LOCK SENSOR |
88336-12090 |
— | ||
|
88336
|
88336
88336-16060
Sensor, Compressor
[04.1997 - 10.1999] EE110 |
88336-16060 |
— | ||
|
88336
|
88336
88336-16070
Sensor, Compressor
[04.1997 - 05.1998] EE110..GCC W(POWER STEERING),TEMPERATURE SENSOR; EE110 W(POWER STEERING),TEMPERATURE SENSOR |
88336-16070 |
— | ||
|
88360
|
88360
88360-12100 Seal Assy, ShaftSHAFT [04.1997 - 08.1998] AE111..GLI..GEN;AE112,EE110..GCC; AE11#,EE110 |
88360-12100 |
US $79.58 |
||
|
88360A
|
88360A
90096-90022
Ring, Compressor Seal Plate Snap
[04.1997 - 08.1998] AE111..GLI..GEN;AE112,EE110..GCC; AE11#,EE110 |
90096-90022 |
— | ||
|
88362C
|
88362C
88362-12020
Plate, Pulse
[04.1997 - 10.1999] EE110 |
88362-12020 |
— | ||
|
88371A
|
88371A
88376-12010 Cap, BlindBLIND [04.1997 - 08.1998] AE111..GLI..GEN;AE112,EE110..GCC; AE11#,EE110 |
88376-12010 |
US $5.73 |
||
|
88372
|
88372
88376-12020 Cap, BlindBLIND [04.1997 - 08.1998] AE111..GLI..GEN;AE112,EE110..GCC; AE11#,EE110 |
88376-12020 |
US $5.73 |
||
|
88379B
|
88379B
88379-12050
Valve, Pressure Relief
[04.1997 - 10.1999] EE110..GCC;AE11#..RHD..(ARL,GEN); EE110;AE11#..ARL,GEN,NZ |
88379-12050 |
— | ||
|
88397A
|
88397A
88397-16030
Clip, Compressor
[04.1997 - 10.1999] AE11#,EE110 |
88397-16030 |
— | ||
|
88648K
|
88648K
88648-12600
Wire Sub-Assy, Sensor
[04.1997 - 05.1998] EE110..GCC; EE110 |
88648-12600 |
— | ||
|
9151160630
|
9151160630
91511-60630 BOLT |
91511-60630 |
from US $1.92 |
||
|
9338115008
|
9338115008
93381-15008 SCREWWWASHER |
93381-15008 |
US $1.44 |
