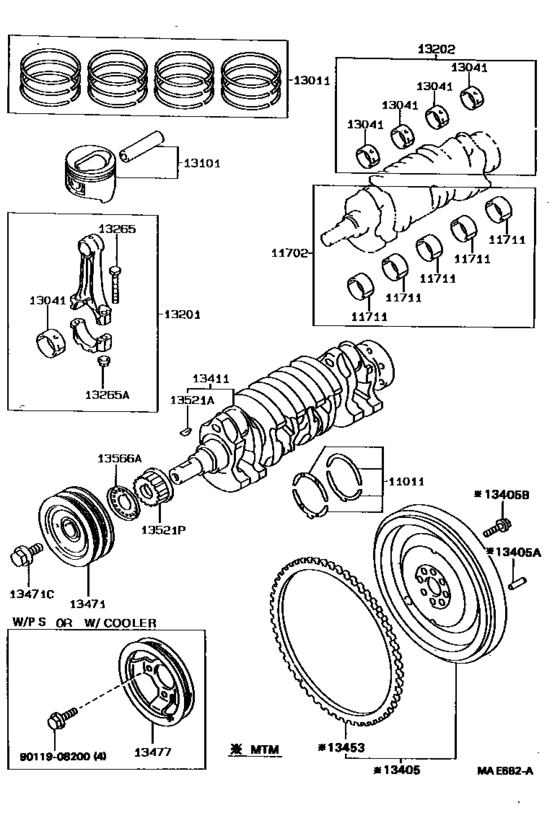

Crankshaft & Piston ([05.1995 - ] (9505- )4EFE) Diagram Toyota COROLLA
- Year
- 1998 - 2000
- Sales region
- Japan
- Frame
- EE111
- grade
- DX
- body
- SED
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 04.1998
- To
- 08.2000
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-10010 Washer Set, Crankshaft Thrust[04.1997 - 08.2000] 4EFE..EE111 ＳＴＤ |
11011-10010 |
US $26.73 |
||
|
11011
|
11011
11012-10020 Washer Set, Crankshaft Thrust[04.1997 - 08.2000] 4EFE..EE111 Ｏ／Ｓ ０．１２５ |
11012-10020 |
US $33.63 |
||
|
11702
|
11702
11704-10012 Bearing Set, Crankshaft (0.25)[04.1997 - 08.2000] 4EFE..EE111 Ｕ／Ｓ ０．２５ |
11704-10012 |
US $257.71 |
||
|
11711
|
11711
11701-10012-01 Bearing, Crankshaft[04.1997 - 08.2000] 4EFE..EE111 MARK 1 |
11701-10012-01 |
from US $19.79 |
||
|
11711
|
11711
11701-10012-02 Bearing, Crankshaft[04.1997 - 08.2000] 4EFE..EE111 MARK 2 |
11701-10012-02 |
from US $19.56 |
||
|
11711
|
11711
11701-10012-03 Bearing, Crankshaft[04.1997 - 08.2000] 4EFE..EE111 MARK 3 |
11701-10012-03 |
US $47.27 |
||
|
11711
|
11711
11701-10012-04 Bearing, Crankshaft[04.1997 - 08.2000] 4EFE..EE111 MARK 4 |
11701-10012-04 |
US $47.27 |
||
|
11711
|
11711
11701-10012-05 Bearing, Crankshaft[04.1997 - 08.2000] 4EFE..EE111 MARK 5 |
11701-10012-05 |
US $47.27 |
||
|
13011
|
13011
13011-11170 Ring Set, Piston[04.1997 - 08.2000] 4EFE..EE111 ＳＴＤ |
13011-11170 |
US $209.66 |
||
|
13041
|
13041
13041-10020-01 Bearing, Connecting Rod[04.1997 - 08.2000] 4EFE..EE111 MARK 1 |
13041-10020-01 |
from US $15.83 |
||
|
13041
|
13041
13041-10020-02 Bearing, Connecting Rod[04.1997 - 08.2000] 4EFE..EE111 MARK 2 |
13041-10020-02 |
from US $16.40 |
||
|
13041
|
13041
13041-10020-03 Bearing, Connecting Rod[04.1997 - 08.2000] 4EFE..EE111 MARK 3 |
13041-10020-03 |
US $38 |
||
|
13101
|
13101
13101-11101-01 Piston Sub-Assy, W/pin[04.1997 - 08.2000] 4EFE..EE111 ＳＴＤ,MARK 1 |
13101-11101-01 |
US $87.36 |
||
|
13101
|
13101
13101-11101-02
Piston Sub-Assy, W/pin
[04.1997 - 08.2000] 4EFE..EE111 ＳＴＤ,MARK 2 |
13101-11101-02 |
— | ||
|
13101
|
13101
13101-11101-03 Piston Sub-Assy, W/pin[04.1997 - 08.2000] 4EFE..EE111 ＳＴＤ,MARK 3 |
13101-11101-03 |
US $87.36 |
||
|
13201
|
13201
13201-19076 Rod Sub-Assy, Connecting[04.1997 - 08.2000] 4EFE..EE111 |
13201-19076 |
US $131.04 |
||
|
13202
|
13202
13204-10020 Bearing Set, Connecting Rod[04.1997 - 08.2000] 4EFE..EE111 Ｕ／Ｓ ０．２５ |
13204-10020 |
from US $73.89 |
||
|
13265
|
13265
13265-10022 Bolt, Connecting Rod[04.1997 - 08.2000] 4EFE..EE111 |
13265-10022 |
from US $2.93 |
||
|
13265A
|
13265A
90179-08014 Nut, Hexagon(For Connecting Rod Bolt)[04.1997 - 08.2000] 4EFE..EE111 |
90179-08014 |
from US $1.11 |
||
|
13405
|
13405
13405-11031 Flywheel Sub-Assy[04.1997 - 08.2000] 4EFE..EE111..MTM |
13405-11031 |
US $269.36 |
||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[04.1997 - 08.2000] 4EFE..EE111..MTM 長さ＝１８，外径＝８; 4A#,5AFE..AE11#..MTM 長さ＝１８，外径＝８ |
90250-08120 |
from US $1.03 |
||
|
13405B
|
13405B
90105-10138 Bolt, Flywheel Setting[04.1997 - 08.2000] 4EFE..EE111..MTM |
90105-10138 |
from US $1.50 |
||
|
13411
|
13411
13401-11051
Crankshaft
[04.1997 - 08.2000] 4EFE..EE111 |
13401-11051 |
— | ||
|
13453
|
13453
13453-10030 Gear, Flywheel Ring[04.1997 - 08.2000] 4EFE..EE111..MTM |
13453-10030 |
US $90.27 |
||
|
13471
|
13471
13470-11030 Pulley, Crankshaft[10.1997 - 08.2000] 4EFE..EE111 |
13470-11030 |
US $172.80 |
||
|
13471C
|
13471C
90105-12051 Bolt(For Crankshaft Pulley Set)[04.1997 - 08.2000] 4EFE..EE111 |
90105-12051 |
from US $2.65 |
||
|
13477
|
13477
88451-12050
Pulley, Crankshaft, No.2
[04.1997 - 08.2000] 4EFE..EE111 |
88451-12050 |
— | ||
|
13521A
|
13521A
90280-05005 Key(For Oil Pump Drive Spline)[04.1997 - 08.2000] 4EFE..EE111; 4A#,5AFE..AE11# |
90280-05005 |
from US $0.99 |
||
|
13521P
|
13521P
13521-11030 Pulley, Crankshaft Timing[04.1997 - 08.2000] 4EFE..EE111 |
13521-11030 |
from US $28.63 |
||
|
13566A
|
13566A
13566-11020 Guide, Timing Belt[04.1997 - 08.2000] 4EFE..EE111 |
13566-11020 |
from US $4.58 |
||
|
9011908200
|
9011908200
90119-08200 BOLT |
90119-08200 |
from US $2.24 |
||
| replacement | |||||
|
9011908200
|
9011908200
90105-08112 New Genuine Part |
90105-08112 |
from US $2.04 |
||
