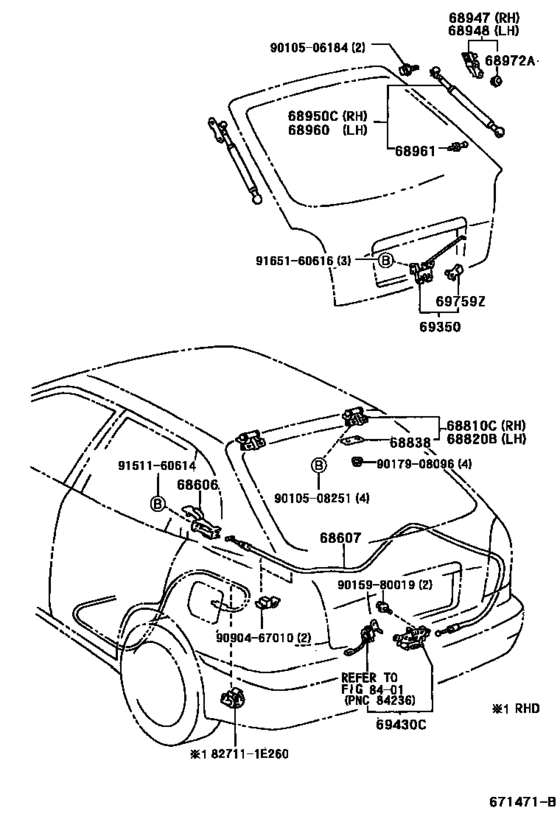

Back Door Lock & Handle ([09.1998 - ] (9809- )UKP) Diagram Toyota COROLLA
- Year
- 1998 - 1999
- Sales region
- Europe
- Frame
- EE111
- grade
- TERRA
- body
- LB
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1998
- To
- 11.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68606
|
68606
64606-02020
Lever Sub-Assy, Back Door Lock Open
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP..LHD |
64606-02020 |
— | ||
|
68607
|
68607
64607-02040
Cable Sub-Assy, Back Door Lock Control
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP..LHD |
64607-02040 |
— | ||
|
68810C
|
68810C
68801-05020
Hinge Assy, Back Door, Rh
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
68801-05020 |
— | ||
|
68820B
|
68820B
68801-05020
Hinge Assy, Back Door, Rh
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
68801-05020 |
— | ||
|
68838
|
68838
68838-05010
Pad, Back Door Hinge, No.1
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
68838-05010 |
— | ||
|
68947
|
68947
68947-02010
Bracket, Back Door Damper Stay, Lower Rh
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
68947-02010 |
— | ||
|
68948
|
68948
68948-02010
Bracket, Back Door Damper Stay, Lower Lh
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
68948-02010 |
— | ||
|
68950C
|
68950C
68950-09090
Stay Assy, Back Door, Rh
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
68950-09090 |
— | ||
| replacement | |||||
|
68950C
|
68950C
68950-02020
Stay Assy, Back Door, Rh
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
68950-02020 |
— | ||
|
68960
|
68960
68960-09060
Stay Assy, Back Door, Lh
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
68960-09060 |
— | ||
| replacement | |||||
|
68960
|
68960
68960-02010
Stay Assy, Back Door, Lh
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
68960-02010 |
— | ||
|
68961
|
68961
68961-02020
Bolt, Back Door Stay
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
68961-02020 |
— | ||
| replacement | |||||
|
68961
|
68961
68961-05010 Bolt, Back Door Stay[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
68961-05010 |
US $3.84 |
||
|
68972A
|
68972A
68972-02010
Packing, Back Door Stay, No.2
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
68972-02010 |
— | ||
|
69350
|
69350
69350-12200 Lock Assy, Back DoorBACK DOOR [09.1998 - 11.2001] CDE110,ZZE11#..LB;AE111,EE111,WZE110..UKP |
69350-12200 |
US $49.36 |
||
|
69430C
|
69430C
69430-12320 Striker Assy, Back Door LockBACK DOOR LOCK [09.1998 - 11.2001] CDE110,ZZE11#..LB;AE111,EE111,WZE110..UKP |
69430-12320 |
US $34.80 |
||
|
69759Z
|
69759Z
69759-20040 Snap, Auxiliary Catch Release Lever Control Link[09.1998 - 11.2001] CDE110,ZZE11#..LB;AE111,EE111,WZE110..UKP |
69759-20040 |
US $4.32 |
||
|
827111E260
|
827111E260
82711-1E260 Clamp (For Fuel Lid Lock Control Cable) |
82711-1E260 |
from US $0.98 |
||
|
9010506184
|
9010506184
90105-06184 BOLT WASHER BASED |
90105-06184 |
US $1.12 |
||
|
9010508251
|
9010508251
90105-08251 New Genuine Part |
90105-08251 |
US $2.56 |
||
|
9015980019
|
9015980019
90159-80019 New Genuine Part |
90159-80019 |
US $1.60 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.42 |
||
| replacement | |||||
|
9017908096
|
9017908096
90080-18061 New Genuine Part |
90080-18061 |
US $4.47 |
||
|
9090467010
|
9090467010
90904-67010 New Genuine Part |
90904-67010 |
US $1.60 |
||
|
9151160614
|
9151160614
91511-60614
LEXBOLT
|
91511-60614 |
— | ||
| replacement | |||||
|
9151160614
|
9151160614
91511-B0614 BOLT, FLANGE |
91511-B0614 |
from US $0.74 |
||
|
9165160616
|
9165160616
91651-60616 BOLT |
91651-60616 |
from US $0.47 |
||
