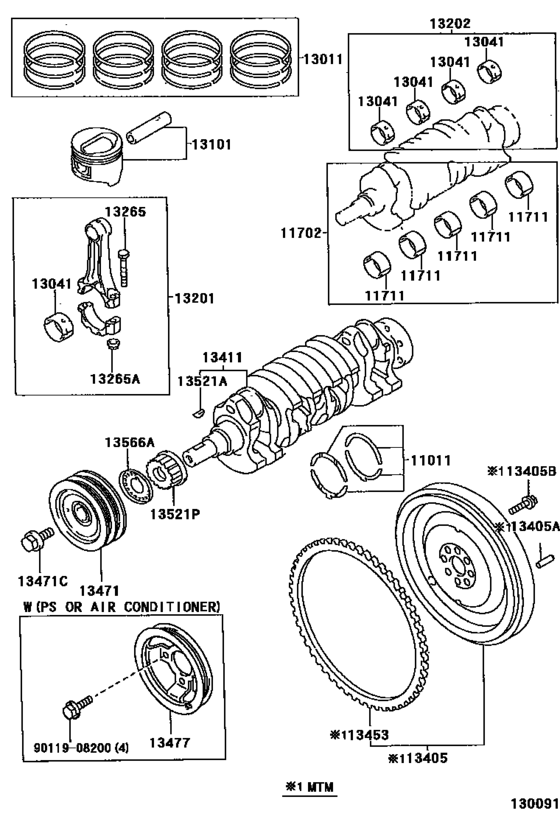

Crankshaft & Piston ([04.1997 - ] (9704- )4EFE) Diagram Toyota COROLLA
- Year
- 1998 - 1999
- Sales region
- Europe
- Frame
- EE111
- grade
- TERRA
- body
- LB
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1998
- To
- 11.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-10010 Washer Set, Crankshaft Thrust[09.1998 - 11.1999] 4EFE..EE111..UKP STD |
11011-10010 |
from US $26.73 |
||
|
11011
|
11011
11012-10020 Washer Set, Crankshaft Thrust[09.1998 - 11.1999] 4EFE..EE111..UKP O/S 0.125 |
11012-10020 |
US $33.63 |
||
|
11702
|
11702
11704-10012 Bearing Set, Crankshaft (0.25)[09.1998 - 11.1999] 4EFE..EE111..UKP U/S 0.25 |
11704-10012 |
from US $67.08 |
||
|
11711
|
11711
11701-10012-01 Bearing, Crankshaft[09.1998 - 11.1999] 4EFE..EE111..UKP MARK 1 |
11701-10012-01 |
from US $19.70 |
||
|
11711
|
11711
11701-10012-02 Bearing, Crankshaft[09.1998 - 11.1999] 4EFE..EE111..UKP MARK 2 |
11701-10012-02 |
from US $19.46 |
||
|
11711
|
11711
11701-10012-03 Bearing, Crankshaft[09.1998 - 11.1999] 4EFE..EE111..UKP MARK 3 |
11701-10012-03 |
US $47.27 |
||
|
11711
|
11711
11701-10012-04 Bearing, Crankshaft[09.1998 - 11.1999] 4EFE..EE111..UKP MARK 4 |
11701-10012-04 |
US $47.27 |
||
|
11711
|
11711
11701-10012-05 Bearing, Crankshaft[09.1998 - 11.1999] 4EFE..EE111..UKP MARK 5 |
11701-10012-05 |
US $47.27 |
||
|
13011
|
13011
13011-11180 Ring Set, PistonPISTON [09.1998 - 11.1999] 4EFE..EE111..UKP STD |
13011-11180 |
US $208.21 |
||
|
13041
|
13041
13041-10020-01 Bearing, Connecting Rod[09.1998 - 11.1999] 4EFE..EE111..UKP MARK 1 |
13041-10020-01 |
from US $15.76 |
||
|
13041
|
13041
13041-10020-02 Bearing, Connecting Rod[09.1998 - 11.1999] 4EFE..EE111..UKP MARK 2 |
13041-10020-02 |
from US $16.32 |
||
|
13041
|
13041
13041-10020-03 Bearing, Connecting Rod[09.1998 - 11.1999] 4EFE..EE111..UKP MARK 3 |
13041-10020-03 |
US $38 |
||
|
13101
|
13101
13101-11171-01 Piston Sub-Assy, W/pinW/PIN [09.1998 - 11.1999] 4EFE..EE111..UKP STD,MARK 1 |
13101-11171-01 |
US $84.45 |
||
|
13101
|
13101
13101-11171-02 Piston Sub-Assy, W/pinW/PIN [09.1998 - 11.1999] 4EFE..EE111..UKP STD,MARK 2 |
13101-11171-02 |
US $84.45 |
||
|
13101
|
13101
13101-11171-03
Piston Sub-Assy, W/pin
[09.1998 - 11.1999] 4EFE..EE111..UKP STD,MARK 3 |
13101-11171-03 |
— | ||
|
13201
|
13201
13201-19076 Rod Sub-Assy, Connecting[09.1998 - 11.1999] 4EFE..EE111..UKP |
13201-19076 |
US $131.04 |
||
|
13202
|
13202
13204-10020 Bearing Set, Connecting Rod[09.1998 - 11.1999] 4EFE..EE111..UKP U/S 0.25 |
13204-10020 |
from US $73.55 |
||
|
13265
|
13265
13265-10022 Bolt, Connecting Rod[09.1998 - 11.1999] 4EFE..EE111..UKP |
13265-10022 |
from US $3 |
||
|
13265A
|
13265A
90179-08014 Nut, Hexagon(For Connecting Rod Bolt)[09.1998 - 11.1999] 4EFE..EE111..UKP |
90179-08014 |
US $2.62 |
||
|
13405
|
13405
13405-11031 Flywheel Sub-Assy[09.1998 - 11.1999] 4EFE..EE111..UKP..5F |
13405-11031 |
US $269.36 |
||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[09.1998 - 11.1999] 4AFE..AE111..UKP..5F L=18,OD=8; 4EFE..EE111..UKP..5F L=18,OD=8 |
90250-08120 |
from US $1.01 |
||
|
13405B
|
13405B
90105-10138 Bolt, Flywheel Setting[09.1998 - 11.1999] 4EFE..EE111..UKP..5F |
90105-10138 |
from US $1.48 |
||
|
13411
|
13411
13401-11051
Crankshaft
[09.1998 - 11.1999] 4EFE..EE111..UKP |
13401-11051 |
— | ||
|
13453
|
13453
13453-10030 Gear, Flywheel Ring[09.1998 - 11.1999] 4EFE..EE111..UKP..5F |
13453-10030 |
US $90.27 |
||
|
13471
|
13471
13470-11030 Pulley, Crankshaft[09.1998 - 11.1999] 4EFE..EE111..UKP |
13470-11030 |
US $172.80 |
||
|
13471C
|
13471C
90105-12051 Bolt(For Crankshaft Pulley Set)[09.1998 - 11.1999] 4EFE..EE111..UKP |
90105-12051 |
from US $2.63 |
||
|
13477
|
13477
88451-02010
Pulley, Crankshaft, No.2
[09.1998 - 11.1999] 4EFE..EE111..UKP |
88451-02010 |
— | ||
|
13521A
|
13521A
90280-05005 Key(For Oil Pump Drive Spline)[09.1998 - 11.1999] 4AFE..AE111..UKP; 4EFE..EE111..UKP |
90280-05005 |
from US $0.98 |
||
|
13521P
|
13521P
13521-11030 Pulley, Crankshaft Timing[09.1998 - 11.1999] 4EFE..EE111..UKP |
13521-11030 |
from US $29.78 |
||
|
13566A
|
13566A
13566-11020 Guide, Timing Belt[09.1998 - 11.1999] 4EFE..EE111..UKP |
13566-11020 |
US $8.04 |
||
|
9011908200
|
9011908200
90119-08200 BOLT |
90119-08200 |
from US $2.24 |
||
| replacement | |||||
|
9011908200
|
9011908200
90105-08112 New Genuine Part |
90105-08112 |
from US $2.04 |
||
