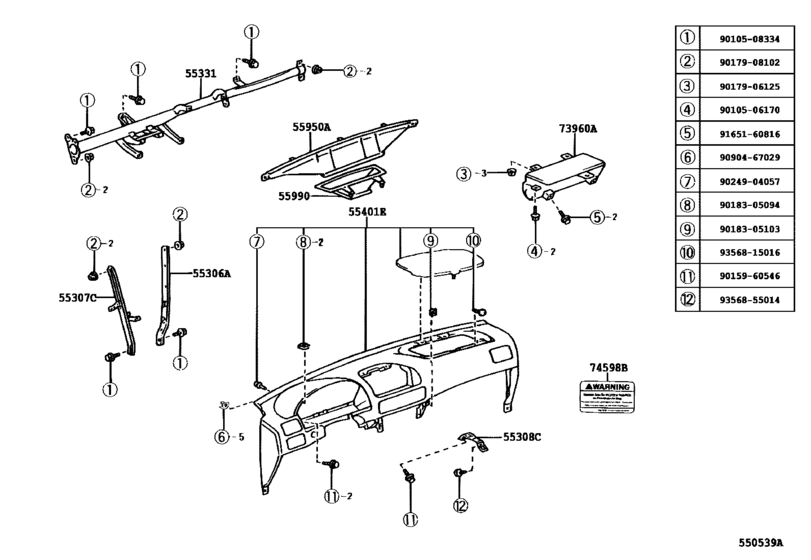

Instrument Panel & Glove Compartment ([09.1998 - ] (9809- )UKP..LHD) Diagram Toyota COROLLA
- Year
- 1998 - 1999
- Sales region
- Europe
- Frame
- EE111
- grade
- TERRA
- body
- LB
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1998
- To
- 11.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
55306A
|
55306A
55306-02050
Brace Sub-Assy, Instrument Panel, No.1
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP..LHD |
55306-02050 |
— | ||
|
55307C
|
55307C
55307-02050
Brace Sub-Assy, Instrument Panel, No.2
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP..LHD |
55307-02050 |
— | ||
|
55308C
|
55308C
55308-02040
Bracket Sub-Assy, Instrument Panel, Center
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
55308-02040 |
— | ||
|
55331
|
55331
55330-02070
Reinforcement, Instrument Panel
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP..LHD |
55330-02070 |
— | ||
|
55401E
|
55401E
55401-02090-B0
Pad Sub-Assy, Instrument Panel Safety
[09.1998 - 11.2001] ZZE112..LHD..6F..SOL;AE111,EE111..UKP..LHD SHADOW GRAY,TRIM1# |
55401-02090-B0 |
— | ||
|
55401E
|
55401E
55401-02090-B1
Pad Sub-Assy, Instrument Panel Safety
[09.1998 - 11.1999] AE111,EE111..UKP..LHD DK.CHARCOAL,TRIM0#,1# |
55401-02090-B1 |
— | ||
|
55401E
|
55401E
55401-02100-B0
Pad Sub-Assy, Instrument Panel Safety
[09.1998 - 11.2001] ZZE112..LHD..6F..SOL;AE111,EE111..UKP..LHD W(*80,DRIVER SIDE & PASSENGER SIDE),SHADOW GRAY,TRIM1# |
55401-02100-B0 |
— | ||
|
55401E
|
55401E
55401-02100-B1
Pad Sub-Assy, Instrument Panel Safety
[09.1998 - 11.1999] AE111,EE111..UKP..LHD W(*80,DRIVER SIDE & PASSENGER SIDE),DK.CHARCOAL,TRIM0#,1# |
55401-02100-B1 |
— | ||
|
55950A
|
55950A
55950-02050
Nozzle Assy, Defroster
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP..LHD |
55950-02050 |
— | ||
|
55990
|
55990
55990-02040
Nozzle Assy, Center Defroster
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP..LHD |
55990-02040 |
— | ||
|
73960A
|
73960A
73960-02020
Air Bag Assy, Instrument Panel Passenger W/o Door
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP..LHD |
73960-02020 |
— | ||
|
74598B
|
74598B
74598-20010 Label, Driver & Passenger Air Bag Caution[09.1998 - 11.2001] AE111,EE111..UKP;CDE110,WZE110,ZZE11# |
74598-20010 |
US $1.44 |
||
|
9010506170
|
9010506170
90105-06170 New Genuine Part |
90105-06170 |
US $1.60 |
||
| replacement | |||||
|
9010506170
|
9010506170
90105-06228 BOLT WASHER BASED |
90105-06228 |
US $1.92 |
||
|
9010508334
|
9010508334
90105-08334 New Genuine Part |
90105-08334 |
US $1.46 |
||
|
9015960546
|
9015960546
90159-60546 New Genuine Part |
90159-60546 |
US $0.96 |
||
|
9017906125
|
9017906125
90179-06125 Nut (For Rear Wiper Arm Setting) |
90179-06125 |
US $1.92 |
||
|
9017908102
|
9017908102
90179-08102 NUT |
90179-08102 |
US $2.56 |
||
|
9018305094
|
9018305094
90183-05094 NUT |
90183-05094 |
from US $0.94 |
||
|
9018305103
|
9018305103
90183-05103 NUT |
90183-05103 |
US $1.44 |
||
|
9024904057
|
9024904057
90249-04057 Pin, Instrument Panel, No.1 |
90249-04057 |
US $3.68 |
||
|
9090467029
|
9090467029
90904-67029 New Genuine Part |
90904-67029 |
US $2.62 |
||
|
9165160816
|
9165160816
91651-60816 BOLT |
91651-60816 |
from US $1.01 |
||
| replacement | |||||
|
9165160816
|
9165160816
90080-11396 Bolt |
90080-11396 |
US $3.72 |
||
|
9356815016
|
9356815016
93568-15016
Sensor, Automatic Light Control
|
93568-15016 |
— | ||
| replacement | |||||
|
9356815016
|
9356815016
93568-55016 Screw |
93568-55016 |
from US $1.12 |
||
|
9356855014
|
9356855014
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
