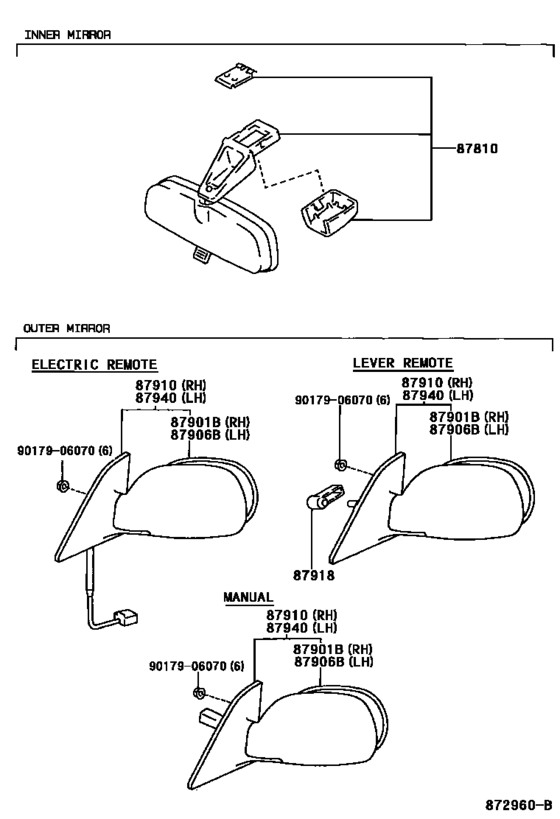

Mirror ([09.1998 - ] (9809- )UKP) Diagram Toyota COROLLA
- Year
- 1998 - 1999
- Sales region
- Europe
- Frame
- EE111
- grade
- TERRA
- body
- LB
- ENGINE
- 4EFE
- TRANSMISSION
- MTM
- PRODUCT
- UKP
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 09.1998
- To
- 11.1999
- Gear Shift Type
- 5F
- Vehicle Model
- Corolla HB/LB
- Driver's Position
- LHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
87810
|
87810
87810-05020 Mirror Assy, Inner Rear View[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
87810-05020 |
US $125.22 |
||
| replacement | |||||
|
87810
|
87810
87810-05021 Mirror Assy, Inner Rear View[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP |
87810-05021 |
US $122.30 |
||
|
87901B
|
87901B
87908-02150
Mirror Sub-Assy, Outer Rear View, Rh
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP..LHD..(LUNA,TERRA) |
87908-02150 |
— | ||
|
87901B
|
87901B
87908-02180
Mirror Sub-Assy, Outer Rear View, Rh
[09.1998 - 05.1999] AE111,EE111..UKP..LHD W(HEATER) |
87908-02180 |
— | ||
| replacement | |||||
|
87901B
|
87901B
87908-02181
Mirror Sub-Assy, Outer Rear View, Rh
[09.1998 - 05.1999] AE111,EE111..UKP..LHD W(HEATER) |
87908-02181 |
— | ||
|
87901B
|
87901B
87908-02181
Mirror Sub-Assy, Outer Rear View, Rh
[05.1999 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP..LHD W(HEATER) |
87908-02181 |
— | ||
|
87906B
|
87906B
87909-02150
Mirror Sub-Assy, Outer Rear View, Lh
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP..LHD..(LUNA,TERRA) |
87909-02150 |
— | ||
|
87906B
|
87906B
87909-02180
Mirror Sub-Assy, Outer Rear View, Lh
[09.1998 - 05.1999] AE111,EE111..UKP..LHD W(HEATER) |
87909-02180 |
— | ||
| replacement | |||||
|
87906B
|
87906B
87909-02181
Mirror Sub-Assy, Outer Rear View, Lh
[09.1998 - 05.1999] AE111,EE111..UKP..LHD W(HEATER) |
87909-02181 |
— | ||
|
87906B
|
87906B
87909-02181
Mirror Sub-Assy, Outer Rear View, Lh
[05.1999 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP..LHD W(HEATER) |
87909-02181 |
— | ||
|
87910
|
87910
87910-02150
Mirror Assy, Outer Rear View, Rh
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP..LHD..(LUNA,TERRA) |
87910-02150 |
— | ||
|
87910
|
87910
87910-02180
Mirror Assy, Outer Rear View, Rh
[09.1998 - 05.1999] AE111,EE111..UKP..LHD..TERRA ELECTRIC REMOTE CONTROL MIRROR W/HEATER |
87910-02180 |
— | ||
| replacement | |||||
|
87910
|
87910
87910-02182
Mirror Assy, Outer Rear View, Rh
[09.1998 - 05.1999] AE111,EE111..UKP..LHD..TERRA ELECTRIC REMOTE CONTROL MIRROR W/HEATER |
87910-02182 |
— | ||
|
87910
|
87910
87910-02181
Mirror Assy, Outer Rear View, Rh
[05.1999 - 11.2000] AE111,EE111,WZE110,ZZE11#..UKP..LHD..TERRA ELECTRIC REMOTE CONTROL MIRROR W/HEATER |
87910-02181 |
— | ||
| replacement | |||||
|
87910
|
87910
87910-02182
Mirror Assy, Outer Rear View, Rh
[05.1999 - 11.2000] AE111,EE111,WZE110,ZZE11#..UKP..LHD..TERRA ELECTRIC REMOTE CONTROL MIRROR W/HEATER |
87910-02182 |
— | ||
|
87918
|
87918
87918-02010
Knob, Control Outer Mirror
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP..(LUNA,TERRA) |
87918-02010 |
— | ||
|
87940
|
87940
87940-02150
Mirror Assy, Outer Rear View, Lh
[09.1998 - 11.2001] AE111,EE111,WZE110,ZZE11#..UKP..LHD..(LUNA,TERRA) |
87940-02150 |
— | ||
|
87940
|
87940
87940-02180
Mirror Assy, Outer Rear View, Lh
[09.1998 - 05.1999] AE111,EE111..UKP..LHD..TERRA ELECTRIC REMOTE CONTROL MIRROR W/HEATER |
87940-02180 |
— | ||
| replacement | |||||
|
87940
|
87940
87940-02182
Mirror Assy, Outer Rear View, Lh
[09.1998 - 05.1999] AE111,EE111..UKP..LHD..TERRA ELECTRIC REMOTE CONTROL MIRROR W/HEATER |
87940-02182 |
— | ||
|
87940
|
87940
87940-02181
Mirror Assy, Outer Rear View, Lh
[05.1999 - 11.2000] AE111,EE111,WZE110,ZZE11#..UKP..LHD..TERRA ELECTRIC REMOTE CONTROL MIRROR W/HEATER |
87940-02181 |
— | ||
| replacement | |||||
|
87940
|
87940
87940-02182
Mirror Assy, Outer Rear View, Lh
[05.1999 - 11.2000] AE111,EE111,WZE110,ZZE11#..UKP..LHD..TERRA ELECTRIC REMOTE CONTROL MIRROR W/HEATER |
87940-02182 |
— | ||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
