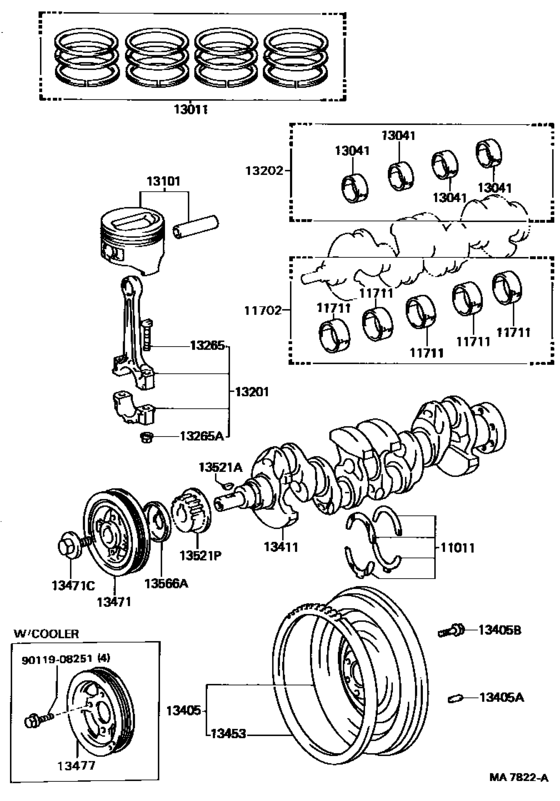

Crankshaft & Piston ([05.1985 - ] (8505- )2ELU) Diagram Toyota COROLLA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- EE80
- grade
- DX
- ENGINE
- 2ELU
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1985
- To
- 04.1987
- Gear Shift Type
- 4F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-10020 Washer Set, Crankshaft Thrust[05.1985 - 04.1987] 2ELU..EE80 ＳＴＤ,STD |
11011-10020 |
US $25.48 |
||
| replacement | |||||
|
11011
|
11011
11011-10010 Washer Set, Crankshaft Thrust[05.1985 - 04.1987] 2ELU..EE80 ＳＴＤ,STD |
11011-10010 |
US $26.73 |
||
|
11011
|
11011
11012-10010 Washer Set, Crankshaft Thrust[05.1985 - 04.1987] 2ELU..EE80 Ｏ／Ｓ ０．１２５,O/S 0.125 |
11012-10010 |
US $33.78 |
||
| replacement | |||||
|
11011
|
11011
11012-10020 Washer Set, Crankshaft Thrust[05.1985 - 04.1987] 2ELU..EE80 Ｏ／Ｓ ０．１２５,O/S 0.125 |
11012-10020 |
US $33.63 |
||
|
11702
|
11702
11704-10010 Bearing Set, Crankshaft[05.1985 - 04.1987] 2ELU..EE80 Ｕ／Ｓ ０．２５,U/S 0.25 |
11704-10010 |
US $299.94 |
||
| replacement | |||||
|
11702
|
11702
11704-10012 Bearing Set, Crankshaft (0.25)[05.1985 - 04.1987] 2ELU..EE80 Ｕ／Ｓ ０．２５,U/S 0.25 |
11704-10012 |
US $257.71 |
||
|
11711
|
11711
11701-10010-01 Bearing, Crankshaft[05.1985 - 04.1987] 2ELU..EE80 MARK"1",MARK 1 |
11701-10010-01 |
US $42.95 |
||
| replacement | |||||
|
11711
|
11711
11701-10012-01 Bearing, Crankshaft[05.1985 - 04.1987] 2ELU..EE80 MARK"1",MARK 1 |
11701-10012-01 |
from US $19.79 |
||
|
11711
|
11711
11701-10010-02 Bearing, Crankshaft[05.1985 - 04.1987] 2ELU..EE80 MARK"2",MARK 2 |
11701-10010-02 |
US $42.95 |
||
| replacement | |||||
|
11711
|
11711
11701-10012-02 Bearing, Crankshaft[05.1985 - 04.1987] 2ELU..EE80 MARK"2",MARK 2 |
11701-10012-02 |
from US $19.56 |
||
|
11711
|
11711
11701-10010-03 Bearing, Crankshaft[05.1985 - 04.1987] 2ELU..EE80 MARK"3",MARK 3 |
11701-10010-03 |
US $42.95 |
||
| replacement | |||||
|
11711
|
11711
11701-10012-03 Bearing, Crankshaft[05.1985 - 04.1987] 2ELU..EE80 MARK"3",MARK 3 |
11701-10012-03 |
US $47.27 |
||
|
13011
|
13011
13011-11040
Ring Set, Piston
[05.1985 - 02.1986] 2ELU..EE80 STD |
13011-11040 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-11064 Piston Ring Set (STD)[05.1985 - 02.1986] 2ELU..EE80 STD |
13011-11064 |
US $174.72 |
||
|
13011
|
13011
13011-11041
Ring Set, Piston
[02.1986 - 04.1987] 2ELU..EE80 ＳＴＤ,STD |
13011-11041 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-11064 Piston Ring Set (STD)[02.1986 - 04.1987] 2ELU..EE80 ＳＴＤ,STD |
13011-11064 |
US $174.72 |
||
|
13011
|
13011
13013-11040 Ring Set, Piston[05.1985 - 02.1986] 2ELU..EE80 O/S 0.50 |
13013-11040 |
US $179.09 |
||
| replacement | |||||
|
13011
|
13011
13013-11064 Ring Set, Piston (0.50)[05.1985 - 02.1986] 2ELU..EE80 O/S 0.50 |
13013-11064 |
US $205.30 |
||
|
13011
|
13011
13013-11041 Ring Set, Piston[02.1986 - 04.1987] 2ELU..EE80 Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-11041 |
US $180.54 |
||
| replacement | |||||
|
13011
|
13011
13013-11064 Ring Set, Piston (0.50)[02.1986 - 04.1987] 2ELU..EE80 Ｏ／Ｓ ０．５０,O/S 0.50 |
13013-11064 |
US $205.30 |
||
|
13041
|
13041
13041-10020-01 Bearing, Connecting Rod[05.1985 - 04.1987] 2ELU..EE80 MARK"1",MARK 1 |
13041-10020-01 |
from US $15.83 |
||
|
13041
|
13041
13041-10020-02 Bearing, Connecting Rod[05.1985 - 04.1987] 2ELU..EE80 MARK"2",MARK 2 |
13041-10020-02 |
from US $16.40 |
||
|
13041
|
13041
13041-10020-03 Bearing, Connecting Rod[05.1985 - 04.1987] 2ELU..EE80 MARK"3",MARK 3 |
13041-10020-03 |
US $38 |
||
|
13101
|
13101
13101-11030 Piston Sub-Assy, W/pin[05.1985 - 04.1987] 2ELU..EE80 ＳＴＤ,STD |
13101-11030 |
US $78.62 |
||
| replacement | |||||
|
13101
|
13101
13101-11091-02 Piston Sub-Assy, W/pinW/PIN [05.1985 - 04.1987] 2ELU..EE80 ＳＴＤ,STD |
13101-11091-02 |
from US $55.59 |
||
|
13101
|
13101
13103-11030 Piston Sub-Assy, W/pin[05.1985 - 04.1987] 2ELU..EE80 Ｏ／Ｓ ０．５０,O/S 0.50 |
13103-11030 |
US $78.62 |
||
| replacement | |||||
|
13101
|
13101
13103-11091 Piston Sub-Assy, W/pinW/PIN [05.1985 - 04.1987] 2ELU..EE80 Ｏ／Ｓ ０．５０,O/S 0.50 |
13103-11091 |
US $82.12 |
||
|
13201
|
13201
13201-19075
Rod Sub-Assy, Connecting
[05.1985 - 04.1987] 2ELU..EE80 |
13201-19075 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-19076 Rod Sub-Assy, Connecting[05.1985 - 04.1987] 2ELU..EE80 |
13201-19076 |
US $131.04 |
||
|
13202
|
13202
13204-10020 Bearing Set, Connecting Rod[05.1985 - 04.1987] 2ELU..EE80 Ｕ／Ｓ ０．２５,U/S 0.25 |
13204-10020 |
from US $73.89 |
||
|
13265
|
13265
13265-10020
Bolt, Connecting Rod
[05.1985 - 04.1987] 2ELU..EE80 |
13265-10020 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-10022 Bolt, Connecting Rod[05.1985 - 04.1987] 2ELU..EE80 |
13265-10022 |
from US $2.93 |
||
|
13265A
|
13265A
90179-08014 Nut, Hexagon(For Connecting Rod Bolt)[05.1985 - 04.1987] 2ELU..EE80 |
90179-08014 |
from US $1.11 |
||
|
13405
|
13405
13405-11020 Flywheel Sub-Assy[05.1985 - 12.1985] 2ELU..EE80..4F |
13405-11020 |
US $266.45 |
||
|
13405
|
13405
13405-11030 Flywheel Sub-Assy[12.1985 - 04.1987] 2ELU..EE80..4F |
13405-11030 |
US $270.82 |
||
| replacement | |||||
|
13405
|
13405
13405-11031 Flywheel Sub-Assy[12.1985 - 04.1987] 2ELU..EE80..4F |
13405-11031 |
US $269.36 |
||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[05.1983 - 04.1987] 2ALU,3ALU,4A#..AE8#..MTM 長さ＝１８，外径＝８; 2ELU..EE80..4F 長さ＝１８，外径＝８ |
90250-08120 |
from US $1.03 |
||
|
13405B
|
13405B
90105-10138 Bolt, Flywheel Setting[05.1985 - 04.1987] 2ELU..EE80..4F |
90105-10138 |
from US $1.50 |
||
|
13411
|
13411
13401-11020 Crankshaft[05.1985 - 04.1987] 2ELU..EE80 |
13401-11020 |
US $1,038.13 |
||
| replacement | |||||
|
13411
|
13411
13401-11051
Crankshaft
[05.1985 - 04.1987] 2ELU..EE80 |
13401-11051 |
— | ||
|
13453
|
13453
13453-10030 Gear, Flywheel Ring[05.1985 - 04.1987] 2ELU..EE80..4F |
13453-10030 |
US $90.27 |
||
|
13471
|
13471
13408-11011 Pulley, Crankshaft[01.1987 - 04.1987] 2ELU..EE80 TOYODA KOUKI |
13408-11011 |
US $179.09 |
||
| replacement | |||||
|
13471
|
13471
13470-11030 Pulley, Crankshaft[01.1987 - 04.1987] 2ELU..EE80 TOYODA KOUKI |
13470-11030 |
US $172.80 |
||
|
13471
|
13471
13408-11020 Pulley, Crankshaft[04.1986 - 04.1987] 2ELU..EE80 MARUYASU |
13408-11020 |
US $179.09 |
||
| replacement | |||||
|
13471
|
13471
13470-11030 Pulley, Crankshaft[04.1986 - 04.1987] 2ELU..EE80 MARUYASU |
13470-11030 |
US $172.80 |
||
|
13471
|
13471
13470-11010 Pulley, Crankshaft[05.1985 - 04.1986] 2ELU..EE80 |
13470-11010 |
US $109.20 |
||
|
13471C
|
13471C
90105-12012 Bolt(For Crankshaft Pulley Set)[05.1983 - 01.1986] 2ELU..EE80; 2ALU,3ALU,4A#..AE8# |
90105-12012 |
US $4.89 |
||
|
13471C
|
13471C
90105-12051 Bolt(For Crankshaft Pulley Set)[01.1986 - 04.1987] 2ELU..EE80 |
90105-12051 |
from US $2.71 |
||
|
13477
|
13477
88451-12030
Pulley, Crankshaft, No.2
[05.1985 - 04.1987] 2ELU..EE80 |
88451-12030 |
— | ||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[05.1983 - 09.1986] 2ELU..EE80; 2ALU,3ALU,4A#..AE8# |
90280-05010 |
US $4.16 |
||
|
13521A
|
13521A
95161-10519 Key(For Oil Pump Drive Spline)[09.1986 - 04.1987] 2ELU..EE80; 3ALU,4A#..AE8# |
95161-10519 |
from US $1.68 |
||
|
13521P
|
13521P
13521-10020 Pulley, Crankshaft Timing[05.1985 - 04.1986] 2ELU..EE80 |
13521-10020 |
US $28.10 |
||
|
13521P
|
13521P
13521-11010 Pulley, Crankshaft Timing[04.1986 - 04.1987] 2ELU..EE80 |
13521-11010 |
US $36.69 |
||
|
13566A
|
13566A
13566-10011 Guide, Timing Belt[05.1985 - 04.1987] 2ELU..EE80 |
13566-10011 |
US $4.37 |
||
|
9011908251
|
9011908251
90119-08251 BOLT |
90119-08251 |
from US $1.25 |
||
