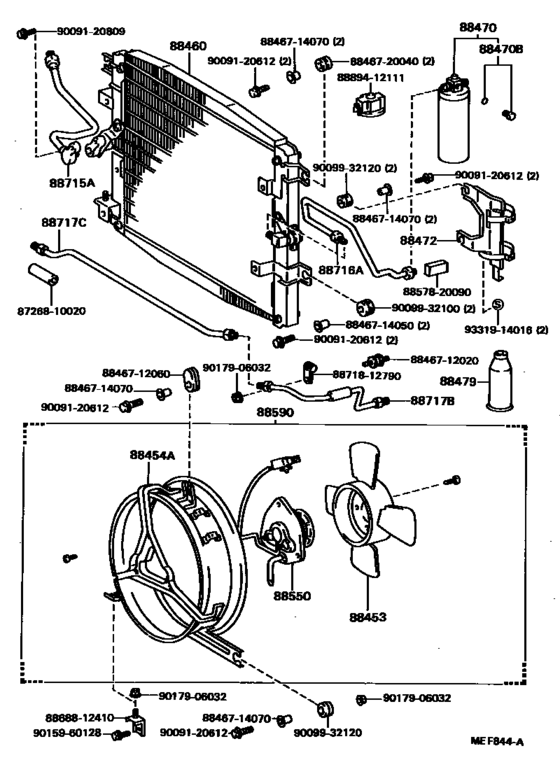

Heating & Air Conditioning - Cooler Piping ([05.1985 - ] (8505- )EE80) Diagram Toyota COROLLA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- EE80
- grade
- DX
- ENGINE
- 2ELU
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1985
- To
- 04.1987
- Gear Shift Type
- 4F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88453
|
88453
88453-12030
Fan, No.2
[05.1985 - 04.1987] EE80 |
88453-12030 |
— | ||
| replacement | |||||
|
88453
|
88453
88453-28010
Fan, No.2
[05.1985 - 04.1987] EE80 |
88453-28010 |
— | ||
|
88454A
|
88454A
88454-12080
Shroud, Fan
[05.1985 - 04.1987] EE80 |
88454-12080 |
— | ||
|
88460
|
88460
88460-12270 Condenser Assy, CoolerCOOLER [05.1985 - 04.1987] AE82..FXT,GT; EE80 |
88460-12270 |
US $439.71 |
||
|
88470
|
88470
88470-14010
Receiver & Dryer Assy, Cooler
[04.1984 - 04.1987] AE8#,CE80,EE80 |
88470-14010 |
— | ||
| replacement | |||||
|
88470
|
88470
04884-33110 New Genuine Part[04.1984 - 04.1987] AE8#,CE80,EE80 |
04884-33110 |
US $76.96 |
||
|
88470B
|
88470B
88475-12020
Bolt, Fuse
[04.1984 - 04.1987] AE8#,CE80,EE80 |
88475-12020 |
— | ||
|
88472
|
88472
88473-20010
Bracket, Receiver Tank, No.1
[05.1983 - 04.1987] AE8#,CE80,EE80 |
88473-20010 |
— | ||
|
88479
|
88479
90986-02001
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[05.1983 - 04.1987] AE8#,CE80,EE80 ４００Ｇ |
90986-02001 |
— | ||
| replacements | |||||
|
88479
|
88479
90986-02004
Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
[05.1983 - 04.1987] AE8#,CE80,EE80 ４００Ｇ |
90986-02004 |
— | ||
|
88479
|
88479
90986-02005
New Genuine Part
[05.1983 - 04.1987] AE8#,CE80,EE80 ４００Ｇ |
90986-02005 |
— | ||
|
88550
|
88550
88550-12090 Motor Assy, Blower (For Condenser)[05.1985 - 04.1987] AE8#,CE80,EE80..CTD,DX,FXD,FXG,FXL,FXR,GL,SE,ZX |
88550-12090 |
US $230.05 |
||
|
88590
|
88590
88590-12080
Blower Assy, W/shroud
[05.1985 - 04.1987] EE80 |
88590-12080 |
— | ||
|
88715A
|
88715A
88715-12290 Pipe, Cooler Refrigerant Discharge, ACOOLER REFRIGERANT DISCHARGE, A [05.1985 - 04.1987] EE80 |
88715-12290 |
US $43.10 |
||
|
88716A
|
88716A
88726-12080 Pipe, Cooler Refrigerant Liquid, ACOOLER REFRIGERANT LIQUID, A [05.1985 - 04.1987] AE8#,CE80,EE80 |
88726-12080 |
US $32.47 |
||
|
88717B
|
88717B
88717-12320 Pipe, Cooler Refrigerant Suction, BCOOLER REFRIGERANT SUCTION, B [05.1985 - 04.1987] EE80 |
88717-12320 |
US $75.71 |
||
|
88717C
|
88717C
88717-12330 Pipe, Cooler Refrigerant Suction, CCOOLER REFRIGERANT SUCTION, C [05.1985 - 04.1987] EE80 |
88717-12330 |
US $106.29 |
||
|
8726810020
|
8726810020
87268-10020
Insulator, Cooler Refrigerant Hose, No.2
|
87268-10020 |
— | ||
| replacement | |||||
|
8726810020
|
8726810020
88714-24100
Insulator, Cooler Refrigerant Hose, No.2
|
88714-24100 |
— | ||
|
8846712020
|
8846712020
88467-12020
Cushion, Cooler Condenser, No.1
|
88467-12020 |
— | ||
|
8846712060
|
8846712060
88467-12060
Cushion, Cooler Condenser, No.1
|
88467-12060 |
— | ||
|
8846714050
|
8846714050
88467-14050
Cushion, Cooler Condenser, No.1
|
88467-14050 |
— | ||
|
8846714070
|
8846714070
88467-14070
Insulator (For Power Take-Off Cable Bracket)
|
88467-14070 |
— | ||
|
8846720040
|
8846720040
88467-20040
Insulator, Cooler Condenser Mounting
|
88467-20040 |
— | ||
|
8857820090
|
8857820090
88578-20090
Paking, Cooler Air Duct
|
88578-20090 |
— | ||
|
8868812410
|
8868812410
88688-12410
Bracket, Cooler Diaphragm
|
88688-12410 |
— | ||
|
8871812790
|
8871812790
88718-12790
Pipe, Cooler Refrigerant Suction, No.2
|
88718-12790 |
— | ||
|
8889412111
|
8889412111
88894-12111
Cap, Cooler Receiver Tank
|
88894-12111 |
— | ||
|
9009120612
|
9009120612
90091-20612
New Genuine Part
|
90091-20612 |
— | ||
| replacement | |||||
|
9009120612
|
9009120612
90091-20642 BOLT WWASHER |
90091-20642 |
US $0.96 |
||
|
9009120809
|
9009120809
90091-20809
New Genuine Part
|
90091-20809 |
— | ||
|
9009932100
|
9009932100
90099-32100
Cushion, Cooler Condenser, No.2
|
90099-32100 |
— | ||
|
9009932120
|
9009932120
90099-32120
Cushion, Cooler Condenser, No.2
|
90099-32120 |
— | ||
| replacement | |||||
|
9009932120
|
9009932120
90099-32130 Grommet (For Power Take-Off Cable Bracket) |
90099-32130 |
from US $1.54 |
||
|
9015960128
|
9015960128
90159-60128 New Genuine Part |
90159-60128 |
US $1.92 |
||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9331914016
|
9331914016
93319-14016 New Genuine Part |
93319-14016 |
US $2.04 |
||
