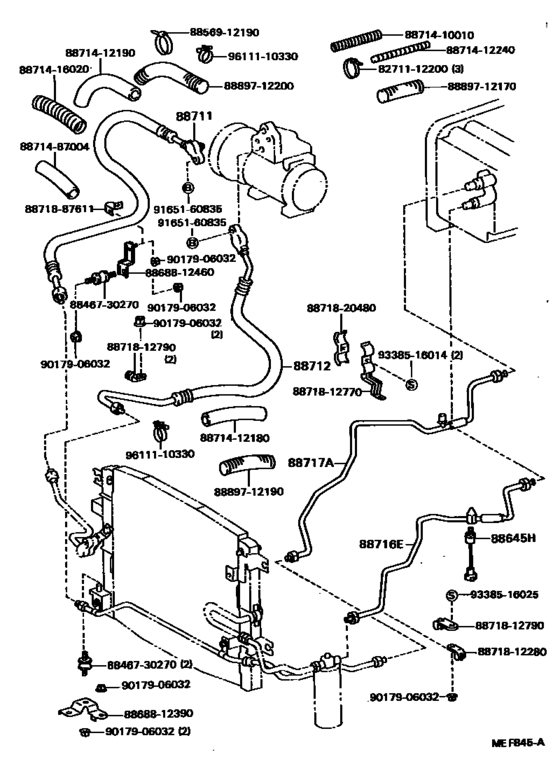

Heating & Air Conditioning - Cooler Piping ([05.1985 - ] (8505- )EE80) Diagram Toyota COROLLA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- EE80
- grade
- DX
- ENGINE
- 2ELU
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1985
- To
- 04.1987
- Gear Shift Type
- 4F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
88645H
|
88645H
88645-32020
Switch, Pressure No.1
[05.1985 - 04.1987] AE8#,CE80,EE80 |
88645-32020 |
— | ||
| replacement | |||||
|
88645H
|
88645H
88645-16050
Switch, Pressure No.1
[05.1985 - 04.1987] AE8#,CE80,EE80 |
88645-16050 |
— | ||
|
88711
|
88711
88711-12351 Hose, Cooler Refrigerant Discharge, No.1COOLER REFRIGERANT DISCHARGE, NO.1 [05.1985 - 04.1987] EE80 |
88711-12351 |
US $171.81 |
||
|
88712
|
88712
88712-12520 Hose, Cooler Refrigerant Suction, No.1COOLER REFRIGERANT SUCTION, NO.1 [05.1985 - 04.1987] EE80 |
88712-12520 |
US $173.26 |
||
|
88716E
|
88716E
88726-12140 Pipe, Cooler Refrigerant Liquid, ECOOLER REFRIGERANT LIQUID, E [05.1985 - 04.1987] EE80; AE81..3FC,4F,5F |
88726-12140 |
US $78.62 |
||
|
88717A
|
88717A
88717-12221 Pipe, Cooler Refrigerant Suction, ACOOLER REFRIGERANT SUCTION, A [05.1985 - 04.1987] EE80; AE81 |
88717-12221 |
US $144.14 |
||
|
8271112200
|
8271112200
82711-12200 Clamp (For Fuel Lid Lock Control Cable) |
82711-12200 |
from US $1.62 |
||
|
8846730270
|
8846730270
88467-30270 Cushion, Cooler Condenser, No.1 |
88467-30270 |
from US $1.75 |
||
|
8856912190
|
8856912190
88569-12190
Clamp (for Cooler Relay)
|
88569-12190 |
— | ||
|
8868812390
|
8868812390
88688-12390
Bracket, Cooler Diaphragm
|
88688-12390 |
— | ||
|
8868812460
|
8868812460
88688-12460
Bracket, Cooler Diaphragm
|
88688-12460 |
— | ||
|
8871410010
|
8871410010
88714-10010
Insulator(For Water By-Pass Hose)
|
88714-10010 |
— | ||
|
8871412180
|
8871412180
88714-12180
Hose, Cooler Refrigerant Liquid, No.1
|
88714-12180 |
— | ||
|
8871412190
|
8871412190
88714-12190
Hose, Cooler Refrigerant Liquid, No.1
|
88714-12190 |
— | ||
|
8871412240
|
8871412240
88714-12240
Hose, Cooler Refrigerant Liquid, No.1
|
88714-12240 |
— | ||
|
8871416020
|
8871416020
88714-16020
Insulator, Cooler Refrigerant Hose, No.2
|
88714-16020 |
— | ||
| replacement | |||||
|
8871416020
|
8871416020
88714-95402
Insulator, Cooler Refrigerant Hose, No.1
|
88714-95402 |
— | ||
|
8871487004
|
8871487004
88714-87004
Insulator, Cooler Refrigerant Hose, No.1
|
88714-87004 |
— | ||
| replacement | |||||
|
8871487004
|
8871487004
88714-24100
Insulator, Cooler Refrigerant Hose, No.2
|
88714-24100 |
— | ||
|
8871812280
|
8871812280
88718-12280
Clamp(For Cooler Refrigerant Pipe), No.1
|
88718-12280 |
— | ||
|
8871812770
|
8871812770
88718-12770
Pipe, Cooler Refrigerant Suction, No.2
|
88718-12770 |
— | ||
|
8871812790
|
8871812790
88718-12790
Pipe, Cooler Refrigerant Suction, No.2
|
88718-12790 |
— | ||
|
8871820480
|
8871820480
88718-20480
Pipe, Cooler Refrigerant Suction, No.2
|
88718-20480 |
— | ||
|
8871887611
|
8871887611
88718-87611
Pipe, Cooler Refrigerant Suction, No.2
|
88718-87611 |
— | ||
|
8889712170
|
8889712170
88897-12170
Valve, Cooler Magnet
|
88897-12170 |
— | ||
|
8889712190
|
8889712190
88897-12190
Valve, Cooler Magnet
|
88897-12190 |
— | ||
| replacement | |||||
|
8889712190
|
8889712190
88897-12191
Valve, Cooler Magnet
|
88897-12191 |
— | ||
|
8889712200
|
8889712200
88897-12200
Valve, Cooler Magnet
|
88897-12200 |
— | ||
| replacement | |||||
|
8889712200
|
8889712200
88897-12201
Valve, Cooler Magnet
|
88897-12201 |
— | ||
|
9017906032
|
9017906032
90179-06032
Direct
|
90179-06032 |
— | ||
| replacement | |||||
|
9017906032
|
9017906032
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9165160835
|
9165160835
91651-60835 Bolt(For Front Suspension Control Accumulator) |
91651-60835 |
from US $1.44 |
||
|
9338516014
|
9338516014
93385-16014 New Genuine Part |
93385-16014 |
US $1.28 |
||
|
9338516025
|
9338516025
93385-16025 New Genuine Part |
93385-16025 |
US $0.70 |
||
|
9611110330
|
9611110330
96111-10330 Clamp Or Clip, Hose(For Water By-Pass Hose) |
96111-10330 |
US $2.08 |
||
