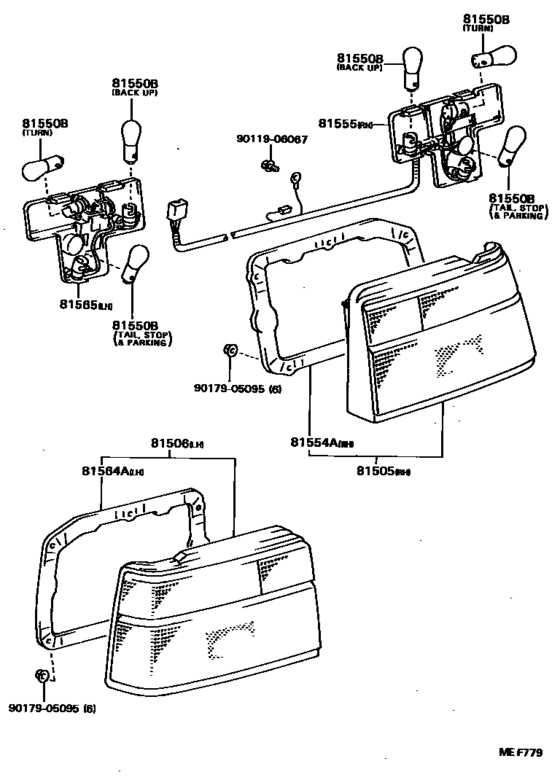

Rear Combination Lamp ([05.1985 - ] (8505- )4D) Diagram Toyota COROLLA
- Year
- 1985 - 1987
- Sales region
- Japan
- Frame
- EE80
- grade
- DX
- ENGINE
- 2ELU
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1985
- To
- 04.1987
- Gear Shift Type
- 4F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
81505
|
81505
81505-12850
Lamp Sub-Assy, Rear Combination, Rh
[05.1985 - 04.1987] AE81,CE80,EE80..4D..(CTD,DX,GL) |
81505-12850 |
— | ||
|
81506
|
81506
81506-12770 Lamp Sub-Assy, Rear Combination, LhREAR COMBINATION, LH [05.1985 - 04.1987] AE81,CE80,EE80..4D..(CTD,DX,GL) |
81506-12770 |
US $243.15 |
||
|
81550B
|
81550B
99132-11230
Bulb, Fog Lamp
[05.1983 - 04.1987] AE8#,CE80,EE80 １２Ｖ ２３Ｗ,12V 23W(TURN OR BACK) |
99132-11230 |
— | ||
| replacement | |||||
|
81550B
|
81550B
00234-01073 Bulb[05.1983 - 04.1987] AE8#,CE80,EE80 １２Ｖ ２３Ｗ,12V 23W(TURN OR BACK) |
00234-01073 |
US $2.34 |
||
|
81550B
|
81550B
99132-21210 Bulb, Cornering Lamp[05.1983 - 04.1987] AE8#,CE80,EE80 １２Ｖ ２１／５Ｗ,12V 21/5W(STOP,TAIL & PARKING) |
99132-21210 |
from US $3.04 |
||
|
81554A
|
81554A
81554-1A150 Gasket, Rear Combination Lamp Body, No.1 RhREAR COMBINATION LAMP BODY, NO.1 RH [05.1985 - 04.1987] AE8#,CE80,EE80..4D |
81554-1A150 |
US $14.27 |
||
|
81555
|
81555
81555-1A151 Socket & Wire Sub-Assy, Rear Combination Lamp, RhREAR COMBINATION LAMP, RH [05.1985 - 04.1987] AE8#,CE80,EE80..4D KOITO |
81555-1A151 |
US $85.90 |
||
|
81564A
|
81564A
81554-1A150 Gasket, Rear Combination Lamp Body, No.1 RhREAR COMBINATION LAMP BODY, NO.1 RH [05.1985 - 04.1987] AE8#,CE80,EE80..4D |
81554-1A150 |
US $14.27 |
||
|
81565
|
81565
81565-1A151 Socket & Wire Sub-Assy, Rear Combination Lamp, LhREAR COMBINATION LAMP, LH [05.1985 - 04.1987] AE8#,CE80,EE80..4D |
81565-1A151 |
US $42.66 |
||
|
9011906067
|
9011906067
90119-06067 BOLT |
90119-06067 |
US $1.76 |
||
|
9017905095
|
9017905095
90179-05095
NUT
|
90179-05095 |
— | ||
| replacement | |||||
|
9017905095
|
9017905095
90179-05004 NUT |
90179-05004 |
from US $2.08 |
||
