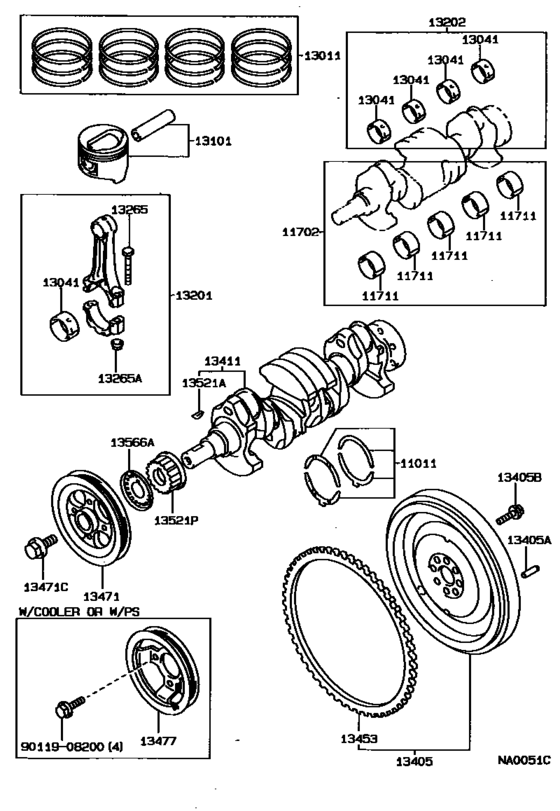

Crankshaft & Piston ([05.1987 - ] (8705- )2E,3E) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- EE90
- grade
- TX
- body
- 4D
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11011
|
11011
11011-10010 Washer Set, Crankshaft Thrust[05.1987 - 08.1991] 2E..EE90,96,97 ＳＴＤ |
11011-10010 |
from US $26.73 |
||
|
11011
|
11011
11012-10010 Washer Set, Crankshaft Thrust[05.1987 - 08.1988] 2E..EE90,96,97 Ｏ／Ｓ ０．１２５ |
11012-10010 |
US $33.78 |
||
| replacement | |||||
|
11011
|
11011
11012-10020 Washer Set, Crankshaft Thrust[05.1987 - 08.1988] 2E..EE90,96,97 Ｏ／Ｓ ０．１２５ |
11012-10020 |
US $33.63 |
||
|
11011
|
11011
11012-10020 Washer Set, Crankshaft Thrust[08.1988 - 08.1991] 2E..EE90,96,97 Ｏ／Ｓ ０．１２５ |
11012-10020 |
US $33.63 |
||
|
11702
|
11702
11704-10010 Bearing Set, Crankshaft[05.1987 - 05.1989] 2E..EE90,96,97 Ｕ／Ｓ ０．２５ |
11704-10010 |
US $299.94 |
||
| replacement | |||||
|
11702
|
11702
11704-10012 Bearing Set, Crankshaft (0.25)[05.1987 - 05.1989] 2E..EE90,96,97 Ｕ／Ｓ ０．２５ |
11704-10012 |
from US $72.83 |
||
|
11702
|
11702
11704-10011
Bearing Set, Crankshaft (0.25)
[12.1989 - 08.1991] 2E..EE90,96,97 Ｕ／Ｓ ０．２５ |
11704-10011 |
— | ||
| replacement | |||||
|
11702
|
11702
11704-10012 Bearing Set, Crankshaft (0.25)[12.1989 - 08.1991] 2E..EE90,96,97 Ｕ／Ｓ ０．２５ |
11704-10012 |
from US $72.83 |
||
|
11711
|
11711
11701-10010-01 Bearing, Crankshaft[05.1987 - 05.1989] 2E..EE90,96,97 MARK 1 |
11701-10010-01 |
US $42.95 |
||
| replacement | |||||
|
11711
|
11711
11701-10012-01 Bearing, Crankshaft[05.1987 - 05.1989] 2E..EE90,96,97 MARK 1 |
11701-10012-01 |
from US $19.70 |
||
|
11711
|
11711
11701-10010-02 Bearing, Crankshaft[05.1987 - 05.1989] 2E..EE90,96,97 MARK 2 |
11701-10010-02 |
US $42.95 |
||
| replacement | |||||
|
11711
|
11711
11701-10012-02 Bearing, Crankshaft[05.1987 - 05.1989] 2E..EE90,96,97 MARK 2 |
11701-10012-02 |
from US $19.46 |
||
|
11711
|
11711
11701-10010-03 Bearing, Crankshaft[05.1987 - 05.1989] 2E..EE90,96,97 MARK 3 |
11701-10010-03 |
US $42.95 |
||
| replacement | |||||
|
11711
|
11711
11701-10012-03 Bearing, Crankshaft[05.1987 - 05.1989] 2E..EE90,96,97 MARK 3 |
11701-10012-03 |
US $47.27 |
||
|
11711
|
11711
11701-10011-01
Bearing, Crankshaft
[12.1989 - 08.1991] 2E..EE90,96,97 MARK 1 |
11701-10011-01 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-10012-01 Bearing, Crankshaft[12.1989 - 08.1991] 2E..EE90,96,97 MARK 1 |
11701-10012-01 |
from US $19.70 |
||
|
11711
|
11711
11701-10011-02
Bearing, Crankshaft
[12.1989 - 08.1991] 2E..EE90,96,97 MARK 2 |
11701-10011-02 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-10012-02 Bearing, Crankshaft[12.1989 - 08.1991] 2E..EE90,96,97 MARK 2 |
11701-10012-02 |
from US $19.46 |
||
|
11711
|
11711
11701-10011-03
Bearing, Crankshaft
[12.1989 - 08.1991] 2E..EE90,96,97 MARK 3 |
11701-10011-03 |
— | ||
| replacement | |||||
|
11711
|
11711
11701-10012-03 Bearing, Crankshaft[12.1989 - 08.1991] 2E..EE90,96,97 MARK 3 |
11701-10012-03 |
US $47.27 |
||
|
13011
|
13011
13011-11041
Ring Set, Piston
[05.1987 - 03.1991] 2E..EE90,96,97 ＳＴＤ |
13011-11041 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-11064 Piston Ring Set (STD)[05.1987 - 03.1991] 2E..EE90,96,97 ＳＴＤ |
13011-11064 |
from US $116.28 |
||
|
13011
|
13011
13011-11042
Ring Set, Piston
[03.1991 - 09.1991] 2E..EE90,96,97 ＳＴＤ |
13011-11042 |
— | ||
| replacement | |||||
|
13011
|
13011
13011-11064 Piston Ring Set (STD)[03.1991 - 09.1991] 2E..EE90,96,97 ＳＴＤ |
13011-11064 |
from US $116.28 |
||
|
13011
|
13011
13013-11041 Ring Set, Piston[05.1987 - 03.1991] 2E..EE90,96,97 Ｏ／Ｓ ０．５０ |
13013-11041 |
US $180.54 |
||
| replacement | |||||
|
13011
|
13011
13013-11064 Ring Set, Piston (0.50)[05.1987 - 03.1991] 2E..EE90,96,97 Ｏ／Ｓ ０．５０ |
13013-11064 |
from US $106.06 |
||
|
13011
|
13011
13013-11042 Ring Set, Piston[03.1991 - 09.1991] 2E..EE90,96,97 Ｏ／Ｓ ０．５０ |
13013-11042 |
US $180.54 |
||
| replacement | |||||
|
13011
|
13011
13013-11064 Ring Set, Piston (0.50)[03.1991 - 09.1991] 2E..EE90,96,97 Ｏ／Ｓ ０．５０ |
13013-11064 |
from US $106.06 |
||
|
13041
|
13041
13041-10020-01 Bearing, Connecting Rod[05.1987 - 08.1991] 2E..EE90,96,97 MARK 1 |
13041-10020-01 |
from US $15.76 |
||
|
13041
|
13041
13041-10020-02 Bearing, Connecting Rod[05.1987 - 08.1991] 2E..EE90,96,97 MARK 2 |
13041-10020-02 |
from US $16.32 |
||
|
13041
|
13041
13041-10020-03 Bearing, Connecting Rod[05.1987 - 08.1991] 2E..EE90,96,97 MARK 3 |
13041-10020-03 |
US $38 |
||
|
13101
|
13101
13101-11030 Piston Sub-Assy, W/pin[05.1987 - 01.1988] 2E..EE90,96,97 ＳＴＤ |
13101-11030 |
US $78.62 |
||
| replacement | |||||
|
13101
|
13101
13101-11091-02 Piston Sub-Assy, W/pinW/PIN [05.1987 - 01.1988] 2E..EE90,96,97 ＳＴＤ |
13101-11091-02 |
from US $55.34 |
||
|
13101
|
13101
13101-11030-01 Piston Sub-Assy, W/pin[01.1988 - 11.1989] 2E..EE90,96,97 ＳＴＤ,MARK 1 |
13101-11030-01 |
US $78.62 |
||
| replacement | |||||
|
13101
|
13101
13101-11091-01 Piston Sub-Assy, W/pinW/PIN [01.1988 - 11.1989] 2E..EE90,96,97 ＳＴＤ,MARK 1 |
13101-11091-01 |
US $82.12 |
||
|
13101
|
13101
13101-11030-02 Piston Sub-Assy, W/pin[01.1988 - 11.1989] 2E..EE90,96,97 ＳＴＤ,MARK 2 |
13101-11030-02 |
US $78.62 |
||
| replacement | |||||
|
13101
|
13101
13101-11091-02 Piston Sub-Assy, W/pinW/PIN [01.1988 - 11.1989] 2E..EE90,96,97 ＳＴＤ,MARK 2 |
13101-11091-02 |
from US $55.34 |
||
|
13101
|
13101
13101-11030-03 Piston Sub-Assy, W/pin[01.1988 - 11.1989] 2E..EE90,96,97 ＳＴＤ,MARK 3 |
13101-11030-03 |
US $78.62 |
||
| replacement | |||||
|
13101
|
13101
13101-11091-03 Piston Sub-Assy, W/pinW/PIN [01.1988 - 11.1989] 2E..EE90,96,97 ＳＴＤ,MARK 3 |
13101-11091-03 |
US $84.45 |
||
|
13101
|
13101
13101-11031-01 Piston Sub-Assy, W/pin[11.1989 - 09.1991] 2E..EE90,96,97 ＳＴＤ,MARK 1 |
13101-11031-01 |
US $78.62 |
||
| replacement | |||||
|
13101
|
13101
13101-11091-01 Piston Sub-Assy, W/pinW/PIN [11.1989 - 09.1991] 2E..EE90,96,97 ＳＴＤ,MARK 1 |
13101-11091-01 |
US $82.12 |
||
|
13101
|
13101
13101-11031-02 Piston Sub-Assy, W/pin[11.1989 - 09.1991] 2E..EE90,96,97 ＳＴＤ,MARK 2 |
13101-11031-02 |
US $78.62 |
||
| replacement | |||||
|
13101
|
13101
13101-11091-02 Piston Sub-Assy, W/pinW/PIN [11.1989 - 09.1991] 2E..EE90,96,97 ＳＴＤ,MARK 2 |
13101-11091-02 |
from US $55.34 |
||
|
13101
|
13101
13101-11031-03 Piston Sub-Assy, W/pin[11.1989 - 09.1991] 2E..EE90,96,97 ＳＴＤ,MARK 3 |
13101-11031-03 |
US $78.62 |
||
| replacement | |||||
|
13101
|
13101
13101-11091-03 Piston Sub-Assy, W/pinW/PIN [11.1989 - 09.1991] 2E..EE90,96,97 ＳＴＤ,MARK 3 |
13101-11091-03 |
US $84.45 |
||
|
13101
|
13101
13103-11030 Piston Sub-Assy, W/pin[05.1987 - 11.1989] 2E..EE90,96,97 Ｏ／Ｓ ０．５０ |
13103-11030 |
US $78.62 |
||
| replacement | |||||
|
13101
|
13101
13103-11091 Piston Sub-Assy, W/pinW/PIN [05.1987 - 11.1989] 2E..EE90,96,97 Ｏ／Ｓ ０．５０ |
13103-11091 |
US $82.12 |
||
|
13101
|
13101
13103-11031 Piston Sub-Assy, W/pin[11.1989 - 09.1991] 2E..EE90,96,97 Ｏ／Ｓ ０．５０ |
13103-11031 |
US $78.62 |
||
| replacement | |||||
|
13101
|
13101
13103-11091 Piston Sub-Assy, W/pinW/PIN [11.1989 - 09.1991] 2E..EE90,96,97 Ｏ／Ｓ ０．５０ |
13103-11091 |
US $82.12 |
||
|
13201
|
13201
13201-19075
Rod Sub-Assy, Connecting
[05.1987 - 08.1991] 2E..EE90,96,97 |
13201-19075 |
— | ||
| replacement | |||||
|
13201
|
13201
13201-19076 Rod Sub-Assy, Connecting[05.1987 - 08.1991] 2E..EE90,96,97 |
13201-19076 |
US $131.04 |
||
|
13202
|
13202
13204-10020 Bearing Set, Connecting Rod[05.1987 - 08.1991] 2E..EE90,96,97 Ｕ／Ｓ ０．２５ |
13204-10020 |
from US $73.55 |
||
|
13265
|
13265
13265-10020
Bolt, Connecting Rod
[05.1987 - 04.1990] 2E,3E..EE9# |
13265-10020 |
— | ||
| replacement | |||||
|
13265
|
13265
13265-10022 Bolt, Connecting Rod[05.1987 - 04.1990] 2E,3E..EE9# |
13265-10022 |
from US $2.93 |
||
|
13265A
|
13265A
90179-08014 Nut, Hexagon(For Connecting Rod Bolt)[05.1987 - 08.1991] 2E,3E..EE9# |
90179-08014 |
from US $1.11 |
||
|
13405
|
13405
13405-11030 Flywheel Sub-Assy[05.1987 - 01.1989] 2E..EE90,96,97..4F |
13405-11030 |
US $270.82 |
||
| replacement | |||||
|
13405
|
13405
13405-11031 Flywheel Sub-Assy[05.1987 - 01.1989] 2E..EE90,96,97..4F |
13405-11031 |
US $269.36 |
||
|
13405
|
13405
13405-11031 Flywheel Sub-Assy[01.1989 - 08.1991] 2E..EE90,96,97..4F |
13405-11031 |
US $269.36 |
||
|
13405A
|
13405A
90250-08120 Pin, Straight, No.1[05.1987 - 08.1991] 2E,3E..EE9#..MTM 長さ＝１８，外径＝８; 4AGE,4AF#,5AF#..AE9#..MTM 長さ＝１８，外径＝８ |
90250-08120 |
from US $1.03 |
||
|
13405B
|
13405B
90105-10138 Bolt, Flywheel Setting[05.1987 - 08.1991] 2E,3E..EE9#..MTM |
90105-10138 |
from US $1.48 |
||
|
13411
|
13411
13401-11020 Crankshaft[01.1988 - 05.1989] 2E..EE90,96,97 |
13401-11020 |
US $1,038.13 |
||
| replacement | |||||
|
13411
|
13411
13401-11051
Crankshaft
[01.1988 - 05.1989] 2E..EE90,96,97 |
13401-11051 |
— | ||
|
13411
|
13411
13401-11050
Crankshaft
[10.1989 - 08.1991] 2E..EE90,96,97 |
13401-11050 |
— | ||
| replacement | |||||
|
13411
|
13411
13401-11051
Crankshaft
[10.1989 - 08.1991] 2E..EE90,96,97 |
13401-11051 |
— | ||
|
13411
|
13411
13411-11020
Crankshaft
[05.1987 - 01.1988] 2E..EE90,96,97 |
13411-11020 |
— | ||
|
13453
|
13453
13453-10030 Gear, Flywheel Ring[05.1987 - 08.1991] 2E,3E..EE9#..MTM |
13453-10030 |
US $90.27 |
||
|
13471
|
13471
13408-11011 Pulley, Crankshaft[05.1987 - 06.1987] 2E..EE90 TOYODA KOUKI |
13408-11011 |
US $179.09 |
||
| replacement | |||||
|
13471
|
13471
13470-11030 Pulley, Crankshaft[05.1987 - 06.1987] 2E..EE90 TOYODA KOUKI |
13470-11030 |
US $172.80 |
||
|
13471
|
13471
13408-11012
Pulley, Crankshaft
[06.1987 - 08.1991] 2E,3E..EE9# |
13408-11012 |
— | ||
| replacement | |||||
|
13471
|
13471
13470-11030 Pulley, Crankshaft[06.1987 - 08.1991] 2E,3E..EE9# |
13470-11030 |
US $172.80 |
||
|
13471
|
13471
13408-11020 Pulley, Crankshaft[05.1987 - 06.1987] 2E..EE90 東海ゴム |
13408-11020 |
US $179.09 |
||
| replacement | |||||
|
13471
|
13471
13470-11030 Pulley, Crankshaft[05.1987 - 06.1987] 2E..EE90 東海ゴム |
13470-11030 |
US $172.80 |
||
|
13471C
|
13471C
90105-12051 Bolt(For Crankshaft Pulley Set)[05.1987 - 08.1991] 2E,3E..EE9# |
90105-12051 |
from US $2.65 |
||
|
13477
|
13477
88451-12050
Pulley, Crankshaft, No.2
[05.1987 - 05.1989] 2E..EE90..TX; 2E,3E..EE90,97,98..DX,FXD,FXL,GL,XE |
88451-12050 |
— | ||
|
13521A
|
13521A
90280-05010 Key(For Oil Pump Drive Spline)[05.1987 - 01.1989] 2E,3E..EE9#; 4A#,5AF#..AE9# |
90280-05010 |
US $4.16 |
||
|
13521A
|
13521A
95161-20519 Key, Crankshaft(For Crankshaft Pulley Set)[10.1989 - 06.1991] 4A#,5AF#..AE9#; 2E,3E..EE9# |
95161-20519 |
from US $1.09 |
||
|
13521P
|
13521P
13521-11010 Pulley, Crankshaft Timing[05.1987 - 08.1991] 2E,3E..EE9# |
13521-11010 |
US $36.69 |
||
|
13566A
|
13566A
13566-10011 Guide, Timing Belt[05.1987 - 08.1991] 2E,3E..EE9# |
13566-10011 |
US $4.37 |
||
|
9011908200
|
9011908200
90119-08200 BOLT |
90119-08200 |
from US $2.24 |
||
| replacement | |||||
|
9011908200
|
9011908200
90105-08112 New Genuine Part |
90105-08112 |
from US $2.04 |
||
