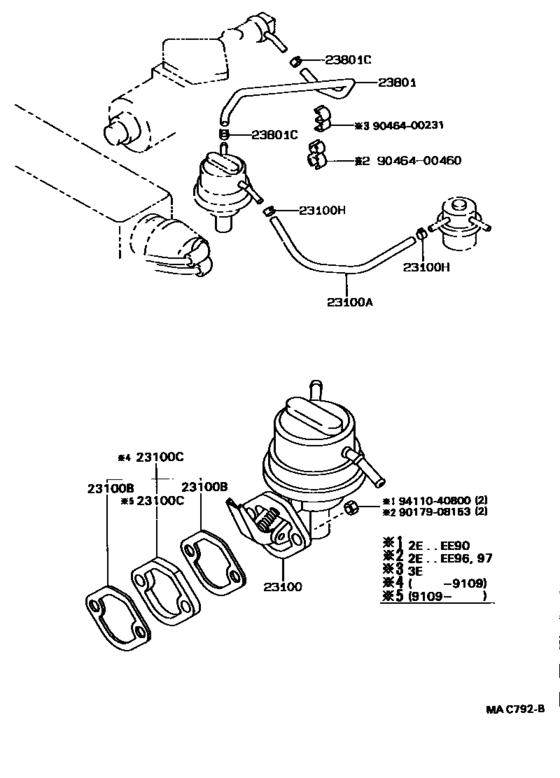

Fuel Pump & Pipe ([05.1987 - ] (8705- )2E,3E) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- EE90
- grade
- TX
- body
- 4D
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1987
- To
- 06.1991
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
23100
|
23100
23100-11031 Pump Assy, Fuel[05.1987 - 10.1987] 2E..EE90,96,97 |
23100-11031 |
US $104.83 |
||
|
23100
|
23100
23100-11032 Pump Assy, Fuel[10.1987 - 07.1988] 2E..EE90,96,97 |
23100-11032 |
US $106.29 |
||
| replacement | |||||
|
23100
|
23100
23100-11033 Pump Assy, Fuel[10.1987 - 07.1988] 2E..EE90,96,97 |
23100-11033 |
US $107.74 |
||
|
23100
|
23100
23100-11033 Pump Assy, Fuel[07.1988 - 05.1989] 2E..EE90,96,97 |
23100-11033 |
US $107.74 |
||
|
23100
|
23100
23100-11080
Pump Assy, Fuel
[05.1989 - 08.1989] 2E..EE90 |
23100-11080 |
— | ||
| replacement | |||||
|
23100
|
23100
23100-11081 Pump Assy, Fuel[05.1989 - 08.1989] 2E..EE90 |
23100-11081 |
US $117.06 |
||
|
23100A
|
23100A
90445-12213 Hose, Fuel[05.1987 - 05.1989] 2E..EE90,96,97 |
90445-12213 |
US $9.90 |
||
|
23100B
|
23100B
90923-05017
Gasket, Fuel Pump(For Cylinder Block Plate Plug)
[05.1987 - 12.1989] 2E,3E..EE9# |
90923-05017 |
— | ||
| replacement | |||||
|
23100B
|
23100B
90923-05024 Gasket, Fuel Pump(For Cylinder Block Plate Plug)[05.1987 - 12.1989] 2E,3E..EE9# |
90923-05024 |
US $3.49 |
||
|
23100B
|
23100B
90923-05024 Gasket, Fuel Pump(For Cylinder Block Plate Plug)[12.1989 - 08.1991] 2E,3E..EE9# |
90923-05024 |
US $3.49 |
||
|
23100C
|
23100C
23915-10020
Insulator, Fuel Pump
[05.1987 - 09.1991] 2E,3E..EE9# |
23915-10020 |
— | ||
| replacement | |||||
|
23100C
|
23100C
23915-10021 Insulator, Fuel Pump[05.1987 - 09.1991] 2E,3E..EE9# |
23915-10021 |
US $8.56 |
||
|
23100H
|
23100H
96132-30600
Clip(For Actuator Hose)
[05.1987 - 08.1988] 4AF,5AF..AE91,95; 2E,3E..EE9# |
96132-30600 |
— | ||
| replacement | |||||
|
23100H
|
23100H
96132-51100 Clip (For Hose)[05.1987 - 08.1988] 4AF,5AF..AE91,95; 2E,3E..EE9# |
96132-51100 |
from US $1.68 |
||
|
23801
|
23801
95333-06010 Hose, Fuel[05.1989 - 08.1989] 2E..EE90 ＊Ｈ，Ｌ＝１００ |
95333-06010 |
US $4.80 |
||
|
23801
|
23801
95333-06030
Hose, Fuel
[05.1987 - 05.1989] 2E,3E..EE9# ＊Ｈ，Ｌ＝３００ |
95333-06030 |
— | ||
| replacement | |||||
|
23801
|
23801
95338-06030 HOSE, FUEL[05.1987 - 05.1989] 2E,3E..EE9# ＊Ｈ，Ｌ＝３００ |
95338-06030 |
from US $9.28 |
||
|
23801C
|
23801C
90467-11009
Clamp Or Clip, Hose(For Water By-Pass Hose)
[07.1987 - 02.1988] 2E,3E..EE9# |
90467-11009 |
— | ||
| replacement | |||||
|
23801C
|
23801C
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)[07.1987 - 02.1988] 2E,3E..EE9# |
96135-51100 |
from US $1.85 |
||
|
23801C
|
23801C
96132-30600
Clip(For Actuator Hose)
[05.1987 - 07.1987] 5AF..AE91; 2E..EE90 |
96132-30600 |
— | ||
| replacement | |||||
|
23801C
|
23801C
96132-51100 Clip (For Hose)[05.1987 - 07.1987] 5AF..AE91; 2E..EE90 |
96132-51100 |
from US $1.68 |
||
|
23801C
|
23801C
96135-41100
Clamp Or Clip, Hose(For Water By-Pass Pipe)
[11.1990 - 08.1991] 2E,3E..EE9# |
96135-41100 |
— | ||
| replacement | |||||
|
23801C
|
23801C
96135-51100 Clamp Or Clip(For Turbo Oil Outlet Hose)[11.1990 - 08.1991] 2E,3E..EE9# |
96135-51100 |
from US $1.85 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9046400231
|
9046400231
90464-00231 Clamp, Fuel Pipe(Hose), No.1 |
90464-00231 |
US $3.32 |
||
|
9046400460
|
9046400460
90464-00460 Clamp Or Clip(For Radiator Reserve Tank Hose No.2) |
90464-00460 |
US $1.60 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.94 |
||
