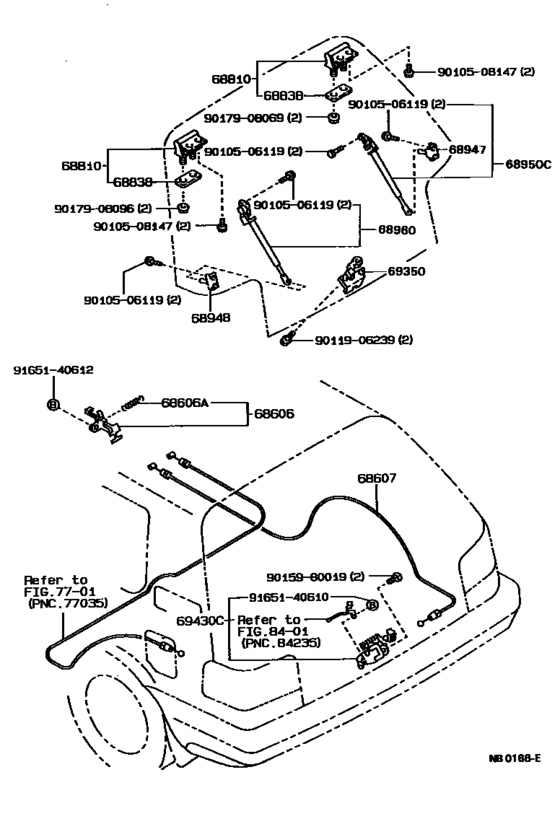

Back Door Lock & Handle ([05.1987 - ] (8705- )3D,5D) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- EE90
- grade
- FXL
- body
- 3D
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1987
- To
- 05.1989
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68606
|
68606
64606-12060 Lever Sub-Assy, Luggage Door Lock Open[05.1987 - 05.1992] AE91,92,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS |
64606-12060 |
US $69.01 |
||
|
68606A
|
68606A
90506-09034 Spring, Tension(For Luggage Door Lock Open Lever)[05.1987 - 05.1989] AE91,92,EE90..FXG,FXGT,FXL,FXZI |
90506-09034 |
US $2.97 |
||
|
68607
|
68607
64607-12530
Cable Sub-Assy, Back Door Lock Control
[05.1987 - 05.1992] AE91,92,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS |
64607-12530 |
— | ||
|
68810
|
68810
68801-12040 Hinge Assy, Back Door, Upper[05.1987 - 08.1988] AE91,92,EE90..3D,5D |
68801-12040 |
US $27.08 |
||
| replacement | |||||
|
68810
|
68810
68801-12041 Hinge Assy, Back Door, Upper[05.1987 - 08.1988] AE91,92,EE90..3D,5D |
68801-12041 |
US $26.79 |
||
|
68810
|
68810
68801-12041 Hinge Assy, Back Door, Upper[08.1988 - 05.1992] AE91,92,EE90..3D,5D |
68801-12041 |
US $26.79 |
||
|
68838
|
68838
68838-10010 Pad, Back Door Hinge, No.1[05.1987 - 08.1988] AE91,92,EE90..3D,5D |
68838-10010 |
US $2.18 |
||
| replacement | |||||
|
68838
|
68838
68838-10011 Pad, Back Door Hinge, No.1[05.1987 - 08.1988] AE91,92,EE90..3D,5D |
68838-10011 |
US $4.22 |
||
|
68838
|
68838
68838-10011 Pad, Back Door Hinge, No.1[08.1988 - 05.1992] AE91,92,EE90..3D,5D |
68838-10011 |
US $4.22 |
||
|
68947
|
68947
68947-12010 Bracket, Back Door Damper Stay, Lower Rh[05.1987 - 05.1992] AE91,92,EE90..3D,5D |
68947-12010 |
US $5.82 |
||
|
68948
|
68948
68948-12010 Bracket, Back Door Damper Stay, Lower Lh[05.1987 - 05.1992] AE91,92,EE90..3D,5D |
68948-12010 |
US $5.82 |
||
|
68950C
|
68950C
68950-19615 Stay Assy, Back Door, Rh[05.1987 - 08.1988] AE91,92,EE90..FXG,FXGT,FXL,FXZI; EE90..FXD ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
68950-19615 |
US $122.30 |
||
| replacement | |||||
|
68950C
|
68950C
68950-19815
Stay Assy, Back Door, Rh
[05.1987 - 08.1988] AE91,92,EE90..FXG,FXGT,FXL,FXZI; EE90..FXD ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
68950-19815 |
— | ||
|
68950C
|
68950C
68950-19616 Stay Assy, Back Door, Rh[08.1988 - 06.1991] AE91,92,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS |
68950-19616 |
US $123.76 |
||
| replacement | |||||
|
68950C
|
68950C
68950-19815
Stay Assy, Back Door, Rh
[08.1988 - 06.1991] AE91,92,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS |
68950-19815 |
— | ||
|
68960
|
68960
68960-19305 Stay Assy, Back Door, Lh[05.1987 - 08.1988] AE91,92,EE90..FXG,FXGT,FXL,FXZI; EE90..FXD ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
68960-19305 |
US $122.30 |
||
| replacement | |||||
|
68960
|
68960
68960-19505
Stay Assy, Back Door, Lh
[05.1987 - 08.1988] AE91,92,EE90..FXG,FXGT,FXL,FXZI; EE90..FXD ｱﾘ(ﾘﾔ ｳｲﾝﾄﾞ ﾜｲﾊﾟ) |
68960-19505 |
— | ||
|
68960
|
68960
68960-19306 Stay Assy, Back Door, Lh[08.1988 - 06.1991] AE91,92,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS |
68960-19306 |
US $123.76 |
||
| replacement | |||||
|
68960
|
68960
68960-19505
Stay Assy, Back Door, Lh
[08.1988 - 06.1991] AE91,92,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS |
68960-19505 |
— | ||
|
69350
|
69350
69350-12130 Lock Assy, Back Door[05.1987 - 05.1992] AE91,92,EE90..3D,5D |
69350-12130 |
US $80.08 |
||
|
69430C
|
69430C
69430-12240 Striker Assy, Back Door Lock[05.1987 - 05.1992] AE91,92,EE90..FXG,FXGT,FXGTV,FXL,FXV,FXVS,FXZI,FXZS |
69430-12240 |
US $52.27 |
||
|
9010506119
|
9010506119
90105-06119
New Genuine Part
|
90105-06119 |
— | ||
| replacement | |||||
|
9010506119
|
9010506119
90105-06184 BOLT WASHER BASED |
90105-06184 |
US $1.12 |
||
|
9010508147
|
9010508147
90105-08147
New Genuine Part
|
90105-08147 |
— | ||
|
9011906239
|
9011906239
90119-06239 New Genuine Part |
90119-06239 |
US $1.60 |
||
| replacement | |||||
|
9011906239
|
9011906239
90119-06236 New Genuine Part |
90119-06236 |
US $0.96 |
||
|
9015980019
|
9015980019
90159-80019 New Genuine Part |
90159-80019 |
US $1.60 |
||
|
9017908069
|
9017908069
90179-08069 New Genuine Part |
90179-08069 |
US $1.75 |
||
|
9017908096
|
9017908096
90179-08096 NUT |
90179-08096 |
from US $1.42 |
||
| replacement | |||||
|
9017908096
|
9017908096
90080-18061 New Genuine Part |
90080-18061 |
US $4.47 |
||
|
9165140610
|
9165140610
91651-40610 RIVET |
91651-40610 |
US $2.56 |
||
|
9165140612
|
9165140612
91651-40612 BOLT |
91651-40612 |
from US $0.94 |
||
| replacement | |||||
|
9165140612
|
9165140612
90080-11225 New Genuine Part |
90080-11225 |
US $2.97 |
||
