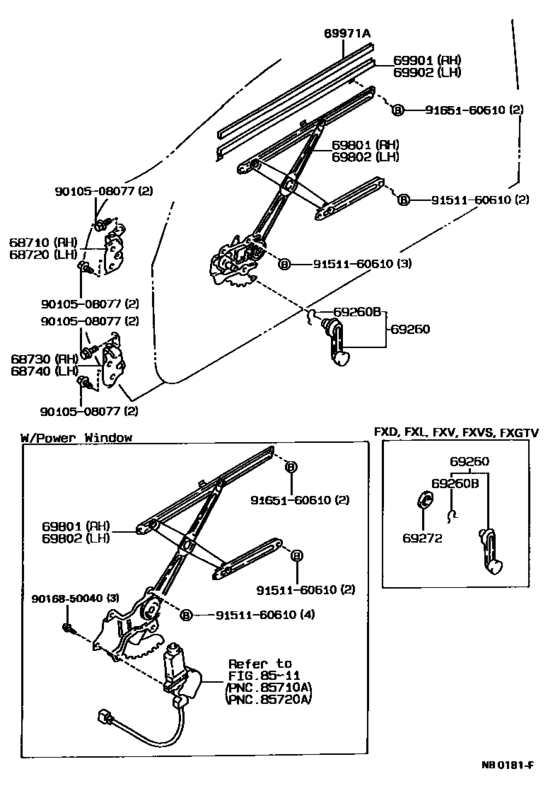

Front Door Window Regulator & Hinge ([05.1987 - ] (8705- )3D) Diagram Toyota COROLLA
- Year
- 1987 - 1989
- Sales region
- Japan
- Frame
- EE90
- grade
- FXL
- body
- 3D
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 05.1987
- To
- 05.1989
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
68710
|
68710
68710-12110
Hinge Assy, Front Door, Upper Rh
[05.1987 - 05.1992] AE91,92,EE90..3D |
68710-12110 |
— | ||
|
68720
|
68720
68720-12110
Hinge Assy, Front Door, Upper Lh
[05.1987 - 05.1992] AE91,92,EE90..3D |
68720-12110 |
— | ||
|
68730
|
68730
68730-12070
Hinge Assy, Front Door, Lower Rh
[05.1987 - 05.1992] AE91,92,EE90..3D |
68730-12070 |
— | ||
|
68740
|
68740
68740-12070
Hinge Assy, Front Door, Lower Lh
[05.1987 - 05.1992] AE91,92,EE90..3D |
68740-12070 |
— | ||
|
69260
|
69260
69260-10040-43
Handle Assy, Front Door Window Regulator
[05.1987 - 09.1991] AE9#,CE9#,EE9#..CTD,DX,FXD,FXGTV,FXL,FXV,FXVS,GL,L,LT,STD,TX,XE GRAY,TRIM1# |
69260-10040-43 |
— | ||
| replacement | |||||
|
69260
|
69260
69260-10040-P0 Handle Assy, Front Door Window Regulator[05.1987 - 09.1991] AE9#,CE9#,EE9#..CTD,DX,FXD,FXGTV,FXL,FXV,FXVS,GL,L,LT,STD,TX,XE GRAY,TRIM1# |
69260-10040-P0 |
US $22.71 |
||
|
69260
|
69260
69260-10040-55 Handle Assy, Front Door Window Regulator[05.1987 - 05.1989] CE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..FXD,FXL,TX,XE DARK BEIGE,TRIM4# |
69260-10040-55 |
US $21.69 |
||
| replacement | |||||
|
69260
|
69260
69260-10040-C0 Handle Assy, Front Door Window Regulator (BLACK)[05.1987 - 05.1989] CE96,97,EE96,97,98..DX,GL;AE91,95,CE90,EE90..FXD,FXL,TX,XE DARK BEIGE,TRIM4# |
69260-10040-C0 |
US $15.35 |
||
|
69260B
|
69260B
90520-01002
Ring, Shaft Snap(For Vent Window Control)
[05.1987 - 02.1992] AE9#,CE9#,EE9#..CTD,DX,FXD,FXGTV,FXL,FXV,FXVS,GL,L,LT,STD,TX,XE |
90520-01002 |
— | ||
| replacement | |||||
|
69260B
|
69260B
90520-01274 Ring, Shaft Snap(For Front Door Window Regulator Handle)[05.1987 - 02.1992] AE9#,CE9#,EE9#..CTD,DX,FXD,FXGTV,FXL,FXV,FXVS,GL,L,LT,STD,TX,XE |
90520-01274 |
from US $1.11 |
||
|
69272
|
69272
69268-16010
Plate, Window Regulator Handle
[05.1987 - 02.1992] AE9#,CE9#,EE9#..CTD,DX,FXD,FXGTV,FXL,FXV,FXVS,GL,L,LT,STD,TX,XE |
69268-16010 |
— | ||
| replacement | |||||
|
69272
|
69272
69285-22010-08 Escutcheon, Window Regulator Handle[05.1987 - 02.1992] AE9#,CE9#,EE9#..CTD,DX,FXD,FXGTV,FXL,FXV,FXVS,GL,L,LT,STD,TX,XE |
69285-22010-08 |
from US $3.20 |
||
|
69801
|
69801
69810-12320 Regulator Sub-Assy, Front Door Window, Rh[05.1987 - 05.1992] AE91,92,EE90..3D |
69810-12320 |
US $97.55 |
||
|
69802
|
69802
69820-12320 Regulator Sub-Assy, Front Door Window, Lh[05.1987 - 05.1992] AE91,92,EE90..3D |
69820-12320 |
US $97.55 |
||
|
69901
|
69901
69901-12200 Channel Sub-Assy, Front Door Glass, Rh[05.1987 - 05.1992] AE91,92,EE90..3D |
69901-12200 |
US $11.07 |
||
|
69902
|
69902
69902-12140 Channel Sub-Assy, Front Door Glass, Lh[05.1987 - 05.1992] AE91,92,EE90..3D |
69902-12140 |
US $11.07 |
||
|
69971A
|
69971A
69971-12090 Filler, Front Door Glass Channel[05.1987 - 05.1992] AE91,92,EE90..3D |
69971-12090 |
US $6.40 |
||
|
9010508077
|
9010508077
90105-08077 BOLT |
90105-08077 |
US $1.76 |
||
|
9016850040
|
9016850040
90168-50040 SCREW TAPPING |
90168-50040 |
US $1.12 |
||
|
9151160610
|
9151160610
91511-60610
New Genuine Part
|
91511-60610 |
— | ||
| replacement | |||||
|
9151160610
|
9151160610
91511-B0610 BOLT FLANGE |
91511-B0610 |
US $1.76 |
||
|
9165160610
|
9165160610
91651-60610
BOLT
|
91651-60610 |
— | ||
| replacement | |||||
|
9165160610
|
9165160610
91651-B0610 BOLTWWASHER |
91651-B0610 |
from US $1.92 |
||
