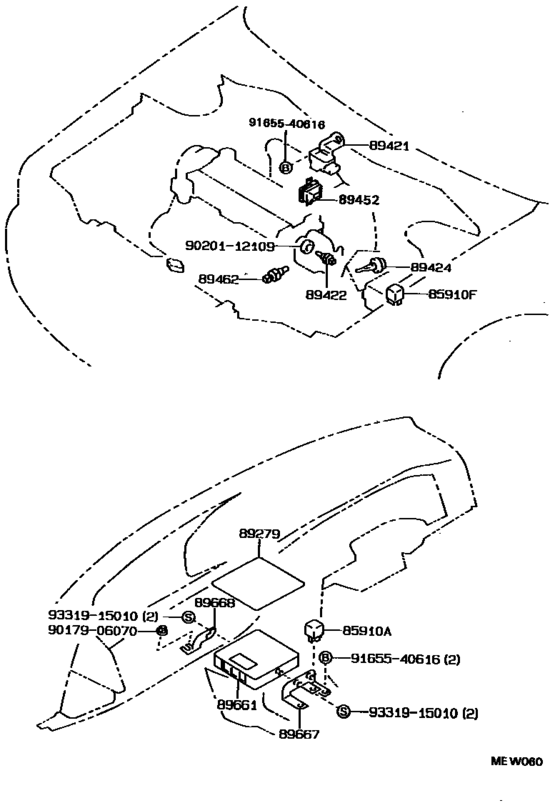

Electronic Fuel Injection System ([05.1982 - ] (8205- )GLI,SR5,STD,XLI..EFI) Diagram Toyota COROLLA
- Year
- 1989 - 1992
- Sales region
- Europe
- Frame
- EE90
- grade
- XLI
- ENGINE
- 2EE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1989
- To
- 05.1992
- Gear Shift Type
- 5F
- No.of Doors
- 3D
- Vehicle Model
- Corolla HB
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
85910A
|
85910A
85910-12010
Relay Assy, Circuit Opening
[05.1987 - 11.1992] AE92,EE90..EFI |
85910-12010 |
— | ||
|
85910F
|
85910F
90987-02006 Relay[05.1987 - 11.1992] AE92,EE90..EFI |
90987-02006 |
from US $27.28 |
||
|
89279
|
89279
89279-12050 Cover, Engine Control ComputerENGINE CONTROL COMPUTER [08.1989 - 06.1992] EE90..EFI |
89279-12050 |
US $4.08 |
||
|
89421
|
89421
89420-12040
Sensor Assy, Vacuum (For E.f.i.)
[08.1989 - 11.1992] AE92,EE90..EFI |
89420-12040 |
— | ||
|
89422
|
89422
89422-20010 Sensor, Water Temperature (For E.f.i.)[08.1988 - 11.1992] AE92,EE90..EFI |
89422-20010 |
from US $36.78 |
||
|
89424
|
89424
89424-12010 Sensor, Inlet Air Temperature (For E.f.i.)[05.1987 - 11.1992] AE92,EE90..EFI |
89424-12010 |
from US $57 |
||
|
89452
|
89452
89452-32020
Sensor, Throttle Position (For E.f.i.)
[08.1989 - 06.1992] AE92,EE90..(GLI,SR5,STD,XLI)..EFI |
89452-32020 |
— | ||
|
89462
|
89462
89462-20030 Switch, Start Injector Time[08.1988 - 11.1992] AE92,EE90..EFI |
89462-20030 |
from US $131.72 |
||
|
89661
|
89661
89661-12620 Computer, Engine ControlENGINE CONTROL [08.1989 - 06.1991] EE90..EFI |
89661-12620 |
US $1,110.93 |
||
|
89661
|
89661
89661-12820 Computer, Engine ControlENGINE CONTROL [06.1991 - 06.1992] EE90..EFI |
89661-12820 |
US $1,284.19 |
||
|
89667
|
89667
89667-12020 Bracket, Emission Control Computer, No.1[05.1987 - 11.1992] AE92,EE90..EFI |
89667-12020 |
US $9.46 |
||
|
89668
|
89668
89668-12040 Bracket, Engine Control Computer, No.2ENGINE CONTROL COMPUTER, NO.2 [08.1989 - 06.1992] AE92,EE90..(GLI,SR5,STD,XLI)..EFI |
89668-12040 |
US $6.26 |
||
|
9017906070
|
9017906070
90179-06070
Nut(For Steering Inter Shaft Dust Seal Cover)
|
90179-06070 |
— | ||
| replacement | |||||
|
9017906070
|
9017906070
90179-06159 Nut, Rear Wiper Link Pivot, No.1 |
90179-06159 |
from US $0.59 |
||
|
9020112109
|
9020112109
90201-12109 Washer, Air Bleeder Nipple |
90201-12109 |
from US $1.33 |
||
|
9165540616
|
9165540616
91655-40616
Bolt
|
91655-40616 |
— | ||
| replacement | |||||
|
9165540616
|
9165540616
91651-60614 Bolt |
91651-60614 |
US $1.12 |
||
|
9331915010
|
9331915010
93319-15010 SCREW |
93319-15010 |
US $1.02 |
||
