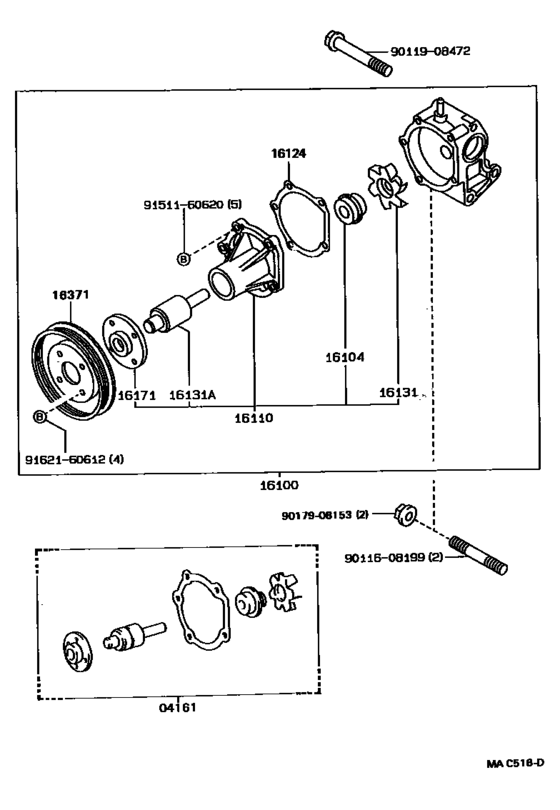

Water Pump ([05.1987 - ] (8705- )2E#) Diagram Toyota COROLLA
- Year
- 1990 - 1992
- Sales region
- Europe
- Frame
- EE90
- grade
- STD
- body
- WG
- ENGINE
- 2EE
- TRANSMISSION
- MTM
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 08.1990
- To
- 05.1992
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Driver's Position
- LHD
- Fuel Induction
- EFI
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04161
|
04161
04161-10020
Pump Kit, Water
[02.1990 - 12.1991] 2E#..EE90 |
04161-10020 |
— | ||
| replacement | |||||
|
04161
|
04161
04161-10022
Pump Kit, Water
[02.1990 - 12.1991] 2E#..EE90 |
04161-10022 |
— | ||
|
04161
|
04161
04161-10021 Pump Kit, Water[12.1991 - 05.1992] 2E#..EE90 |
04161-10021 |
US $58.09 |
||
| replacement | |||||
|
04161
|
04161
04161-10022
Pump Kit, Water
[12.1991 - 05.1992] 2E#..EE90 |
04161-10022 |
— | ||
|
16100
|
16100
16100-19225
Pump Assy, Engine Water
[12.1989 - 05.1992] 2E#..EE90 |
16100-19225 |
— | ||
| replacement | |||||
|
16100
|
16100
16100-19226 Pump Assy, Engine Water[12.1989 - 05.1992] 2E#..EE90 |
16100-19226 |
US $154.08 |
||
|
16104
|
16104
16104-16040 Seal Set, Water Pump[12.1991 - 03.1992] 2E#..EE90 |
16104-16040 |
US $33.49 |
||
|
16104
|
16104
16104-70010
Seal Set, Water Pump
[08.1989 - 12.1991] 4AGE..AE92; 2E#..EE90 |
16104-70010 |
— | ||
|
16110
|
16110
16110-19105
Pump Assy, Water, W/o Coupling
[02.1990 - 05.1992] 2E#..EE90 |
16110-19105 |
— | ||
| replacement | |||||
|
16110
|
16110
16110-19106 Pump Assy, Water, W/o Coupling[02.1990 - 05.1992] 2E#..EE90 |
16110-19106 |
from US $93.68 |
||
|
16124
|
16124
16124-10012 Gasket, Water Pump Cover[04.1990 - 05.1992] 2E#..EE90..LHD; 2E..EE90..RHD..(LB,WG); 2E..EE90..RHD..SED..5F; 2E..EE90..RHD..3FC..XL |
16124-10012 |
US $6.99 |
||
|
16131
|
16131
16131-15080 Rotor, Water Pump[08.1988 - 05.1992] 2E#..EE90 |
16131-15080 |
US $10.77 |
||
|
16131A
|
16131A
90029-36809 Bearing, Water Pump[12.1991 - 05.1992] 2E#..EE90 |
90029-36809 |
US $47.61 |
||
|
16131A
|
16131A
90369-30064 Bearing, Water Pump[05.1987 - 12.1991] 2E#..EE90 |
90369-30064 |
US $39.17 |
||
| replacement | |||||
|
16131A
|
16131A
90029-36838 Bearing, Water Pump[05.1987 - 12.1991] 2E#..EE90 |
90029-36838 |
US $49.80 |
||
|
16171
|
16171
16171-15050 Seat, Water Pump Pulley[05.1987 - 05.1992] 2E#..EE90 |
16171-15050 |
US $21.84 |
||
| replacement | |||||
|
16171
|
16171
16171-10012 Seat, Water Pump Pulley[05.1987 - 05.1992] 2E#..EE90 |
16171-10012 |
US $19.66 |
||
|
16371
|
16371
16173-10011
Pulley, Fan
[05.1987 - 05.1992] 2E#..EE90 |
16173-10011 |
— | ||
|
9011608199
|
9011608199
90116-08199 New Genuine Part |
90116-08199 |
US $2.18 |
||
|
9011908472
|
9011908472
90119-08472
Bolt(For Clutch Master Cylinder Setting)
|
90119-08472 |
— | ||
| replacement | |||||
|
9011908472
|
9011908472
90119-08108 Bolt(For Clutch Master Cylinder Setting) |
90119-08108 |
US $2.56 |
||
|
9017908153
|
9017908153
90179-08153 NUT |
90179-08153 |
from US $0.84 |
||
|
9151160620
|
9151160620
91511-60620
Bolt(For Clutch Release Bearing Hub Retainer)
|
91511-60620 |
— | ||
| replacement | |||||
|
9151160620
|
9151160620
91511-B0620 Bolt(For Clutch Release Bearing Hub Retainer) |
91511-B0620 |
from US $0.72 |
||
|
9162160612
|
9162160612
91621-60612
BOLTWWASHER
|
91621-60612 |
— | ||
| replacement | |||||
|
9162160612
|
9162160612
91621-J0612 BOLT W-WASHER |
91621-J0612 |
from US $0.68 |
||
