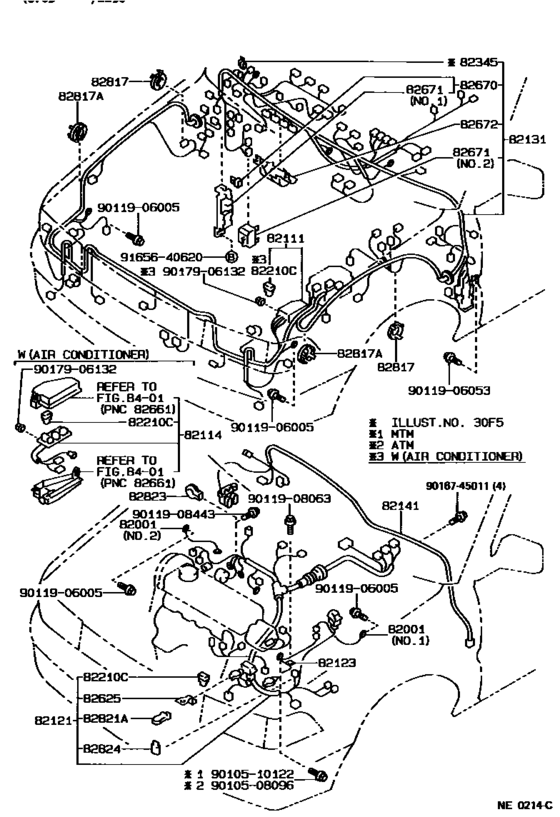

Wiring & Clamp ([05.1987 - ] (8705- )EE9#) Diagram Toyota COROLLA
- Year
- 1987 - 1992
- Sales region
- General
- Frame
- EE90
- grade
- XL
- body
- SED
- ENGINE
- 2E
- TRANSMISSION
- MTM
- DESTINATION
- GEN
- Model
- COROLLA(NAP/SED/CP/HB/LB/WG)
- From
- 05.1987
- To
- 05.1992
- Gear Shift Type
- 4F
- Vehicle Model
- Corolla
- Driver's Position
- RHD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
82001
|
82001
90980-07206 Cable, Bond, No.1[05.1987 - 08.1993] EE9# NO.1; AE92..RHD NO.1; AE92..LHD..(LB,SED) NO.1 |
90980-07206 |
US $8.56 |
||
|
82001
|
82001
90980-07293 Cable, Bond, No.1[05.1987 - 08.1993] EE9# NO.2 |
90980-07293 |
US $8.15 |
||
|
82111
|
82111
82111-1A310 Wire, Engine Room MainENGINE ROOM MAIN [05.1987 - 08.1989] AE9#,EE9#..RHD..(ARL,GEN) |
82111-1A310 |
US $471.74 |
||
|
82111
|
82111
82111-1A320 Wire, Engine Room MainENGINE ROOM MAIN [05.1987 - 12.1987] AE9#,EE9#..RHD W(*AIC) |
82111-1A320 |
US $548.91 |
||
|
82111
|
82111
82111-1A830 Wire, Engine Room MainENGINE ROOM MAIN [08.1989 - 05.1992] AE9#,EE9#..RHD..(ARL,GEN) |
82111-1A830 |
US $612.98 |
||
|
82111
|
82111
82111-1A840 Wire, Engine Room Main[08.1989 - 10.1989] AE92..GT..GEN W(*AIC); AE9#,EE9#..RHD..(GL,STD,XL)..GEN W(*AIC) |
82111-1A840 |
US $618.80 |
||
| replacement | |||||
|
82111
|
82111
82111-1A841 Wire, Engine Room Main[08.1989 - 10.1989] AE92..GT..GEN W(*AIC); AE9#,EE9#..RHD..(GL,STD,XL)..GEN W(*AIC) |
82111-1A841 |
US $612.98 |
||
|
82111
|
82111
82111-1A841 Wire, Engine Room Main[10.1989 - 05.1992] AE92..GT..GEN W(*AIC); AE9#,EE9#..RHD..(GL,STD,XL)..GEN W(*AIC) |
82111-1A841 |
US $612.98 |
||
|
82114
|
82114
82114-12040
Wire, Engine Room, No.4
[05.1987 - 08.1989] AE9#,CE90,EE9# |
82114-12040 |
— | ||
|
82121
|
82121
82121-1A520 Wire, EngineENGINE [05.1987 - 08.1989] EE9#..RHD..MTM..GEN |
82121-1A520 |
US $471.74 |
||
|
82121
|
82121
82121-1A540 Wire, EngineENGINE [05.1987 - 08.1989] EE97..RHD;EE90..RHD..(LB,SED)..MTM..GEN SINGAPORE SPEC |
82121-1A540 |
US $471.74 |
||
|
82121
|
82121
82121-1E730 Wire, EngineENGINE [08.1989 - 05.1992] EE9#..RHD..MTM..GEN |
82121-1E730 |
US $522.70 |
||
|
82121
|
82121
82121-1E750 Wire, EngineENGINE [08.1989 - 05.1992] EE9#..RHD..MTM..GEN SINGAPORE SPEC |
82121-1E750 |
US $522.70 |
||
|
82123
|
82123
82123-12160 Wire, Engine, No.3[05.1987 - 07.1992] AE9#,EE9#..(4F,4FC,5F)..(GCC,GEN) |
82123-12160 |
US $43.10 |
||
|
82123
|
82123
82123-12170
Wire, Engine, No.3
[05.1987 - 08.1987] AE92..GTI BATTERY=34B19L; EE90..SED..5F..GL;EE90..MTM..(STD,XL);AE92..5F..(GL,STD,XL) BATTERY=32C24L OR 34B19L |
82123-12170 |
— | ||
|
82131
|
82131
82131-1E020 Wire, CowlCOWL [05.1987 - 06.1988] AE92,EE90..RHD..(GL,STD,XL) |
82131-1E020 |
US $895.44 |
||
|
82131
|
82131
82131-1E021 Wire, CowlCOWL [06.1988 - 08.1989] AE92,EE90..RHD..(GL,STD,XL)..GEN; EE97..RHD..XL W(*EL) |
82131-1E021 |
US $1,074.53 |
||
|
82131
|
82131
82131-1K230 Wire, CowlCOWL [08.1989 - 08.1990] AE92,EE90..RHD..(GL,STD,XL)..GEN |
82131-1K230 |
US $1,081.81 |
||
|
82131
|
82131
82131-1K231 Wire, CowlCOWL [08.1990 - 05.1992] AE92,EE90..RHD..(GL,STD,XL)..GEN |
82131-1K231 |
US $1,137.14 |
||
|
82141
|
82141
82141-12010 Wire, Instrument Panel[05.1987 - 08.1989] AE9#,EE97..RHD..XL..GEN;EE90..RHD..(GL,XL)..GEN;AE9#..RHD..(GL,GT,GTI,SE,SR5) |
82141-12010 |
US $199.47 |
||
|
82141
|
82141
82141-12070 Wire, Instrument PanelINSTRUMENT PANEL [08.1989 - 08.1990] AE95..SR5;AE9#,EE90..RHD..(GL,GT,XL)..GEN |
82141-12070 |
US $219.86 |
||
|
82210C
|
82210C
90982-08188 Fusible Link[05.1987 - 08.1989] AE9#,CE90,EE9# 30A,TERMINAL:FEMALE |
90982-08188 |
US $11.36 |
||
|
82210C
|
82210C
90982-08190 Fusible Link[05.1987 - 08.1989] AE9#,EE9#..(GL,SE,STD,XL)..(GCC,GEN,SA) 60A,TERMINAL:FEMALE |
90982-08190 |
US $12 |
||
|
82345
|
82345
82345-12030 Diode[05.1987 - 08.1989] AE92..GL..GEN;AE95,CE90,EE9#;AE92..GT,GTI,STD,XL NO.1 |
82345-12030 |
US $11.36 |
||
|
82625
|
82625
82625-12010 Terminal, Fusible Link[05.1987 - 08.1989] AE9#,EE9#..(GL,SE,STD,XL)..(GCC,GEN,SA) |
82625-12010 |
US $12.23 |
||
|
82670
|
82670
82670-12090 Block Assy, Junction, No.1[05.1987 - 08.1989] EE97..LHD;AE9#,CE90,EE90 |
82670-12090 |
US $174.72 |
||
|
82670
|
82670
82670-12120 Block Assy, Junction, No.1[09.1987 - 08.1989] EE90..RHD..GEN;AE92..RHD..GL..GEN NEW ZEALAND SPEC |
82670-12120 |
US $174.72 |
||
|
82671
|
82671
82671-12030 Block, Junction[05.1987 - 08.1993] EE97..LHD;AE9#,CE90,EE90 NO.1; EE97..RHD NO.1 |
82671-12030 |
US $174.72 |
||
|
82671
|
82671
82671-12070 Block, Junction[05.1987 - 08.1993] EE97..LHD;AE9#,CE90,EE90 NO.2 |
82671-12070 |
US $23.88 |
||
|
82672
|
82672
82672-12080 Cover, Junktion Block[05.1987 - 08.1989] EE90..RHD..GEN;AE92..RHD..(GL,GTI,SE);AE9#,EE97..RHD..(SR5,STD,XL)..(ARL,GEN) |
82672-12080 |
US $15.29 |
||
|
82672
|
82672
82672-12081 Cover, Junktion Block[08.1989 - 05.1992] AE9#,EE9#..RHD..(ARL,GEN) |
82672-12081 |
US $16.60 |
||
|
82817
|
82817
82817-14350 Protector, Wiring Harness, No.1[05.1987 - 08.1993] AE9#,CE90,EE9# |
82817-14350 |
US $12.67 |
||
|
82817A
|
82817A
82817-32010
Protector, Wiring Harness, No.1
[05.1987 - 08.1993] AE9#,CE90,EE9# |
82817-32010 |
— | ||
|
82821A
|
82821A
82821-12180 Cover, Connector(For Battery Terminal)[08.1989 - 07.1992] AE9#,CE90,EE9#..(GL,SE,STD,XL)..(GCC,GEN) |
82821-12180 |
US $8.30 |
||
|
82821A
|
82821A
82821-12190 Cover, Connector(For Battery Terminal)[05.1987 - 08.1989] AE9#,EE9#..GCC,GEN,SA |
82821-12190 |
US $9.92 |
||
|
82823
|
82823
82823-22050 Cap, Terminal, No.1[05.1987 - 08.1993] AE9#,EE9# |
82823-22050 |
from US $3.71 |
||
|
82824
|
82824
82824-32030 Connector, Wiring Harness[05.1987 - 08.1993] AE9#,CE90,EE9# |
82824-32030 |
US $8.91 |
||
|
9010508096
|
9010508096
90105-08096
New Genuine Part
|
90105-08096 |
— | ||
|
9010510122
|
9010510122
90105-10122 New Genuine Part |
90105-10122 |
US $1.22 |
||
|
9011906005
|
9011906005
90119-06005 New Genuine Part |
90119-06005 |
US $1.28 |
||
|
9011906053
|
9011906053
90119-06053 New Genuine Part |
90119-06053 |
US $0.96 |
||
|
9011908063
|
9011908063
90119-08063 BOLT |
90119-08063 |
US $1.05 |
||
|
9011908443
|
9011908443
90119-08443
New Genuine Part
|
90119-08443 |
— | ||
|
9016745011
|
9016745011
90167-45011 Direct |
90167-45011 |
US $1.60 |
||
| replacement | |||||
|
9016745011
|
9016745011
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
|
9017906132
|
9017906132
90179-06132
Clip(For Front Bumper), No.1
|
90179-06132 |
— | ||
| replacement | |||||
|
9017906132
|
9017906132
90179-06274 Nut |
90179-06274 |
from US $0.70 |
||
|
9165640620
|
9165640620
91656-40620
Bolt(For Oil Receiver Pipe)
|
91656-40620 |
— | ||
| replacement | |||||
|
9165640620
|
9165640620
91651-60618 Bolt(For Oil Receiver Pipe) |
91651-60618 |
from US $1.19 |
||
