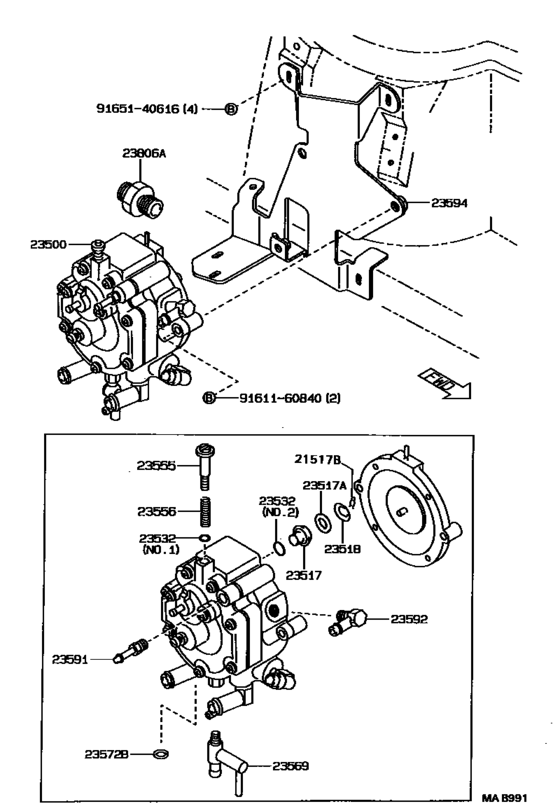

Lpg Or Cng Regulator ([08.1987 - 08.1989] (8708-8908)2E..EE96) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- EE96
- grade
- DX
- body
- V
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1987
- To
- 09.1991
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
21517B
|
21517B
21792-69210
Ring, Snap
[08.1987 - 08.1989] 2E..EE96 LPG ﾊﾞﾝ |
21792-69210 |
— | ||
|
23500
|
23500
23500-10010 Regulator Assy, Lpg(Cng)[08.1987 - 08.1989] 2E..EE96 LPG ﾊﾞﾝ |
23500-10010 |
US $831.38 |
||
|
23500
|
23500
23500-10011 Regulator Assy, Lpg(Cng)[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23500-10011 |
US $831.38 |
||
|
23517
|
23517
23517-40013 Valve, Elastic Face[08.1987 - 08.1989] 2E..EE96 LPG ﾊﾞﾝ |
23517-40013 |
US $17.91 |
||
|
23517A
|
23517A
21535-10010 Shim(For High Speed Shaft)[08.1987 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
21535-10010 |
US $1.60 |
||
|
23518
|
23518
23518-40010
Washer, Wave(For Elastic Face Valve Set)
[08.1987 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23518-40010 |
— | ||
|
23532
|
23532
23532-40010 Ring, O(For Thermostatic Valve)[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23532-40010 |
US $3.36 |
||
|
23532
|
23532
23532-44020 Gasket(For Elastic Face Valve)[08.1987 - 08.1989] 2E..EE96 LPG ﾊﾞﾝ,ＮＯ．２ |
23532-44020 |
US $3.58 |
||
|
23555
|
23555
23555-44041 Screw, Idle Adjust[08.1987 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23555-44041 |
US $5.97 |
||
| replacement | |||||
|
23555
|
23555
23555-48050 Screw, Idle Adjust[08.1987 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23555-48050 |
US $5.68 |
||
|
23556
|
23556
21723-21030 Spring, Idle Adjusting[08.1987 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
21723-21030 |
US $4.19 |
||
|
23569
|
23569
23569-40010 Cock, Drain[08.1987 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23569-40010 |
from US $18.64 |
||
|
23572B
|
23572B
21617-10010
Gasket
[08.1987 - 08.1989] 2E..EE96 LPG ﾊﾞﾝ |
21617-10010 |
— | ||
|
23591
|
23591
23591-10010 Union, No.1, Fuel[11.1987 - 08.1989] 2E..EE96 LPG ﾊﾞﾝ |
23591-10010 |
US $17.33 |
||
|
23591
|
23591
26249-73010 Union, No.1, Fuel[08.1987 - 11.1987] 2E..EE96 LPG ﾊﾞﾝ |
26249-73010 |
US $8.44 |
||
|
23592
|
23592
23586-44030
Union, Water Hose(For Outlet)
[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23586-44030 |
— | ||
|
23592
|
23592
23592-44050 Union, No.1, Fuel[08.1987 - 08.1989] 2E..EE96 LPG ﾊﾞﾝ |
23592-44050 |
US $18.64 |
||
| replacement | |||||
|
23592
|
23592
23592-72010 Union, No.1, Fuel[08.1987 - 08.1989] 2E..EE96 LPG ﾊﾞﾝ |
23592-72010 |
US $11.36 |
||
|
23594
|
23594
23594-10010 Union, No.4, Water Hose[08.1987 - 08.1989] 2E..EE96 LPG ﾊﾞﾝ |
23594-10010 |
US $18.35 |
||
|
23806A
|
23806A
90404-14011 Union(For Lpg Regulator)[08.1987 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
90404-14011 |
US $5.53 |
||
|
9161160840
|
9161160840
91611-60840 BOLT |
91611-60840 |
from US $1.54 |
||
|
9165140616
|
9165140616
91651-40616 BOLT |
91651-40616 |
from US $0.76 |
||
| replacements | |||||
|
9165140616
|
9165140616
91621-60614 Bolt(For Transaxle & Engine Setting) |
91621-60614 |
from US $1.48 |
||
|
9165140616
|
9165140616
90080-11395 New Genuine Part |
90080-11395 |
US $2.73 |
||
