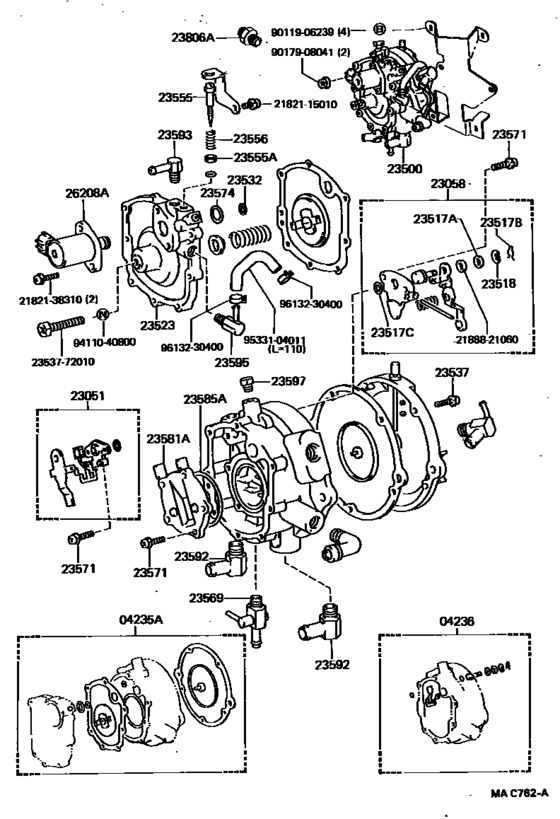

Lpg Or Cng Regulator ([08.1989 - ] (8908- )2E..EE96) Diagram Toyota COROLLA
- Year
- 1987 - 1991
- Sales region
- Japan
- Frame
- EE96
- grade
- DX
- body
- V
- ENGINE
- 2E
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1987
- To
- 09.1991
- Gear Shift Type
- 4F
- Seating Capacity
- 05S
- Vehicle Model
- Corolla
- Fuel Induction
- CBR
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
04235A
|
04235A
04235-72010 Diaphragm Kit, Lpg Regulator, W/o Valve[08.1989 - 11.1990] 2E..EE96..4F LPG ﾊﾞﾝ |
04235-72010 |
US $199.18 |
||
|
04236
|
04236
04236-72010 Valve Kit, Lpg Regulator[08.1989 - 08.1990] 2E..EE96..4F LPG ﾊﾞﾝ |
04236-72010 |
US $31.42 |
||
|
23051
|
23051
23051-72010 Valve Sub-Assy, 1St[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23051-72010 |
US $42.22 |
||
|
23058
|
23058
23058-41070 Valve Sub-Assy, 2Nd[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23058-41070 |
US $56.64 |
||
|
23500
|
23500
23500-10010 Regulator Assy, Lpg(Cng)[08.1987 - 08.1989] 2E..EE96 LPG ﾊﾞﾝ |
23500-10010 |
US $831.38 |
||
|
23500
|
23500
23500-10011 Regulator Assy, Lpg(Cng)[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23500-10011 |
US $831.38 |
||
|
23517A
|
23517A
21535-10010 Shim(For High Speed Shaft)[08.1987 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
21535-10010 |
US $1.60 |
||
|
23517B
|
23517B
21792-69210
Ring, Snap
[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
21792-69210 |
— | ||
|
23517C
|
23517C
23532-44020 Gasket(For Elastic Face Valve)[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23532-44020 |
US $3.58 |
||
|
23518
|
23518
23518-40010
Washer, Wave(For Elastic Face Valve Set)
[08.1987 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23518-40010 |
— | ||
|
23523
|
23523
23523-73130 Cover, 1St Regulator[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23523-73130 |
US $80.08 |
||
| replacement | |||||
|
23523
|
23523
23523-70040 Cover, 1St Regulator[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23523-70040 |
US $80.08 |
||
|
23532
|
23532
23532-40010 Ring, O(For Thermostatic Valve)[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23532-40010 |
US $3.36 |
||
|
23532
|
23532
23532-44020 Gasket(For Elastic Face Valve)[08.1987 - 08.1989] 2E..EE96 LPG ﾊﾞﾝ,ＮＯ．２ |
23532-44020 |
US $3.58 |
||
|
23537
|
23537
21821-31140 Screw(For 2Nd Regulator Cover Set)[08.1989 - 08.1990] 2E..EE96..4F |
21821-31140 |
US $2.34 |
||
|
23555
|
23555
23555-44041 Screw, Idle Adjust[08.1987 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23555-44041 |
US $5.97 |
||
| replacement | |||||
|
23555
|
23555
23555-48050 Screw, Idle Adjust[08.1987 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23555-48050 |
US $5.68 |
||
|
23555A
|
23555A
21885-26040 Washer, Idle Adjust Screw[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
21885-26040 |
US $2.33 |
||
|
23556
|
23556
21723-21030 Spring, Idle Adjusting[08.1987 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
21723-21030 |
US $4.19 |
||
|
23569
|
23569
23569-40010 Cock, Drain[08.1987 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23569-40010 |
from US $18.64 |
||
|
23571
|
23571
23571-72010 Screw(For Vacuum Lock Diaphragm Ring Set)[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23571-72010 |
US $3.30 |
||
|
23574
|
23574
23574-72010 Ring, O, No.1(For Bulb)[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23574-72010 |
US $6.84 |
||
|
23581A
|
23581A
23581-72010 Cover, Upper Preheater[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23581-72010 |
US $24.32 |
||
|
23585A
|
23585A
23585-72010 Ring, O(For Preheater)[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23585-72010 |
US $13.69 |
||
|
23592
|
23592
23586-44030
Union, Water Hose(For Outlet)
[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23586-44030 |
— | ||
|
23592
|
23592
23592-44050 Union, No.1, Fuel[08.1987 - 08.1989] 2E..EE96 LPG ﾊﾞﾝ |
23592-44050 |
US $18.64 |
||
| replacement | |||||
|
23592
|
23592
23592-72010 Union, No.1, Fuel[08.1987 - 08.1989] 2E..EE96 LPG ﾊﾞﾝ |
23592-72010 |
US $11.36 |
||
|
23593
|
23593
23593-72010 Union, No.3[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23593-72010 |
US $15.14 |
||
|
23595
|
23595
23591-72010 Union, No.5[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23591-72010 |
US $19.95 |
||
| replacement | |||||
|
23595
|
23595
23591-41070 Union, No.1, Fuel[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
23591-41070 |
US $19.66 |
||
|
23597
|
23597
90345-51005
Plug, W/head Taper Screw, No.1
[08.1989 - 08.1990] 2E..EE96..4F LPG ﾊﾞﾝ |
90345-51005 |
— | ||
| replacement | |||||
|
23597
|
23597
90345-51025 Plug, W/head Taper Screw, No.2[08.1989 - 08.1990] 2E..EE96..4F LPG ﾊﾞﾝ |
90345-51025 |
US $3.36 |
||
|
23597
|
23597
90345-51006 Plug, W/head Taper Screw, No.2[08.1990 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
90345-51006 |
from US $0.96 |
||
|
23806A
|
23806A
90404-14011 Union(For Lpg Regulator)[08.1987 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
90404-14011 |
US $5.53 |
||
|
26208A
|
26208A
26208-73130 Valve Sub-Assy, Solenoid[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
26208-73130 |
US $117.94 |
||
| replacement | |||||
|
26208A
|
26208A
26208-73131 Valve Sub-Assy, Solenoid(For Lpg Regulator)[08.1989 - 09.1991] 2E..EE96..4F LPG ﾊﾞﾝ |
26208-73131 |
from US $83.09 |
||
|
2182115010
|
2182115010
21821-15010 Screw(For Choke Lever Adapter Set) |
21821-15010 |
US $1.75 |
||
|
2182138310
|
2182138310
21821-38310 Screw, 2Nd Throttle Valve Set |
21821-38310 |
from US $1.42 |
||
|
2188821060
|
2188821060
21888-21060 Washer, Spring |
21888-21060 |
US $3.35 |
||
|
2353772010
|
2353772010
23537-72010 Screw(for 2nd Regulator Cover Set) |
23537-72010 |
US $4.08 |
||
|
9011906239
|
9011906239
90119-06239 New Genuine Part |
90119-06239 |
US $1.60 |
||
| replacement | |||||
|
9011906239
|
9011906239
90119-06236 New Genuine Part |
90119-06236 |
US $0.96 |
||
|
9017908041
|
9017908041
90179-08041
NUT
|
90179-08041 |
— | ||
| replacement | |||||
|
9017908041
|
9017908041
90179-08017 NUT |
90179-08017 |
from US $0.80 |
||
|
9411040800
|
9411040800
94110-40800
Nut(For Steering Damper)
|
94110-40800 |
— | ||
| replacement | |||||
|
9411040800
|
9411040800
94130-00802 Nut, No.1 (For Center Support Bearing) |
94130-00802 |
from US $0.94 |
||
|
9533104011
|
9533104011
95331-04011
Hose, Fuel, No.2 (For Emission Tube, No.1)
|
95331-04011 |
— | ||
|
9613230400
|
9613230400
96132-30400
Clip Or Clamp(For Ventilation Hose)
|
96132-30400 |
— | ||
| replacement | |||||
|
9613230400
|
9613230400
96132-51000 Clip Or Clamp(For Ventilation Hose) |
96132-51000 |
from US $1.58 |
||
