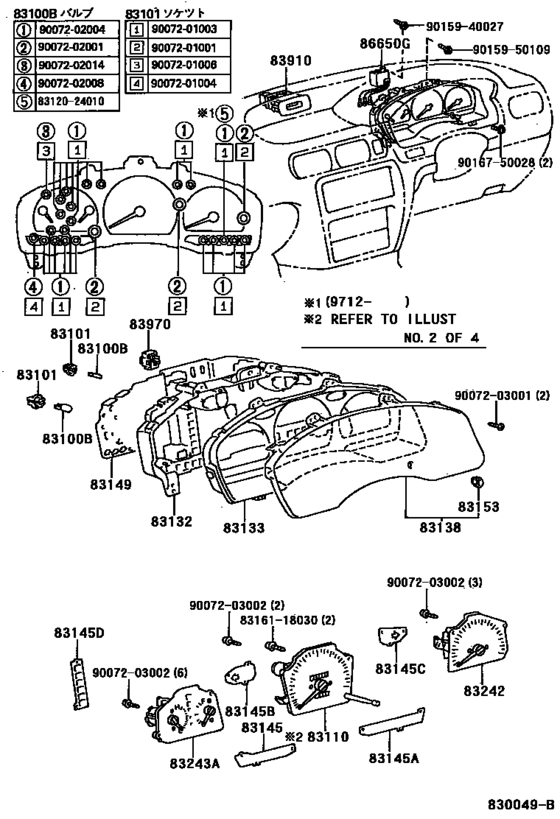

Meter ([09.1994 - ] ｱﾘ(ﾀｺ ﾒ-ﾀ) (9409- )) Diagram Toyota COROLLA
- Year
- 1994 - 1999
- Sales region
- Japan
- Frame
- EL55
- grade
- WIN
- ENGINE
- 5EFE
- TRANSMISSION
- ATM
- Model
- COROLLA 2
- From
- 09.1994
- To
- 07.1999
- Gear Shift Type
- 4FC
- Vehicle Model
- Corolla 2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
83100B
|
83100B
83109-24020 Bulb, Combination Meter, No.1[09.1994 -] EL51,55,NL50..LIM,WIN １２Ｖ ３．４Ｗ キャップ付き,ＮＯ．１ |
83109-24020 |
from US $5.95 |
||
|
83100B
|
83100B
83109-30070 Bulb, Combination Meter, No.1[09.1994 - 08.1996] EL51,55,NL50..LIM,WIN １４Ｖ ２．０Ｗ，ソケットなし,ＮＯ．３ |
83109-30070 |
US $2.45 |
||
|
83100B
|
83100B
83119-32010 Bulb, Combination Meter, No.1[09.1994 -] EL51,55,NL50..LIM,WIN １４Ｖ ３．０Ｗ,ＮＯ．４ |
83119-32010 |
from US $2.24 |
||
|
83100B
|
83100B
83120-24010
Bulb, Combination Meter, No.1
[12.1997 -] EL5#,NL50 １３．５Ｖ，ソケット付き,ＮＯ．５ |
83120-24010 |
— | ||
|
83100B
|
83100B
90981-11018 Bulb, Position Indicator Lamp[08.1997 -] EL55..4FC..WIN １２Ｖ １．２Ｗ ソケット無し,ＮＯ．２ |
90981-11018 |
from US $2.07 |
||
|
83101
|
83101
83101-14030 Socket Sub-Assy, Combination Meter Bulb[09.1994 -] EL51,55,NL50..LIM,WIN ＮＯ．１ |
83101-14030 |
from US $1.54 |
||
|
83101
|
83101
83101-14040 Socket, Indicator Lamp[12.1997 -] EL55..4FC..WIN ＮＯ．２ |
83101-14040 |
US $2.93 |
||
|
83101
|
83101
83101-32020 Socket Sub-Assy, Combination Meter Bulb[09.1994 -] EL51,55,NL50..LIM,WIN ＮＯ．３ |
83101-32020 |
from US $2.22 |
||
|
83110
|
83110
83110-1G380 Speedometer Assy[09.1994 - 08.1995] EL51,55,NL50..LIM,WIN TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
83110-1G380 |
US $334.88 |
||
|
83110
|
83110
83110-1G381 Speedometer Assy[08.1995 - 01.1997] EL51,55,NL50..LIM,WIN TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
83110-1G381 |
US $336.34 |
||
| replacement | |||||
|
83110
|
83110
83110-1G382 Speedometer Assy[08.1995 - 01.1997] EL51,55,NL50..LIM,WIN TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
83110-1G382 |
US $336.34 |
||
|
83110
|
83110
83110-1G382 Speedometer Assy[06.1997 - 12.1997] EL51,55,NL50..LIM,WIN TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
83110-1G382 |
US $336.34 |
||
|
83110
|
83110
83220-16080 Speedometer Assy[12.1997 -] EL51,55,NL50..LIM,WIN TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
83220-16080 |
US $381.47 |
||
|
83132
|
83132
83132-1S130
Case, Combination Meter
[09.1994 - 08.1996] EL51,55..LIM,WIN |
83132-1S130 |
— | ||
|
83132
|
83132
83132-1S131
Case, Combination Meter
[08.1996 - 08.1997] EL51,55..LIM,WIN |
83132-1S131 |
— | ||
|
83132
|
83132
83132-1S132
Case, Combination Meter
[08.1997 -] EL51,55..LIM,WIN |
83132-1S132 |
— | ||
|
83133
|
83133
83133-1G310
Plate, Combination Meter, No.1
[09.1994 - 08.1996] EL51,55,NL50..LIM,WIN |
83133-1G310 |
— | ||
| replacement | |||||
|
83133
|
83133
83811-10120
Plate, Combination Meter, No.1
[09.1994 - 08.1996] EL51,55,NL50..LIM,WIN |
83811-10120 |
— | ||
|
83133
|
83133
83811-10120
Plate, Combination Meter, No.1
[08.1996 - 12.1997] EL51,55,NL50..LIM,WIN |
83811-10120 |
— | ||
|
83138
|
83138
83138-16630
Glass, Speedometer
[09.1994 -] EL51,55,NL50..LIM,WIN |
83138-16630 |
— | ||
|
83149
|
83149
83149-1G530
Plate, Meter Circuit
[09.1994 - 08.1996] EL51,55..ATM..(LIM,WIN) |
83149-1G530 |
— | ||
|
83149
|
83149
83149-1G531
Plate, Meter Circuit
[08.1996 - 08.1997] EL51,55..ATM..(LIM,WIN) |
83149-1G531 |
— | ||
|
83149
|
83149
83149-1G532
Plate, Meter Circuit
[08.1997 - 12.1997] EL51,55..ATM..(LIM,WIN) |
83149-1G532 |
— | ||
|
83149
|
83149
83861-16190
Plate, Meter Circuit
[12.1997 -] EL55..4FC..WIN |
83861-16190 |
— | ||
|
83243A
|
83243A
83243-1G210 Gauge Sub-Assy, Fuel Receiver[09.1994 - 08.1995] EL55..4FC..WIN |
83243-1G210 |
US $99.01 |
||
|
83243A
|
83243A
83243-1G211 Gauge Sub-Assy, Fuel Receiver[08.1995 - 12.1997] EL55..4FC..WIN |
83243-1G211 |
US $99.01 |
||
|
83243A
|
83243A
83882-16190 Gauge Sub-Assy, Fuel Receiver[12.1997 -] EL55..4FC..WIN |
83882-16190 |
US $99.01 |
||
|
83910
|
83910
83910-16190-B0 Clock Assy[09.1994 - 08.1996] EL5#,NL50 BLUISH GRAY,TRIM1# |
83910-16190-B0 |
US $422.24 |
||
|
83910
|
83910
83910-16190-B1 Clock Assy[08.1996 -] EL5#,NL50 GRAY,TRIM1# |
83910-16190-B1 |
US $420.78 |
||
|
83910
|
83910
83910-16190-E0 Clock Assy[12.1997 -] EL5#,NL50 OAK,TRIM4# |
83910-16190-E0 |
US $420.78 |
||
|
83970
|
83970
83970-20010 Buzzer Assy, Reverse Warning[09.1994 -] EL51,55,NL50..ATM..(LIM,WIN) |
83970-20010 |
US $38.61 |
||
|
86650G
|
86650G
86650-12030
Chime, Speed Warning
[09.1994 -] EL5#,NL50 |
86650-12030 |
— | ||
|
8316118030
|
8316118030
83161-18030 Case, Combination Meter Mirror, No.1 |
83161-18030 |
US $1.75 |
||
|
9007203001
|
9007203001
90072-03001 New Genuine Part |
90072-03001 |
US $0.87 |
||
|
9007203002
|
9007203002
90072-03002 New Genuine Part |
90072-03002 |
US $0.87 |
||
|
9015940027
|
9015940027
90159-40027 New Genuine Part |
90159-40027 |
US $0.76 |
||
|
9015950109
|
9015950109
90159-50109 New Genuine Part |
90159-50109 |
US $2.33 |
||
|
9016750028
|
9016750028
90167-50028
Direct
|
90167-50028 |
— | ||
| replacement | |||||
|
9016750028
|
9016750028
93568-55014 Screw |
93568-55014 |
from US $0.55 |
||
