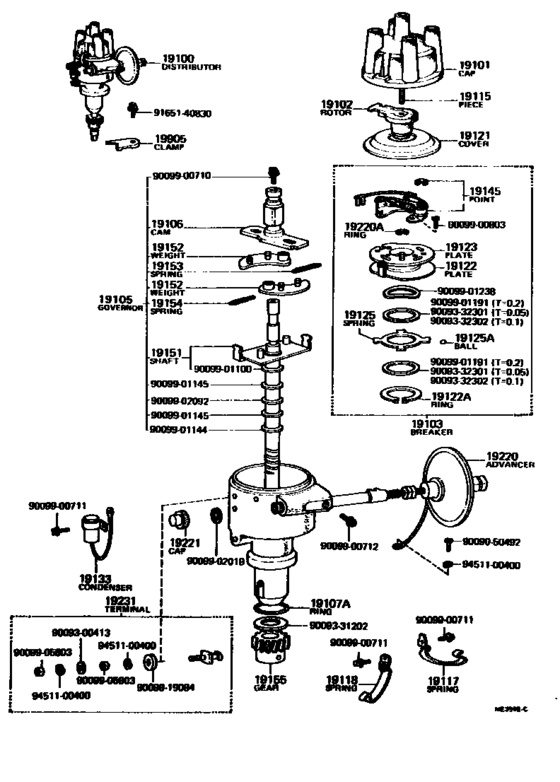

Distributor ([08.1974 - 08.1976] (7408-7608)3KC) Diagram Toyota COROLLA
- Year
- 1974 - 1977
- Sales region
- U.S.A.
- Frame
- KE30
- grade
- STD
- body
- 4DS
- ENGINE
- 3KC
- TRANSMISSION
- MTM
- Model
- COROLLA
- From
- 08.1974
- To
- 08.1977
- Gear Shift Type
- 4F
- No.of Doors
- 4D
- Vehicle Model
- Corolla
- Transmission Model
- K40
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
19100
|
19100
19100-24013
Distributor Assy
[08.1974 - 08.1976] 3KC..KE3# |
19100-24013 |
— | ||
|
19100
|
19100
19100-24140 Distributor Assy[08.1976 - 08.1977] 3KC..KE3#,50..DLX,STD |
19100-24140 |
US $359.63 |
||
| replacement | |||||
|
19100
|
19100
19100-24141
Distributor Assy
[08.1976 - 08.1977] 3KC..KE3#,50..DLX,STD |
19100-24141 |
— | ||
|
19101
|
19101
19101-21011
Cap Sub-Assy, Distributor
[08.1974 - 11.1975] 3KC..KE3# |
19101-21011 |
— | ||
| replacement | |||||
|
19101
|
19101
19101-31013
Cap Sub-Assy, Distributor
[08.1974 - 11.1975] 3KC..KE3# |
19101-31013 |
— | ||
|
19101
|
19101
19101-25070 Cap Sub-Assy, Distributor[08.1976 - 08.1979] 3KC..KE3#,50 |
19101-25070 |
US $38.44 |
||
|
19101
|
19101
19101-31013
Cap Sub-Assy, Distributor
[11.1975 - 08.1976] 3KC..KE3# |
19101-31013 |
— | ||
|
19102
|
19102
19102-22010 Rotor Sub-Assy, Distributor[08.1974 - 08.1976] 3KC..KE3# |
19102-22010 |
US $9.17 |
||
| replacement | |||||
|
19102
|
19102
19102-24121
Rotor Sub-Assy, Distributor
[08.1974 - 08.1976] 3KC..KE3# |
19102-24121 |
— | ||
|
19102
|
19102
19102-33012 Rotor Sub-Assy, Distributor[08.1976 - 08.1977] 3KC..KE3#,50; 2TC..TE3#,51 |
19102-33012 |
from US $8.31 |
||
|
19103
|
19103
19103-22011 Breaker Sub-Assy, Distributor[08.1974 - 08.1976] 3KC..KE3# |
19103-22011 |
US $52.27 |
||
|
19103
|
19103
19103-33013 Breaker Sub-Assy, Distributor[08.1976 - 08.1977] 3KC..KE3#,50..DLX,STD |
19103-33013 |
US $58.24 |
||
|
19105
|
19105
19105-24013
Governor Sub-Assy
[08.1974 - 08.1976] 3KC..KE3# |
19105-24013 |
— | ||
|
19105
|
19105
19105-24140
Governor Sub-Assy
[08.1976 - 08.1977] 3KC..KE3#,50..DLX,STD |
19105-24140 |
— | ||
|
19106
|
19106
19106-33021 Cam Sub-Assy, Distributor[08.1976 - 08.1977] 3KC..KE3#,50..DLX,STD |
19106-33021 |
US $47.90 |
||
|
19106
|
19106
19106-40021 Cam Sub-Assy, DistributorDISTRIBUTOR [08.1974 - 08.1976] 3KC..KE3# |
19106-40021 |
US $31.60 |
||
|
19107A
|
19107A
90099-14020
Ring, O, Distributor Housing
[08.1974 - 08.1977] 2TC..TE3#,51; 3KC..KE3# |
90099-14020 |
— | ||
| replacement | |||||
|
19107A
|
19107A
90099-14090 Ring, O, Distributor Housing[08.1974 - 08.1977] 2TC..TE3#,51; 3KC..KE3# |
90099-14090 |
from US $2.80 |
||
|
19115
|
19115
19115-50010
Piece, Distributor Cap, Center
[08.1974 - 08.1979] 3KC..KE3#,50; 2TC..TE3#,51 |
19115-50010 |
— | ||
|
19117
|
19117
19117-24080
Spring, Distributor Cap, A
[08.1976 - 08.1979] 3KC..KE3#,50 |
19117-24080 |
— | ||
|
19117
|
19117
19117-30030
Spring, Distributor Cap, A
[08.1974 - 08.1976] 3KC..KE3# |
19117-30030 |
— | ||
|
19118
|
19118
19117-24080
Spring, Distributor Cap, A
[08.1976 - 08.1979] 3KC..KE3#,50 |
19117-24080 |
— | ||
|
19118
|
19118
19118-30030
Spring, Distributor Cap, B
[08.1974 - 08.1976] 3KC..KE3# |
19118-30030 |
— | ||
|
19121
|
19121
19121-10010
Cover, Dust Proof
[08.1974 - 08.1976] 3KC..KE3# |
19121-10010 |
— | ||
|
19121
|
19121
19121-26230
Cover, Dust Proof
[11.1976 - 08.1977] 3KC..KE3#,50; 2TC..TE3#,51 |
19121-26230 |
— | ||
|
19121
|
19121
19121-38030
Cover, Dust Proof
[08.1976 - 11.1976] 2TC..TE3#,51; 3KC..KE3# |
19121-38030 |
— | ||
|
19122
|
19122
19122-29021
Plate, Stationary, Distributor
[08.1974 - 08.1976] 3KC..KE3# |
19122-29021 |
— | ||
|
19122
|
19122
19122-33013 Plate, Stationary, Distributor[08.1976 - 08.1977] 3KC..KE3#,50; 2TC..TE3#,51 |
19122-33013 |
US $27.08 |
||
|
19122A
|
19122A
90099-07081
Ring, Snap(For Distributor Stationary Plate)
[08.1974 - 08.1976] 3KC..KE3# |
90099-07081 |
— | ||
|
19123
|
19123
19123-41011
Plate, Distributor Breaker
[08.1974 - 08.1976] 3KC..KE3# |
19123-41011 |
— | ||
|
19125
|
19125
19125-30010
Spring(For Distributor Stationary Plate)
[08.1974 - 08.1976] 3KC..KE3# |
19125-30010 |
— | ||
|
19125A
|
19125A
90099-12003
Ball, Distributor Stationary Plate
[08.1974 - 08.1976] 3KC..KE3# |
90099-12003 |
— | ||
|
19133
|
19133
19133-10010
Condenser, Distributor
[08.1974 - 11.1975] 3KC..KE3# |
19133-10010 |
— | ||
| replacement | |||||
|
19133
|
19133
90099-52060
Condenser, Distributor
[08.1974 - 11.1975] 3KC..KE3# |
90099-52060 |
— | ||
|
19133
|
19133
90099-52060
Condenser, Distributor
[11.1975 - 08.1976] 3KC..KE3# |
90099-52060 |
— | ||
|
19133
|
19133
90099-52062
Condenser, Distributor
[08.1976 - 08.1977] 3KC..KE3#,50..DLX,STD |
90099-52062 |
— | ||
|
19145
|
19145
19145-26060 Point, Distributor[08.1974 - 01.1976] 3KC..KE3#; 2TC..TE3# |
19145-26060 |
from US $10.14 |
||
|
19151
|
19151
19151-22031 Shaft, Governor[08.1974 - 08.1976] 3KC..KE3# |
19151-22031 |
US $34.07 |
||
|
19151
|
19151
19151-24081 Shaft, Governor[08.1976 - 08.1979] 3KC..KE3#,50 |
19151-24081 |
US $44.12 |
||
|
19152
|
19152
19152-32010
Weight, Governor
[08.1974 - 08.1976] 3KC..KE3# |
19152-32010 |
— | ||
| replacement | |||||
|
19152
|
19152
19152-87104
Weight, Governor
[08.1974 - 08.1976] 3KC..KE3# |
19152-87104 |
— | ||
|
19152
|
19152
19152-45060
Weight, Governor
[01.1976 - 08.1976] 3KC..KE3#; 2TC..TE3#,51 |
19152-45060 |
— | ||
| replacement | |||||
|
19152
|
19152
19152-44170
Weight, Governor
[01.1976 - 08.1976] 3KC..KE3#; 2TC..TE3#,51 |
19152-44170 |
— | ||
|
19153
|
19153
19153-24012
Spring, Governor, A
[08.1974 - 08.1976] 3KC..KE3# |
19153-24012 |
— | ||
|
19153
|
19153
19153-24140
Spring, Governor, A
[08.1976 - 08.1977] 3KC..KE3#,50..DLX,STD |
19153-24140 |
— | ||
|
19154
|
19154
19153-24012
Spring, Governor, A
[08.1974 - 08.1976] 3KC..KE3# |
19153-24012 |
— | ||
|
19154
|
19154
19153-24140
Spring, Governor, A
[08.1976 - 08.1977] 3KC..KE3#,50..DLX,STD |
19153-24140 |
— | ||
|
19155
|
19155
19195-24020 Gear, Spiral, DistributorSPIRAL, DISTRIBUTOR [08.1974 - 08.1976] 3KC..KE3# |
19195-24020 |
US $44.55 |
||
|
19155
|
19155
19195-24081 Gear, Spiral, Distributor[08.1976 - 08.1979] 3KC..KE3#,50 |
19195-24081 |
US $44.84 |
||
|
19220
|
19220
19220-24070
Advancer Assy, Vacuum, Distributor
[08.1974 - 08.1976] 3KC..KE3# |
19220-24070 |
— | ||
|
19220
|
19220
19220-24130
Advancer Assy, Vacuum, Distributor
[08.1976 - 08.1977] 3KC..KE3#,50 |
19220-24130 |
— | ||
|
19220A
|
19220A
90099-07104
Ring, Snap(For Governor Weight)
[08.1974 - 08.1976] 3KC..KE3# |
90099-07104 |
— | ||
|
19221
|
19221
19221-30030
Cap, Adjuster, Distributor
[08.1974 - 08.1976] 2TC..TE3#,51; 3KC..KE3# |
19221-30030 |
— | ||
| replacement | |||||
|
19221
|
19221
19221-60040
Cap, Adjuster, Distributor
[08.1974 - 08.1976] 2TC..TE3#,51; 3KC..KE3# |
19221-60040 |
— | ||
|
19231
|
19231
19231-22010
Terminal, Distributor
[08.1974 - 08.1976] 3KC..KE3# |
19231-22010 |
— | ||
| replacement | |||||
|
19231
|
19231
19231-45020 Terminal, DistributorDISTRIBUTOR [08.1974 - 08.1976] 3KC..KE3# |
19231-45020 |
US $2.10 |
||
|
19231
|
19231
19231-24140
Terminal, Distributor
[08.1976 - 08.1977] 3KC..KE3#,50..DLX,STD |
19231-24140 |
— | ||
|
19905
|
19905
19955-24010
Clamp Sub-Assy, Distributor
[01.1976 - 08.1979] 3KC..KE3#,50 |
19955-24010 |
— | ||
|
19905
|
19905
19955-33010
Clamp Sub-Assy, Distributor
[08.1974 - 01.1976] 3KC..KE3# |
19955-33010 |
— | ||
|
9009050492
|
9009050492
90090-50492
New Genuine Part
|
90090-50492 |
— | ||
|
9009300413
|
9009300413
90093-00413
New Genuine Part
|
90093-00413 |
— | ||
|
9009331202
|
9009331202
90093-31202
Washer, No.2(For Governor Shaft Thrust)
|
90093-31202 |
— | ||
|
9009332301
|
9009332301
90093-32301
New Genuine Part
|
90093-32301 |
— | ||
|
9009332302
|
9009332302
90093-32302
New Genuine Part
|
90093-32302 |
— | ||
|
9009900710
|
9009900710
90099-00710
New Genuine Part
|
90099-00710 |
— | ||
|
9009900711
|
9009900711
90099-00711
New Genuine Part
|
90099-00711 |
— | ||
|
9009900712
|
9009900712
90099-00712
New Genuine Part
|
90099-00712 |
— | ||
|
9009900803
|
9009900803
90099-00803
New Genuine Part
|
90099-00803 |
— | ||
|
9009901100
|
9009901100
90099-01100
New Genuine Part
|
90099-01100 |
— | ||
|
9009901144
|
9009901144
90099-01144
Washer, No.2(For Governor Shaft Thrust)
|
90099-01144 |
— | ||
| replacement | |||||
|
9009901144
|
9009901144
90093-31204
Washer, No.2(For Governor Shaft Thrust)
|
90093-31204 |
— | ||
|
9009901145
|
9009901145
90099-01145
Washer, No.2(For Governor Shaft Thrust)
|
90099-01145 |
— | ||
| replacement | |||||
|
9009901145
|
9009901145
90093-31202
Washer, No.2(For Governor Shaft Thrust)
|
90093-31202 |
— | ||
|
9009901191
|
9009901191
90099-01191
New Genuine Part
|
90099-01191 |
— | ||
|
9009901238
|
9009901238
90099-01238
New Genuine Part
|
90099-01238 |
— | ||
|
9009902019
|
9009902019
90099-02019
New Genuine Part
|
90099-02019 |
— | ||
|
9009902092
|
9009902092
90099-02092
Washer(For Governor Shaft Thrust)
|
90099-02092 |
— | ||
| replacement | |||||
|
9009902092
|
9009902092
90099-02093
Washer(For Governor Shaft Thrust)
|
90099-02093 |
— | ||
|
9009905803
|
9009905803
90099-05803
New Genuine Part
|
90099-05803 |
— | ||
|
9009919084
|
9009919084
90099-19084
New Genuine Part
|
90099-19084 |
— | ||
|
9165140830
|
9165140830
91651-40830 Bolt, Radiator Side Support Plate |
91651-40830 |
US $1.31 |
||
|
9451100400
|
9451100400
94511-00400 WASHERSPRING |
94511-00400 |
US $3.20 |
||
